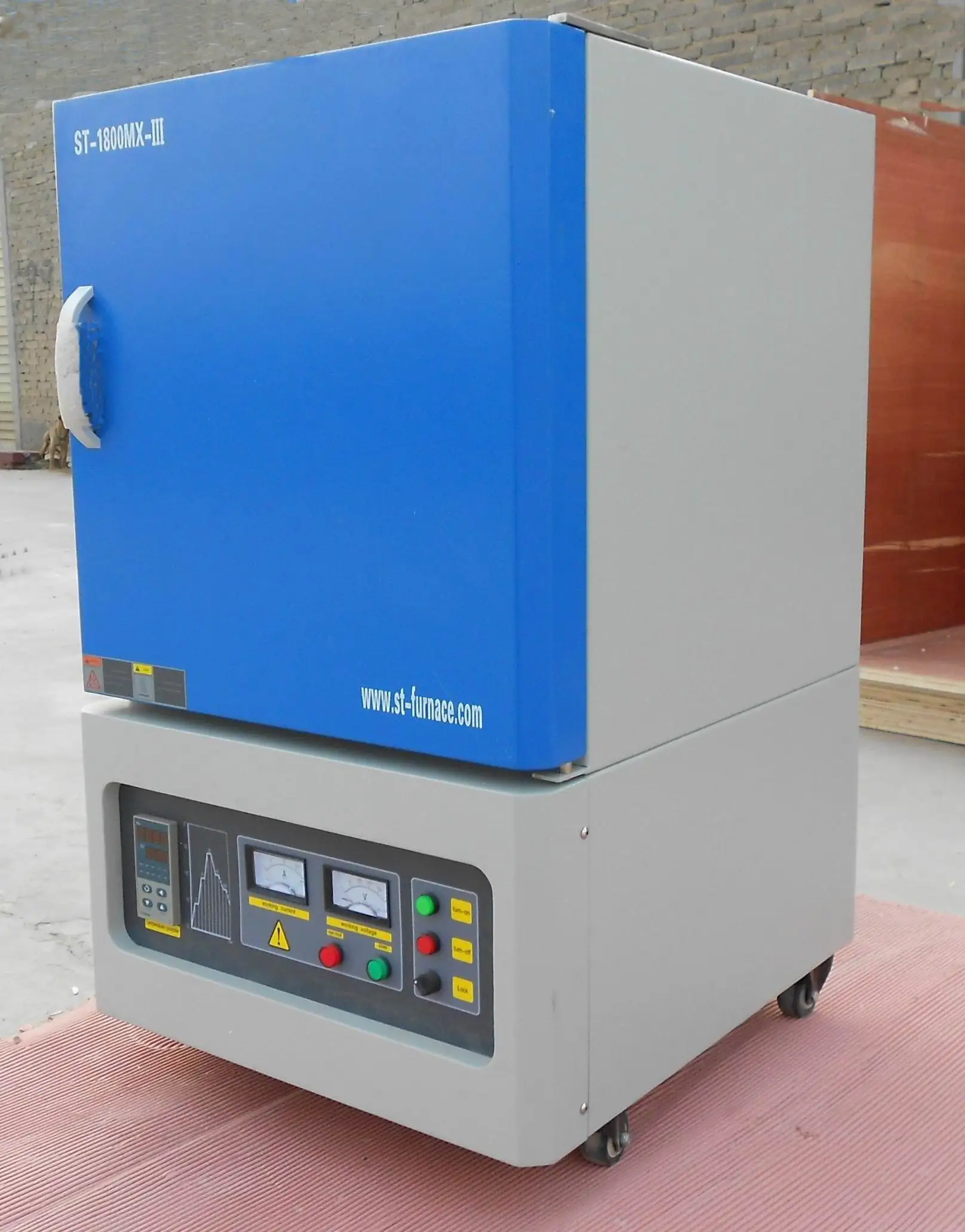

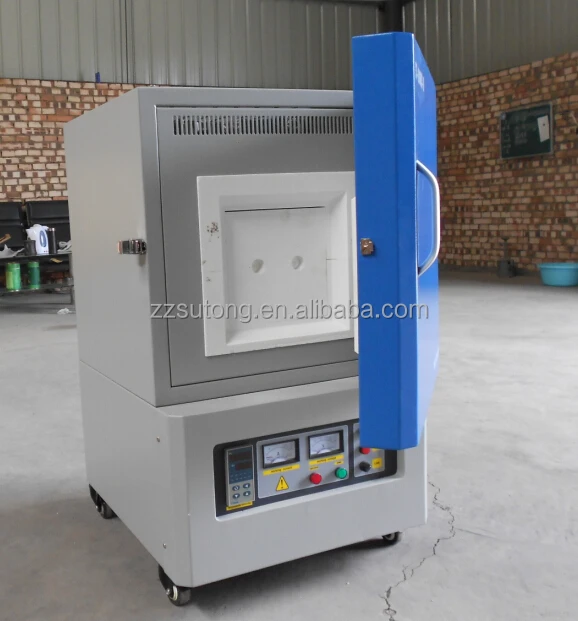

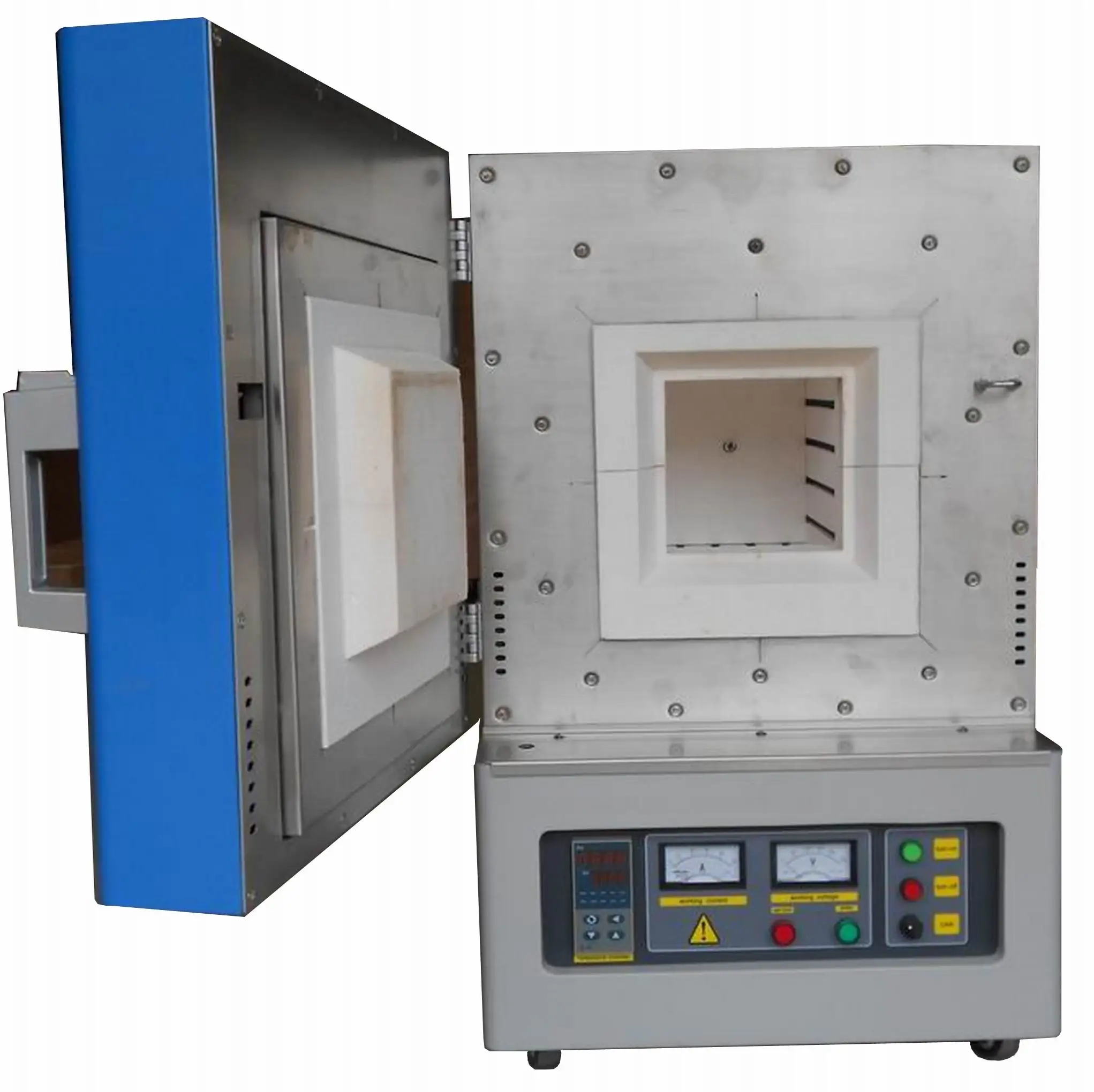

1200C laboratory muffle furnace with 200x200x300mm chamber size
- Category: >>>
- Supplier: Zhengzhou Sutong Electric Equipment Co. Ltd.
Share on (590462483):
Product Overview
Description
Hot selling 1200C laboratory muffle furnace with 200x200x300mm chamber size
Product Description
A. ST-1200RX Box type Muffle Furnace feature
b). Muffle furnace chamber of the use of advanced lightweight aluminum oxide material molding, traditional muffle furnace compared the weight, reduce 40% . Heat preservation effect is good,temperature increase speed increased a times, save energy. Furnace service life by four times.
c). Use double deck ventilation cooling structure, muffle furnace work in high temperature, and the furnace shell surface keep low temperature, avoid scald the operating personnel, safety is greatly increased.
d). The 30 period of programmable intelligent digital temperature controller control temperature, high degree of automation, convenient operation.
e). Can be installed computer communication module and RS485 communication interface, to realize the remote control.
B. ST-1200RX Box type Muffle Furnace application
ST-1200RX Box type muffle furnace mainly used in chemical analysis, physical decomposition and synthesis,superhard materials (such as ceramic), Rare and precious metal smelting and purification,metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.
C. Samples of the main performance indexes:
| Product name and model | ST-1200RX-TP Box Type Muffle Furnace |
| Chamber size(WxHxD) | 200x200x300mm |
| Chamber insulation material | lightweight aluminum oxide ceramic fiber |
| Maximum Temperature | 1200°C (working time not more than 3 hours) |
| Working Temperature | 400-1100 °c (adjustable, continuous working) |
| Temperature controller way | Based on the microprocessor 30 segments programmable and PID auto control |
| Heating Rate | 1-20℃/min (adjustable) |
| Temperature accuracy | ±1℃ |
| Sensor of measuring Temp | K type thermocouple |
| Heating elements | Fe/Cr/Al Alloy resistance wire |
| Furnace shell structure | Double ventilation cooling structure |

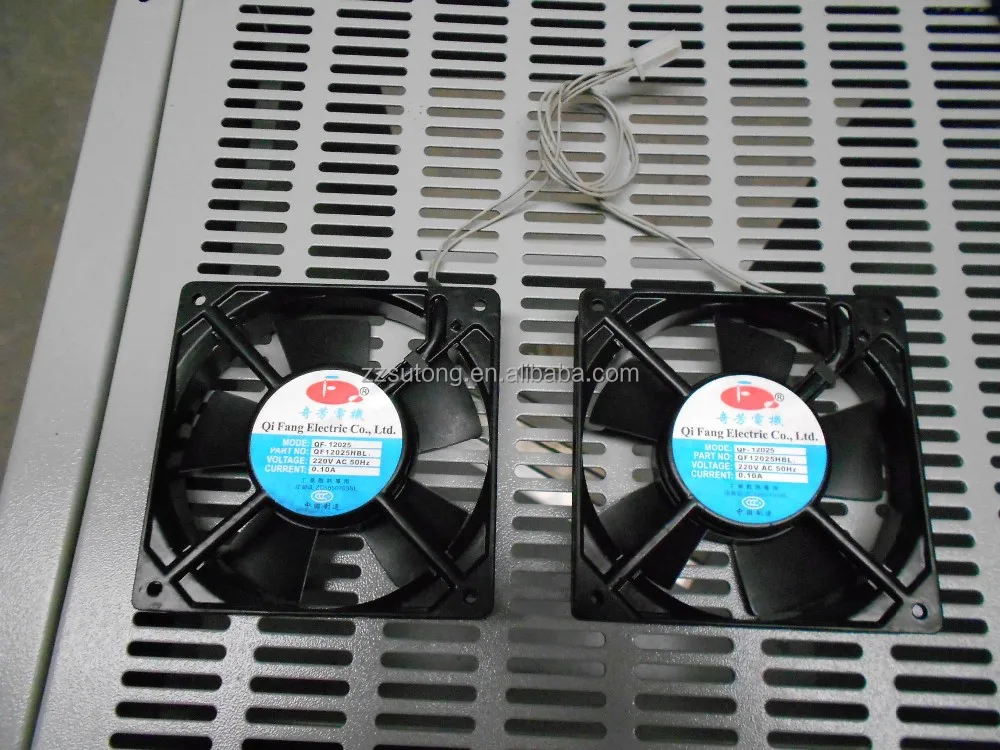

| Cooling way | Fan cooling |
| Temperature display mode | Four Figure Liquid Crystal Display |
D. ST-1200RX box type muffle furnace conventional model
| model | chamber size (W×H×D mm) | Rated power | Work power | Furnace door open way |
| ST-1200RXM | 100×100×100 | 1KW | AC 1-phase | front to right open or left open |
| ST-1200RX-1 | 150×150×150 | 2.5KW | front to Up open or down open | |
| ST-1200RX-2 | 150×150×200 | 2.9KW | front to right open or down open | |
| ST-1200RX-3 | 200×200×200 | 4KW | front to right open or down open | |
| ST-1200RX-4 | 200x200x300 | 5KW | front to right open or left open | |
| ST-1200RX-5 | 250x250x300 | 7.8KW | front to right open or left open | |
| ST-1200RX-6 | 300x300x400 | 12KW | AC 3 -phase | front to right open or left open |
| ST-1200RX-7 | 350x350x400 | 15KW | front to right open or left open | |
| ST-1200RX-8 | 400x400x400 | 18KW | front to right open or left open | |
| ST-1200RX-9 | 500x500x500 | 27KW | front to right open or left open | |
| ST-1200RX-10 | 600x600x600 | 39KW | front to right open or left open |

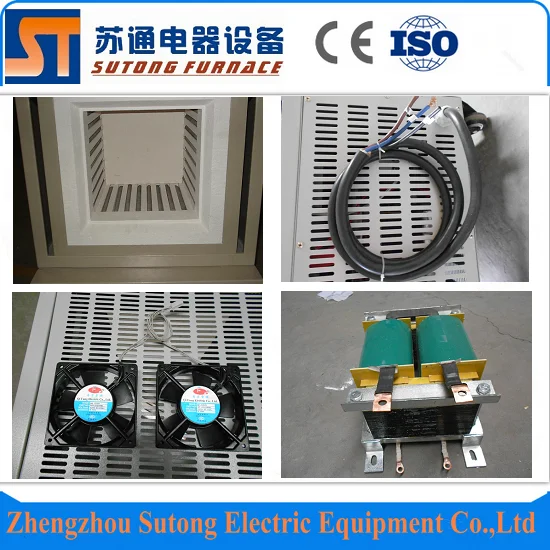

E. Furnace with accessories
Packaging & Shipping
Company Information
Company profile and history
FAQ
1: Are you the Manufacturer or a trading company?
We are a professional electric furnace manufacturer with a history of 26 years. Our factory is located in Zhengzhou City, Henan Province.
2: Why should we choose Sutong?How do you ensure the quality?
We have professional research staff and strict in Production,inspection and debugging and package process.We always insist on providing customers with good pre-sales, in-sales and after-sales services. We have professional QC person to check the quality of the equipment. After manufacturing, all equipment will be carefully tested and debugged before shipment.
3: Which kind of energy power do you supply?
Electricity or Gas.
4: How can I trust your company and furnace?
Our factory have been in producing electric furnace for 26 years ,our electric furnace have exported to Europe,America,East Asia,South Asia, the middle East Asia, Africa etc. areas and have a good feedback with no complaints. There are many customers who repurchase the furnace to us . Among them, a customer from Russia has established an eight-year cooperative relationship with us.Our company is committed to establishing long-term friendly cooperative relations with domestic and foreign customers on the basis of mutual benefit. We continue to provide our customers with high-quality electric furnaces and good pre-sales, in-sales and after-sales services.
5: How do you control the quality?
We have a professional QC team to ensure that the quality of each electric furnace reaches the qualified standard before leaving the factory. At the same time, we will take photos and shoot video for you if you need.
6: Which countries did you exported to ?
We have exported our electric furnaces to more than 30 countries,such as Russia, the United States, the United Kingdom,Kazakhstan,Chile, Uzbekistan, Vietnam, Rwanda, Nigeria,Tanzania, Austria, France, etc. Welcome customers to visit our factory.
7: How about your after sales service?
We will provide detailed installation guides and product manuals. After the customer gets the electric furnace, we will also guide the customer to install it through video. If the customer needs, we can also send engineers to the installation site of overseas customers to provide installation and commissioning training services until the equipment is running normally.
