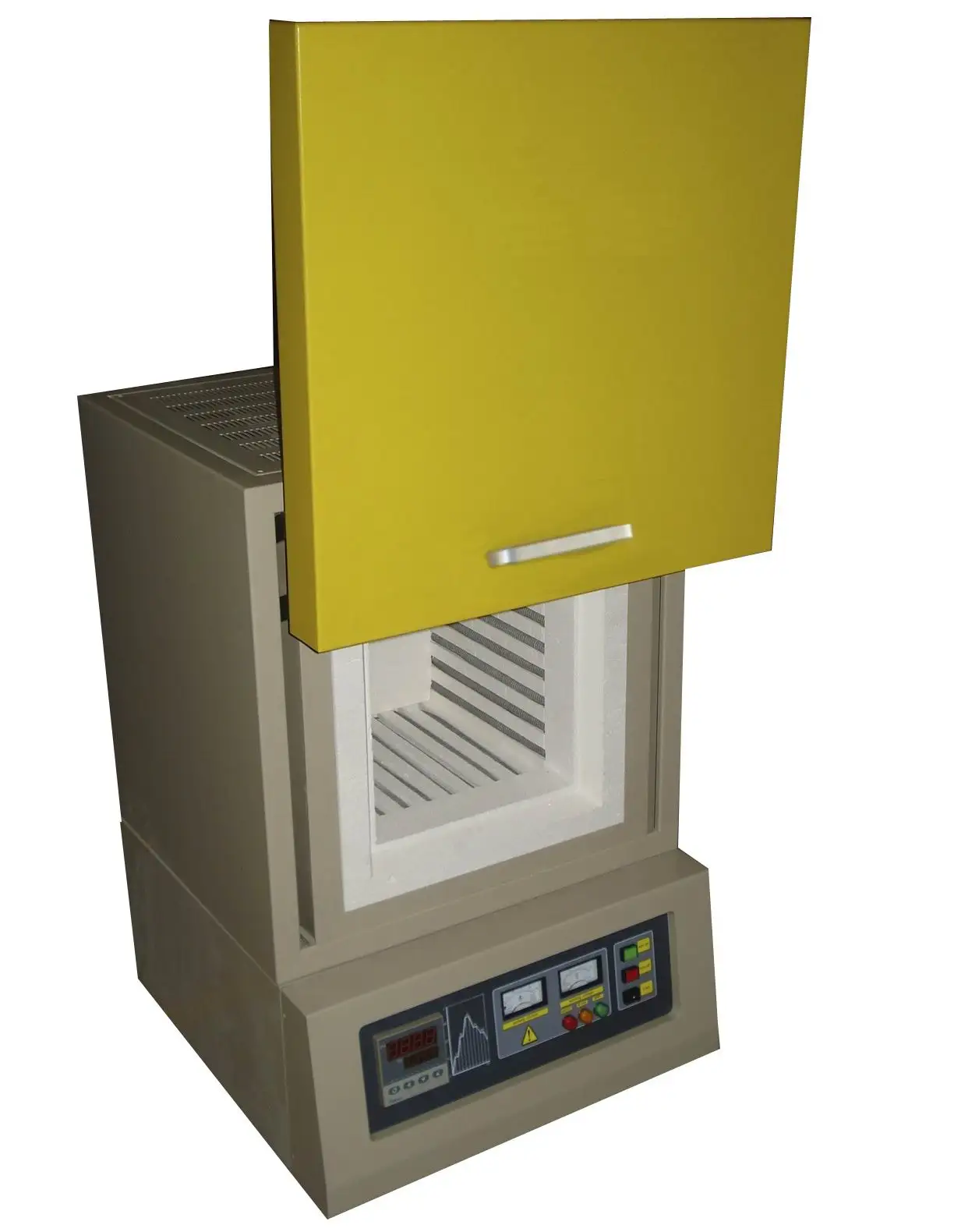

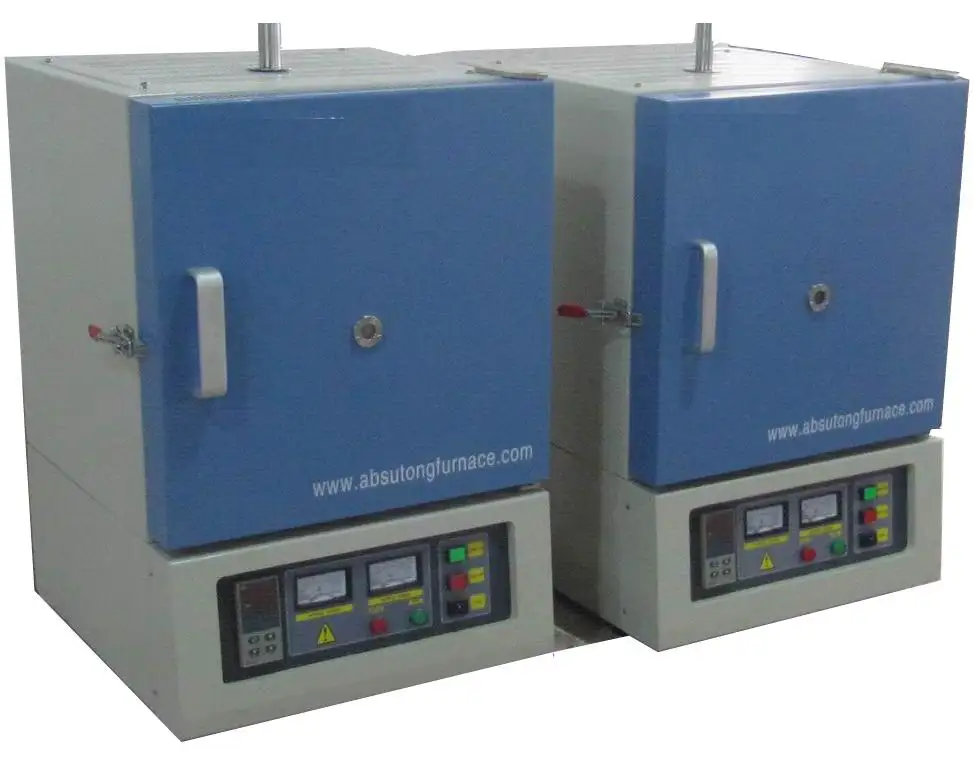

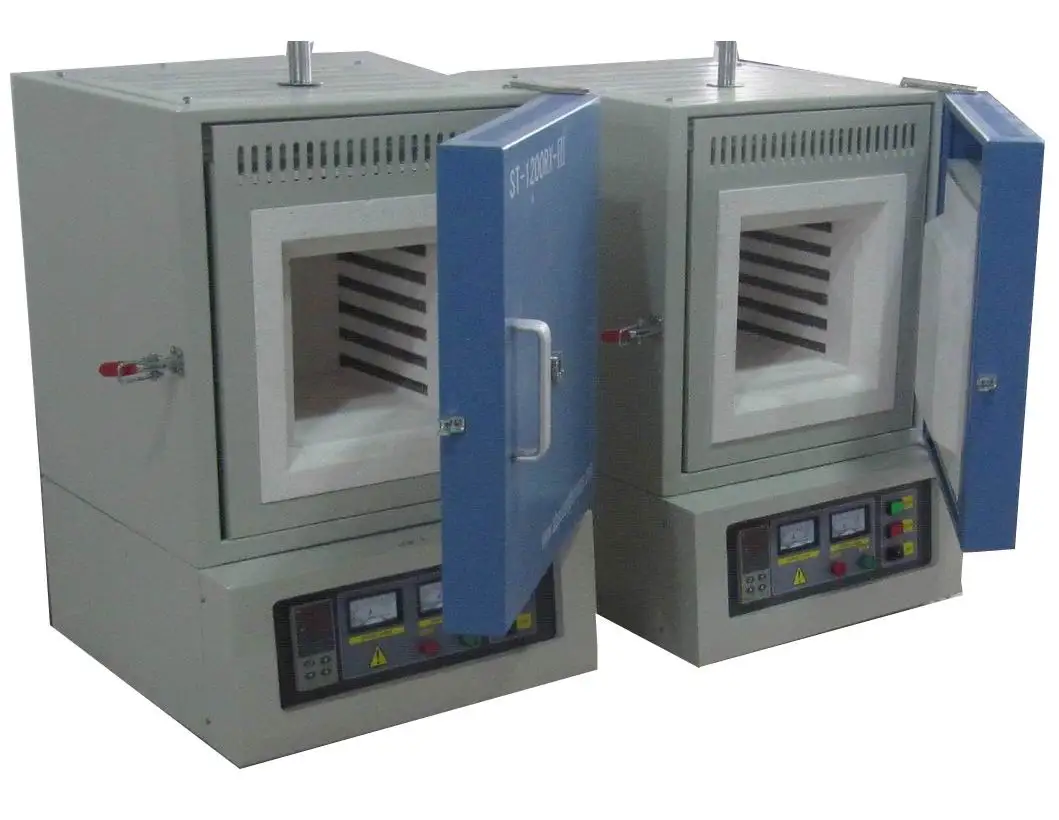

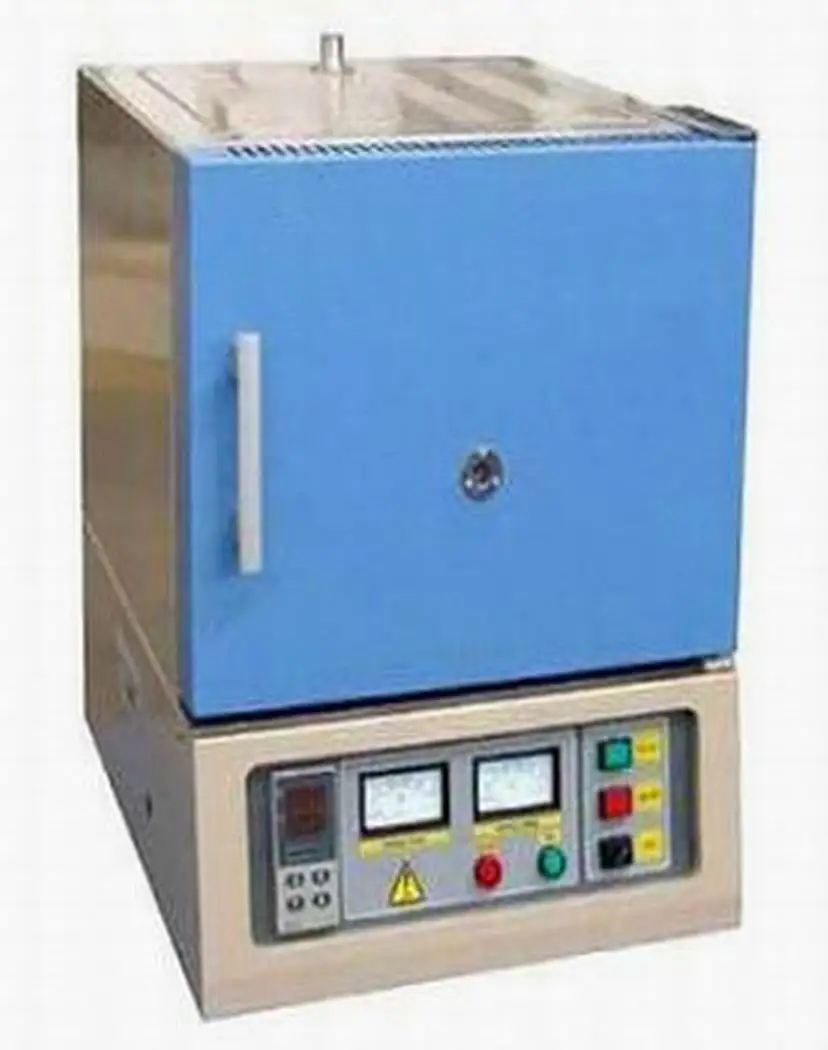

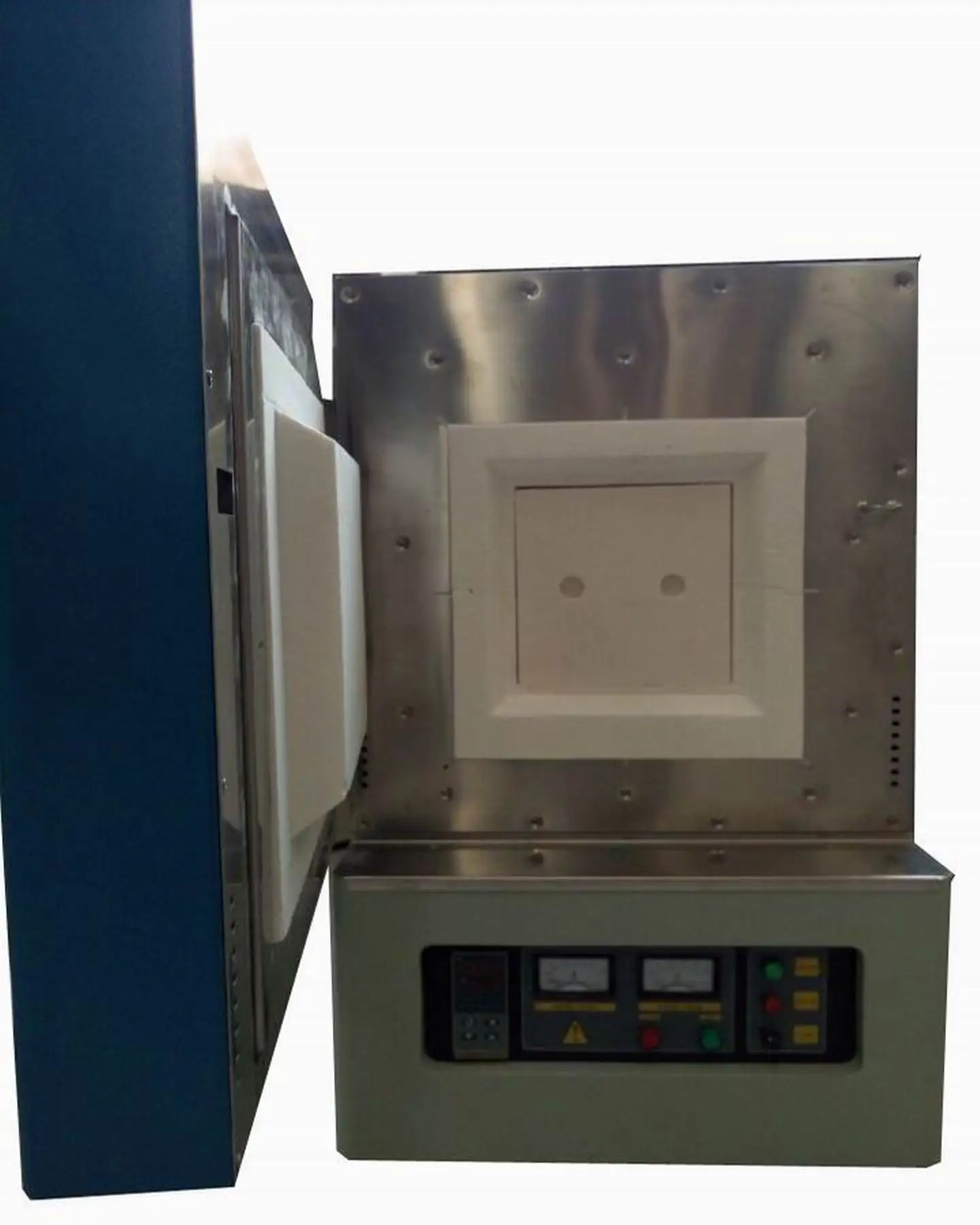

1200C laboratory high temperature box electric furnace

Product Overview

Description

1200C high temperature box type electric laboratory furnace



A. ST-1200RX Box type Muffle Furnace feature

a). ST-1200RX box type muffle furnace, heating element embedded in the chamber wall. When Muffle furnace heating, can ensure uniform temperature in the furnace.

 b). Muffle furnace chamber of the use of advanced lightweight aluminum oxide material molding, traditional muffle furnace compared the weight, reduce 40%. Heat preservation effect is good, temperature increase speed increased a times, save energy. Furnace service life by four times.

 c). Use double deck ventilation cooling structure, muffle furnace work in high temperature, and the furnace shell surface keep low temperature, avoid scald the operating personnel, safety is greatly increased.



B. Samples of the main performance indexes

Product name and model	ST-1200RX-6 Box Type Muffle Furnace
Chamber size(WxHxD)	300x300x400mm
Chamber insulation material	lightweight aluminum oxide ceramic fiber
Maximum Temperature	1200°C (< 3 hours)
Working Temperature	400-1100 °c (adjustable, continuous working)
Temperature controller way	Based on the microprocessor 30 segments programmable and PID auto control
Heating Rate	1-20℃ ( adjustable)
Temperature accuracy	±1℃
Sensor of measuring Temp	K type thermocouple
Heating elements	Fe/Cr/Al Alloy resistance wire
Furnace shell structure	Double ventilation cooling structure
Cooling way	Fan cooling
Temperature display mode	Four Figure Liquid Crystal Display
Working power	AC 1-phase, 110-240V, 50/60Hz
Rated power	7.5 KW



C. ST-1200RX box type muffle furnace conventional model

model	chamber size (W×H×D mm)	Rated power	Work power	Furnace door open way
ST-1200RXM	100×100×100	1KW	AC,1-phase	front to right open or left open
ST-1200RX-1	150×150×150	2.5KW		front to Up open or down open
ST-1200RX-2	150×150×200	2.9KW		front to right open or down open
ST-1200RX-3	200×200×200	4KW		front to right open or down open
ST-1200RX-4	200x200x300	5KW		front to right open or left open
ST-1200RX-5	250x250x300	7.8KW		front to right open or left open
ST-1200RX-6	300x300x400	12KW	AC,3 -phase	front to right open or left open
ST-1200RX-7	350x350x400	15KW		front to right open or left open
ST-1200RX-8	400x400x400	18KW		front to right open or left open
ST-1200RX-9	500x500x500	27KW		front to right open or left open
ST-1200RX-10	600x600x600	39KW		front to right open or left open



D. Furnace with accessories
