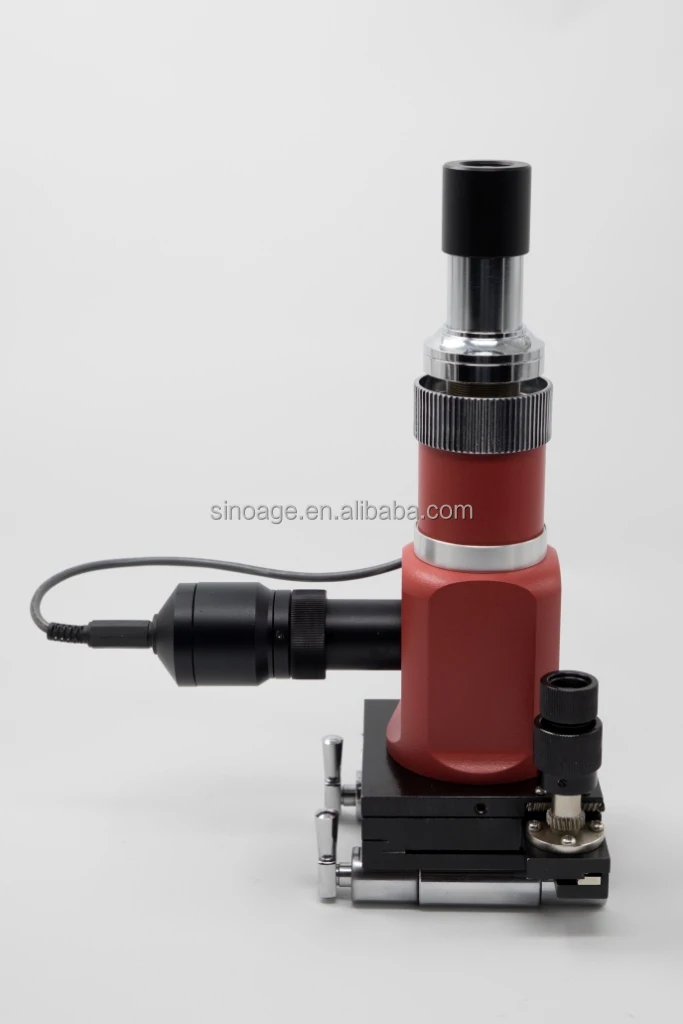

Metallurgical Microscope SM500



Introduction:



SM 500 is a self-contained portable metallurgical microscope ideally used for inspecting metallography of metals in laboratory or in-situ. With fully handheld design and unique magnetic stand, SM 500 can be attracted directly against the surface of ferrous metal at any angles for non-destructive examination on flatness, curvature as well as other complicated surface. SM 500 also can be used with digital camera or CCD image process system to download metallurgical image on to PC for data transfer, analysis, storage and printout.



Key Features:



• Handheld design makes inspecting metallograph easy in-situ.

• Magnetic stand can be attracted against ferrous metals at any angles.

• X,Y slideway move makes inspection friendly

• More convenient for photography

• Non destructively examination

Specimen:

• Microscope main: 100-500x (extendable 1500x)

• Eyepiece (largeview): 10x,12.5x (extendable15x)

• Objective: 10x, 40x (extendable 100x)

• Photo Eyepiece: 15x

• Slideway: X-direction 15mm, Y-direction12mm

• Camera: 35mm

• Digital Camera

• Illuminator (halide): 6V 15W

• Power supply: 230Vac 50/60Hz

• Stand: On-off magnetic stand

• Size: 210x160x 95mm

• Weight: 2.5kg

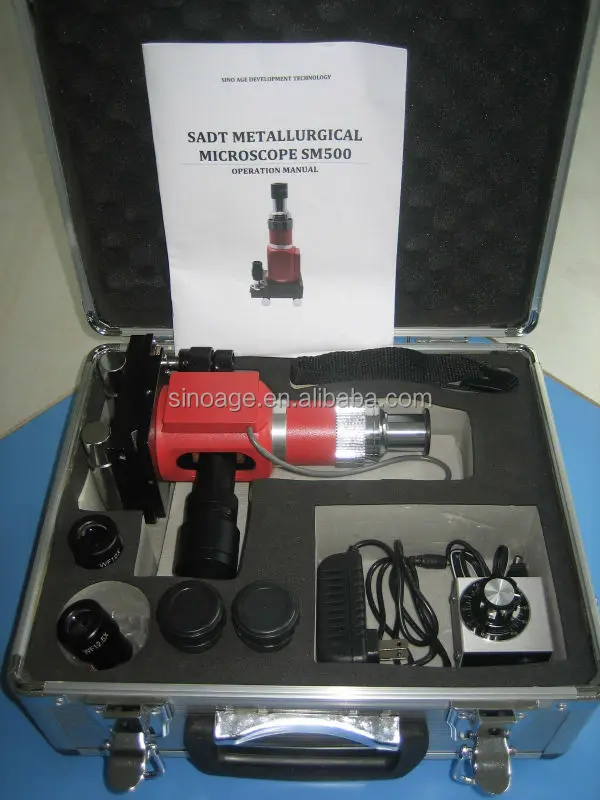

Standard Package:



SM500 main body 100-500x 1
Eyepiece: 10x 1
Eyepiece: 12.5x 1
Objective: 10x 1
Objective: 40x 1
Slideway: x-direction 15mm,
y-direction 12mm 1
On-off magnetic stand 1
LED Illuminator 1
Power adaptor 1
Operation manual 1
Carrying case 1
