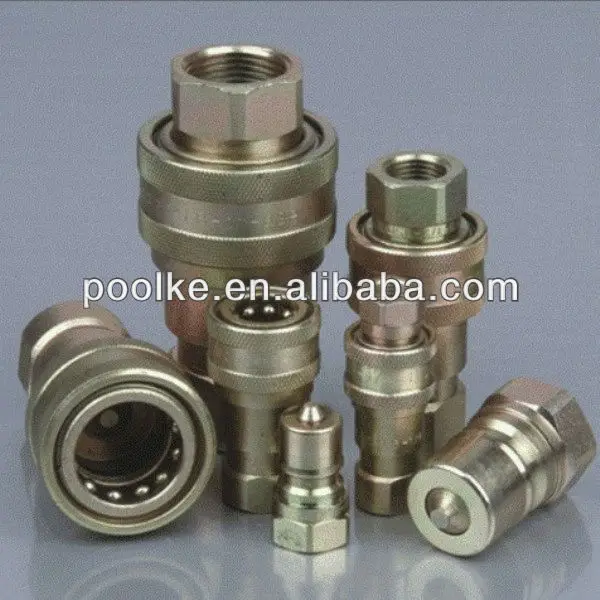

Гидравлические быстроразъемные муфты ISO B

Product Overview

Description

ISO7241-1(ISO B) Hydraulic Quick Coupling

Material:

Socket: Zinc Plated Steel

Nipple: Zinc Plated Steel



Features:

1) Meets the requirements of ISO7241-1-B.

2) Ball Locking mechanism. Couplers have a double O-ring seal for redundancy in low pressure adn vacuum applications.

3)Captive valve seal assures poppet sealing. The valves seal is positively captured by the metal popet to minimize seal washout or damage frow high velcity fluid.

4)The durable-ball-locking mechanism ensures a reliable connection everytime.

5) Sockets and nipples are precision machined from solid bar stock.



Interchange:

Nitto SP, Parker 60, Hansen Bx-75, Foster Hx-Series, Faster HNV, Cejn X75









PART NO.	ISO	Thread	L	L1	L2	L3	D1	D2	CH1	CH2
KIS-B-G01SP	5	G1/8	58.5	48	31	20.5	24	10.9	17	17
KIS-B-G02SP	6.3	G1/4	70	57	38	20	28	14.2	19	19
KIS-B-G03SP	10	G3/8	80	60	43	23	35	19.1	24	24
KIS-B-G04SP	12.5	G1/2	95	75	48.5	28.5	45	23.5	30	30
KIS-B-G06SP	20	G3/4	115	93	57	35	55	31.4	36	36
KIS-B-G08SP	25	G1	130	106	65.5	41.5	64	37.8	41	41
KIS-B-G10SP	32.5	G1-1/4	180	114	108	42	76	44.5	60	60
KIS-B-G12SP	40	G1-1/2	200	122	120	42	76	44.5	67	67
KIS-B-G16SP	50	G2	220	140	140	60	100	63.2	95	95



Main Market: North America, Australia, Europe, Africa and Middle East

MOQ: 100 Each Product

Manufacturing Capacity: 1,000,000 Pieces/Month

Lead Time:20-45Days

Port:Ningbo and Shanghai
