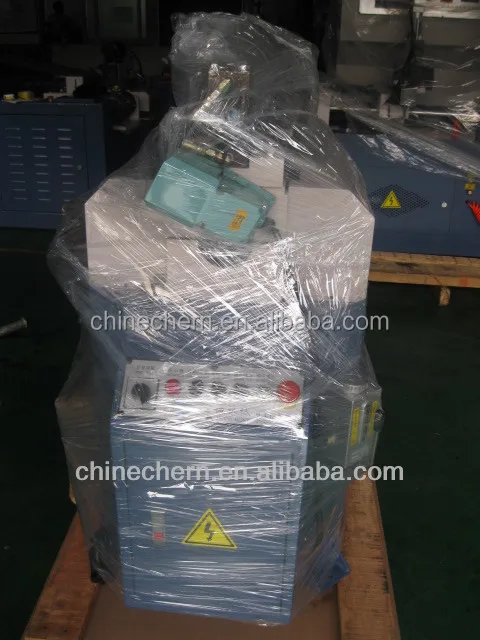

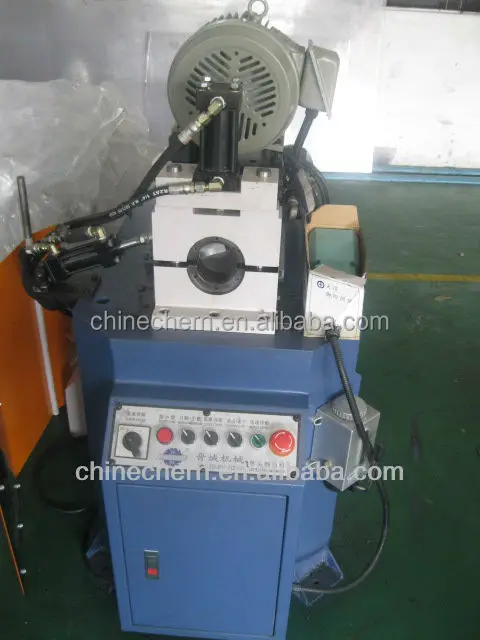

Single head tube chamfering machine

Product Overview

Description

 Single-head  chamfering machine

 Features:

• Die clamper and cutter head are special designed,Interior and exterior angle chamfering of tube and rod,Milling the end finish at one time.
• rotate speed can be adjust according to the change of belt pulley, suit for all kinds of metal material pipes
• It is easy to adjust the cutting feeding speed

• Features:

  1: Semi-automatic chamfering machine;
  2: Feeding tube by manual, blade forward and back automatically, due to the high speed, the production capacity increase double more;

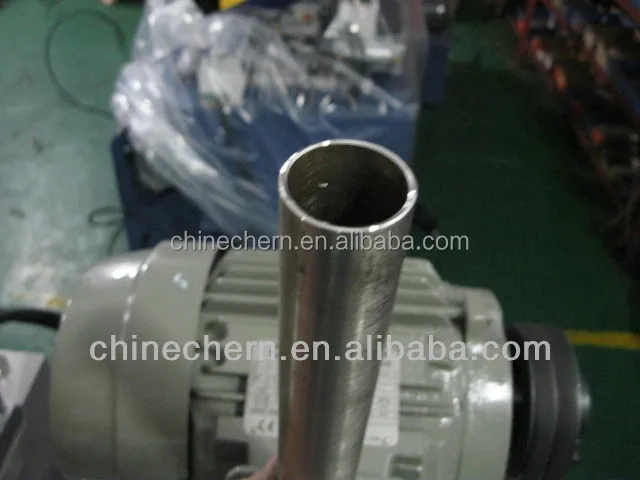

  3: This machine is good at chamfering inner and out angle of circular tube or circular rod, chamfering and debarring can be finished at one time in fast speed and accuracy;
  4: Clamping device and knife holder are designed precision and accurately, which ensure the center line of workpiece and knife holder keep at the same level;
  5: Knife holder as designed specially and the blade is normalizing which enable adjusting knife simply.

  Main technical parameter:



Model	JC-60SA(Pneumatic)

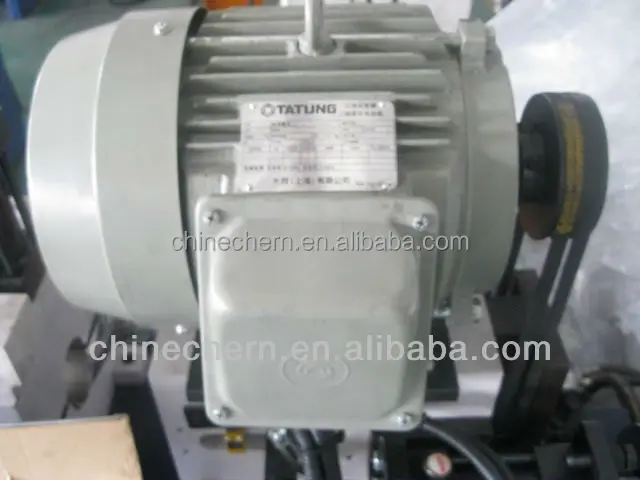

Host motor	2HP/4P
Speed (RPM)	90/600 2000/3560
Air pressure	Mpa6-8kg/cm²,130m1/min
Standard cutter(Diameter)	12mm-60mm
Processing range(Inner,outer and tube end surface)	Pipe diameter: 3.2mm-60mm    Bar  outer:6mm-38mm
Suitable     Material	Steel pipe,Iron pipe,Stainless steel pipe,Aluminium pipe,Copper pipe
Machine dimension(W*D*H)	545×655×1080mm
Weight(KG)	220KGS
Accessory	1.one set clamps  2. one tool box 3.One user manual
