1/2" AISI304 stainless steel toilet flexible hose/pipe/tube water hose

Product Overview

Description

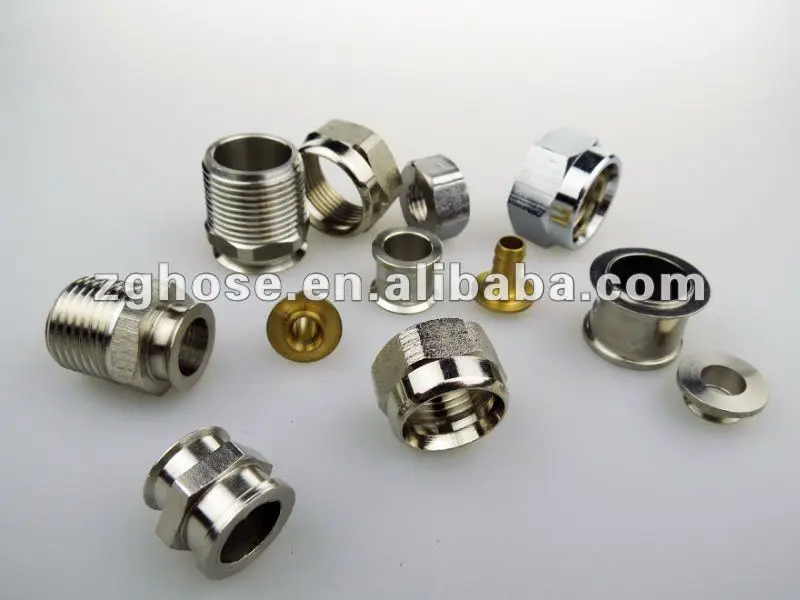

Nut material:Brass nickel plated nuts

stainless steel toilet flexible hose/pipe/tube water hose have dense corrugations, 100% extendable. They have high performance and are suitable for connecting all gas equipments. It can use in gas, liquefied gas, natural gas, oil, water etc.



1)  Size: 1/2"  stainless steel toilet flexible hose/pipe/tube water hose

2)  PN: 0.7 M Pa

3)  Comply Standard: CE EN14800:2007   ISO9001:2008

4)  Hose material: AISI304+male+joint with Brass nickel plated nuts

5)  Wall Thickness: 0.2mm
6)  Working Pressure: 6 Bar
     Burst Pressure: 100 Bar
7)  Working Tmperature: -40_120°c

8)  Bend Times: 200
9)  Length: 150_2000mm customized
10)  Connection: TIG
11)  Ripple: Dense annularly corrugation

Features
1)  connects firmly
2)  corrosion resistant
3)  don't jam gas
4)  has long performance life
5)  high flexibility
6)  can be bent freely
7)  reliable



technical parameters
DN(mm)	Fitting Size(In)	φA(mm) Outside Diameter	φD(mm) Inside Diameter	(mm) Tolerance
DN10	1/2	Φ12.0	Φ8.0	±0.2
DN11	1/2	Φ13.5	Φ10.0	±0.2
	1/2	Φ16.0	Φ10.5	±0.2
DN12	1/2	Φ17.0	Φ12.0	±0.2
DN13	1/2	Φ18.0	Φ12.5	±0.2
DN16	1/2	Φ21.0	Φ16.0	±0.2
DN20	3/4	Φ26.0	Φ19.0	±0.3
DN25	1	Φ32.0	Φ25.0	±0.3
DN32	11/4	Φ42.0	Φ32.0	±0.3
DN40	11/2	Φ50.0	Φ40.0	±0.5
DN50	2	Φ61.0	Φ50.0	±0.5
