DEUTZ ENGINE F8L413F

Product Overview

Description

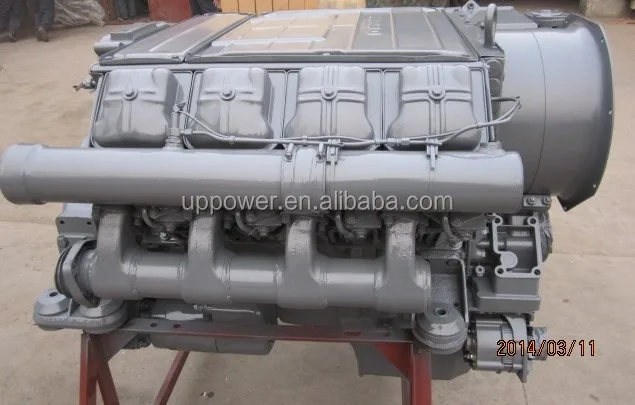

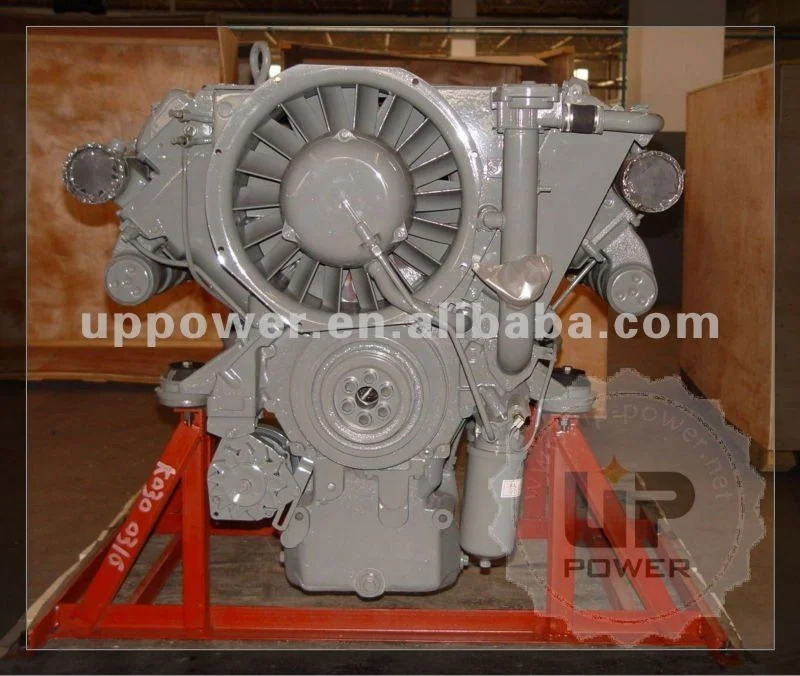

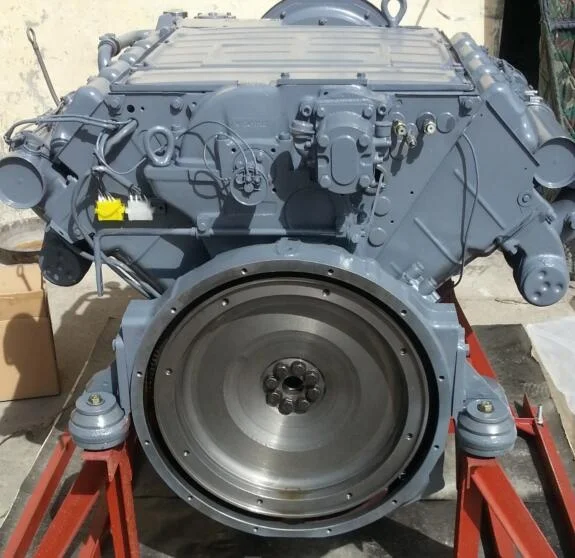

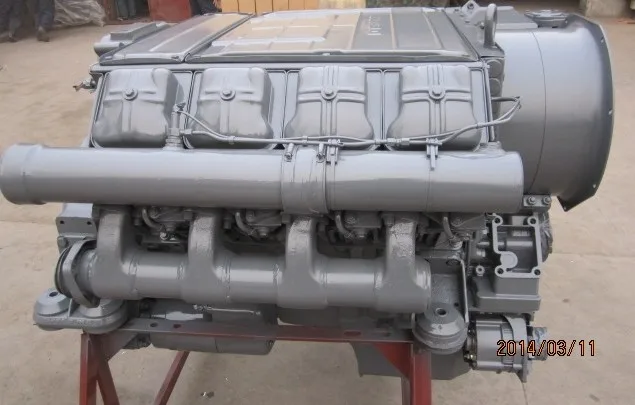

 F8L413F DEUTZ DIESEL ENGINE



We can supply Deutz Air-cooled Diesel engine with high quality. B/F/L912/913/413/C/W, FM1013/1015/2012

Delivery with warranty.





Deutz B/F/L912/913/C series air-cooling diesel engine
Engine Type	Cyl No.and Ar- rangement	Bore/Stroke (mm)	Displacement (L)	Air-intake way	Power/Rev  (kw/rpm)
F2L912	2-cylinder in-line	100/120	1.88	Naturally intake	14/1500	17/1800	20/2300
F3L912	3-cylinder in-line	100/120	2.828	Naturally intake	24/1500	29/1800	36/2300	38/2500
F4L912	4-cylinder in-line	100/120	3.77	Naturally intake	32/1500	38/1800	46/2300	51/2500
F4L912T	4-cylinder in-line	100/120	3.77	Turbo charged	41/1500	48/1800	52/2000
F4L913	4-cylinder in-line	102/125	4.086	Naturally intake	34/1500	40/1800	50/2300	56/2500
BF4L913	4-cylinder in-line	102/125	4.086	Turbo charged	47/1500	55/1800	66/2300	78/2500
F6L912	6-cylinder in-line	100/120	5.655	Naturally intake	48/1500	60/1800	74/2300	78/2500
F6L912T	6-cylinder in-line	100/120	5.655	Turbo charged	61/1500	72/1800	81/2300	85/2500
F6L913	6-cylinder in-line	102/125	6.128	Naturally intake	51/1500	65/1800	79/2300	85/2500
BF6L913	6-cylinder in-line	102/125	6.128	Turbo charged	74/1500	88/1800	112/2300	118/2500
BF6L913C	6-cylinder in-line	102/125	6.128	Turbo charged cooling	84/1500	105/1800	125/2300	141/2500
F3L912W	3-cylinder in-line	100/120	2.828	Naturally intake	29/2150	31/2300	33/2500
F4L912W	4-cylinder in-line	100/120	3.77	Naturally intake	39/2150	42/2300	44/2500
F6L912W	6-cylinder in-line	100/120	5.655	Naturally intake	60/2150	63/2300	66/2500



DEUTZ ENGINE	BF4M2012		BF6M2012	BF4M1013		BF6M1013
Diesel engine	BF4M2012	BF4M2012 C	BF6M2012 C	BF4M1013 EC	BF4M1013 FC	BF6M1013EC	BF6M1013ECP	BF6M1013FC
Aspiration	charge air cooling
Displacement(L)	4.764		6.057	4.764		7.146
Bore (mm) X Stroke (mm)	101×126			108×130
Power (kW)/Speed(r/min)	74.9/2500	103/2500	155/2500	118/2300	129/2300	174/2300	195/2300	223/2300
Torque (N•m)/Speed(r/min)	390/1500	493/1500	743/1500	577/1400	700/1700	854/1400	954/1400	1050/1400
Fuel Injection System	Unit pump(electronic governor optional)
Fuel consume rate (g/kW•h)	≤2 1 5
Noise dB(A)	≤9 4		≤9 6	≤9 8		≤9 8
Emission level	C h i n a 2/ Ti e r 2		C h i n a 2/ Ti e r 2	C h i n a 2/ Ti e r 2		C h i n a 2/ Ti e r 2
Weight (kg)	3 8 0		4 9 5	4 3 2		5 7 2
Dimensions (mm)	8 1 3×6 0 0×8 3 2		9 4 4×5 9 5×9 0 7	9 6 5×6 0 0×1 0 3 5		1 2 0 0×6 0 0×1 0 3 5
