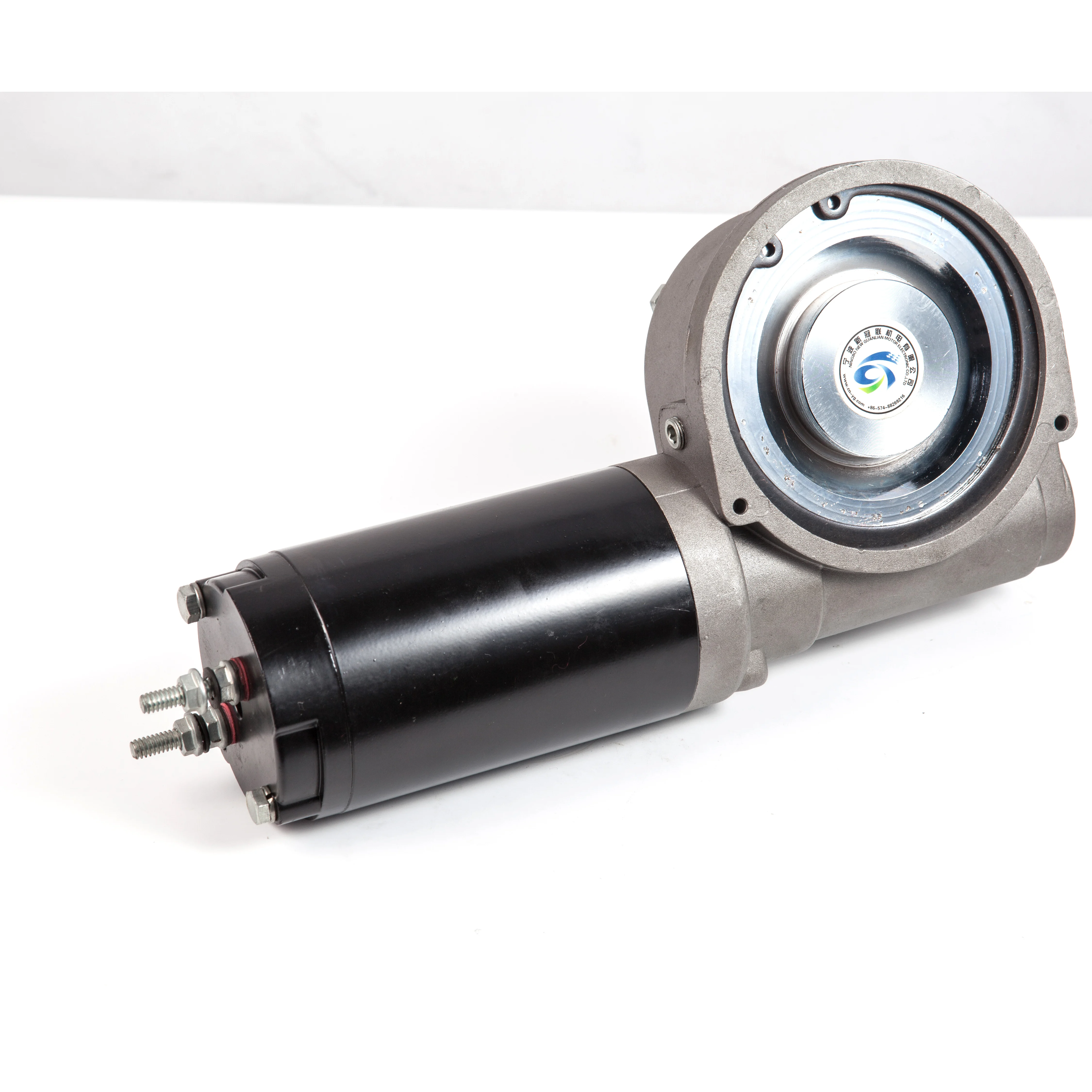

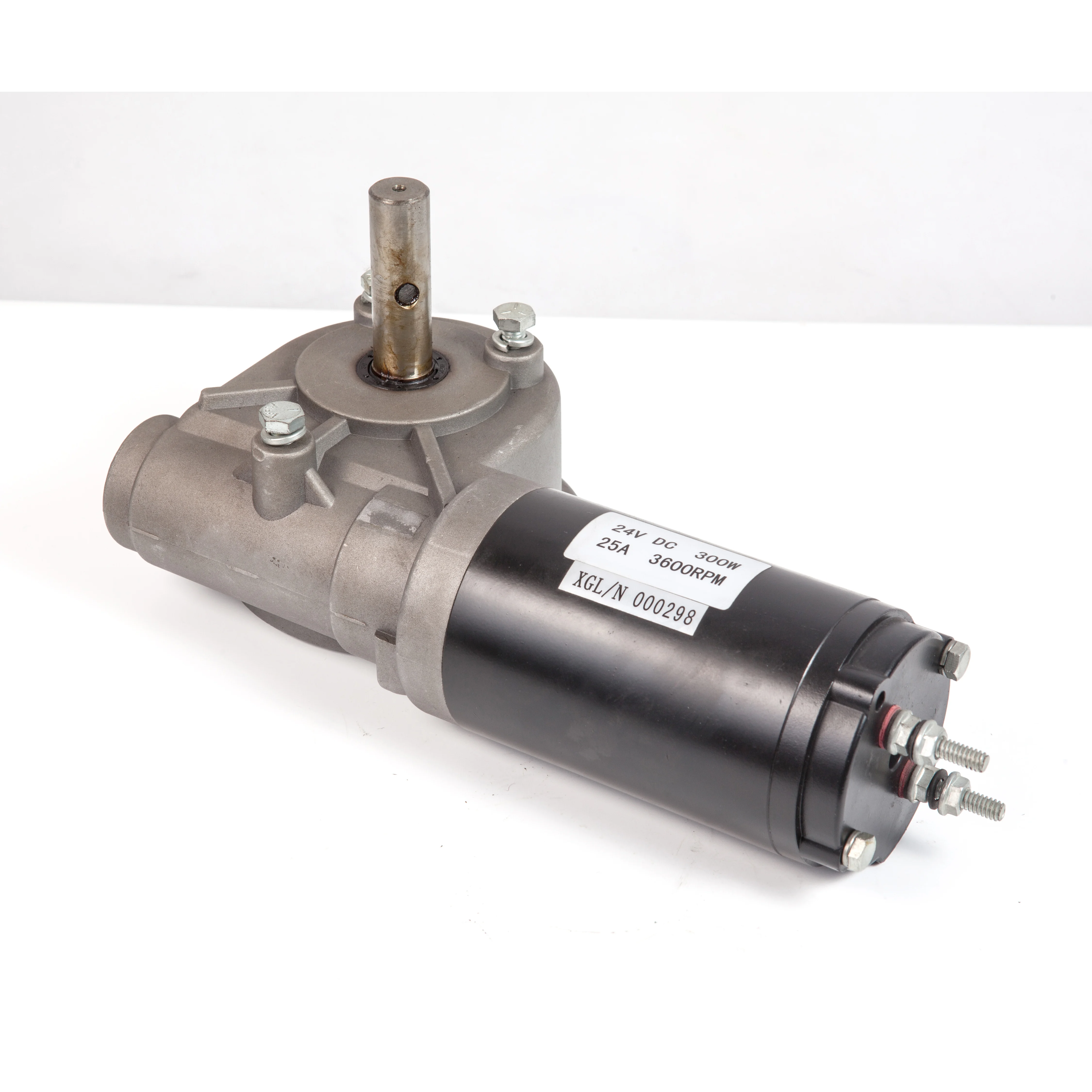

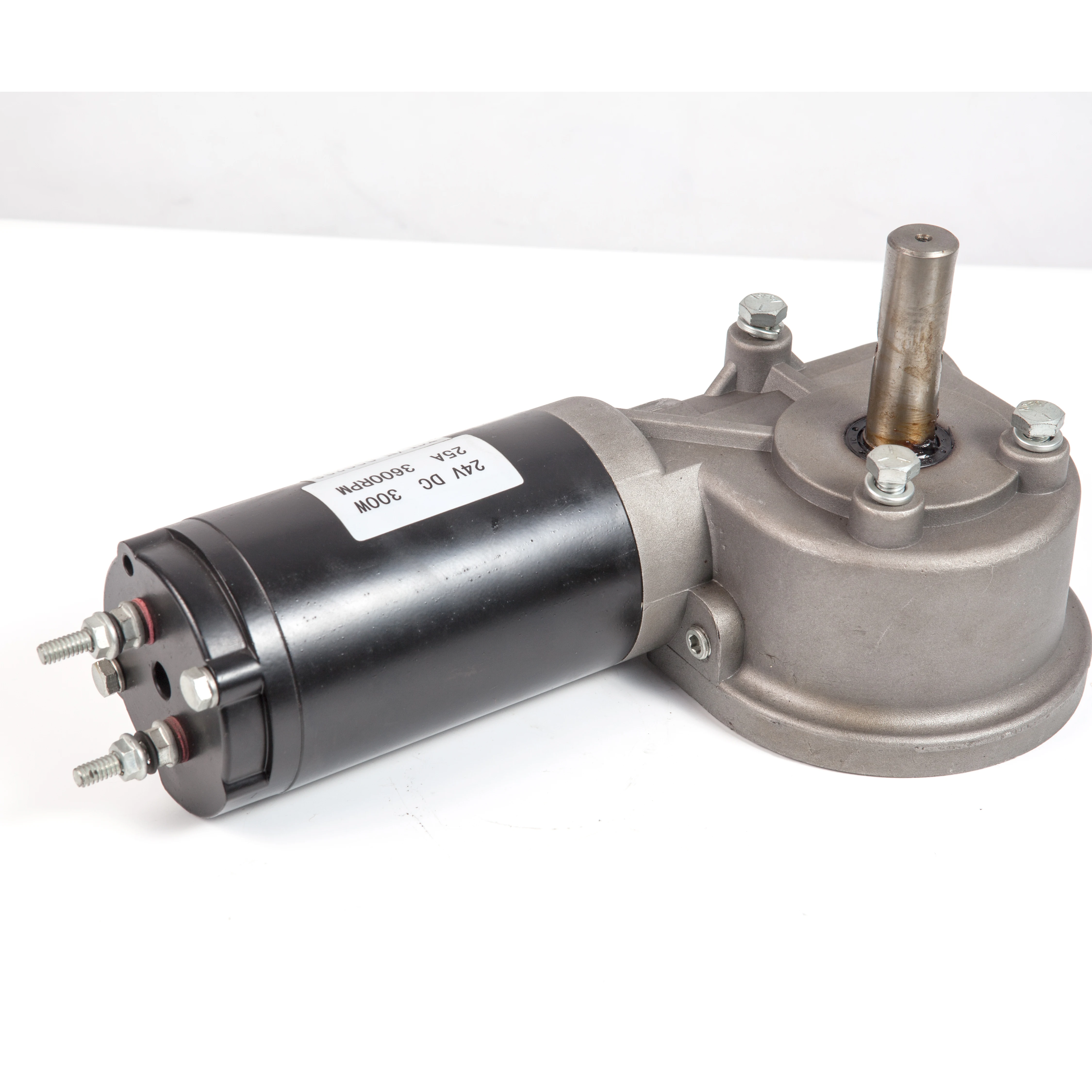

New Guanlian ZYJ78 12v small worm gear motor
- Category: >>>
- Supplier: Ningbo New Guanlian Motor Electronic Co. Ltd.
Share on (592030142):
Product Overview
Description
Application: Bulk card peng cloth cover, rolled up insititutions drive, vegetable shed roll, put warm institutions and other drivers slow winch driver.
| (SPECIFICATION) | |||||||
| (MODLE) | 78ZYJ-92-1 | 78ZYT-240 | |||||
| 1 | (RATED VOLTAGE) | 12V DC | 12V DC | ||||
| 2 | (NO-LOAD SPEED) | 48±2RPM | 4400±300RPM | ||||
| 3 | (NO-LOAD CURRENT) | 24A | 7±1A | ||||
| 4 | (REDUCE RATIO) | 1/90 | |||||
| 5 | (LOAD SPED) | 30RPM | 3400±200RPM | ||||
| 6 | (RATED OUT POWER) | 360W | 240W | ||||
| 7 | (RATED CURRENT) | 60A | 30±1A | ||||
| 8 | (DUTY) | S2 | S2 | ||||
