Vibrating table concrete for paver

Product Overview

Description

Vibrating table concrete for paver





1. Outline.

Vibrating table is also called compacting platform. Vibrating table is mainly used for contacting material. It can decrease and remove the gap or air between material.

a. Its structure: It mainly consists ofbottom brackets, upper platform, vibrating motor and shock-absorbing device.

b. Three dimensional vibrating motion: a. horizontal b. vertical. c. un to down.

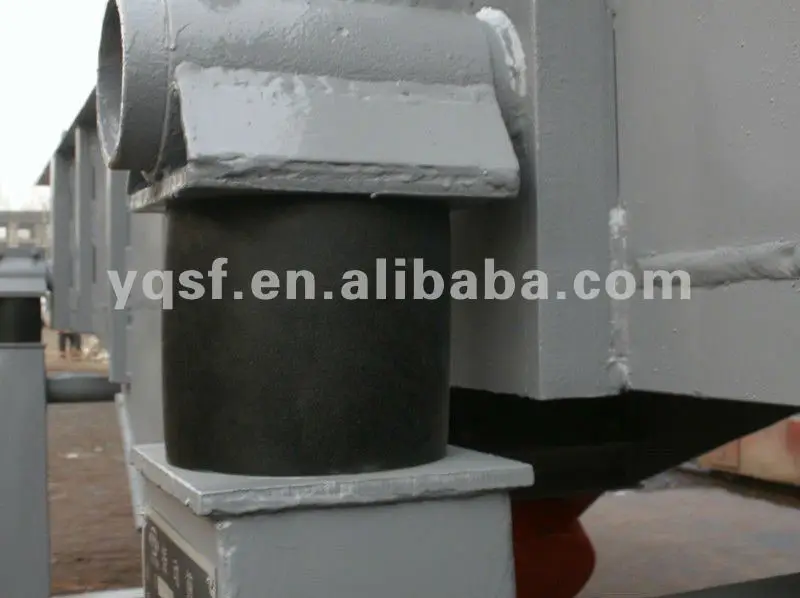

c. Spring: Steel spring, rubber spring, Composite spring.

d. Motor quantity should be even number, such as 2, 4, 6, 8…

2. Usage.

a. It shift the powder, particle shape material into target shape.

b. It is mainly used in metallurgy, mould/food, chemical, construction industry and so on.

3. Features:

a. In the working process, By adjusting the vibrating force, the material can realize a ideal type.

b. The vibrating motor is vibrating source. Low noise and consumption, and be easy to maintain.

c. Simple structure. Light weight, small volume, reliable working, and be easy to install.

d. Vibration model: up to down, screw vibration and dimensional vibration.

e. Large power and platform, Max power can arrive to 7.5kw. Max loading: 8 T.

f. Height can be adjustable. So it is suitable for product line.

g. Infinitely variable speeds.

h. Auto locking function. It can make sure the manufacturing security.

4. Main specification:

Model	Dimesnion (mm)	Motors (sets)	Exciting force(KN)	Power (kw)	Weight (kg)	Amplitude (mm)	Frequency(HZ)
ZP-2	500*500	2	10	1.0	300	2-5	50-60
ZP-4	800*800	2-4	20	1.5	450
ZP-6	1000*1000	2-6	30	2.2	600
ZP-6-2	1200*1200	4-6	30	2.2	860
ZP-8-1	1600*1200	4-6	40	3.0	1000
ZP-8-2	1600*1400	4-8	50	3.0	1250
ZP-10-1	2000*1600	4-8	60	4.0	1600
ZP-10-2	2000*1800	6-10	80	6.0	2000
ZP-12-2	3000*2000	6-10	80	7.5	3100
ZP-12-2-	4000*3000	8-12	80	7.5	4600

5. Primary features:

a. Brand-name parts

b. Country of origin: China

c. Gurantee/warranty: 1 year

d. Packing: Wooden packing. Special fumigation-free wooden. OR according to your requirement.

e. Price. factory price

f. Product features: 1. Dust-proof, heat-proof, oil-proof, explosion-proof.

               2. Low carbon, Environment, Performance.

g. Prompt delivery: 7 days

h. Services: ±2% spare parts

i. Small order accepted.

6. OEM order services, pls provide:

a. The dimension: Length* Width*height

b. The max loading.

c .The vibrating motion you need.

d. Voltage you required.

7. Pictures

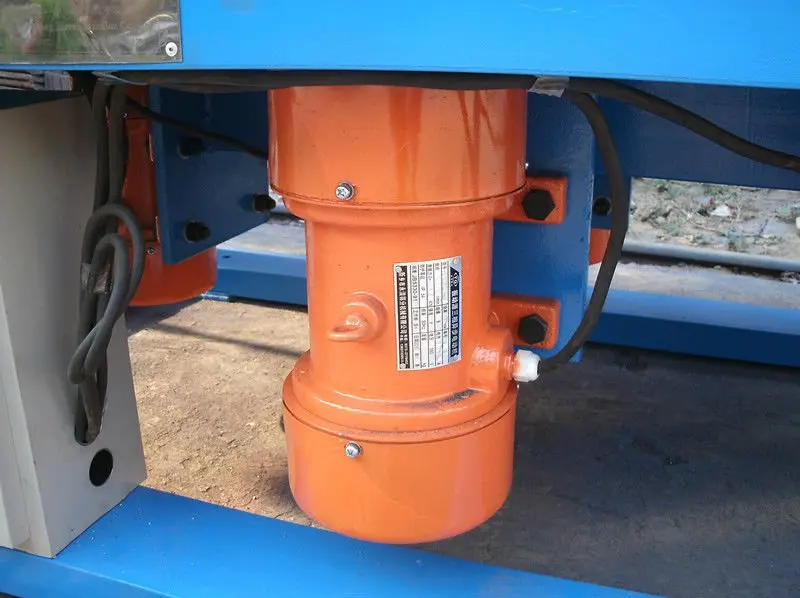

vibration table motor

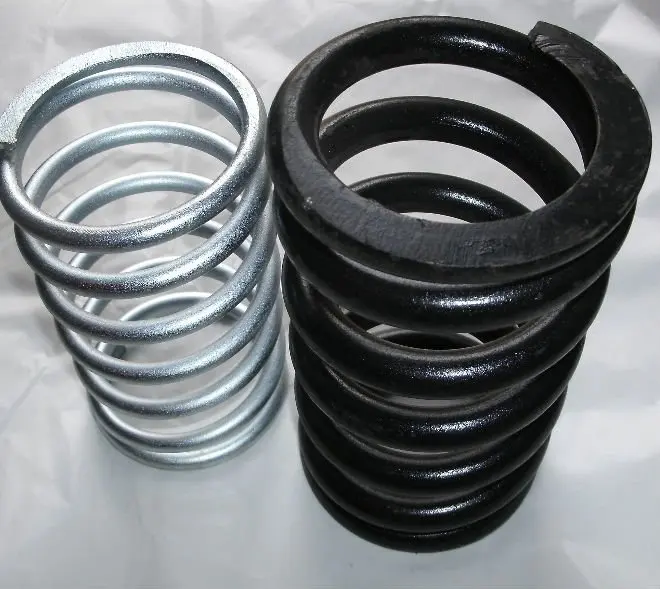

Springs

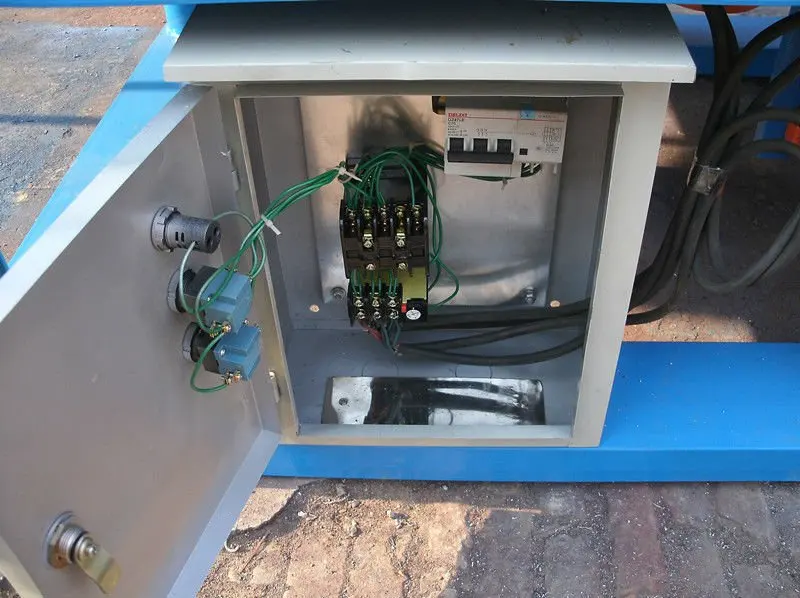

Power Box

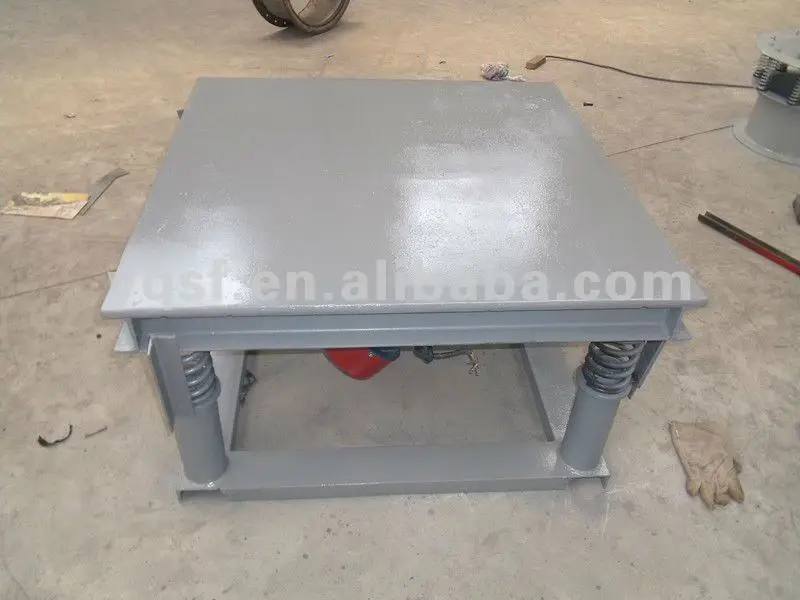

Vibration table 1

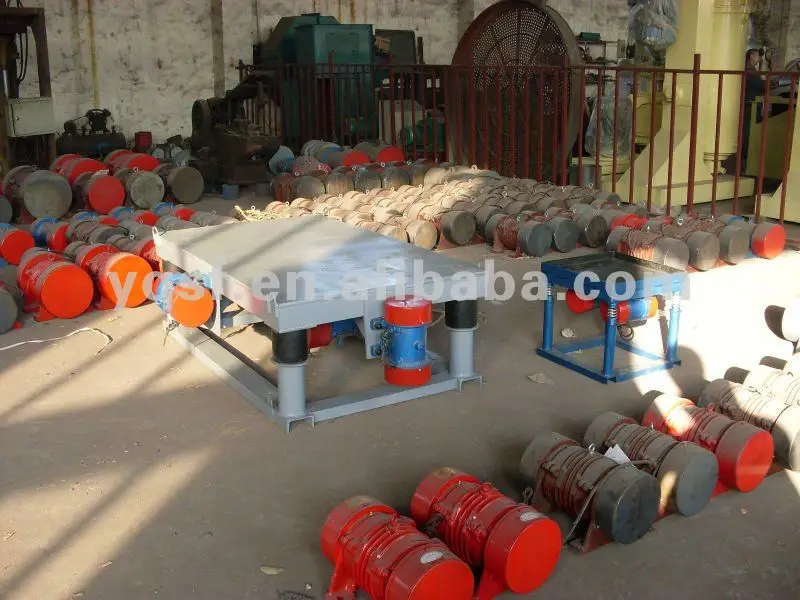

Vibration table 2
Market
