Aluminium Strip Continuous Casting and Rolling Machine

Product Overview

Description

1. Product Information

§ Equipment use

The production lines are the most advanced ones in the aluminum industry of China, which has been obtained the most patents and exclusively-owned technologies. Adopting continuous cast-rolling technology, it is best for producing aluminum plate and strip.

§ Equipment composition

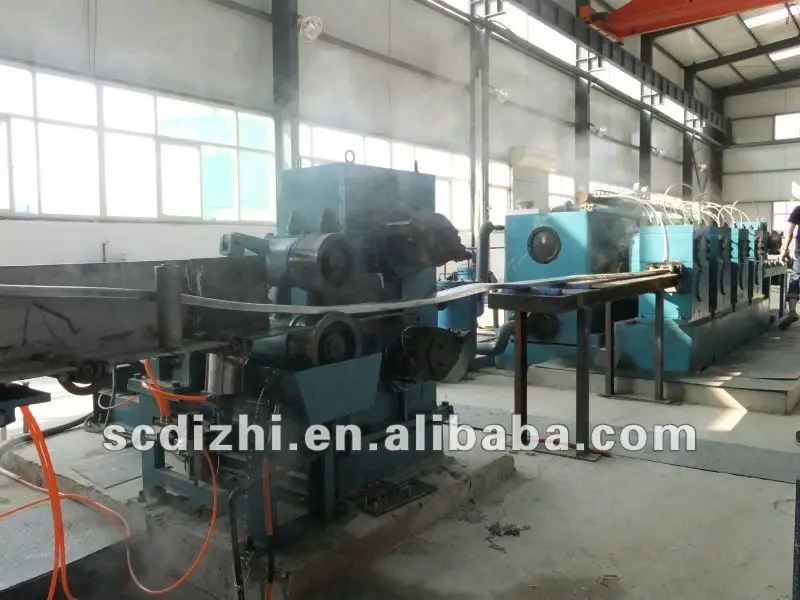

1.The aluminum strip continuous casting and rolling line is mainly composed of casting machine, rolling shear, 4-stands rolling mill, double winder, electric control system, etc.

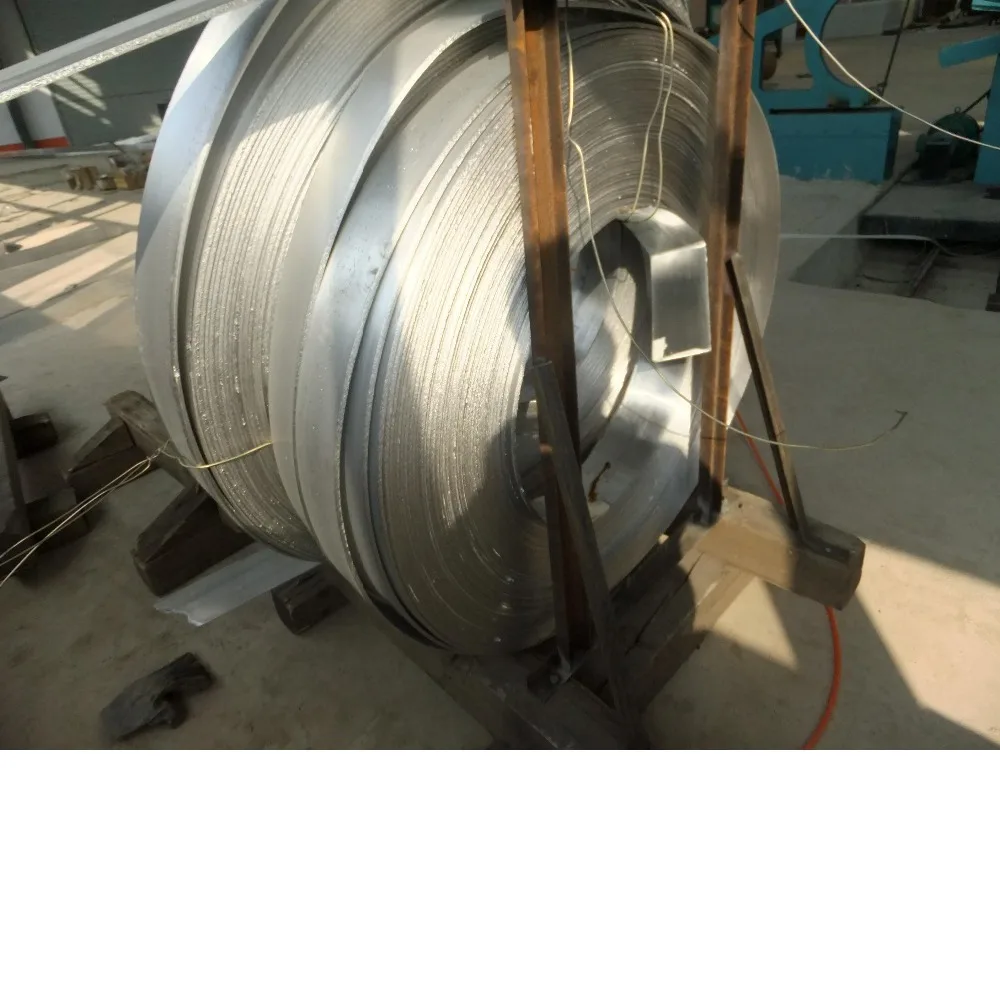

2. Molten aluminum or prepared aluminum melts flows from the holding furnace via the launder into casting machine, where it is continuously casted into ingots. Then fed into the rolling mill and rolled into plate and strip, finally laid down in winder.

§ Technical Data

Casting Machine	Crystallized wheels diameter	Φ1580 mm
	Section surface of casting ingot	2600 mm2
	Driven motor	4 kw
	Type of casting machine	4-wheel
Rolling shear	Shearing length	720 mm
	Motor power	15 kw
Rolling Mill	No. of rolling stand	4
	Outlet strip thickness	8~4 mm
	Outlet strip width	150~100 mm
	Production capacity	5.8 t/h
	Finish rolling speed	0.5 m/s
	Rolling center height	910 mm
	Main motor	Z4-225-31 750 r/min  75kw
Double Winder	Max. winding weight	660 kg
	Max. winding diameter	ø 1550 mm
	Winding driven motor power	4 kw

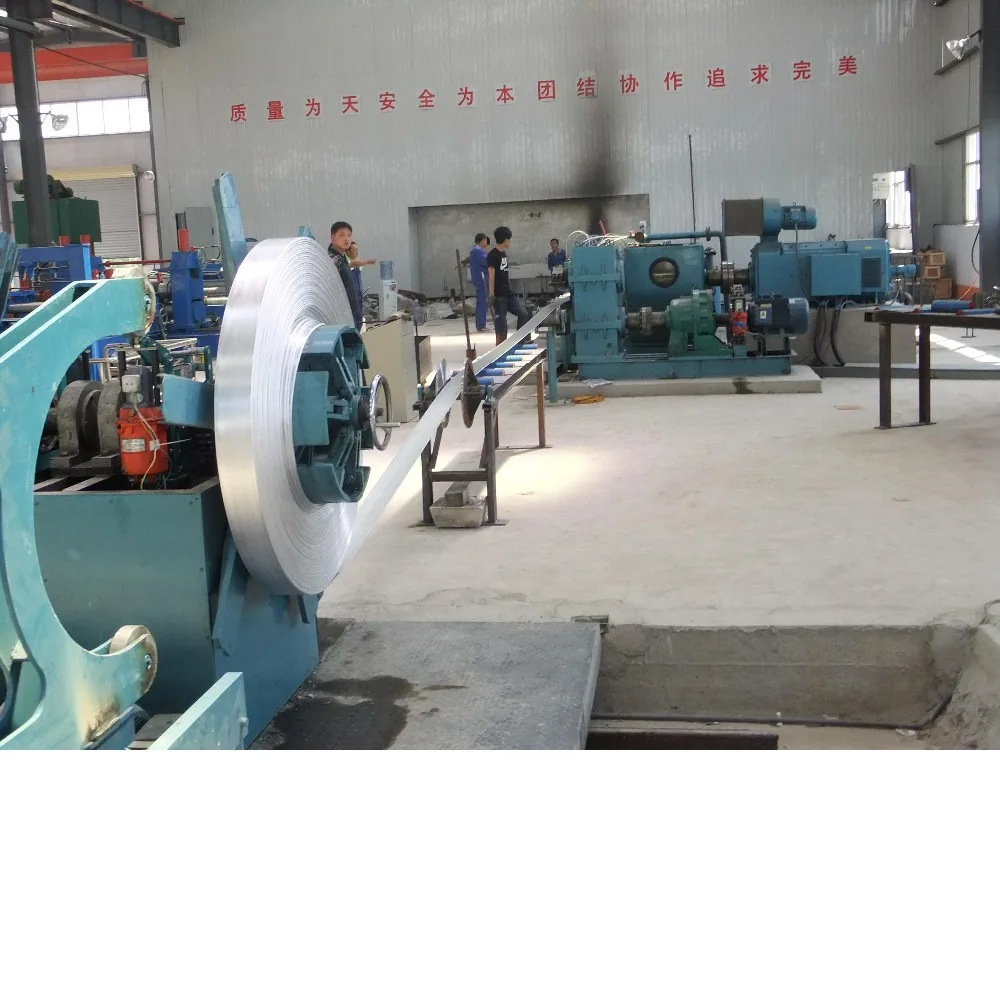

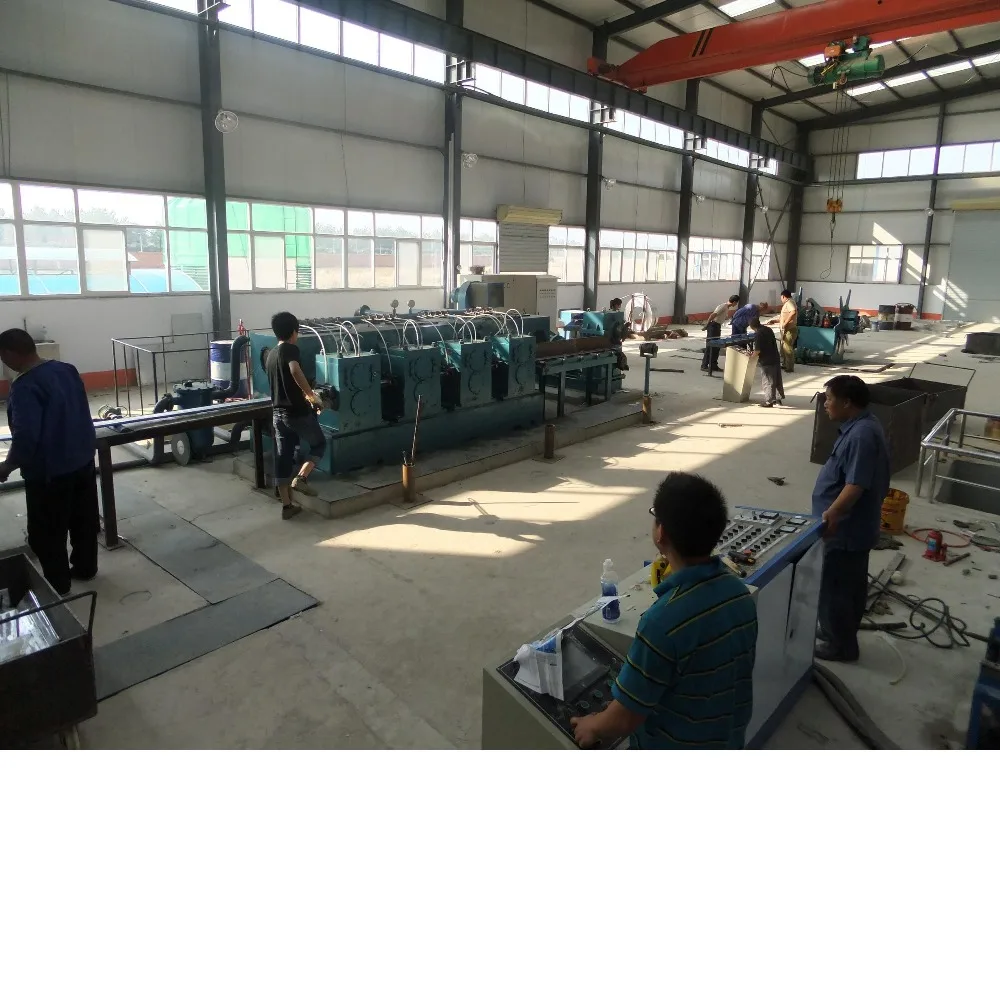

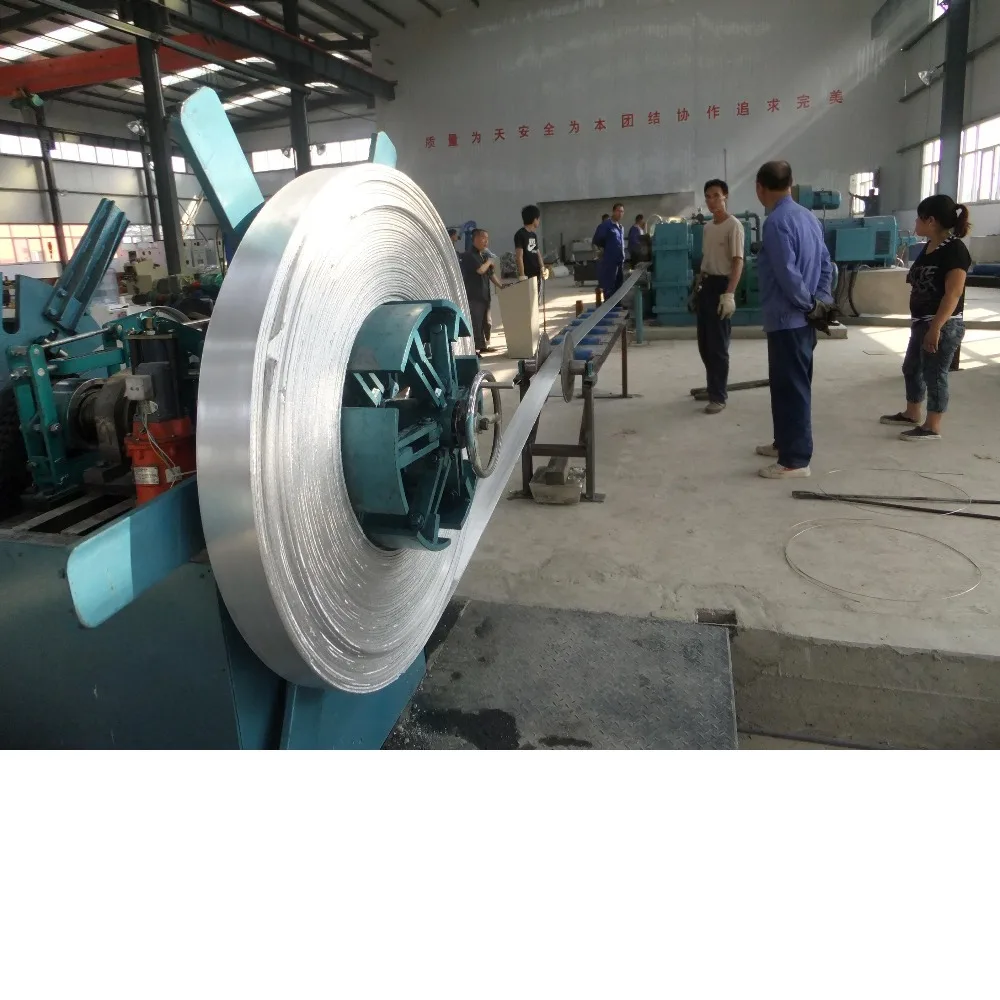

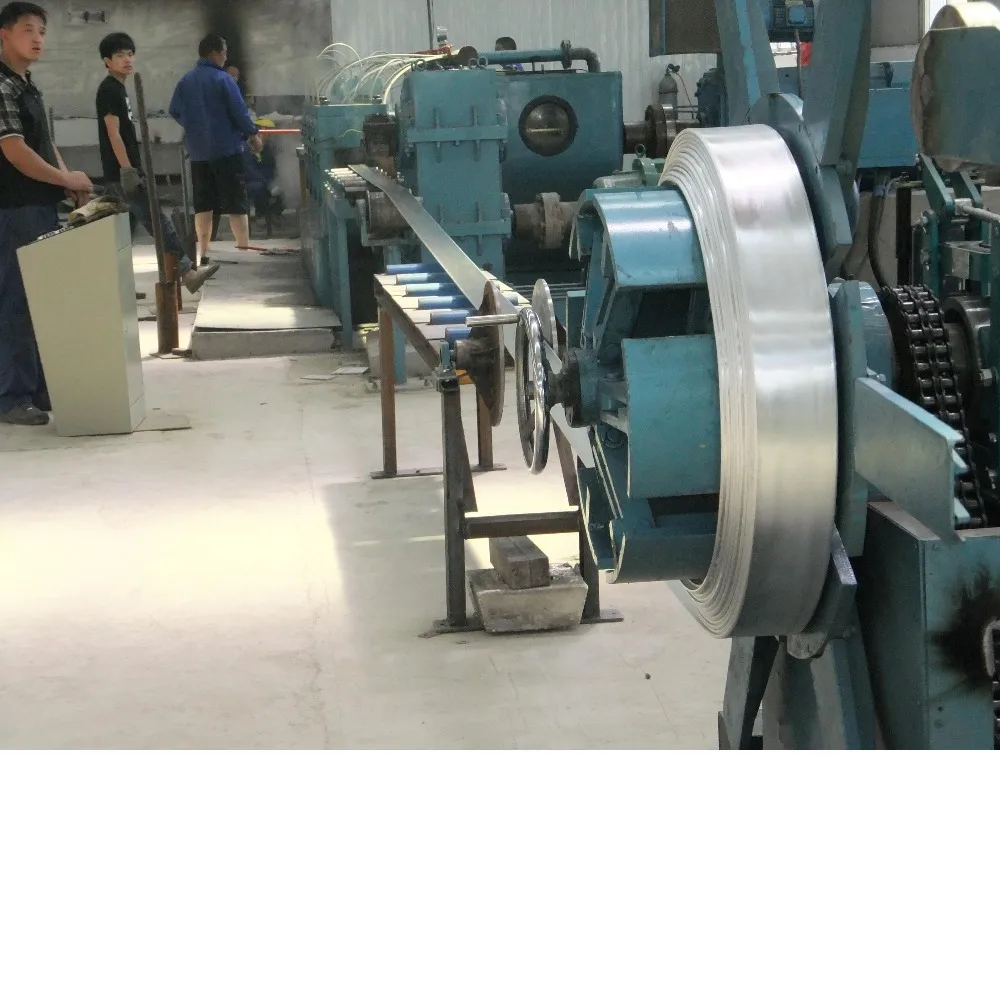

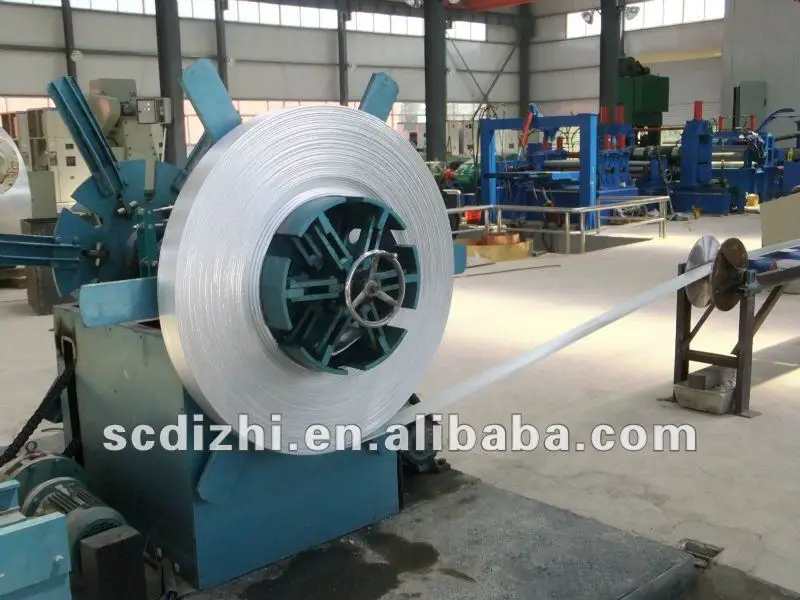

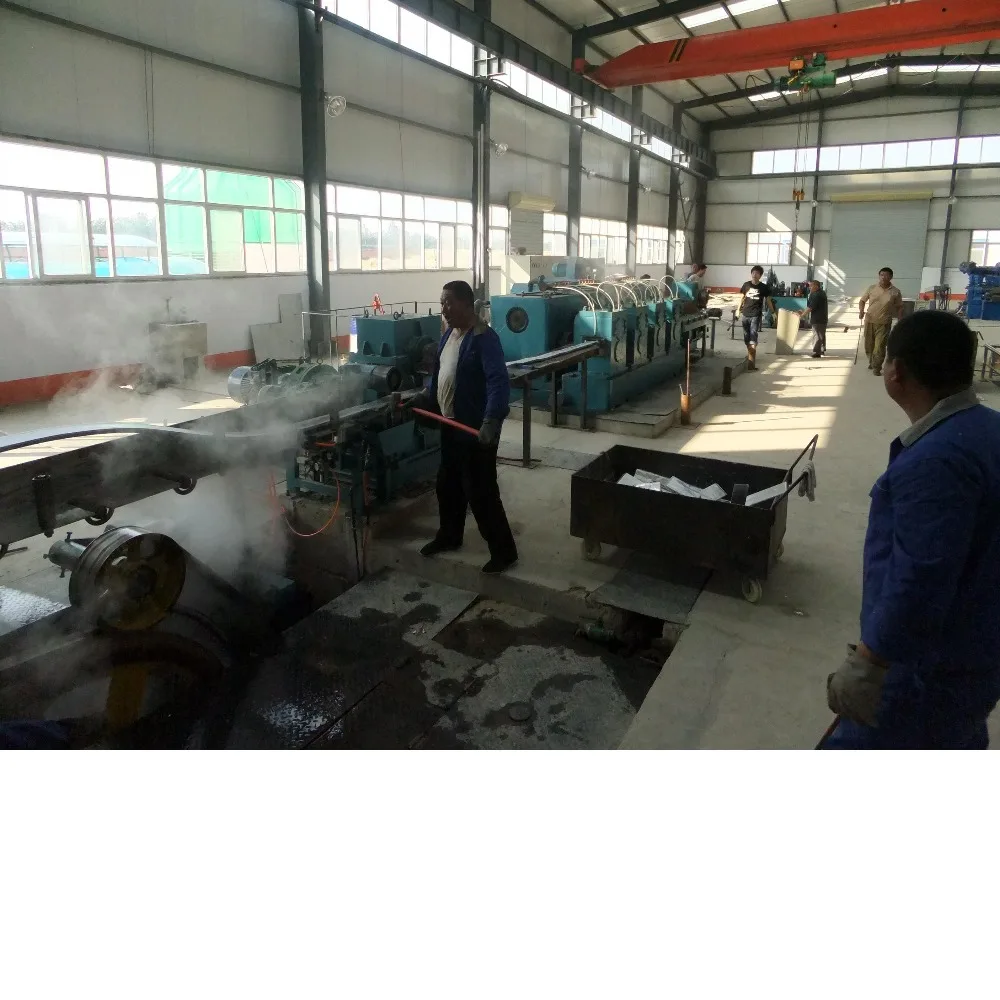

2. Design / Structure / Details Pics

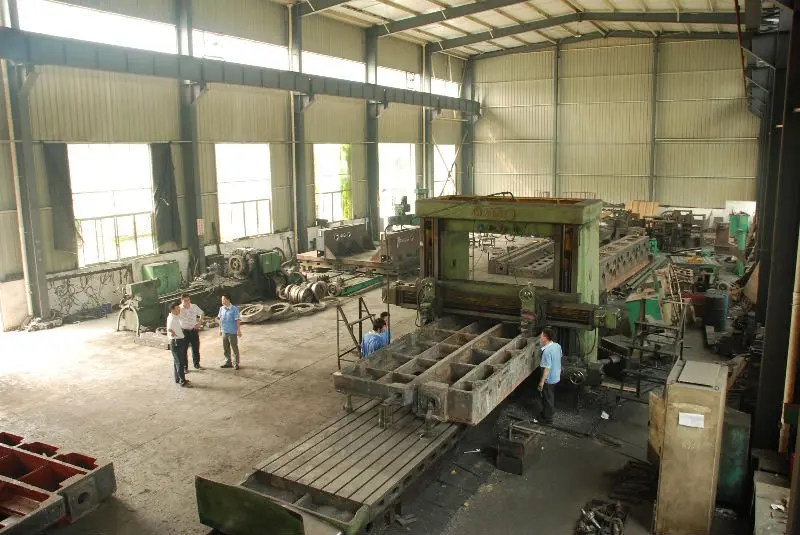

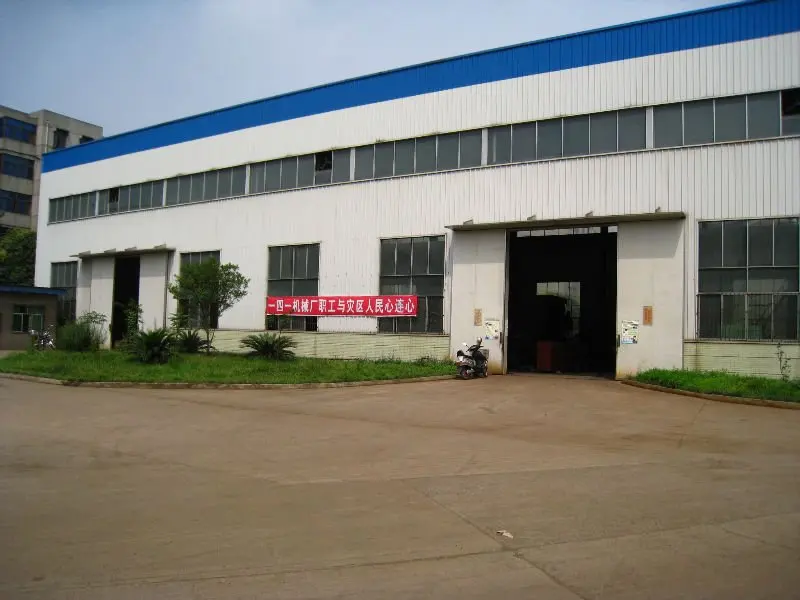

3. Factory View or Certificates
