Aluminium Sheet Continuous Casting and Rolling Machine

Product Overview

Description

1. Product Information

§ Equipment use

The production lines are the most advanced ones in the aluminum industry of China, which has been obtained the most patents and exclusively-owned technologies. Adopting continuous cast-rolling technology, it is best for producing aluminum plate and strip.

§ Equipment composition

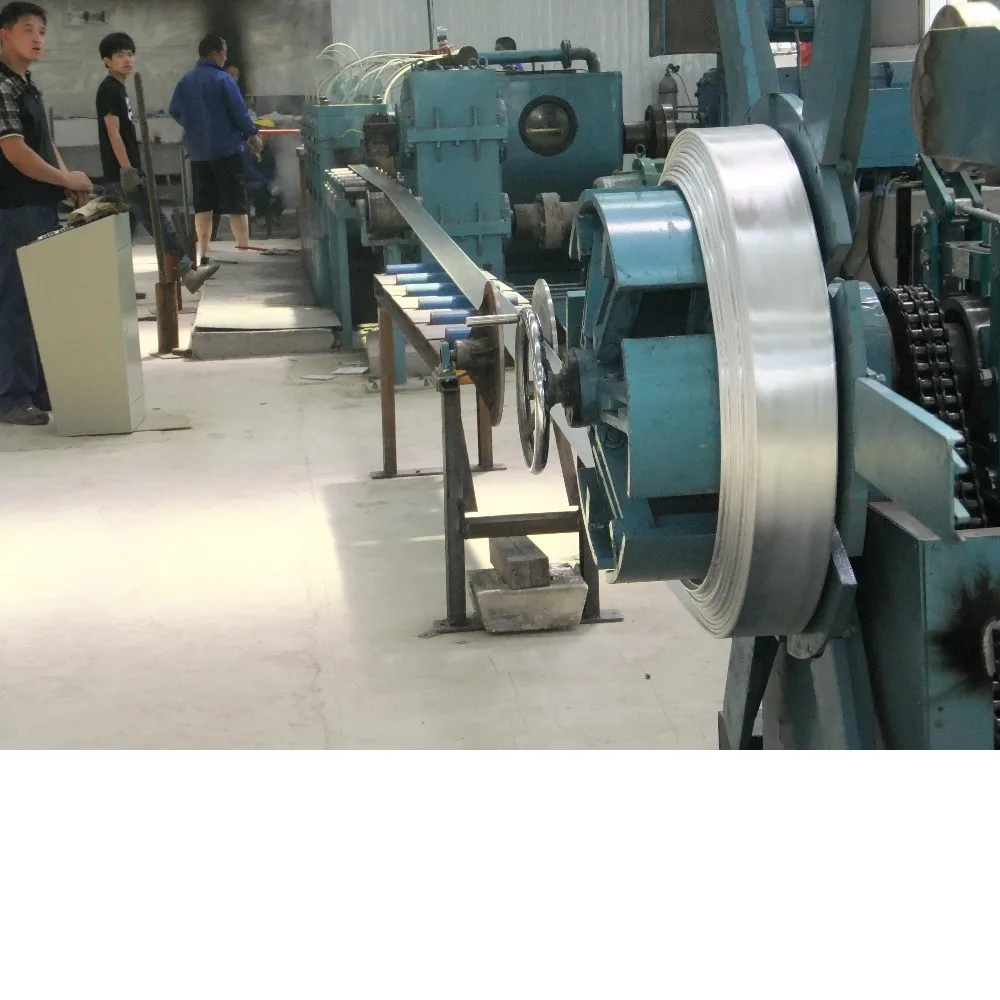

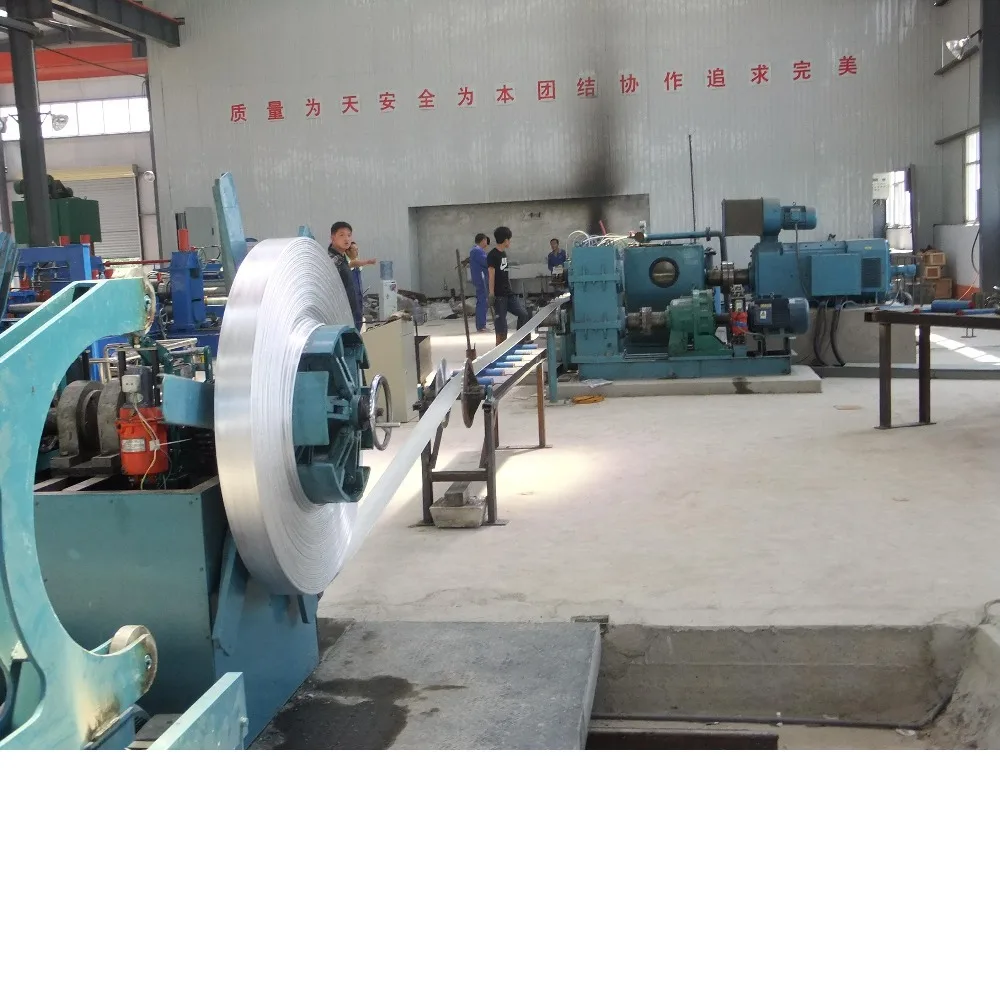

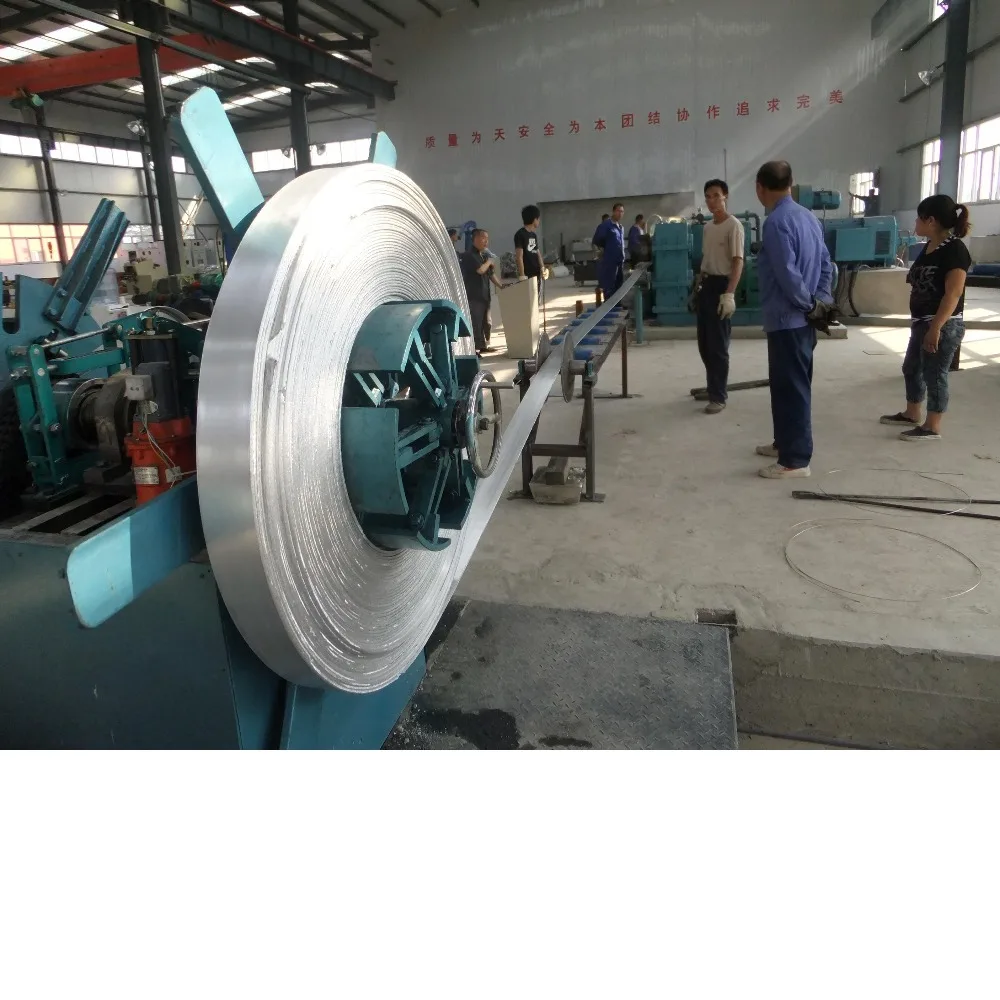

1.The aluminum strip continuous casting and rolling line is composed of casting machine, rolling shear, 4-stands rolling mill, double winder, electric control system, etc.

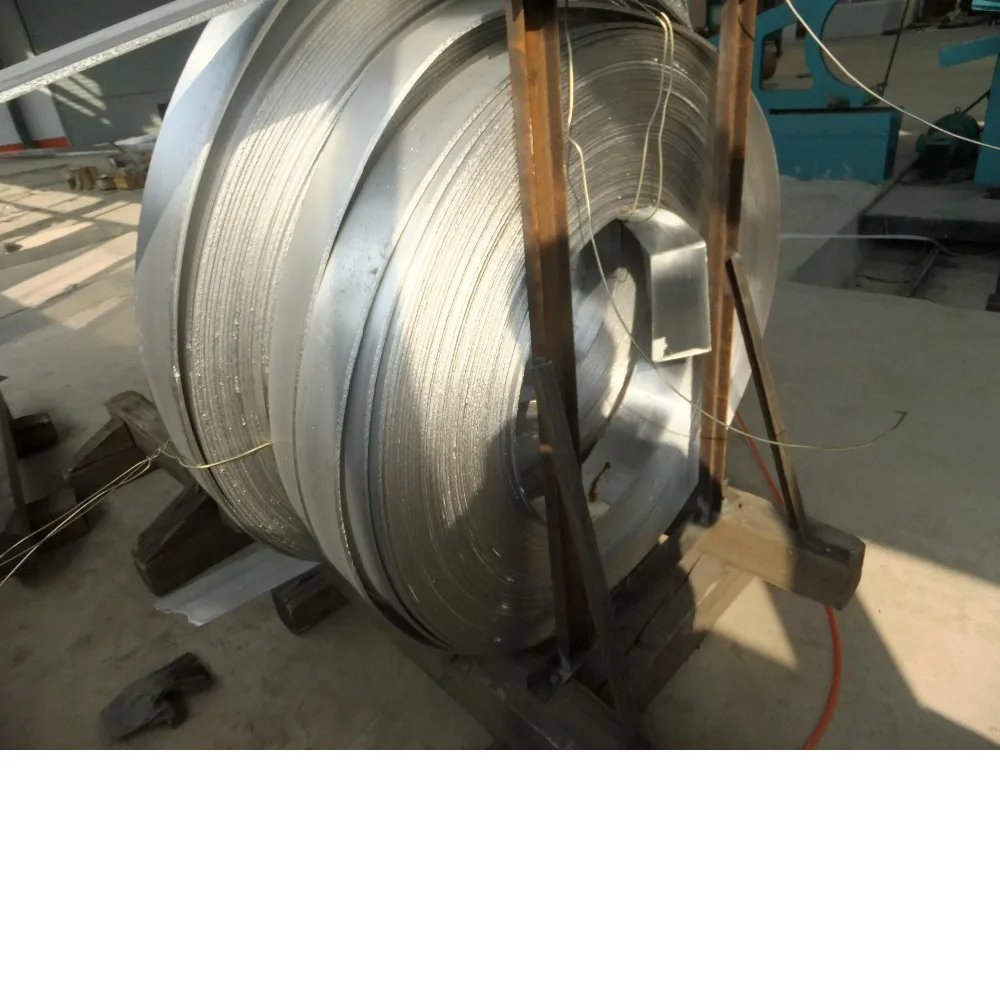

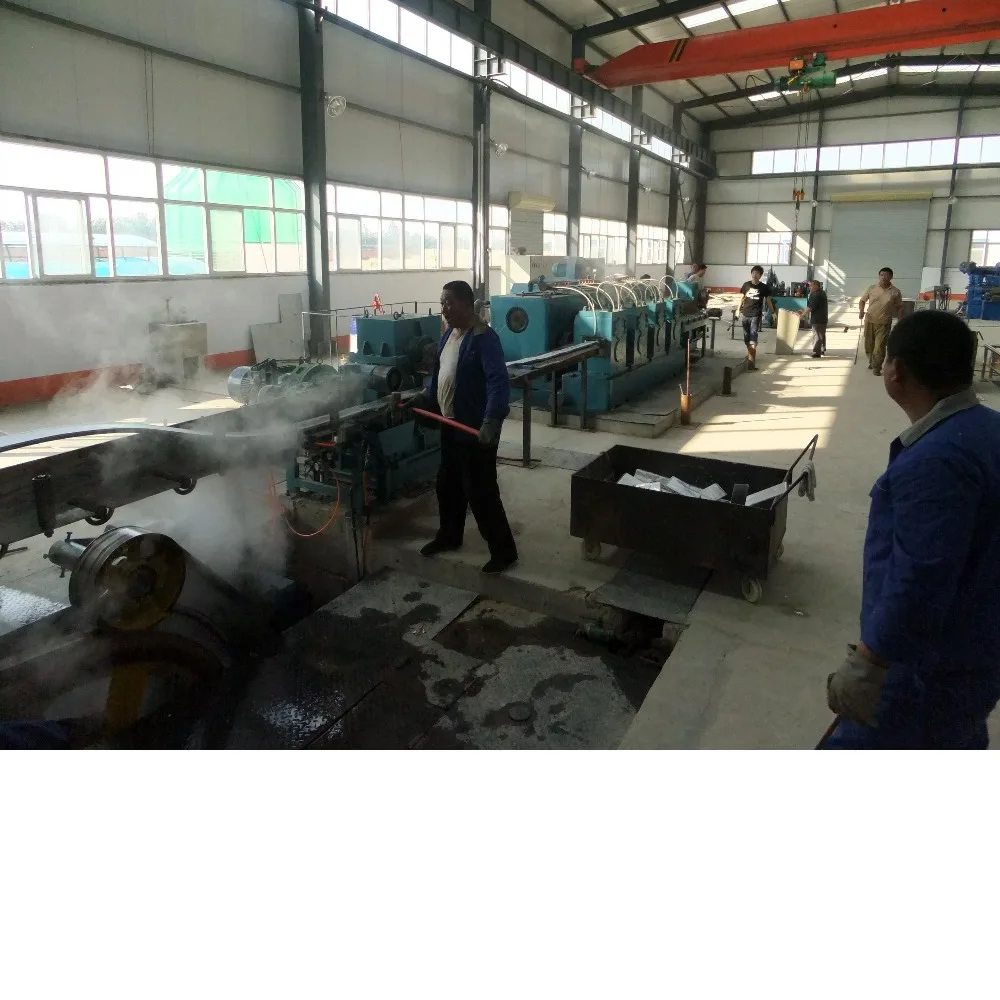

2. Molten aluminum or prepared aluminum melts flows from the holding furnace via the launder into casting machine, where it is continuously casted into ingots. Then fed into the rolling mill and rolled into plate and strip, finally laid down in winder.

§ Technical Data

Casting Machine	Crystallized wheels diameter	Φ1580 mm
	Section surface of casting ingot	2600 mm2
	Driven motor	4 kw
	Type of casting machine	4-wheel
Rolling shear	Shearing length	720mm
	Motor power	15kw
Rolling Mill	No. of rolling stand	4
	Outlet strip thickness	8~4 mm
	Outlet strip width	150~100 mm
	Production capacity	5.8t/h
	Finish rolling speed	0.5m/s
	Rolling center height	910mm
	Main motor	Z4-225-31 750 r/min  75kw
Double Winder	Max. winding weight	660kg
	Max. winding dia.	ø1550mm
	Winding driven motor power	4kw



In China, we are a state-owned factory. We can assure that it is the best one. We having the advanced design concept and manufacture technology, our products are stable and reliable. We can undertake manufacturing all kinds of complete equipments of Melting Furnace Series, Copper, Aluminum & Alloy Rod Continuous Casting and Rolling Line Series, Aluminum Strip Continuous Casting and Rolling Line Series, Wire Drawing Machine Series, etc. As a result of high quality products and outstanding customer service, we have gained a global sales network reaching Pakistan, Iran, Thailand, Malaysia, Belarus, Ukraine, Syria, etc. And our ccms have more than 70% market share in Chinese market. Our general engineer is the person who participatory designed the first line of melting furnace & casting and rolling line in China.
