cultivator

Product Overview

Description

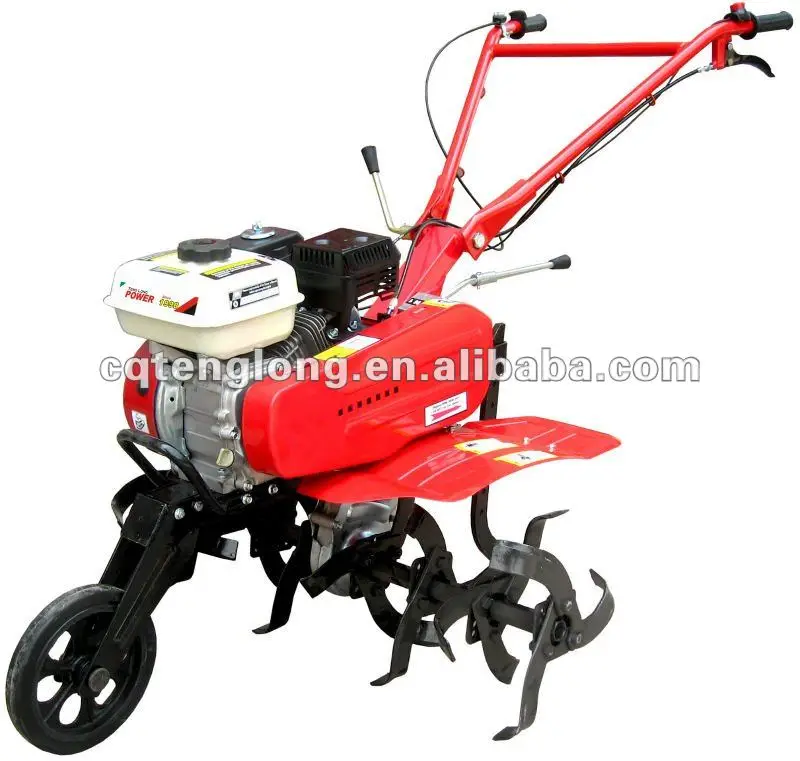

TL1WG3.8-50FQ

Engine: 168F-1/P, 6.5HP

Bore x Stroke: 68 x 54

Max Power (Kw/rpm): 4.8/3600

Fuel Capacity (L): 3.6 or 4.5

Fuel Type: Gasoline

Engine Oil Capacity (L): 0.6

Gearbox Oil Capacity (L): 0.95

Fuel Consumption(g/Kw.h): ≤340

Start System: Recoil Start

Work Width (mm): 500-1050

Work Depth (mm): ≥100

Gears: 2, 1, 0, (-1)

Transmission Type: Belt Transmission

Clutch: External Tentioned Clutch

Packing Size (mm): 830 x 450 x 830

Packing Method: Carton box + metal frame

N.W.(kg): 56

W.W.(kg): 71

Standard configuration:

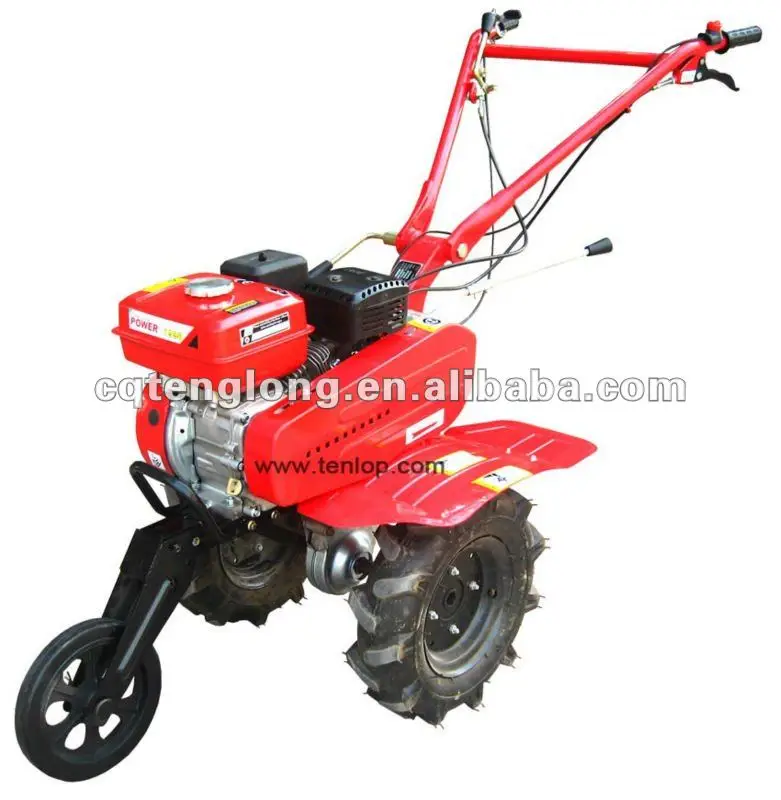

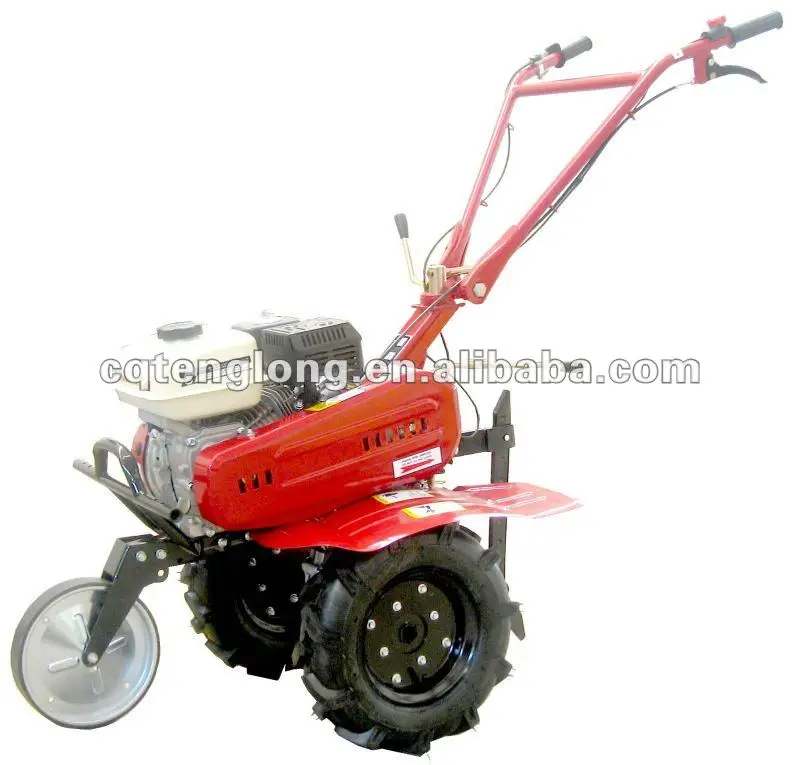

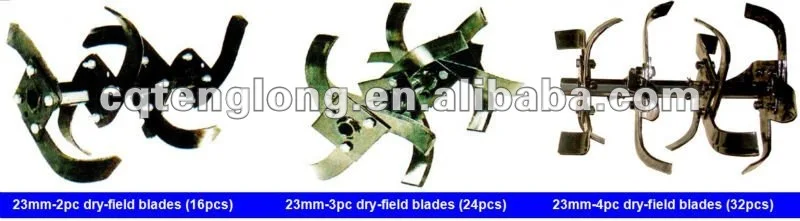

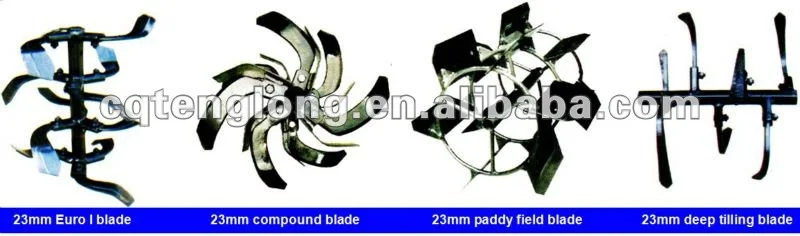

400-8 tire, dry field blades (3pc x 4units, 24pcs in total, 3+1 structure);

Optional configuration:

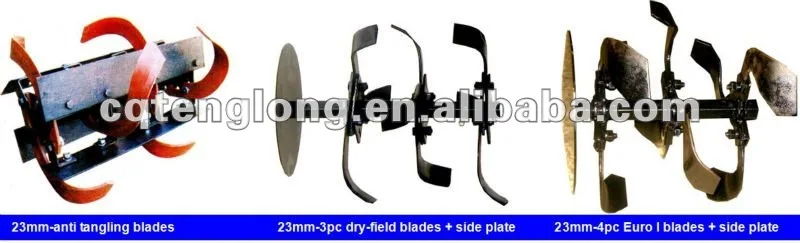

Dual clutch structure, 4pc x unit dry field blades (32pcs in total), 2+1+1 structure

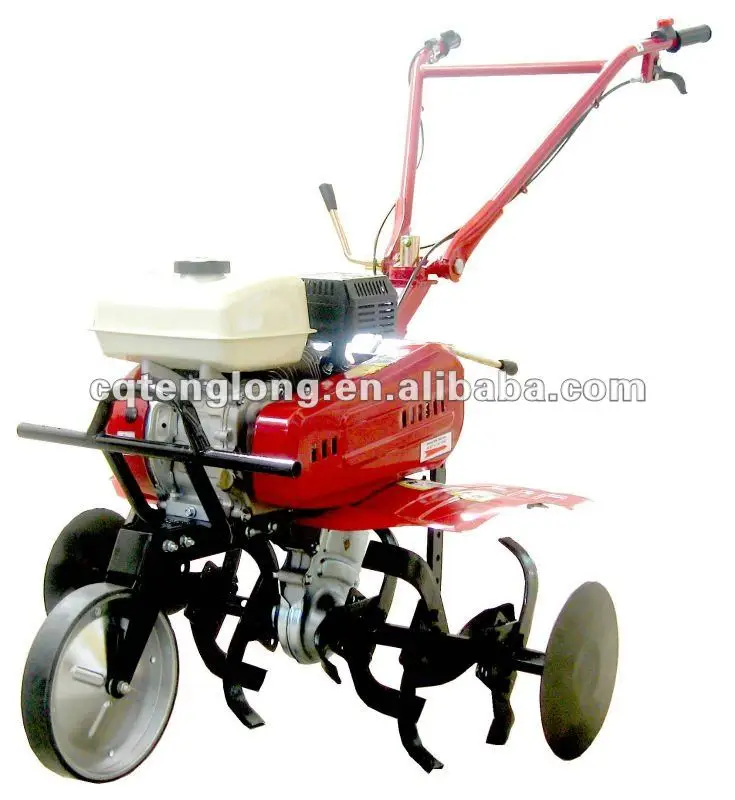

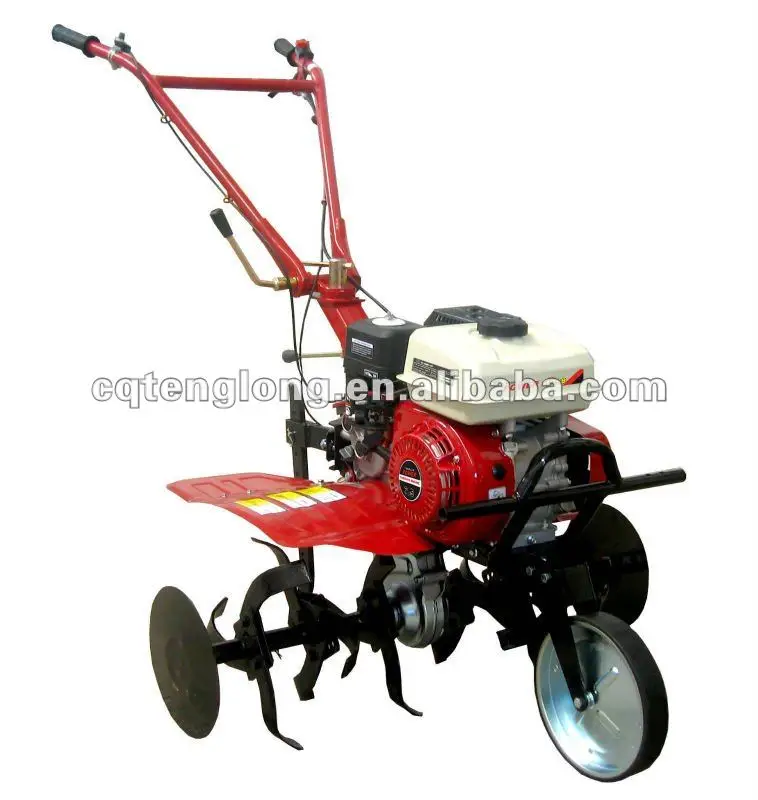

Optional front wheel (aluminum or rubber)
