Veterinary equipment high frequency electrosurgery unit from China

Product Overview

Description

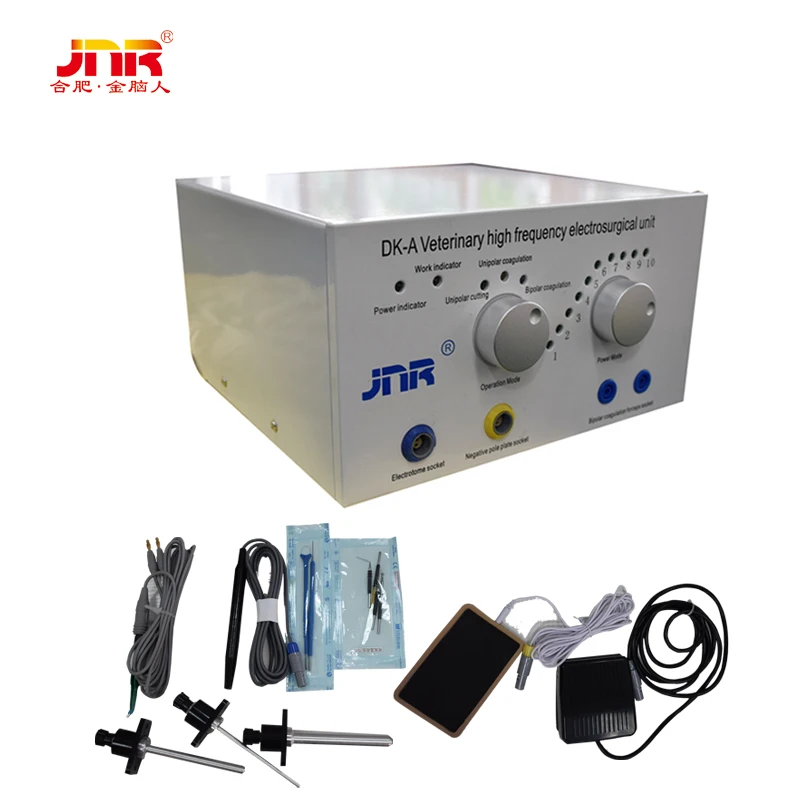

Main Composition:

Vet electrosurgical generator, Electrosurgical handle,head,Dispersive plate, bipolar forceps, foot switch, etc.

Tool bit,hilt and dual coagulation forceps can be disinfected  by high temperature and high pressure





Work Environment:



1.Environment Temp: -10°C- 40°C; Relative humidity: ≤80%;



2.Working power: AC 220V±22V   50Hz±1Hz:



3.Atmospheric pressure: 86kPa-106kPa





Main Performance index:



1.common parameter



Meas:24cm ×23cm×13cm (length × width ×height)



2.electric parameter



Input voltage :220 V±22V



Input currency :0.9A



Frequency range :50Hz±1Hz



Operating frequency :1.5~1.7MHz



Rated load :500Ω



Output power :unipolar cutting :0~100W



             unipolar coagulation :0~100W



             Bipolar coagulation : 0~50W

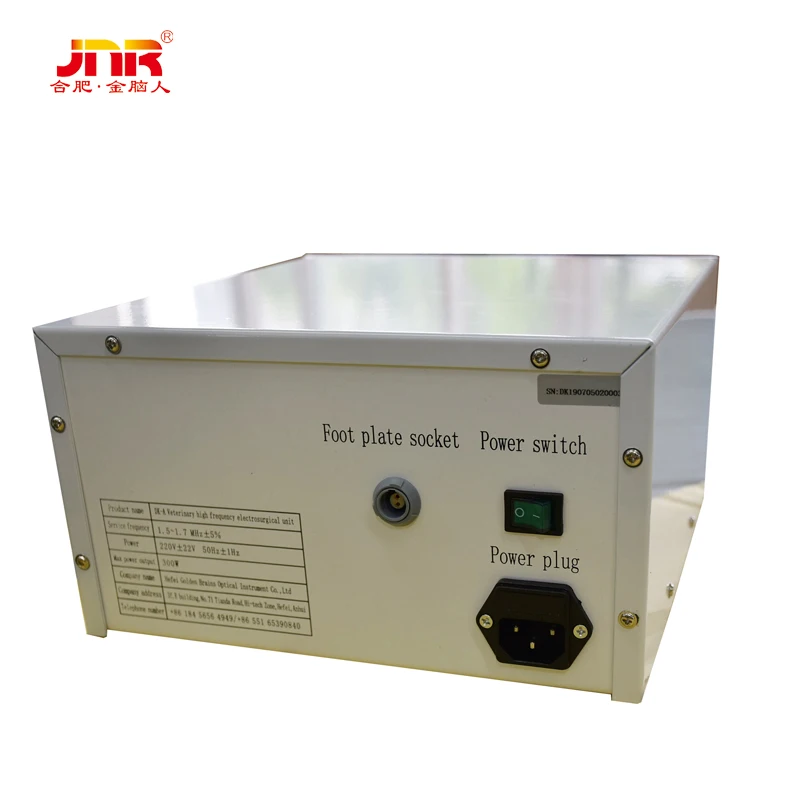

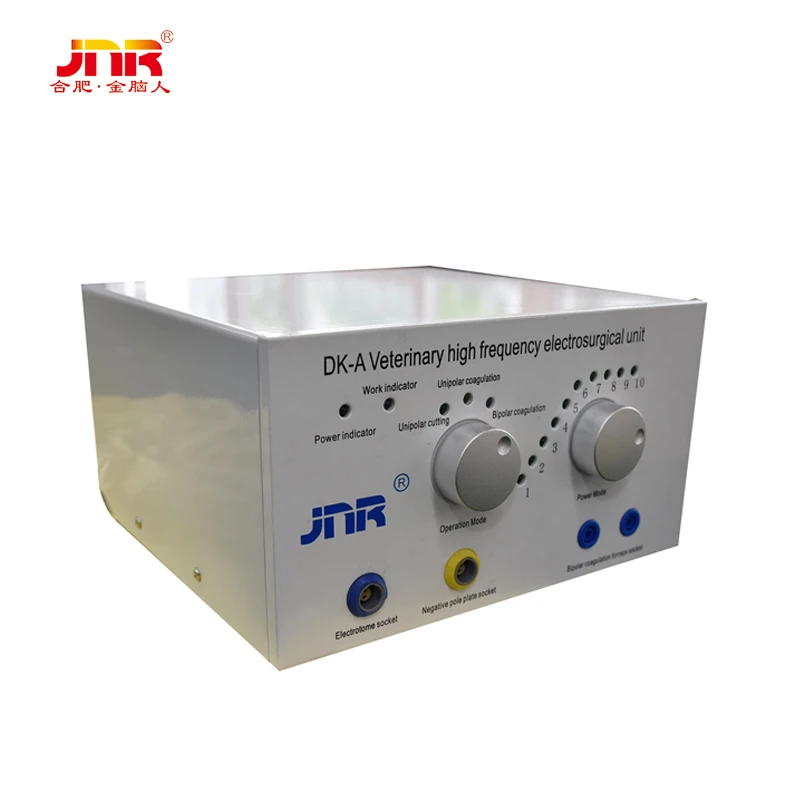

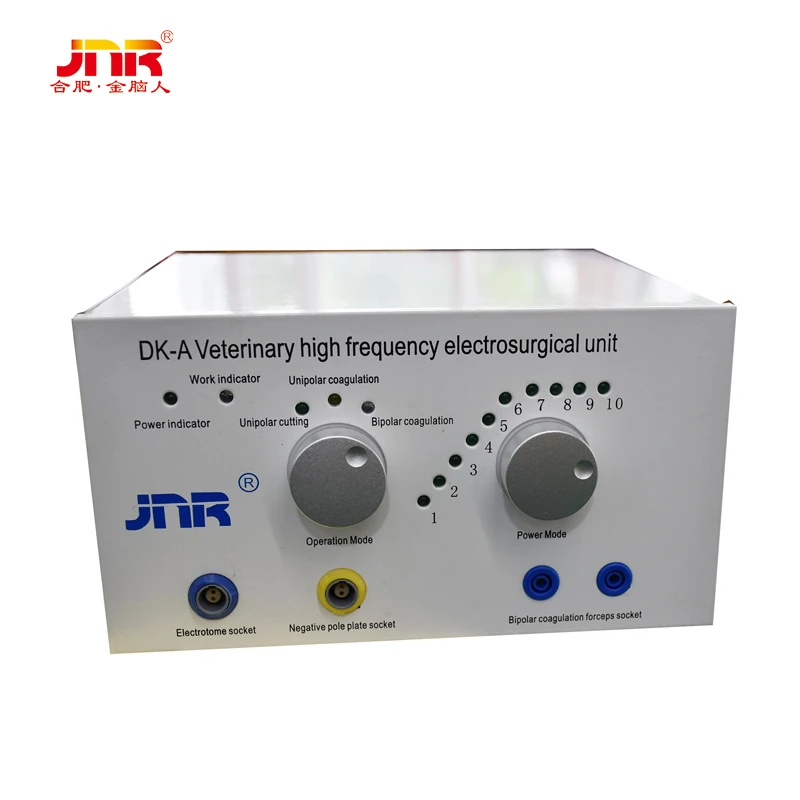

Main components











1. Power  2. Working indicator 3. Operating mode indicator (a. Cut   b. Point Coagulation  c. Bipolar Coagulation

4. Power setting indicator    5. Power Setting button  6. Operating mode setting button

7. Bipolar coagulation forceps outlet  8. Dispersive plate / Anal dispersive rod outlet  9. Handpiece outlet

 10. Foot Switch  11. Power Switch  12. Power Supply Point

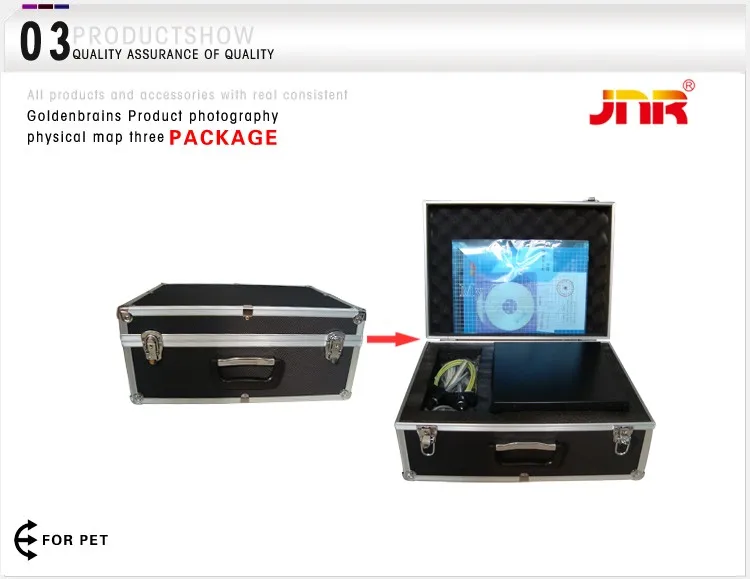

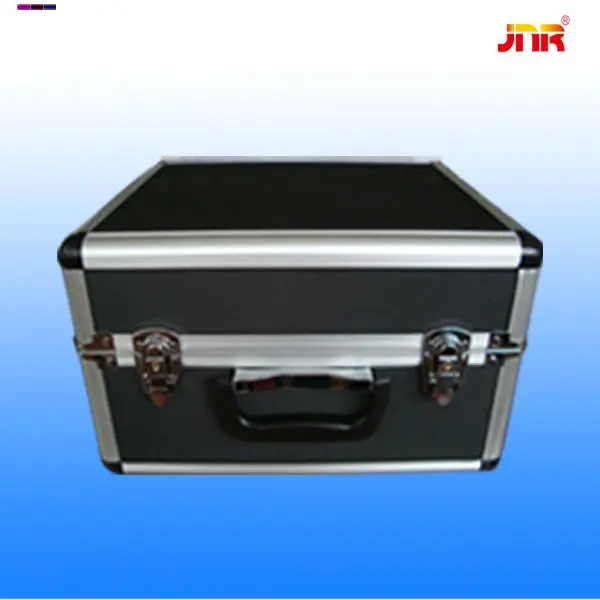

PACKING :
