Price:$600.00 - $800.00

Quantity:


Product Overview

Description


O.S.D Extruder Single Screw Barrel






Our Services


Our company, ZHOUSHAN OSD MACHINERY COMPANY, provides professional CAD drawing design and dimensional mapping. Provide you with as much service as possible.






  • We can make any specification of extruder screw barrel and injection screw barrel for Engel, Krauss-maffei, Milacron, Demag, Arburg, Haitian, JSW, Toshiba, Nissei, Sumitomo, Nippon Steel, Mitsubishi, Fanuc, Chenhsong, Haitai, Yizumi, Cincinnati, Battenfeld, Weber, Theysohn, Bausano, Maris, Jwell, Jinhu, Liansu, Windsor, etc.

  • We also can supply all types of screw and barrel according to your different requirements.

  • Our screw barrel can ensure the well performance and low energy consumption of extruder and Injection molding machine. We insist on the principle of quality first, honest to customers, the quickest service for customers” to improving us, our goal is to satisfy our customers.










































































Extruder Single Screw Barrel for Plastic Extrusion






Diameter



Φ15mm-Φ450mm



Design



Screw structure and compression


ratio can be designed according to


different products & different


clamping force requirement. We


can select&design the matching


screw barrel to meet your requires.



Materials



38CrMoAlA


(JIS SACM645)


SKD61


GH113



Application



All kinds plastic & rubber and All


kinds of glass fiber,the PPA, PPS,


PA6T, LCP, electric wood powder,


magnetic powder ,iron powder


and other special engineering


plastics .



Nitride Case Depth



0.5mm-0.8mm



Technology



1.Longer time Gas Nitriding


   treatment


2.special anti-wear & abrasion


   alloy(bimetallic)


3.tungsten carbide


4.cobalt base alloy


5.stainless steel


6.Gh113 nickel based alloy



Nitride Hardness



960-1060HV



Packing



Wrapped up by film in wooden



Nitride Brittleness



≤Grade One



Payment Term



T/T , L/C



Surface Roughness



Ra0.4um



Delivery Term



15-25 working days



Screw Straightness



0.015mm



Port Departure



Shanghai/Ningbo



Alloy Hardness



HRC58-70



Min. Order



1 piece



Alloy Depth



1.5mm-3.5mm



Guarantee



Common Nitrided:2.5-4years


Bimetallic: much longer lifetime.






Technological Process:


Blanking→Rough Machining→Quenching & Tempering →Semi Finishing Machining


→Finished Product→Detecting→Nitring/Alloy Processed →Finish Machining





Advantages of  Extruder single screw barrel for extruder machine:


1.Advanced Nitriding Technology
2.Anti-corrosion and Wear-resisting Duplex Alloy Spraying Technoloy


3.We use special alloy powders being sprayed and welded on the screw's ridge,


and use different alloy and welding methods for the screw of different functions.





Advantages of Bimetallic extruder single screw barrel:


Our bimetallic extruder single screw barrel for recycled plastic extruder machine


can ensure the well performance and low energy consumption of extruder machine. We insist on the principle of "quality first, honest to customers,the quickest servicefor customers” to  improving us, our goal is to satisfy our customers.





Especially application:


Rubber,various high glass fiber, mineral fiber and PPA,PPS, PA6T, LCP,VO fire protection, ferrous power, magnetic powder and etc. Meanwhile,Used for PVC + 30%


CaCo3, recylced plastic material,etc.

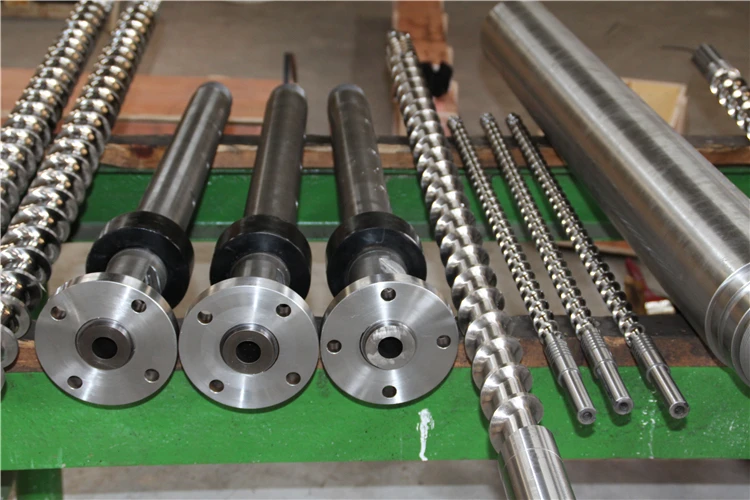

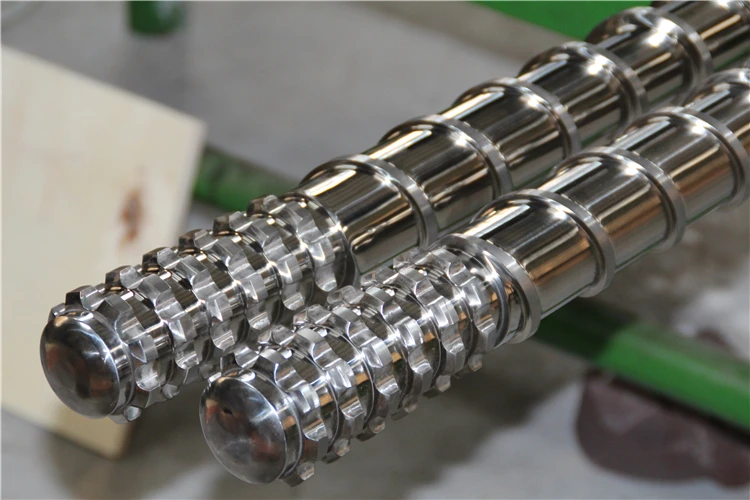

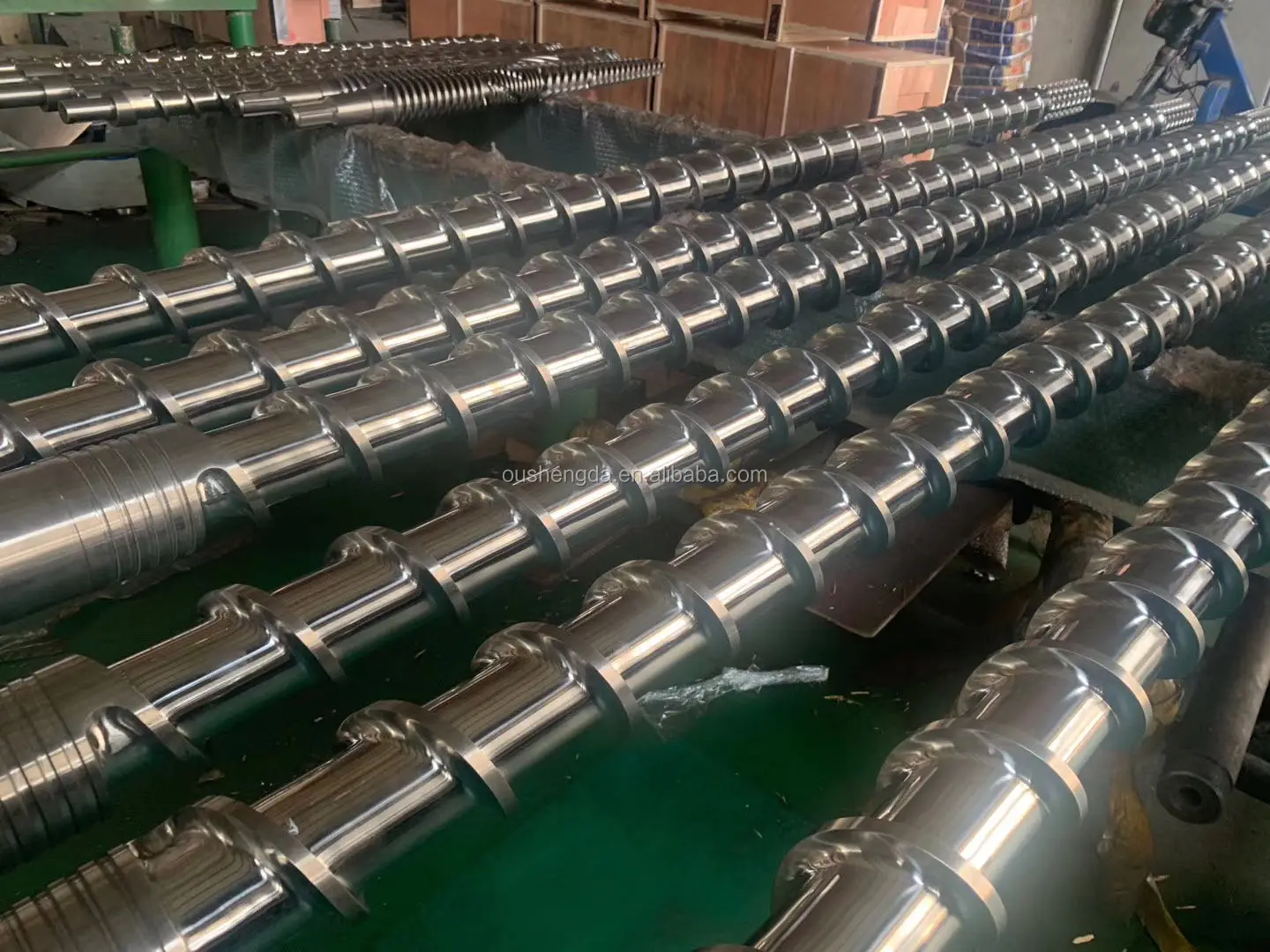

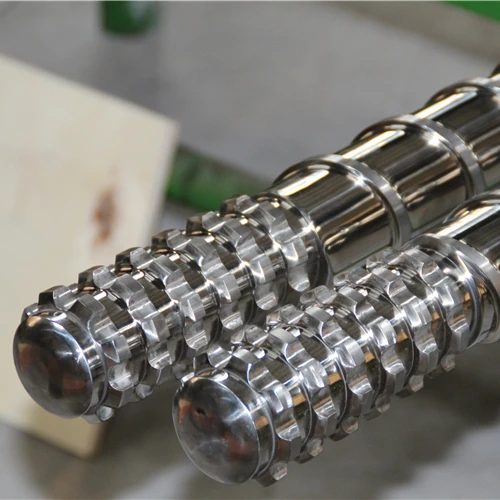

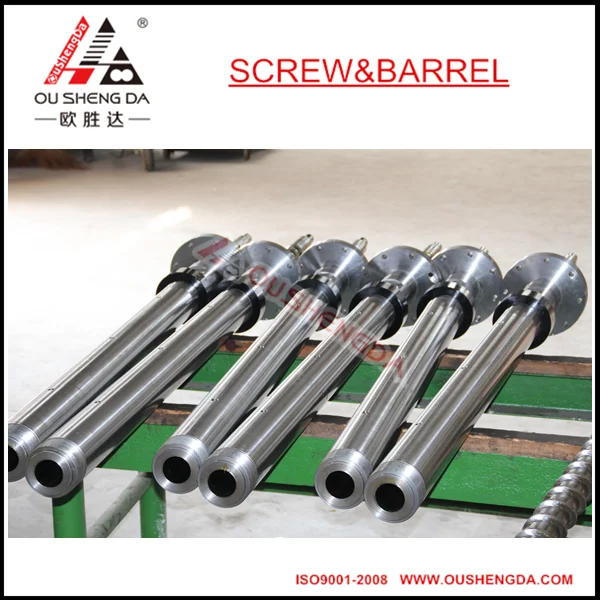

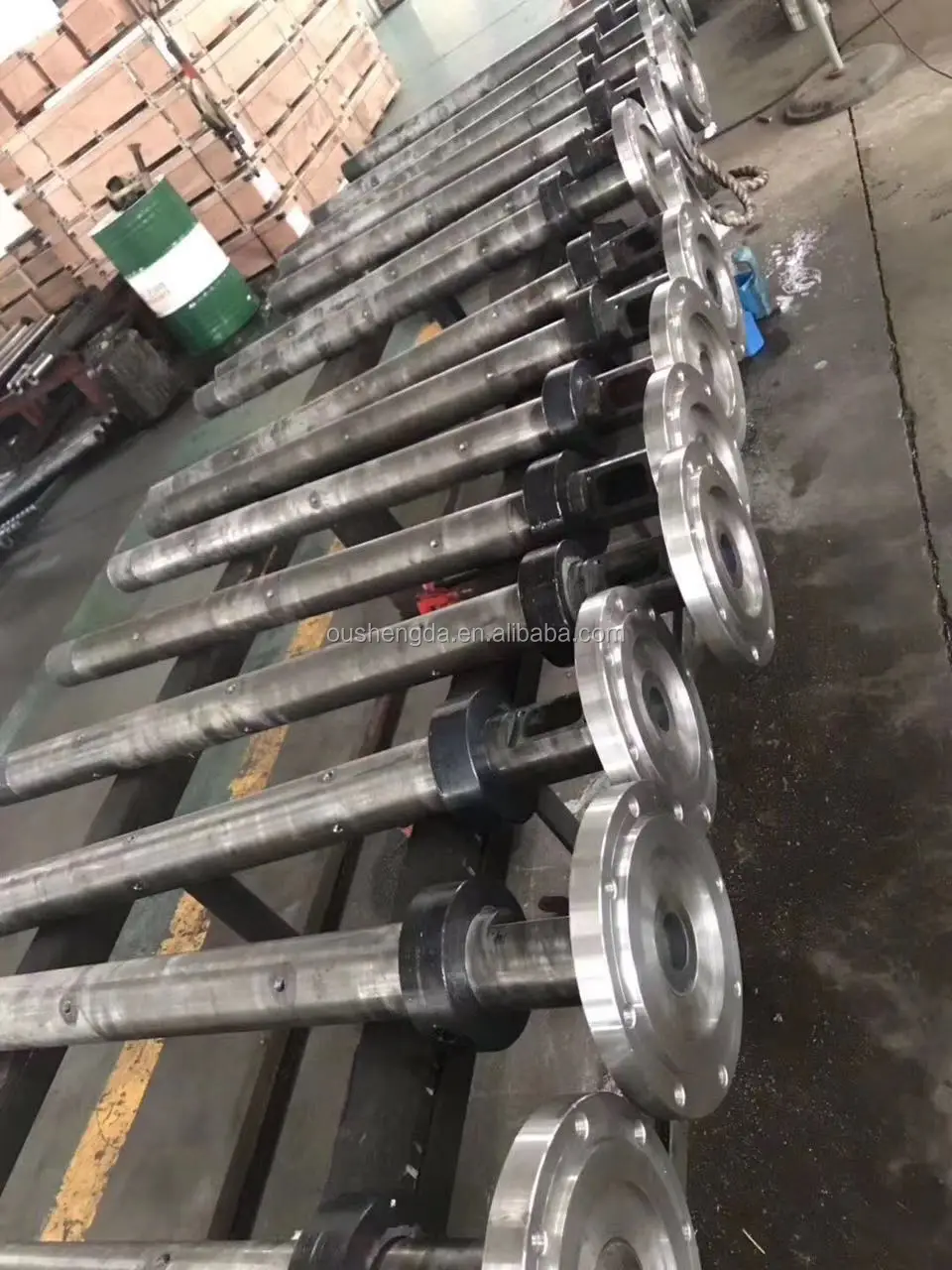

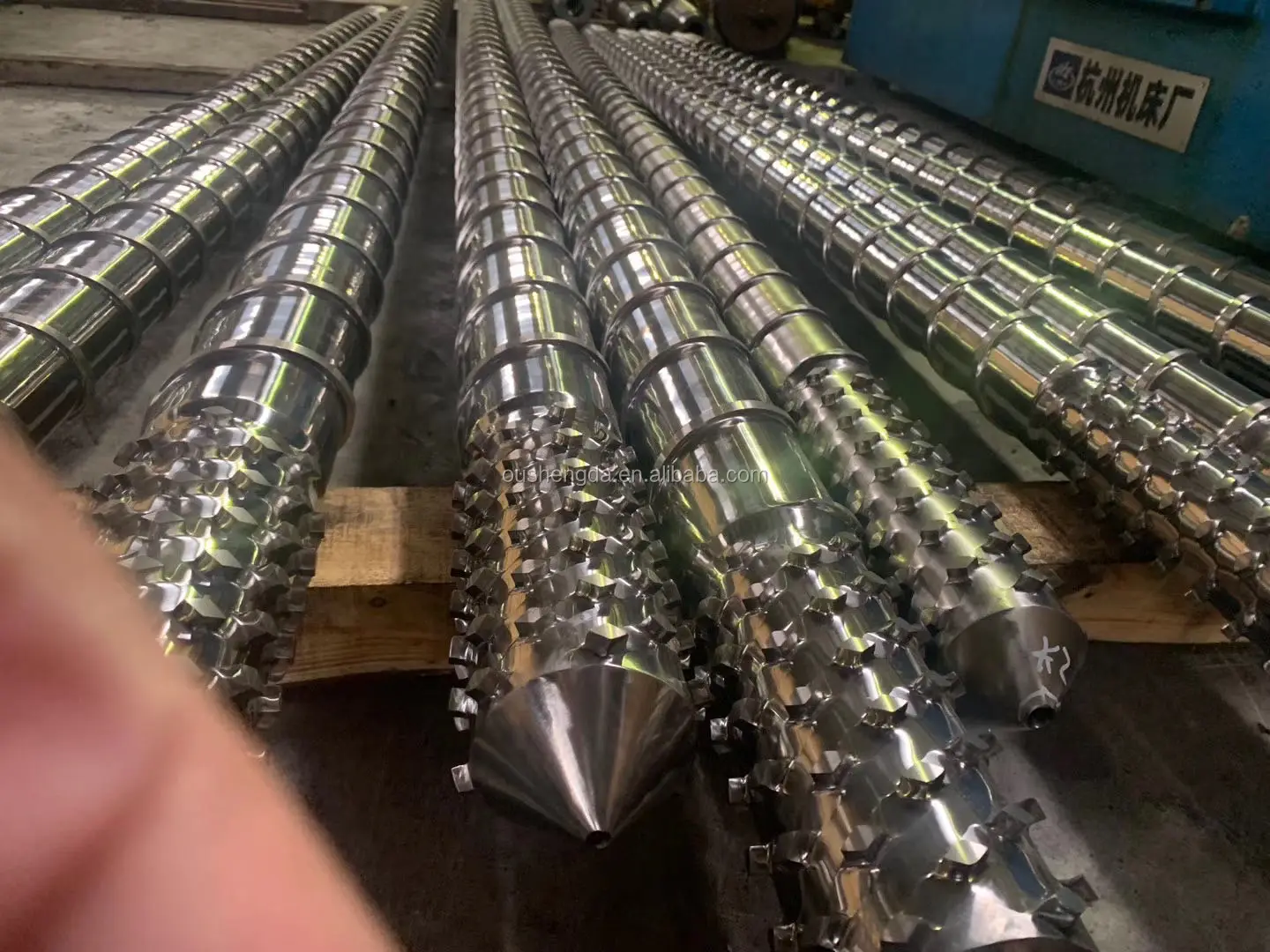

Extruder Single Screw Barrel Display:

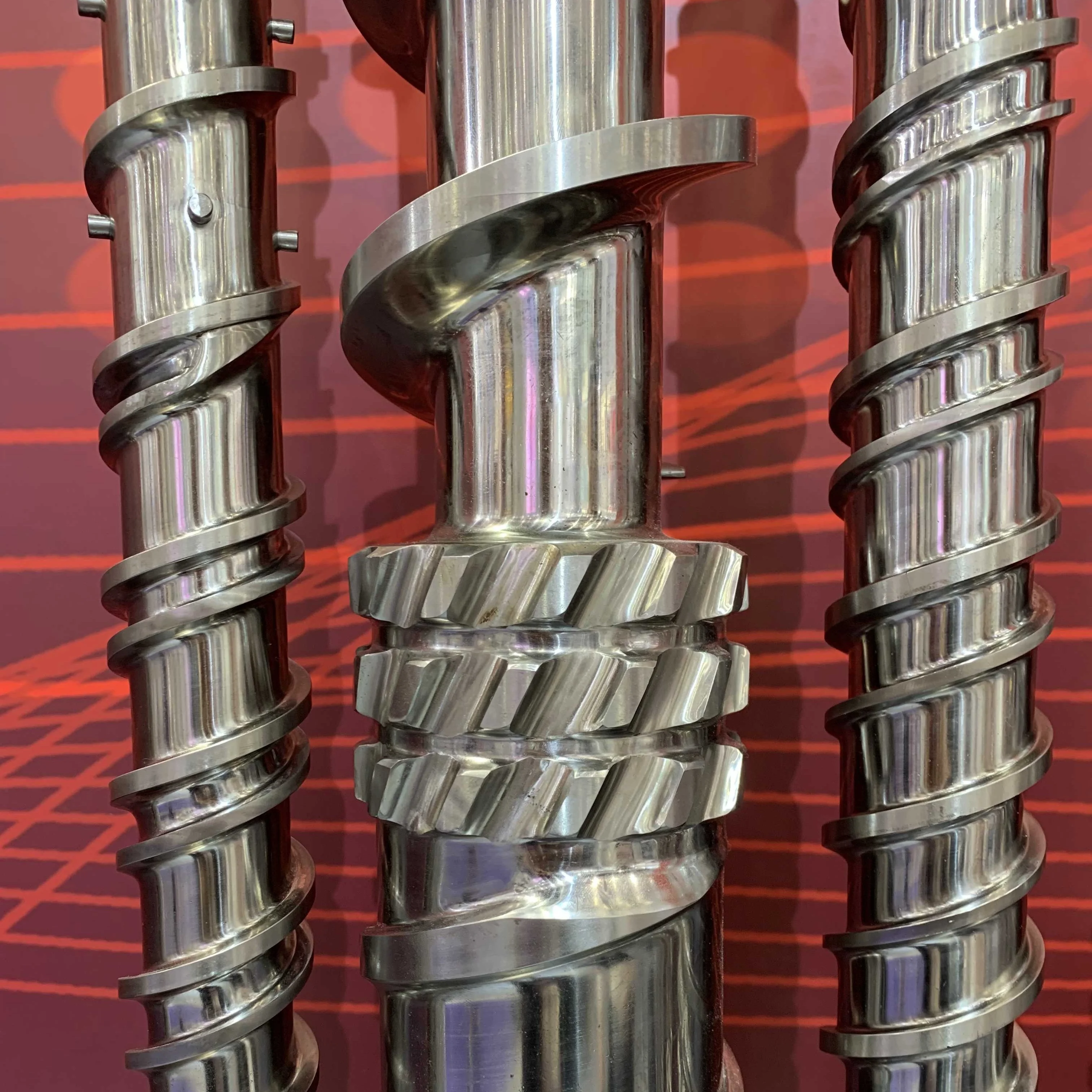

IMG_0819417

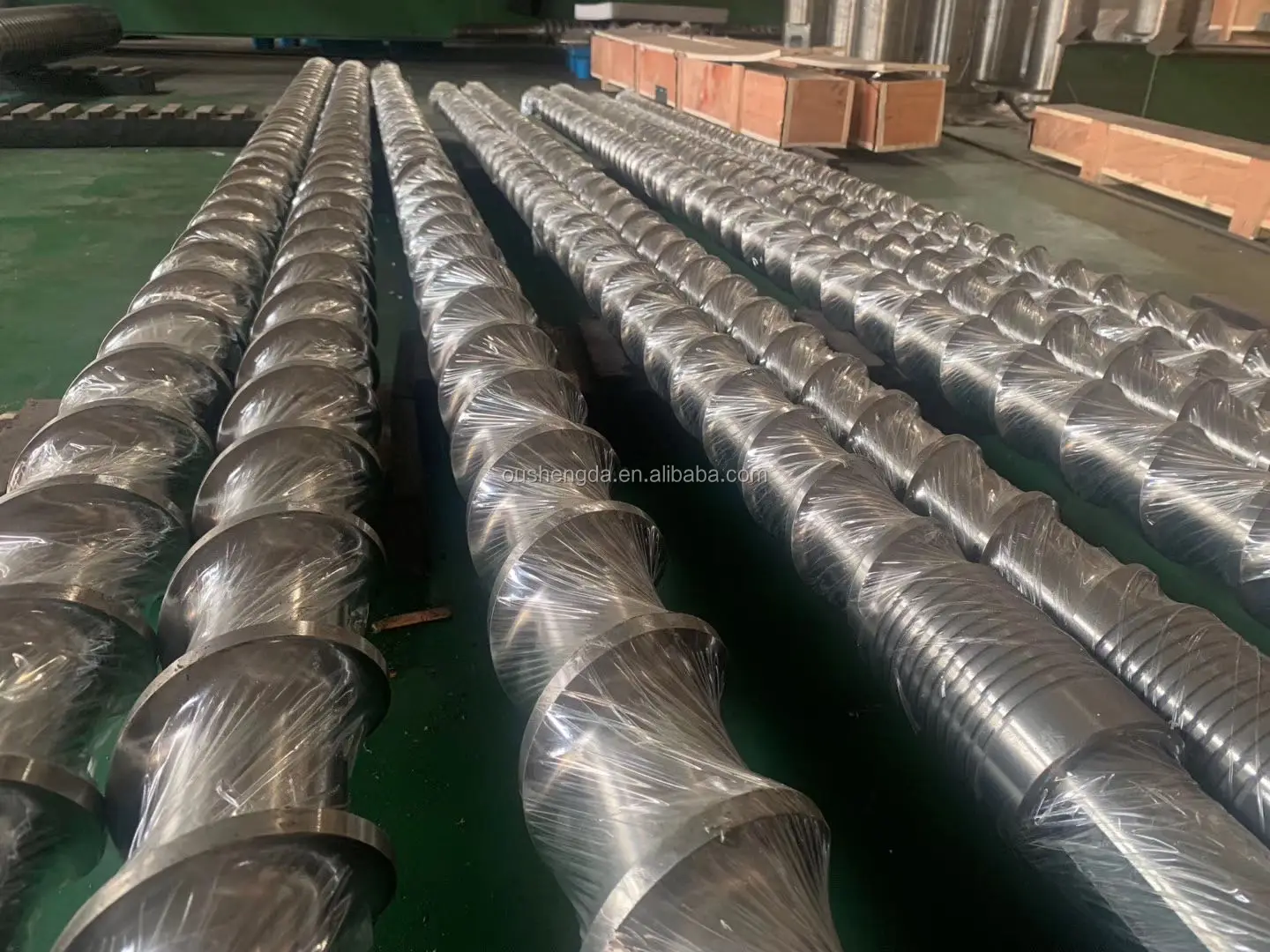

49

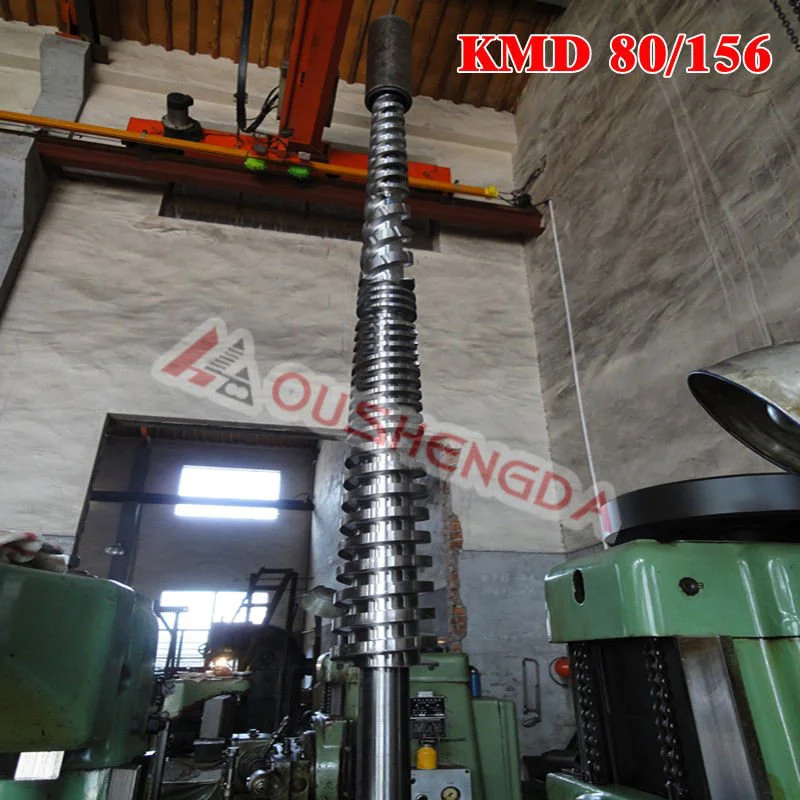

Technical processing:


 78





















Company Information


About our company:



  1. Our Strength: We have an experience of more than 30 year of manufacturing and designing Plastic machines, varied Screws and Barrels and spares.  We concentrate on improving quality, updating design and enhancing service.

  2. Our products: Screws Barrels for Injection, Extrusion, and Blow Molding applications; relevant accessories; plastic processing  machinery.

  3. Location advantage: located in China's Screw Town - Jintang Town in Zhoushan City, close to Ningbo Port and Shanghai Port.

  4. Market areas: global sales network reaching Europe, Southeast Asia, Africa, Oceania and South America.

  5. We promise: We assure the customer benefits, We provide competitive price, We emphasis on Cooperation.
