66Ton Small Medium Sized Zinc Zamak Lead Alloy Casting Machine
- Category: >>>
- Supplier: Ningbo Dongfang Die-Casting Machine Tool Co. Ltd.
Share on (593374323):
Product Overview
Description

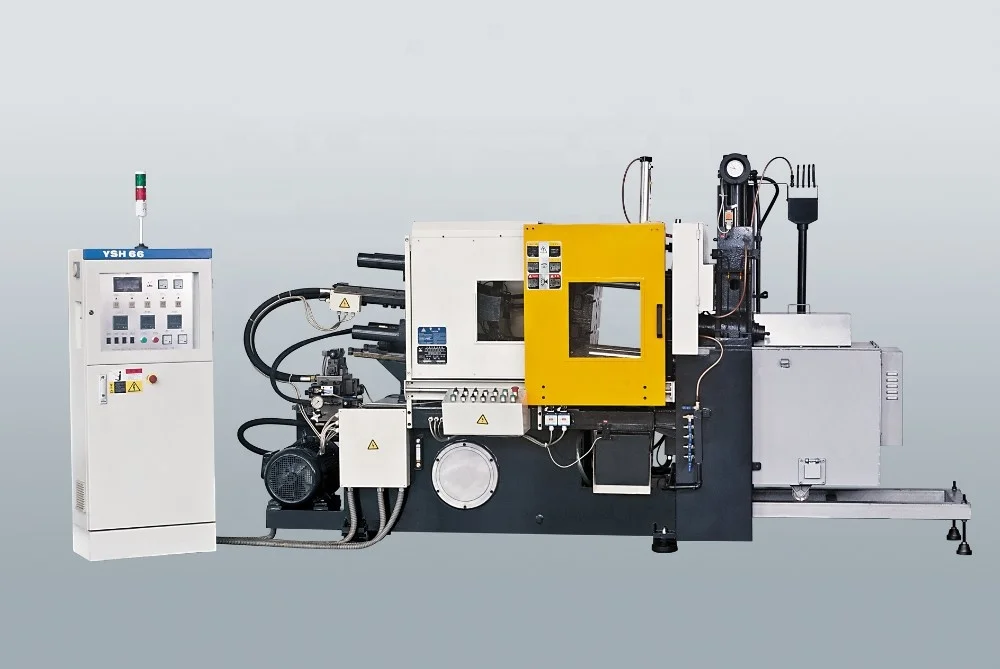

66Ton Small Zinc die casting machine

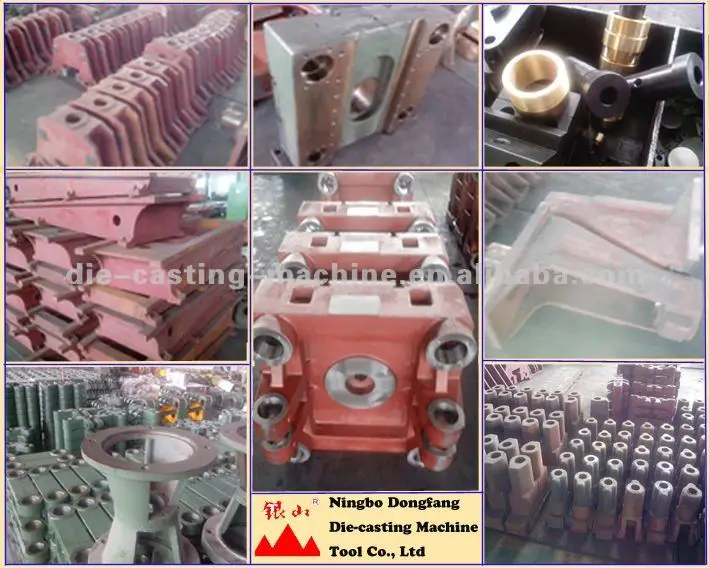

We can supply zinc hot chamber die casting machine with die locking force from 160kN to 1900kN. The 16ton zinc die casting machine is the smallest one we supplied for the market. It is wiedly used in small size zinc manufacturing such as ornamant and zipper of dress. We do best in manufacturing process from material, including forging steel and iron plates, to manchining, japanning and assembly.
66Ton YSH66 Small zinc die casting machine specification
| Die locking force | KN | 680 |
| Stroke of moving platen | mm | 240 |
| Inner space between the bars (HXV) | mm | 320X320 |
| Thicknessof die block (Min./Max.) | mm | 150/350 |
| Injection force | kn | 66 |
| Injection stroke | mm | 130 |
| Ejection force | kn | 60 |
| Ejection stroke | mm | 60 |
| Diameter of shot sleeve | mm | 50 |
| Max.projecting area of casting | cm^2 | 202 |
| Working pressure of vane pump | MPa | 12 |
| Motor power | kw | 11 |
| Dosage of fluid metal per shot (zinc) | kg | 1.5 |
| Effective volume of crucible (zinc) | kg | 250 |
| Oil consumption of burner | kg/h | 1.5-6 |
| Volume of oil tank | kg | 280 |
66Ton YSH66 Small zinc die casting machine Mould installation drawing
YSH66 66ton small zinc die casting machine featuresand applications
66ton Zinc die casting machine could process colored alloy parts from low melting point metal as zinc and aluminium, which are used widely in automobile and motorcycle parts, instruments, household hardware and home appliances industry.
There're 3 kinds of driving methods as manual, singly circulating and automatic circulating. The operator could manage several machines at the same time in automatic mode. |
Strategy of us
The goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 40 years, we have been persistently pursuing sincere service to provide perfect hot chamber and cold chamber die casting machines.

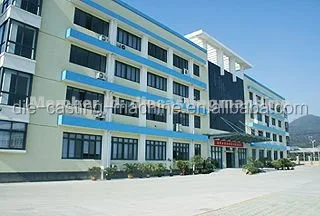

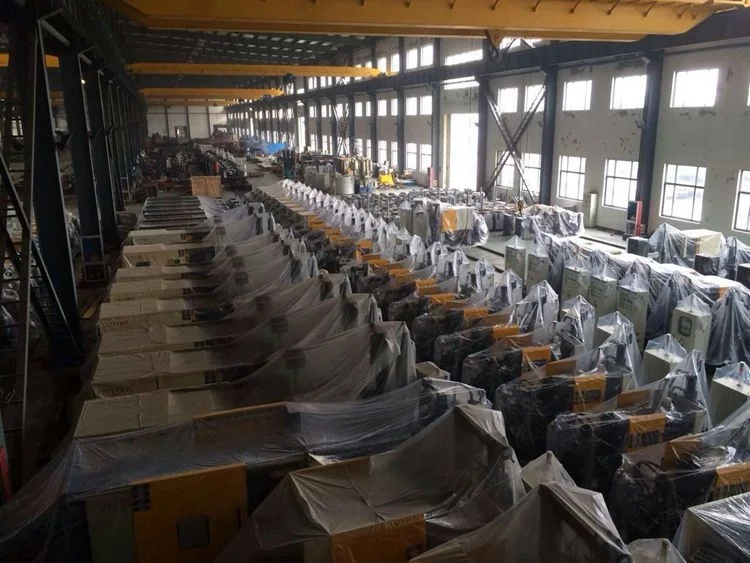

* With a history of 40 years * Factory Area: 40,000 square meters
* Employees: 50-100 people * Production Capacity: 300-500 sets per year
* Company owned Tech & Research center * Main Machines: 100 sets
If you want to know more information, pls contact us without hesitation.
