130Ton/1300KN lead cast hot chamber die casting machine for zinc in ningbo

Product Overview

Description

About us

In Ningbo Dongfan Die-casting machine Tool Co.,Ltd.,  the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 37years, we always have perisistently pursue to provide perfect cold/ hot chamber die casting machine and sincere service.





* With a history of over  37 years                     * Factory Area : 40,000 square meters

*Employees : More than 500                               *Production Capacity : 10,00-sets yearly capacity

*Company owed Tech & Research center     * Main Machines: 100sets



 we can supply this Lead / hot chamber die casting machine  with the die locking force from 160kN to 1900kN.  We do best in the manufacturing process from the material,including forging steel and iron plates,  to manchining,  japanning and assembly.

 Lead/ hot chamber die casting machine J2113

SUBJECT	UNIT	J2113
Die lock force	kN	1300
Inner space between bars(HXV)	mm	360 X360
Thickness of die block (Min./Max.)	mm	250/500
Stroke of moving platen	mm	350
Ejection stroke	mm	148
Ejection force	kN	100
Injection force	kN	100
Injection stroke	mm	148
Diameter of shot sleeve	mm	60/65
Working pressure of vane pump	MPa	13
Fluid metal dosage per shot(Zinc)	kg	2.2/2.6
Effective volume of crucible(Zinc)	kg	360
Max. projecting area of casting	cm2	368
Oil consumption of burner	Kg/h	1.5~7.0
Volume of oil tank	kg	340
Motor power	kW	18/11
Machine weight	kg	6000
Overall dimensions(L X W X H)	mm	4700X1790 X 2500

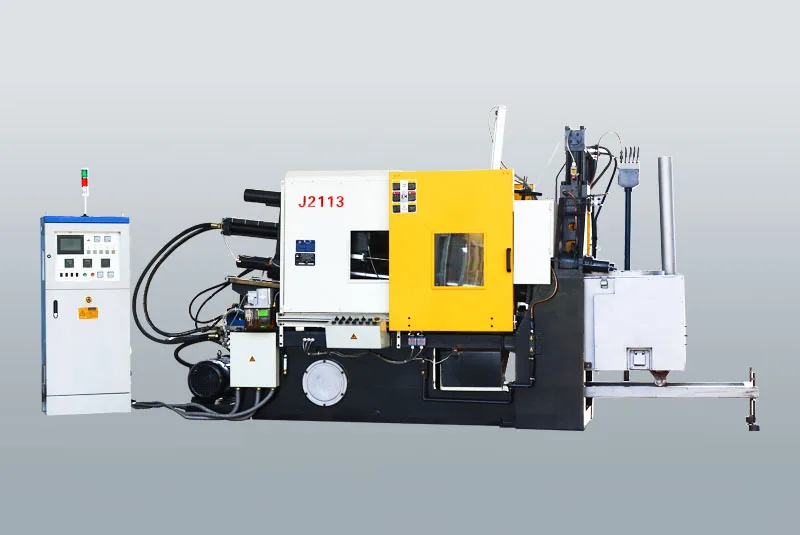

Lead ot chamber die casting machine J2113 Features and applications

1300kN/130T Hot Chamber Die Casting Machine

Suitable for zinc and lead alloy

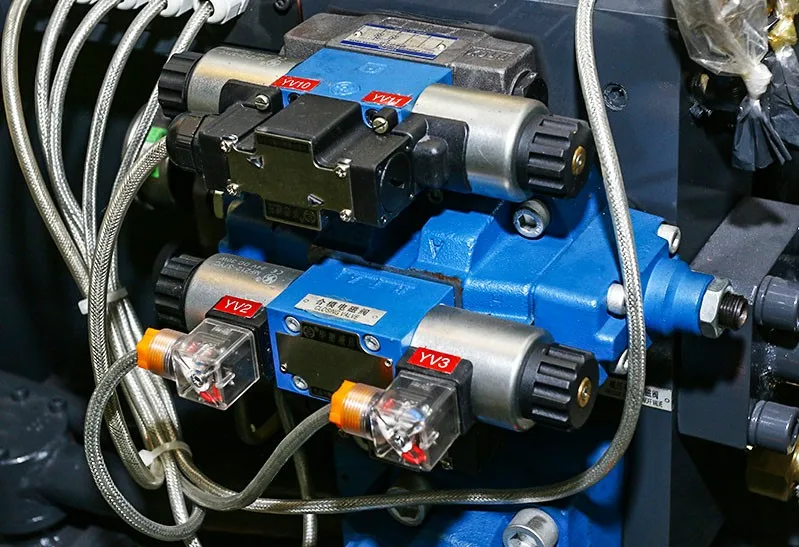

electromagnetic valve-----Rexroth

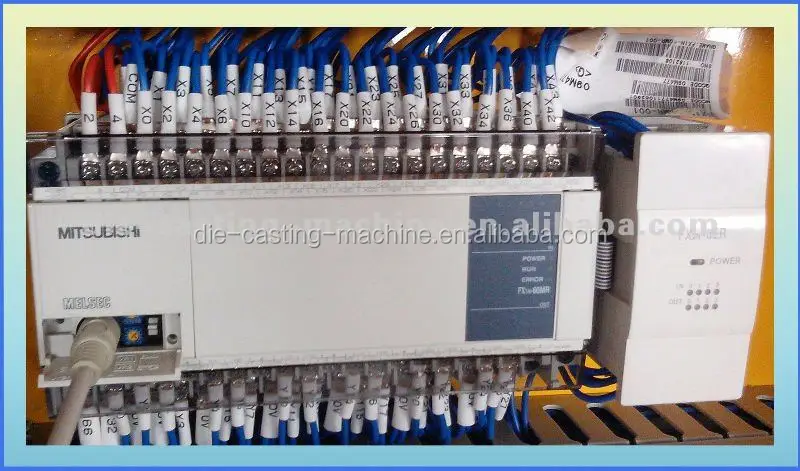

PLC--Mitsubishi

Three kinds of driving modes

High effective with 2.6kg of zinc alloy per cycle

electronics and hydraulic pressed parts



The machine could process low melting point metal of colored alloy of zinc and lead, which are widely used in automobile and motorcycle parts, instruments, household hardware and home appliances industry.

There're three kinds of driving modes as manual, single circulating and automatic circulating. The operator could manage several machines simultaneously under automatic mode.



The machine has to be very high working effective, which could send up 2.6kg of zinc alloy per cycle.



The machine is equipped with electronics and hydraulic pressed parts of high grade. The machine it is controlled by program which is stable and reliable

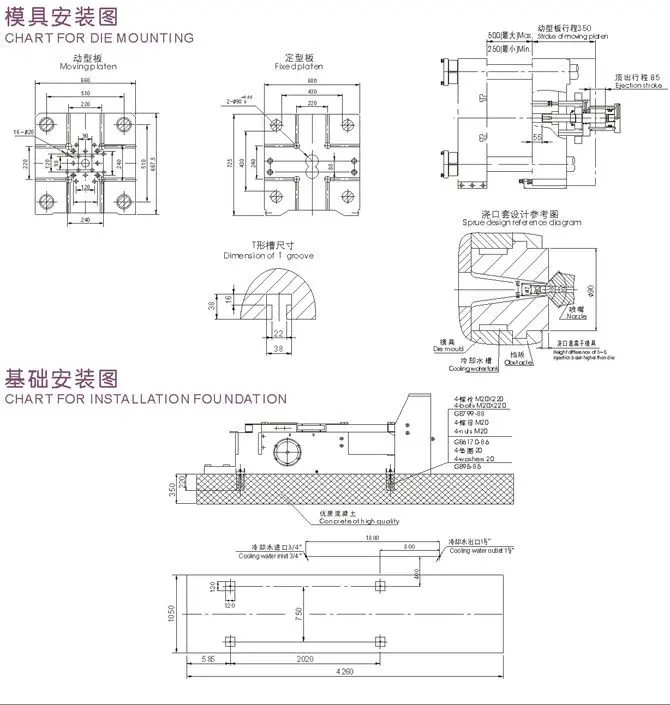

Mould installation drawing





If you want to know more details pls contact us without hesitate.
