Product Overview

Description





Product Description






Product Paramenters

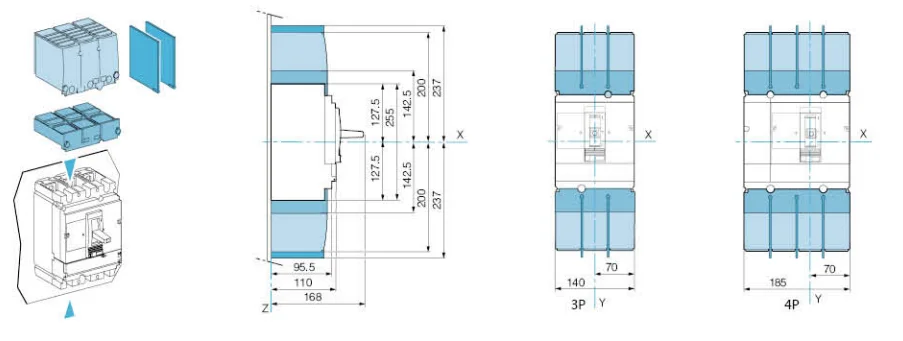

Overall dimensions
 CNSX-630A 3P








Functions and characteristics


Item No.
CNSX 630A
Number of poles
 3P , 4P
Control
Manual
with toggle/with direct or extended rotary handle
Connections
Fixed
front connections/rear connections
Plug-in
front connections/rear connections
Electrical characteristics as per IEC60947-2  and EN60947-2
Rated current(A)
In
40℃
Rated insulation voltage(V)
Ui
750
Rated impulse withstand voltage(kV)
Uimp
8/
Rated operational voltage(V)
Ue
AC 50/60Hz , 690V
Utilization catagory
A

Operation performance
Mechanical
6000
Electrical
1000
protection
ChartB-2
Indication and control auxiliaries
Auxiliary switch
YES
MX Shunt coil
YES
MN under-voltage coil
YES
Demensions

Demensions(mm)
3P
135*355*110
4P
180*355*110


Company Profile


Yueqing Shendian Electrical Co. Ltd was founded in 1992, with 28 years of professional production experience in electrical equipment industry. We are committed to exploration and production of intelligent circuit breakers.
Shendian Electrical always considers the product quality as its life and considers scientific and technological innovation as its soul. Because of stable development,Shendian Electrical has been highly recognized by customers. "Only do what we do best" is our corporate philosophy. Shendian Electrical will try our best to achieve the goal of "safety in power grid, free and easy" with our actions.


Reception
Office
Workshop




Certifications






Factory&exhibition picture




Our Factory






Product packaging




Item
Carton size(cm)
G.W
PCS/CTN
CNSX 630A 3P
33×31×30.5
24.8
4


FAQ


1. What's your trading methods?
We accept kinds of trading methods,e.g.FOB,CIF.

2.What’s your Payment terms?
We accept kinds of payment terms,e.g.TT,L/C,O/A.


3. What’s the standard of package?
For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.

4. what kind of material of transformer?
we have two types, one 85% silver contacts and the other is 50% silver contacts.It depends on your requirment.

5.Could you offer Form A or C/O ?
It totally not a problem. We can prepare relative documents to foreign affairs office or other office to apply for this certificate.

6.Would you accept to use our LOGO ?
If you have good quantity,it absolute no problem to do OEM.

7.We want to know month capacity.
It depends on which model.For example for relay type small capacity , month capacity can reach near 20000pcs.
