1800kN lead alloy hot chamber vacuum casting machine

Product Overview

Description

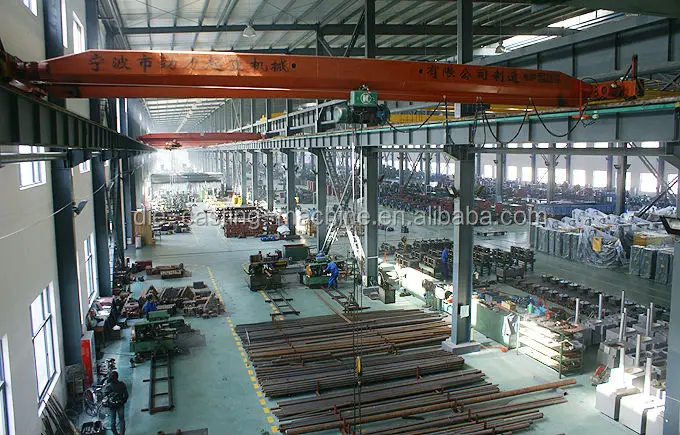

Our Factory

In Ningbo Dongfan Die-casting machine Tool Co.,Ltd.,  the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 30 years, we always have perisistently pursue to provide perfect cold/ hot chamber die casting machine and sincere service.



Hot chamber Vacuum casting machine can help the manufactory do all kinds of product which is made of Zinc,Lead alloy. Mental casting measn the machine can cast various shaps final product.Tell us what yu want to make, the machine can help you reach the bussiness goals through speciall mould.As a die casting machine manufacturer, we are happy to help all our clients to find the most suited mould for their product.



* With a history of over  37 years                     * Factory Area : 40,000 square meters

*Employees : More than 500                               *Production Capacity : 1000-sets yearly capacity

*Company owed Tech & Research center     * Main Machines: 100sets



 we can supply this Lead / hot chamber die casting machine  with the die locking force from 160kN to 1900kN.  We do best in the manufacturing process from the material,including forging steel and iron plates,  to manchining,  japanning and assembly.

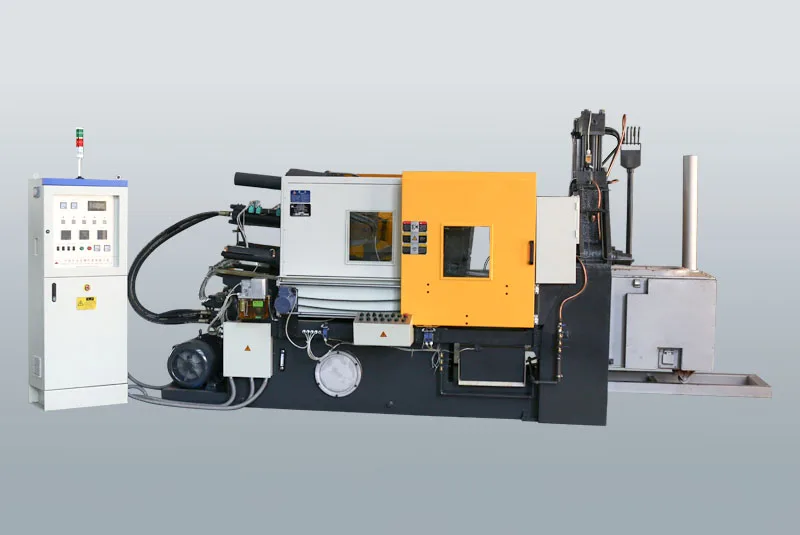

 Lead/ hot chamber die cast machine J2118A

The project	unit	J2118A
Die locking force	kN	1800
Stroke of movig platen	mm	385
Inner space between the bars(HxV)	mm	480x480
Thickness of die block (HxV)	mm	200x580
Injection force	kN	120
Injection stroke	mm	160
Ejection force	kN	109
Ejection stroke	mm	85
Diameter of shot sleeve	mm	65/70
Max projecting area of casting	cm2	470
Working pressure of vane pump	MPa	12
Motor power	kW	15
Dosage of fluid metal per shot (zinc)	kG	2.5-3.5
Effective volume of crucible(zinc)	kG	450
Oil consumption of burner	kg/h	1.5-9
Volume of oil tank	kG	500
Machine weight	kG	6500
Overall dimensions (L*W*H)	mm	5300x1850x2300



 Lead hot chamber die cast machine J2118A Features and application

1800kN/180T Hot Chamber Die Cast Machine

Suitable for lead, zinc alloy and widely used in many industries

Controlled by program

3 kinds driving modes

3.5kg zinc alloy can be sent up per cycle



J2118A could process low melting point metal colored alloy of zinc and lead, which are widely used in automobile and motorcycle parts, instruments, household hardware and home appliances industry.

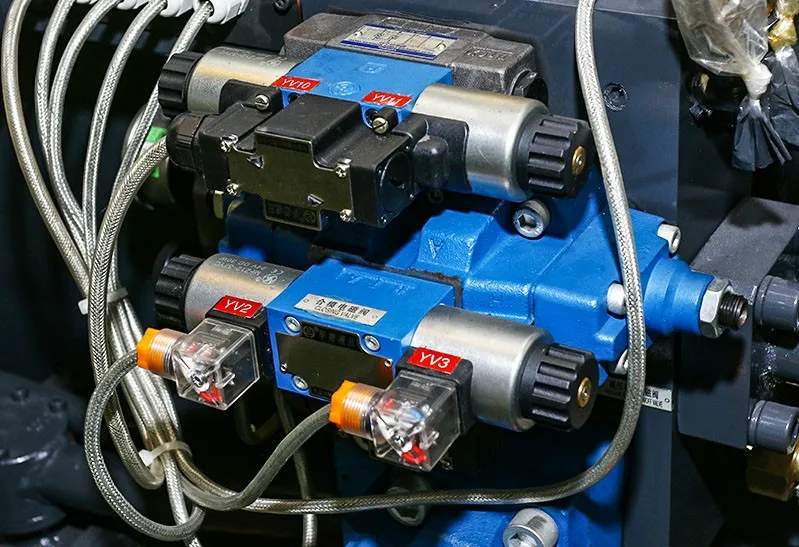

There're three kinds of driving modes as manual, single circulating and automatic circulating. The operator could manage several machines simultaneously under automatic mode.This is an effective machine which could send up 3.5 Kg of zinc alloy per cycle. J2118A is equipped with electronics and hydraulic pressed parts of high grade. The machine is controlled by program which is stable and reliable

The mould installation drawing









FAQ

Q:Are you a manufacturer of a trade company?

A:We are a manufacturer.And we have our own Export rights.



Q:If we don't know how many tons machine will be suitable for our products ,what we should do ?

A:It 's no proplem.You can send us the the weight ,size and the materials of your products and our professional master will recommend the most suitable machine with you .



Q:How is your delivery time?

A:Generally ,we can dilivery the machine within 7-10 days after receiving your advance payment.

But it also depends on the iterm and the quantity of your order.



Q:How about the payment terms?

A:Generally ,the 30% T/Tdeposite ,the balance 70% T/T before delivering the goods.



Q:How about your warranty?

A:We have one one year warranty for the machine .
