Полностью твердый впрыскивающий винт и цилиндр для жесткого ПВХ/впрыскивающий винт из ПВХ
- Category: Plastic & Rubber Machinery Parts >>>
- Supplier: Zhoushan OSD Plastic Machinery Co. Ltd.
Share on (594364421):
Product Overview
Description
O.S.D Single Injection Screw and Barrel
Our Services
Our company, ZHOUSHAN OSD MACHINERY COMPANY, provides professional CAD drawing design and dimensional mapping. Provide you with as much service as possible.
- We can make any specification of extruder screw barrel and injection screw barrel for Engel, Krauss-maffei, Milacron, Demag, Arburg, Haitian, JSW, Toshiba, Nissei, Sumitomo, Nippon Steel, Mitsubishi, Fanuc, Chenhsong, Haitai, Yizumi, Cincinnati, Battenfeld, Weber, Theysohn, Bausano, Maris, Jwell, Jinhu, Liansu, Windsor, etc.
- We also can supply all types of screw and barrel according to your different requirements.
- Our screw barrel can ensure the well performance and low energy consumption of extruder and Injection molding machine. We insist on the principle of quality first, honest to customers, the quickest service for customers” to improving us, our goal is to satisfy our customers.
Injection Screw and Barrel for Injection Molding Machine
| |||||
Diameter | Φ15mm-Φ350mm | Design | Screw structure and compression ratio can be designed according to different products & different clamping force requirement. We can select&design the matching screw barrel to meet your requires. | ||
Materials | 38CrMoAlA (JIS SACM645) SKD61 GH113 | Application | All kinds plastic & rubber and All kinds of glass fiber,the PPA, PPS, PA6T, LCP, electric wood powder, magnetic powder ,iron powder and other special engineering plastics . | ||
Nitride Case Depth | 0.5mm-0.8mm | Technology | 1.Longer time Gas Nitriding treatment 2.special anti-wear & abrasion alloy(bimetallic) 3.tungsten carbide 4.cobalt base alloy 5.stainless steel 6.Gh113 nickel based alloy | ||
Nitride Hardness | 960-1060HV | Packing | Wrapped up by film in wooden | ||
Nitride Brittleness | ≤Grade One | Payment Term | T/T , L/C | ||
Surface Roughness | Ra0.4um | Delivery Term | 25 working days | ||
Screw Straightness | 0.015mm | Port Departure | Shanghai/Ningbo | ||
Alloy Hardness | HRC58-70 | Min. Order | 1 set | ||
Alloy Depth | 1.5mm-3.5mm | Guarantee | Common Nitrided:2.5-4years Bimetallic: much longer lifetime. | ||
Technological Process:
Blanking→Rough Machining→Quenching & Tempering →Semi Finishing Machining
→Finished Product→Detecting→Nitring/Alloy Processed →Finish Machining
Advantages of Single injection screw and barrel for injection molding machine:
1.Advanced Nitriding Technology
2.Anti-corrosion and Wear-resisting Duplex Alloy Spraying Technoloy
3.We use special alloy powders being sprayed and welded on the screw's ridge,
and use different alloy and welding methods for the screw of different functions.
Advantages of Bimetallic single injection screw and barrel:
Our bimetallic single injection screw barrel for injection molding machine can ensure the well performance and low energy consumption of extruder machine. We insist
on the principle of "quality first, honest to customers, the quickest service for
customers” to improving us, our goal is to satisfy our customers.
Especially application:
Rubber,various high glass fiber, mineral fiber and PPA,PPS, PA6T, LCP,VO fire protection, ferrous power, magnetic powder and etc. Meanwhile,Used for PVC + 30%
CaCo3, recylced plastic material,etc.

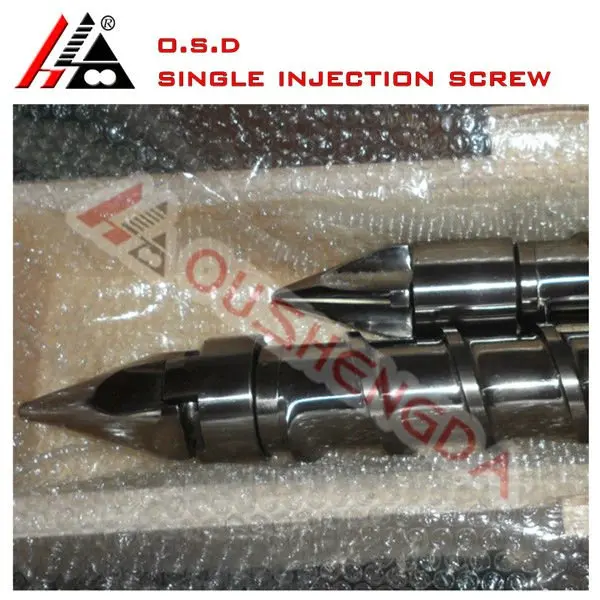

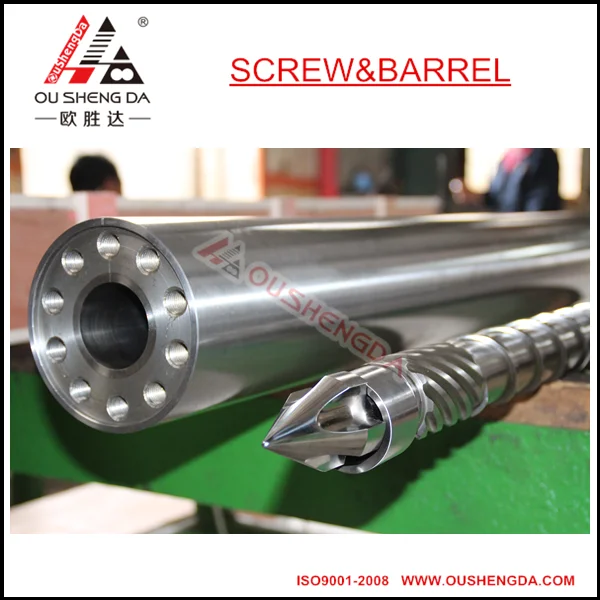

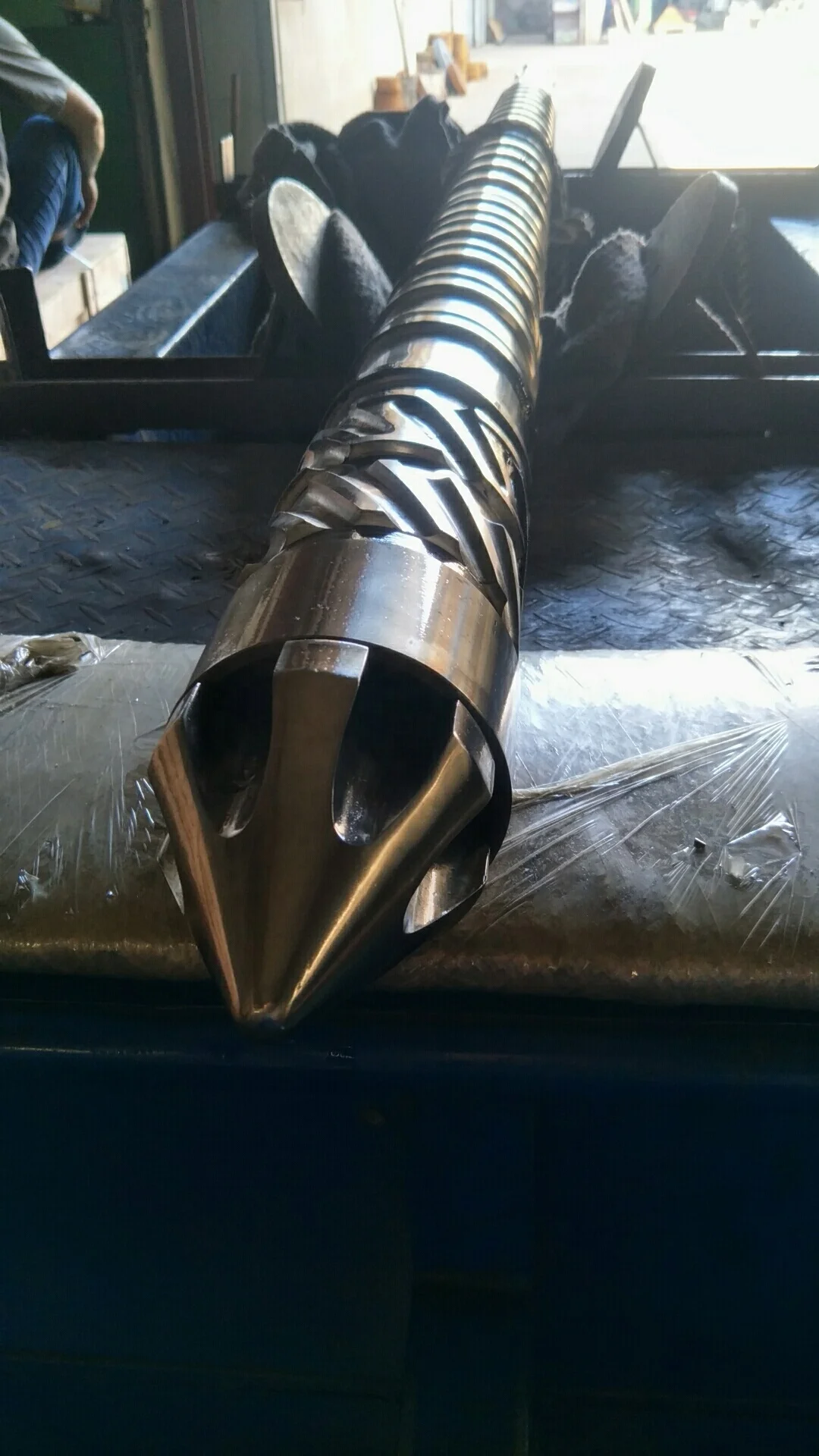

Single Injection Screw and Barrel Display:

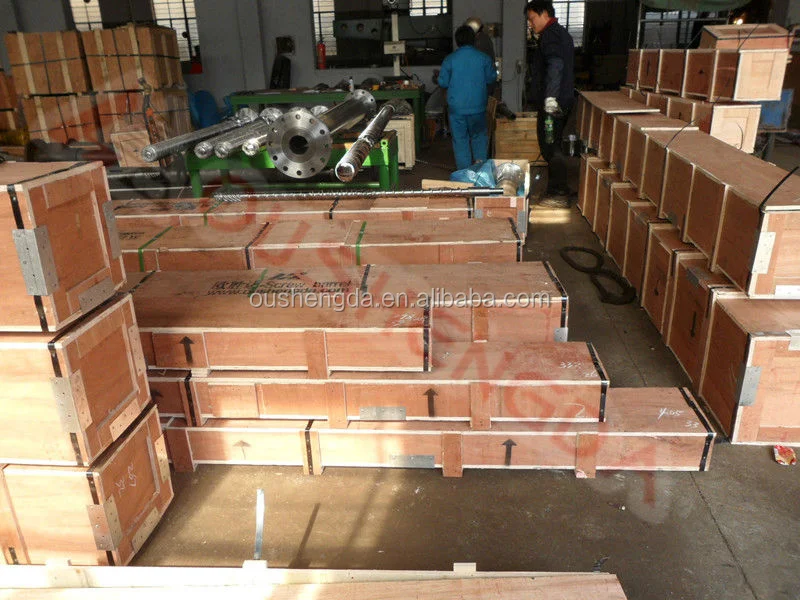

International Standard Packing:
Technical processing:
Final Products Application:
Company Information
About our company:
- Our Strength: We have an experience of more than 30 year of manufacturing and designing Plastic machines, varied Screws and Barrels and spares. We concentrate on improving quality, updating design and enhancing service.
- Our products: Screws Barrels for Injection, Extrusion, and Blow Molding applications; relevant accessories; plastic processing machinery.
- Location advantage: located in China's Screw Town - Jintang Town in Zhoushan City, close to Ningbo Port and Shanghai Port.
- Market areas: global sales network reaching Europe, Southeast Asia, Africa, Oceania and South America.
- We promise: We assure the customer benefits, We provide competitive price, We emphasis on Cooperation.
FAQ
A:Where is our factory?
ADD: NO.22 XINGONG ROAD, LIGANG, JINTANG TOWN,DINGHAI DISTRICT, ZHOUSHAN CITY, ZHEJIANG PROVINCE, CHINA
B:Why choose us?
(1) We have complete system of designing and production.
(2) We can provide the perfect management solutions and processing equipment.
(3) We have high request of clearance and make every detail perfect.
(4) We could make you in a leading position in the industry.
(5) You could contact us anytime and we would reply you as soon as possible.
C: What's the payment method?
L/C, T/T, Western union
D: Can you see the running machine in our factory?
Yes. Before making your decision, you can check our precision with our stock.
E: How long of the warranty time?
Usually our warranty period is 1 year.
