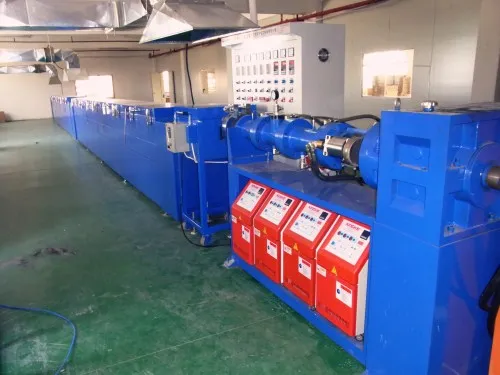

1. Rubber Extruder: suitable to produce rubber tube/hose/strip,material ERP, CPE, EPDM..(Rubber Tube Extruder/Rubber Hose Extruder)
2. Main Specification:
2.1. Raw material: CPE, EPDM, EPR, CR, CSM, EVA, SILICON
2.2. Line speed: max. 30m/min
2.3. Central height of machine:1050 mm
2.4. Color:Machine: (provide color swatches) Control cabinets: (provide color swatches); Safety: Yellow
3. Main components:
3.1. Extruder 1 set
3.2. Crosshead 1 set
3.3. Microwave vulcanization tunnel 1 set
3.4. Hot air vulcanization tunnel 1 set
3.5. Smoke exhauster 1 set
3.6. Cooling trough 1 set
3.7. Blow dryer 1 set
3.8. Belt capstan 1 set
3.9. Electrical Control System 1 set
3.10. Spare parts 1 set
Technical specifications
DL50
DL70
DL90
Finished hose diameter
3.0-25mm
5.0-40mm
8.0-90mm
Line speed (max.)
30m/min
30m/min
30m/min
Extrusion output (max.)
70kg
120kg
200kg
L/D
20:1
20:1
20:1
Extruder power
18.5/22KW
30/37KW
55KW
Microwave curing length
4m
4-6m
6m
Heating curing length
16m
16-24m
24m
Curing transmission belt driven power
1.5KW
1.5KW
1.5KW
Belt capstan power
1.5KW
1.5/2.2KW
2.2KW
Extruder temperature control
Oil/water temperature machine

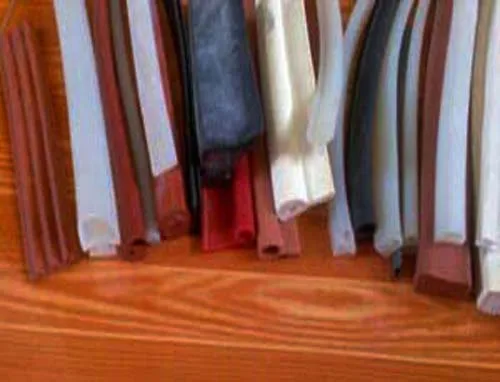

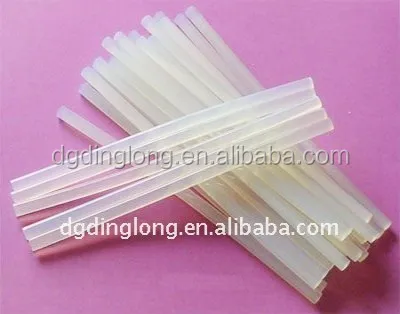

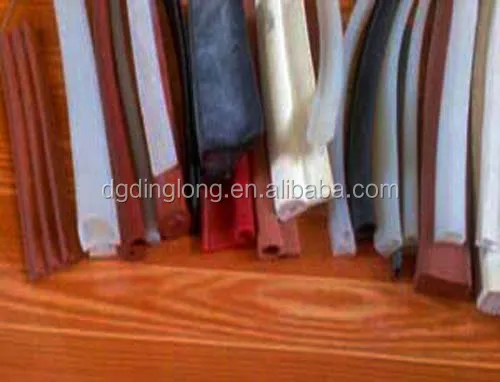

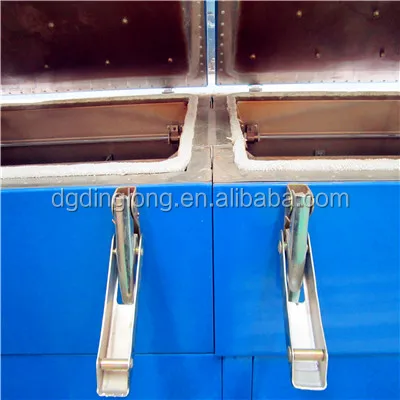

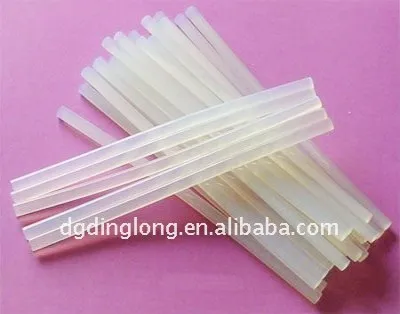

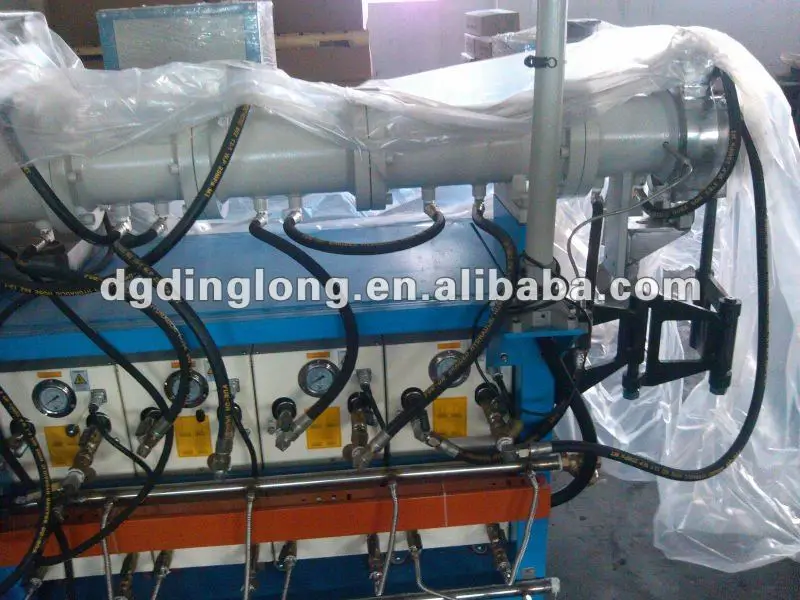

Product Show
FAQ1
Q1: How long is the delivery time? A1: It will take 20 days from the beginning to the end of the production It takes more than 30 business days to customize complex mechanical equipment.
Q2:What is terms of payment? MOQ?
A2: T/T. 1 set. Q3:How do you gurantee the machine stable operating? A3:we do Pre-shipment test for every single piece of machine. we have seperate QC,delivery,sales and after-sales departments. also strict management process from pre-sales to after-sales. Q4: How is your After-Sales Service? A4:1 year warranty with 60+ oversea after-service engineers (oversea after-service team of high efficient,professional and enough experience for various Non-standard project) Q5:How can I install my machine when it arrives? A5: For simple and semi auto machine,DingLong would send manual instruction and teaching video. For complex operation , we will send the engineers overseas to help client installing, operating and training.
Company Information
Dongguan Dinglong Electrical Machinery Co.Ltd. is a high-tech manufacturer specialized in designing and manufacturing silicone strip equipment Series,LED strip Equipment series,silicone heating cable equipment Serieslocated in Humen, Dongguan City.
Since our company was founded, Over the past 10 yeas, our products have been extensively imported from Africa, Southeast Asia, Latin America, Europe and other markets.
Company certificate and honor
Contact Us
Company Name: Dongguan Dinglong Electrical Machinery Co., LTD
Operational Address:90 Chenfeng Road, Chen Village Industrial Park, Humen Town, Dongguan, Guangdong, China (Mainland)
