Aluminum Rod Continuous Casting and Rolling Machine

Product Overview

Description

1. Product Information

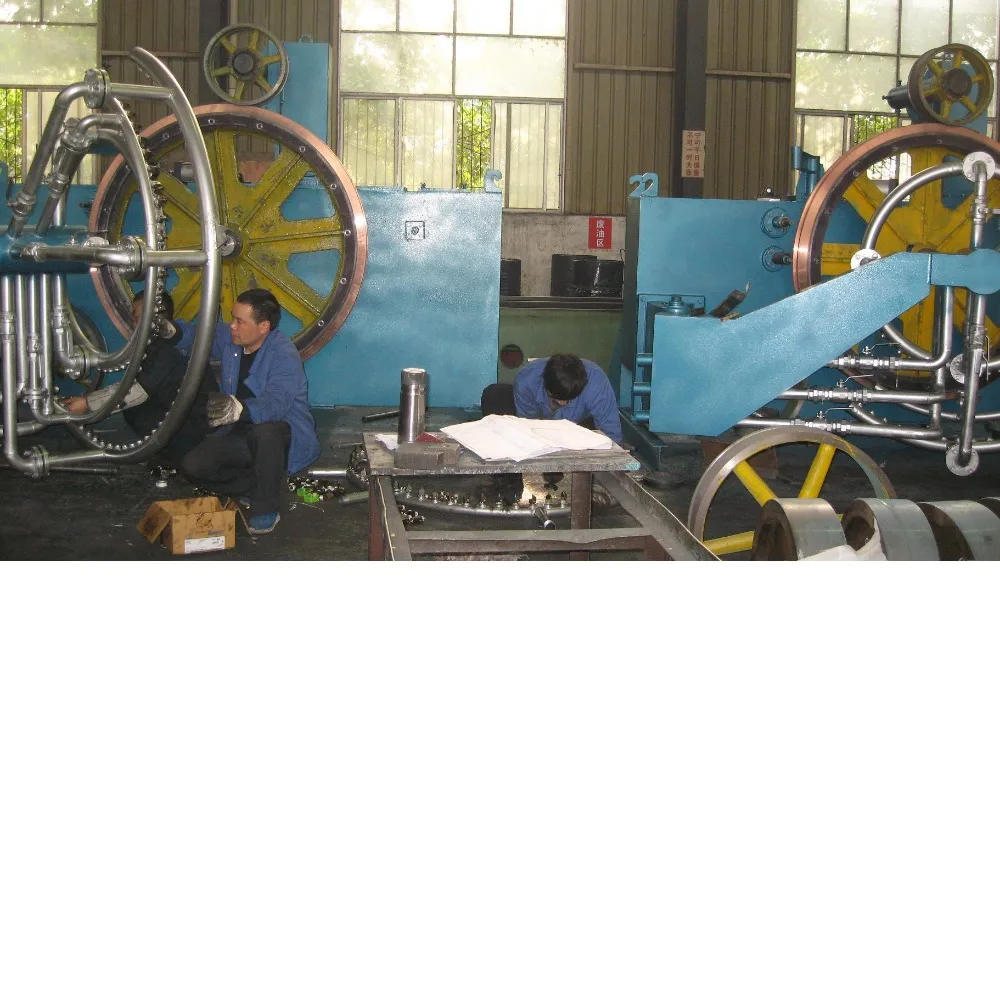

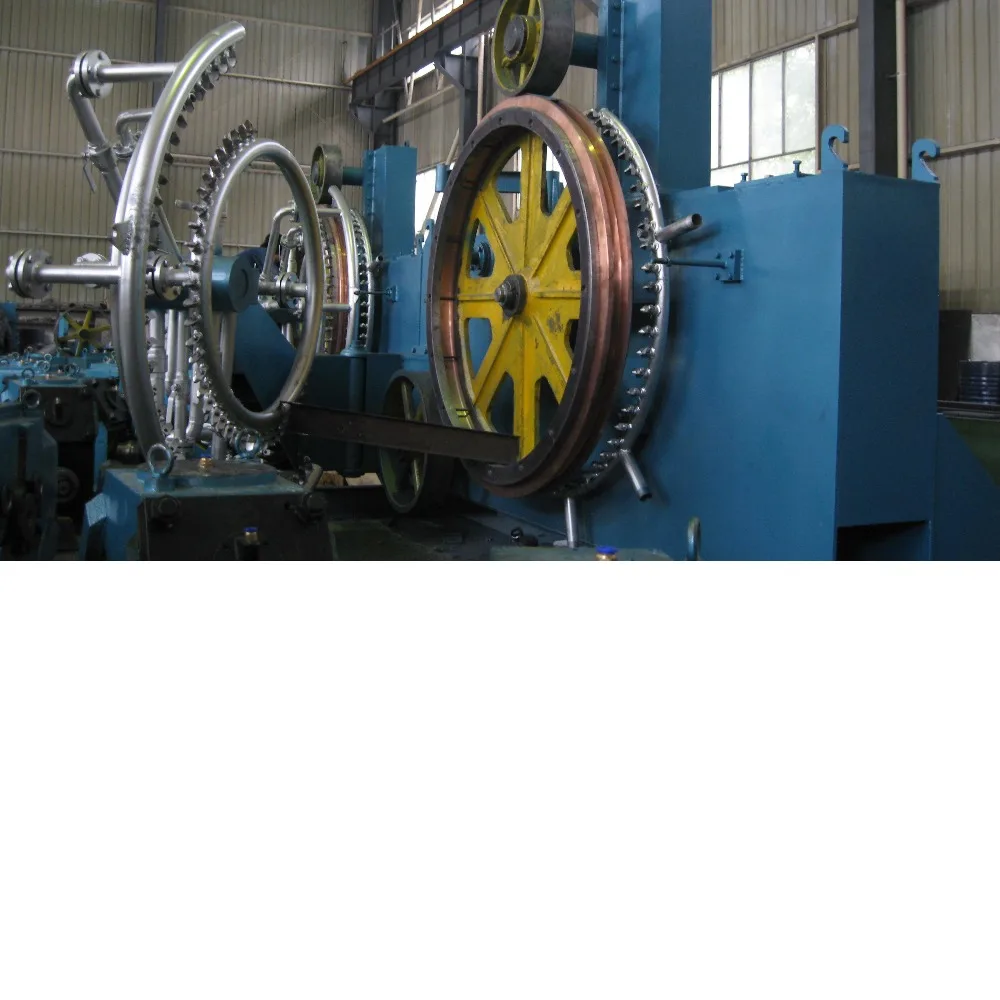

Casting machine	Crystallizing wheel dia.	Φ1500mm
	Section surface of casting ingot	2420mm2
	Casting speed	7.8~15.5m/min
	Crystallizing wheel rotating speed	1.66~3.3r/min
	Driven motor	3kw
	Type of casting machine	4-wheel
	Cooling water pressure	0.35~0.5MPa
	Cooling water consumption (soft water)	100t/h(inner cooling 60t/h,outer cooling 40t/h)
Monorail hydraulic shear	Max. shearing force	12000kgf
	Max. shearing stroke	65mm
	Motor power	4kw
Y-type rolling mill	No. of rolling stand	15, 13, 11
	Outlet rod dia	Φ9.5, Φ12, Φ15mm
	Production capacity	5t/h
	Type	3-roller in “Y” type
	Roller nominal size	Φ255mm
	Transmission ration between capstans	1:1.25
	Finished rolling speed	6.2m/s
	Center height	902.5mm
	Main motor	250kw(DC)
	Lubrication oil tank of gear box	5m3

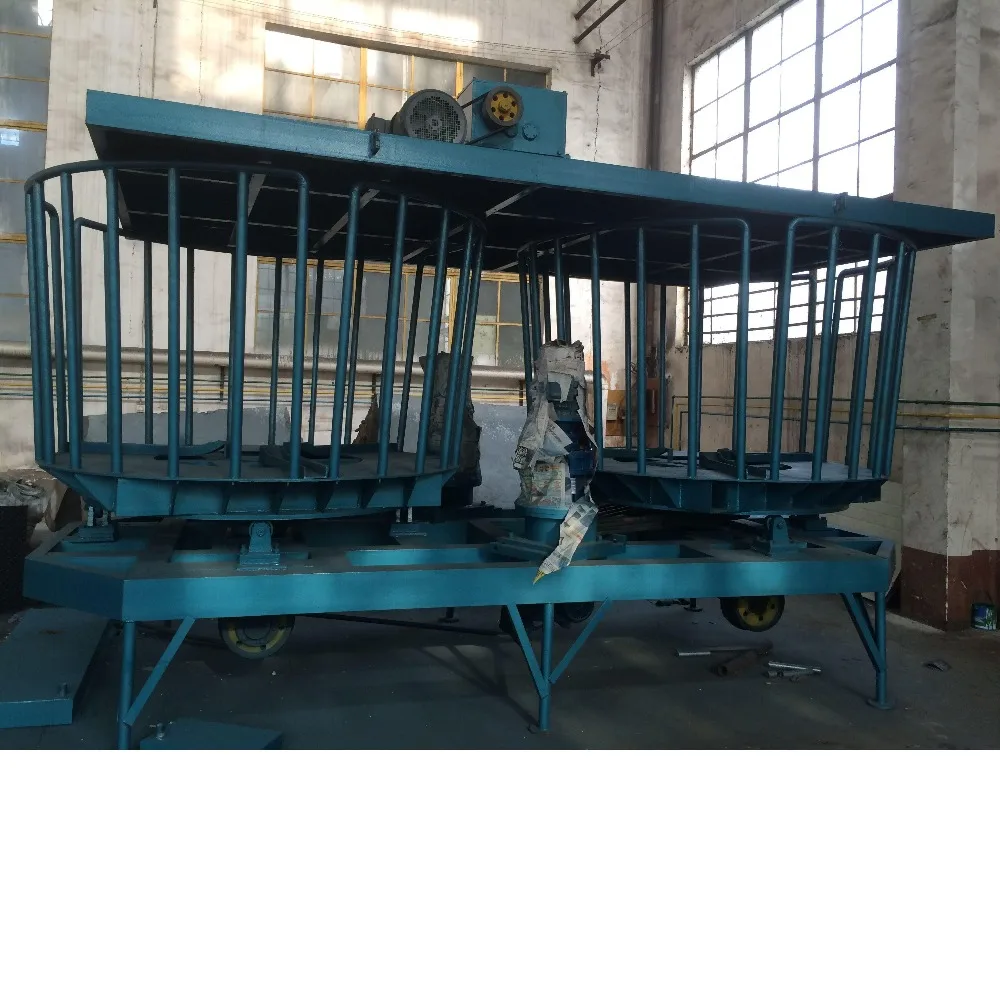

Drop down coiler	Max. coiling weight	1.5~2 t
	Max. coiling dia	Φ2000mm
	Coiling driven motor power	1.1kw
	Trolley moving speed	0.75m/s
	Trolley Motor power	2.2kw
Others	Overall dimension	30×7.1×4.7m
	Total weight	52t

2. Design / Structure / Details Pics



1) Features

§ The aluminum rod continuous casting and rolling line is competitive with the relative international products.

§ By adopting PLC and man-machine interface for the complete line control, it can check and display the running parameter of machines as well as indicate the breakdown.

§ The aluminum rod continuous casting and rolling line is with perfect outlook and lower noise and vibration.

§ The aluminum rod continuous casting and rolling line is easy to disassemble and assemble.

§ High efficiency and quality of production & low dissipation energy.

2) Application

Using continuous casting and rolling process, this aluminum rod continuous casting and rolling line can produce the electrical aluminum rod of dia. ø15 mm, Φ12mm & Φ9.5mm. The aluminum rod with diameter Φ15mm is of 11 stands, Φ12mm of 13 stands, while Φ9.5mm is of 15 stands.

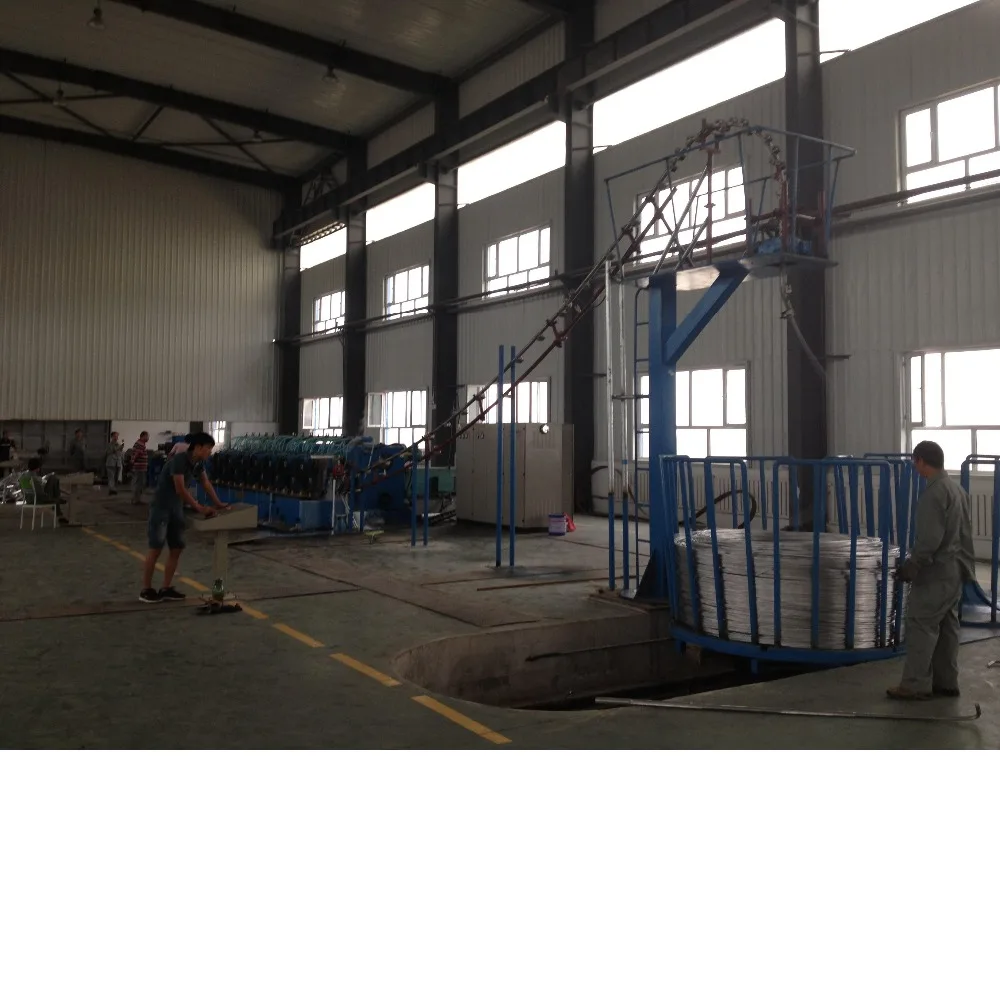

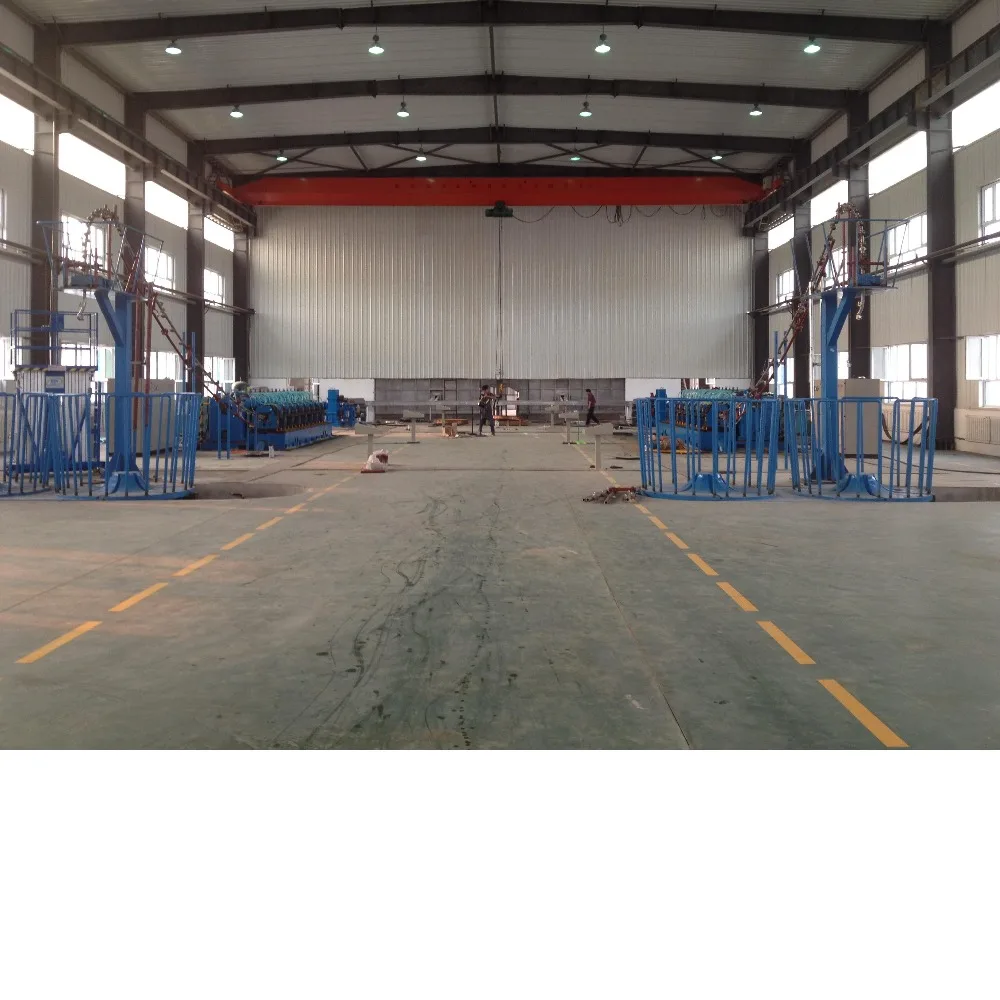

3. Factory View or Certificates
