DK 1 Model Stator Expanding Machine

Product Overview

Description

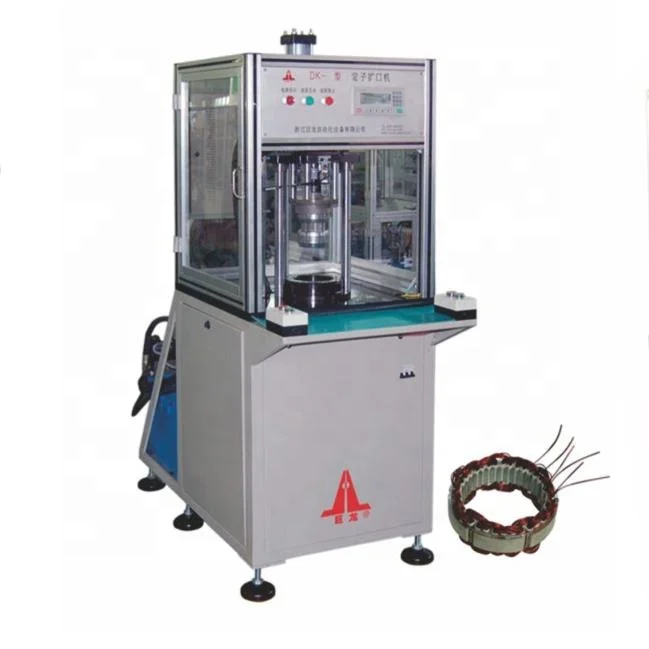

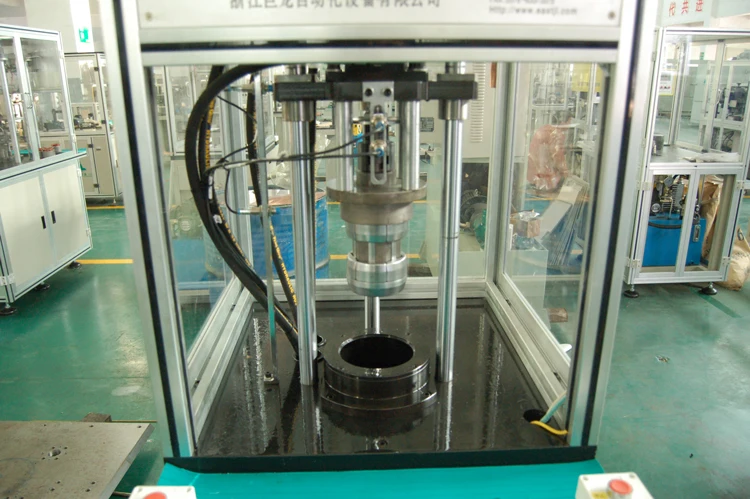

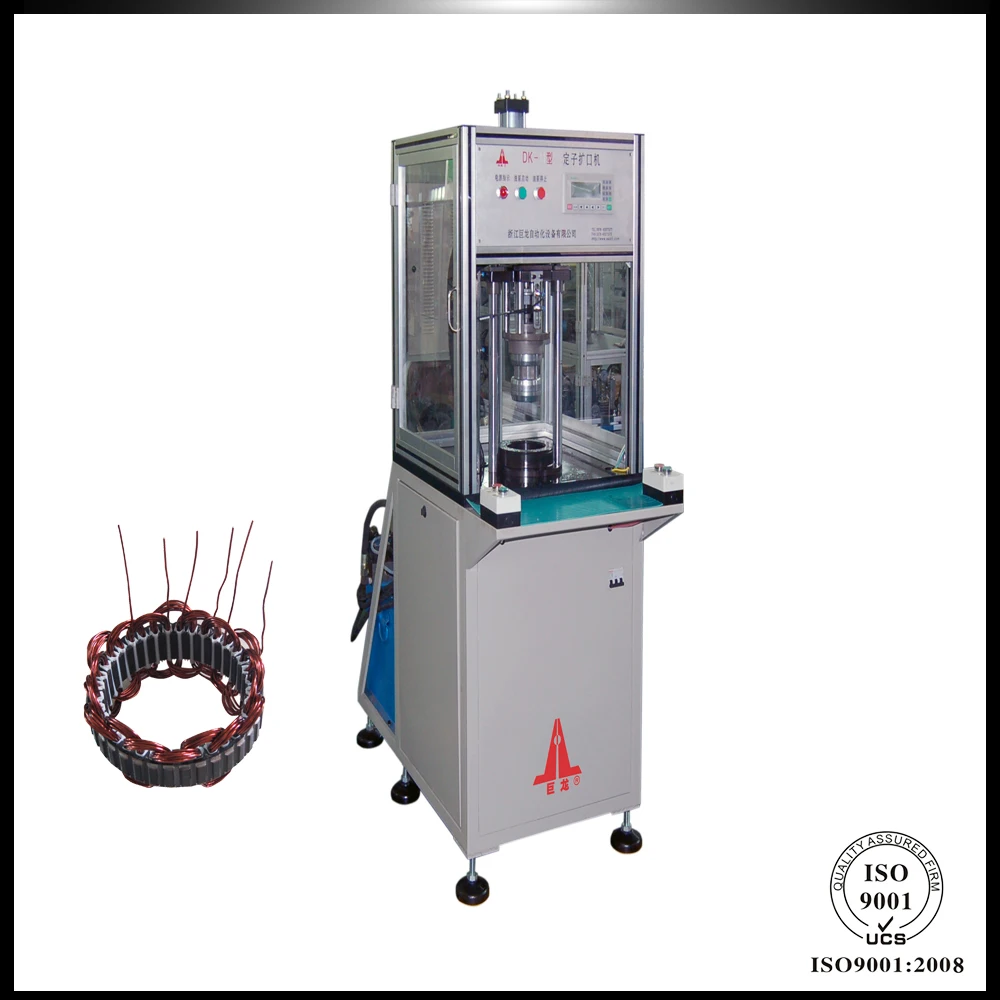

DK-1 Model Stator Expanding Machine



This machine is designed for the slot full rate of stator sub-phase embedding embedded A-phase plastic embedded B phase, after the expansion of the C-phase embedded special equipment. Mitsubishi PLC programmer, LCD text display to modify parameters, integrated hydraulic station, double column single rod hydraulic design, stable speed, easy to change tooling.





Technicai Parameters



Supply voltage	AC380V±10% 50Hz
Hydraulic Pressure	0~7MPa
Total power	3kw
Working stroke	270mm
Max.Stator ID	≤Φ120 mm
Stator ID	≥Φ60 mm
Core thickness	15~60mm
