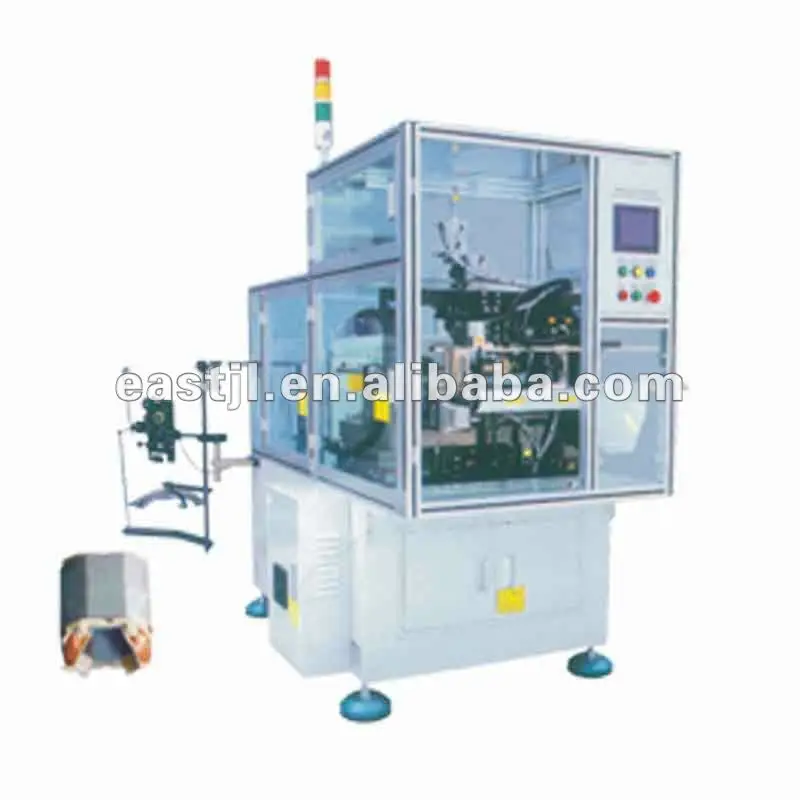

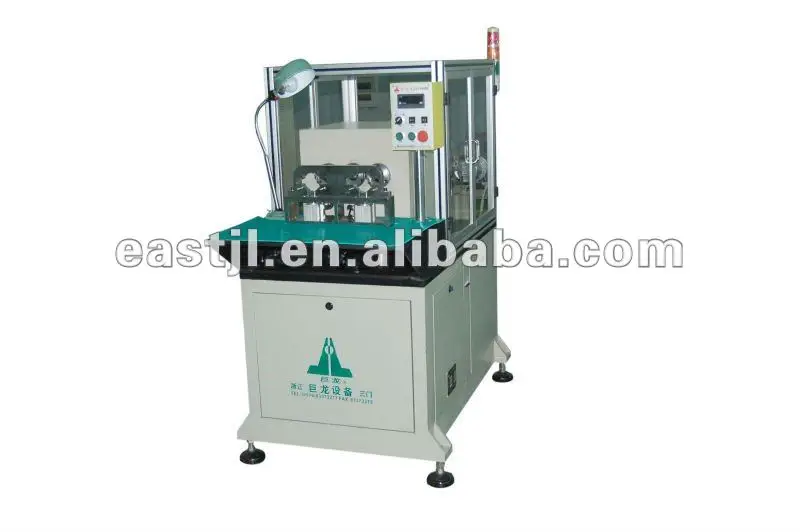

DB 5C Series Automatic Stator Wire Winding Machine

Product Overview

Description

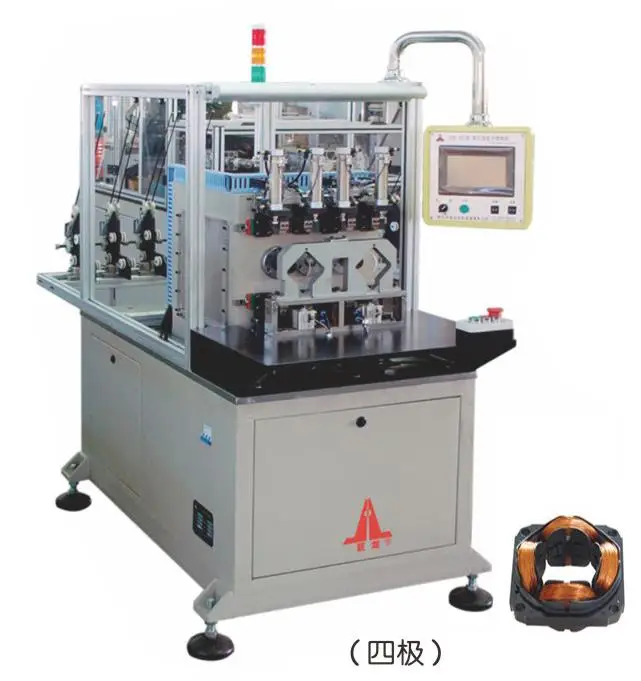

DB-5C  Double Workstation Stator Wire Winding Machine

For four-pole series motor and shaded pole motor stator winding. The use of Mitsubishi PLC program, touch screen to modify the parameters of the mechanical linkage to make a straight line and swing around the action, double winding head synchronous winding, imported frequency control, slow acceleration, slow down braking, automatic clip wire, mold.







Technicai Parameters



Supply voltage	Ac220±10% 50Hz
Air pressure	0.5~0.7MPa
Total power	2kw
Winding speed	0~300r/min
Wire range	Φ0.10~Φ1.0mm
Core ID	≥Φ25mm
Stator thickness	≤50mm
Slot width	≥2.5mm
