Mineral / inorganic fertilizer doubler roller hydraulic mechanical compaction granulator machine for chemicals

Product Overview

Description

The dry granulation process is used to form granules without using a liquid solution because the product granulated may be sensitive to moisture and heat. Forming granules without moisture requires compacting and densifying the powders. In this process the primary powder particles are aggregated under high pressure.

Dry granulation can be conducted under this process: the powder is squeezed between two counter-rotating rollers to produce a continuous sheet or ribbon of materials.



When a roller compactor is used for dry granulation, the powders may not possess enough natural flow to feed the product uniformly into the die cavity, resulting in varying degrees of densification. The roller compactor (granulator-compactor) uses an auger-feed system that will consistently deliver powder
uniformly between two pressure rollers. The powders are compacted into a ribbon or a sheet between these rollers and milled through a low-shear mill.

Typical roller compaction processes consist of the following steps: convey powdered material to the compaction area, normally with a screw feeder, compact powder between two counter-rotating rolls with applied forces, mill resulting compact to desired particle size distribution. Roller compacted particle are
typical dense, with sharp-edged profiles.

Mineral fertilizer granulator specs.and models(saying SOP)

Type Item	SG-240A	SG-360A	SG-500A	SG-600A	SG-650A
Roller dia.(mm)	Φ240	Φ360	Φ504	Φ600	Φ650
Roller width(mm)	80/120/160	180	300	310	330
Roller speed (r/min)	5-35	3-26	14-20	12-18	10-16
Power of screw feeder (kw)	4	7.5	11	11	15
Pre-pressure of accumulator (Mpa)	5	6	8-10	8-10	10-14
Max. linear pressure (kN/cm)	65	65	70(75)	70(75)	70(75)
Thickness of compacted product (mm)	2-6	6-8	10-12	12-14	14-16
Compacting productivity (kg/h)	800-2,000	2,500-3,000	6,000-8,000	8,000-10,000	10,000-12,000
Final output (kg/h)	200-600	1,000-1,200	2,500-3,000	3,000-3,600	3,500-5,000
Final product size (mm)	1-5	1-5	1-5	1-5	1-5
Power of compactor(kw)	11	30	75	90	110
Installed capacity (kw)	35	50	109	125	165
Dimension (l*w*h) (mm)	1850*1500*1650	2350*2000*2400	3650*2250*2500	3660*2450*2700	4000*2600*3300
Total weight (t)	7-8	10	20-21	25-26	32-33
Delivery time(d)	15	25	30	60	60

Mineral fertilizer granulator applications

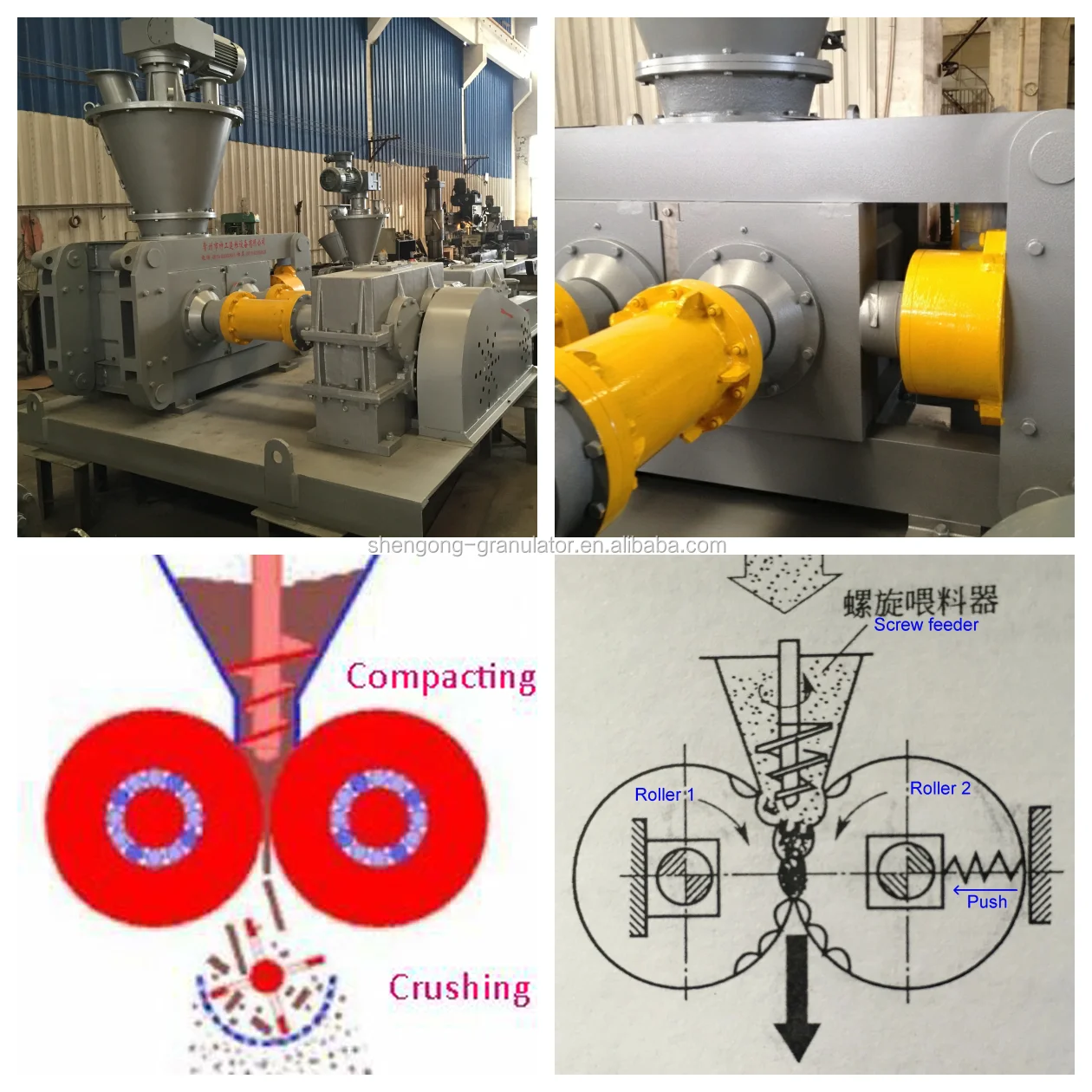

Mineral fertilizer granulator principle

Difference between Mineral fertilizer Model A and Model B

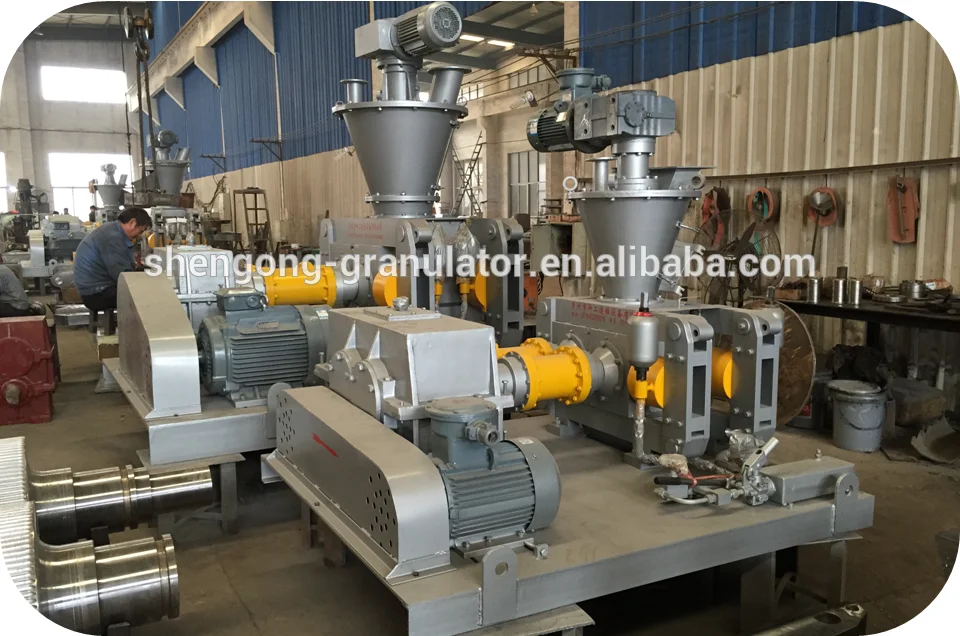

Mineral fertilizer granulator consists of screw feeder and double counter-rotating rollers

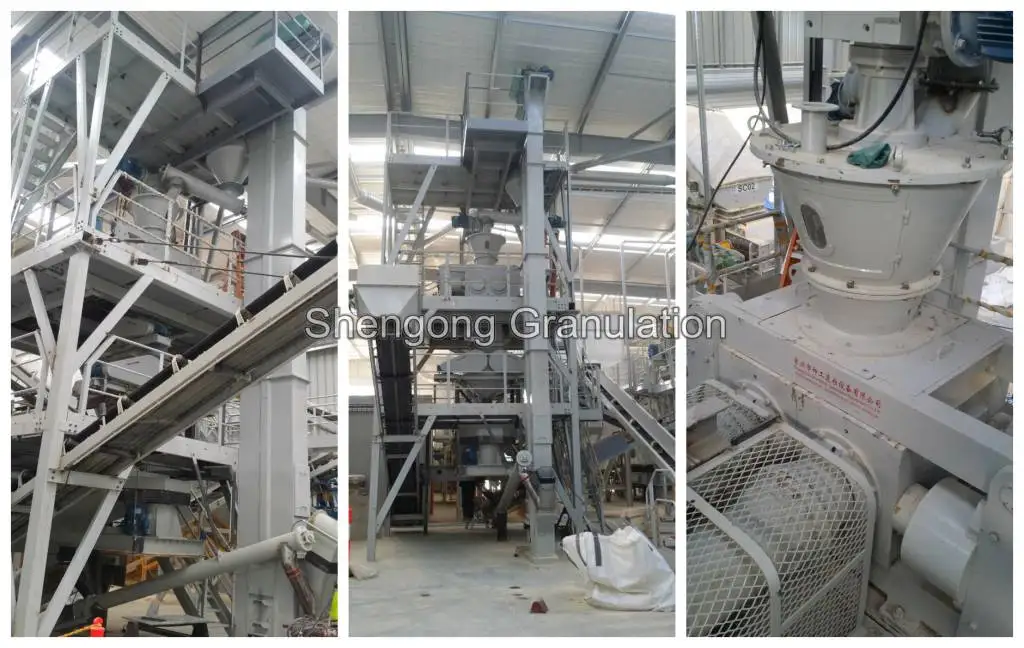

Mineral fertilizer granulator's peripheral equipments

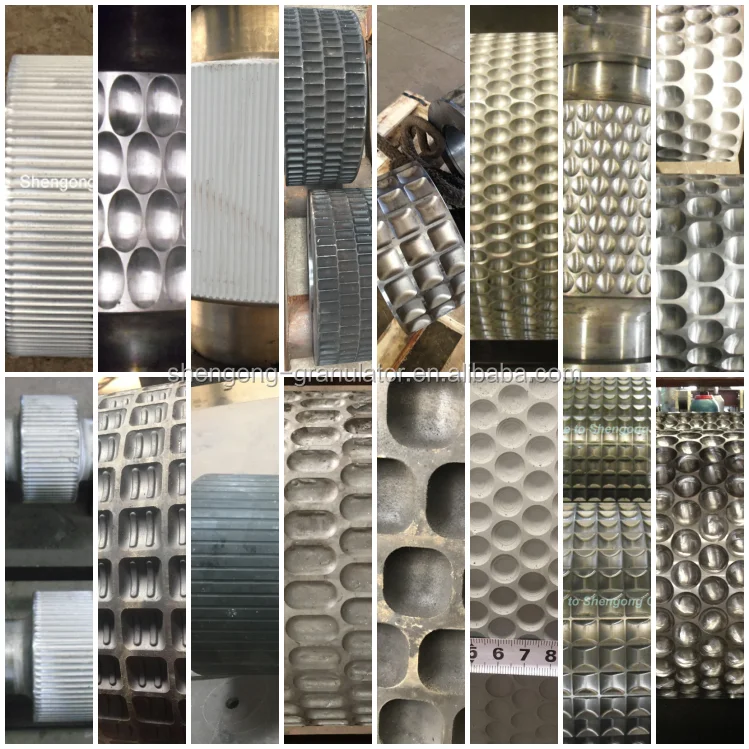

Mineral fertilizer granulator's rollers and final products' shapes

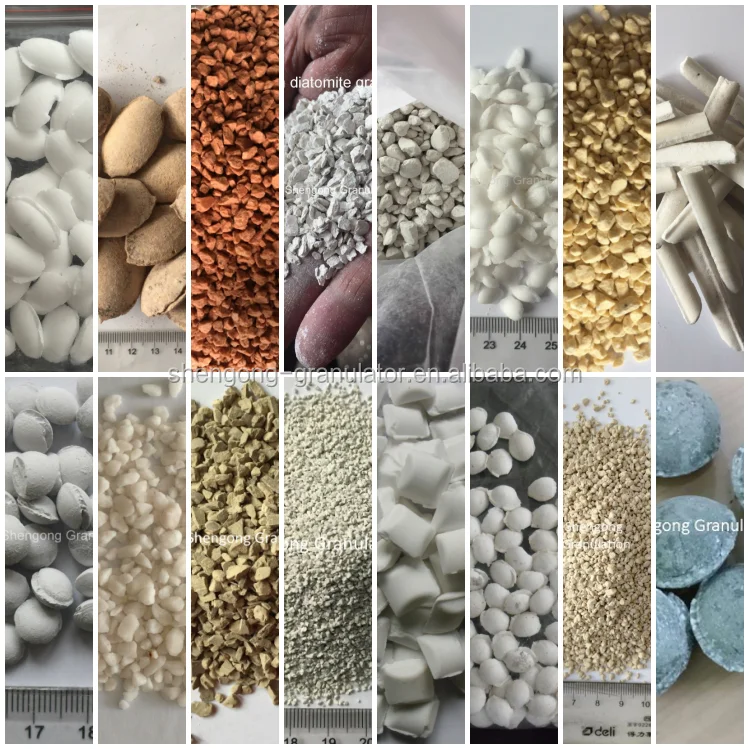

Mineral fertilizer granulator's products variable shapes

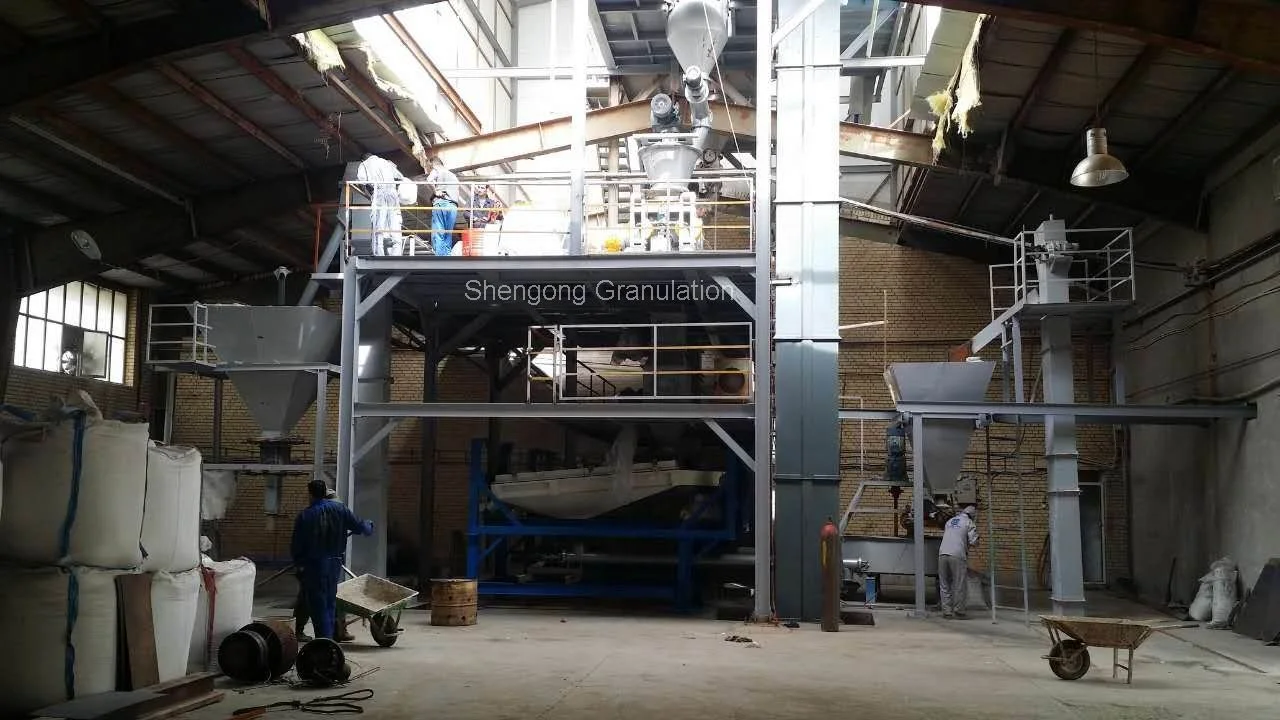

Mineral fertilizer granulator and its peripheral equipments are being loaded in one 40ft. container
