750 watts AC servo motor kits

Product Overview

Description

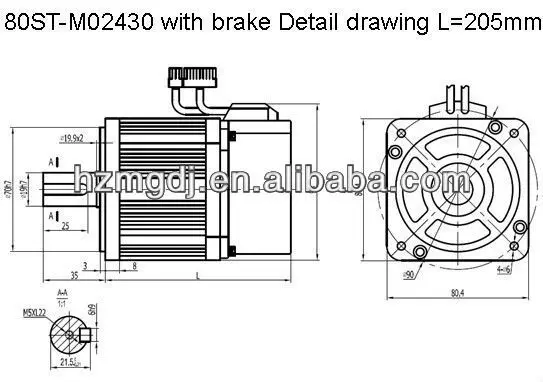

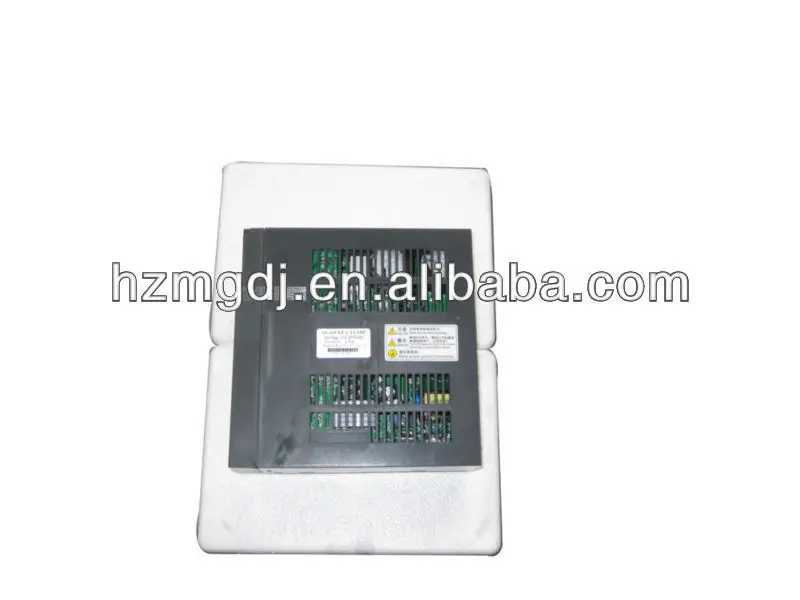

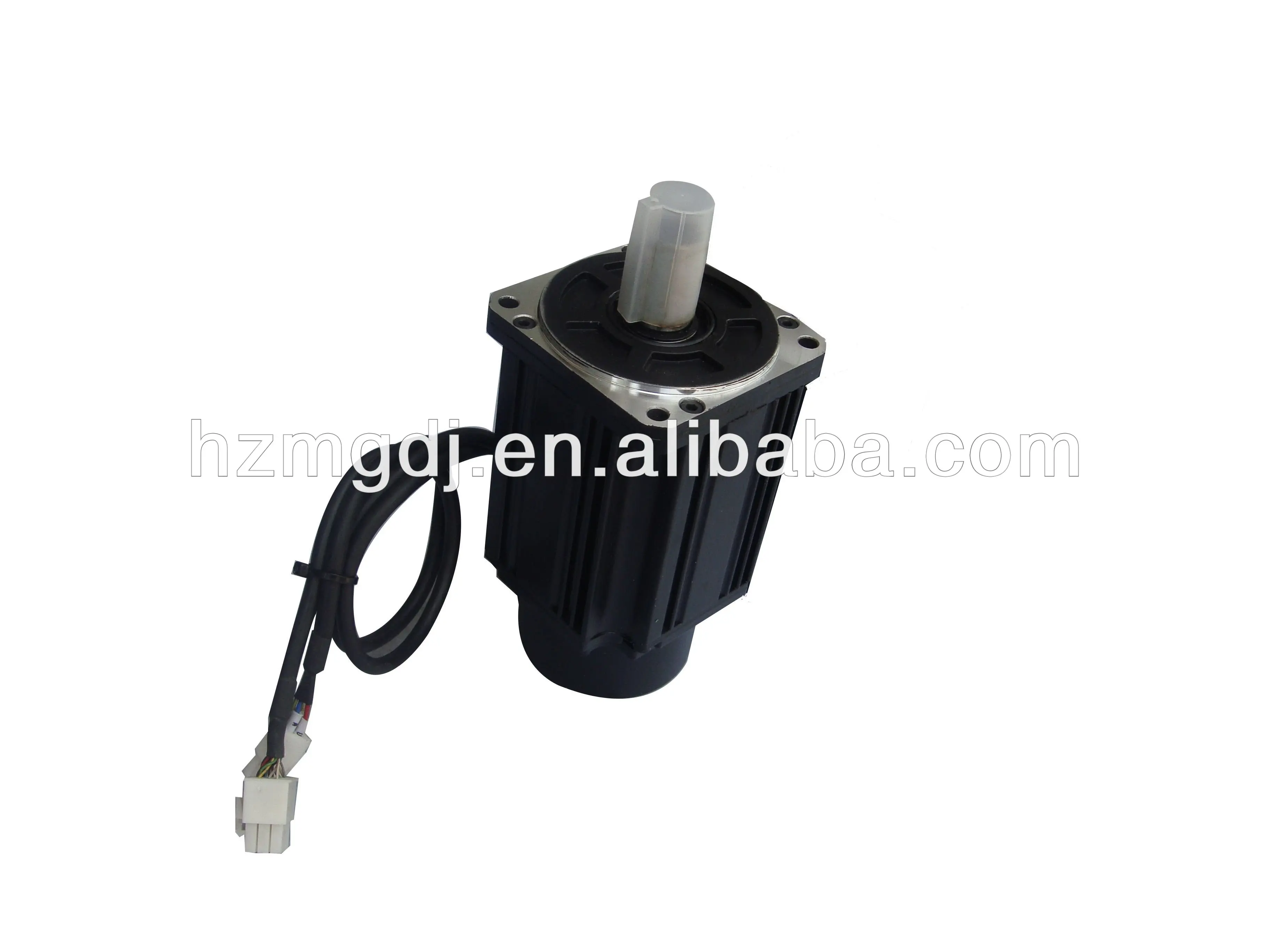

2 sets of 750 watts AC servo motor kits and 1 set 750W servo motor drive with brake has a very compact structure and attractive appearance. The motors have some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.



They are mainly applied for machinery and equipment.such as digit control machine tools, laser processing machines, computer embroidery machines, textile machinery, printing machinery, packaging machinery, markers, engraving machines, winding machines, three-coordinates measuring machines, XYZ three- dimensional tables, industrial robots, medical equipment, woodworking machinery, ceramic machinery and other industries.

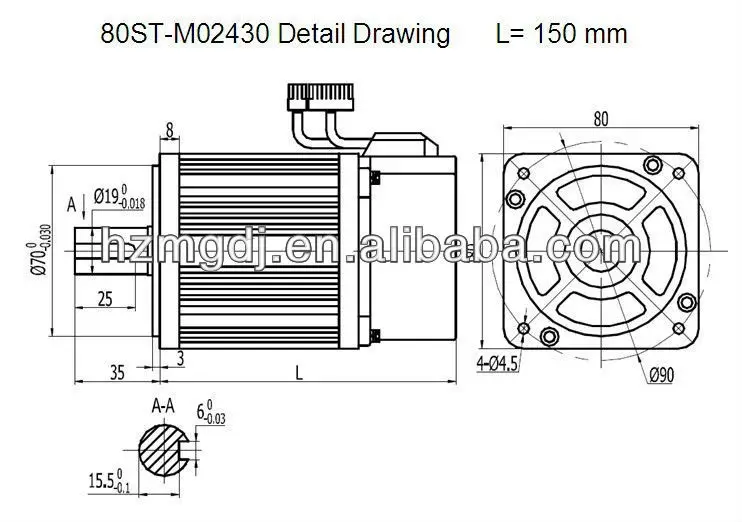

Motor model	80ST-M02430
Rated power(kw)	0.75
Rated voltage(V)	220
Rated current(A)	3
rated speed(rpm)	3000
Rated torque(N.m)	2.4
Peak torque(N.m)	7.1
Voltage constant (V/krpm)	48
Moment coefficient(N.m/A)	0.8
rotor inertia(Kg.m2)	2.4*10-4
Resistance line-line (Ω)	2.88
Inductance line-line(mH)	6.4
Electrical time constant(ms)	2.22
Weight (kg)	2.86
Encoder line(PPR)	2500
Pole-pairs	4
Insulation class	Class B (130 degree)
Grade of Protection	IP65
The operating of Evironmental conditions	Temperature	0 ~ + 40 degree
	Humidity	Below 90%RH No dewing
	Environment	Far away active gas,combustible gas, oil drop,ash.



Please contact with us for more detailed technical information.



We can design according to clients' requirements.
