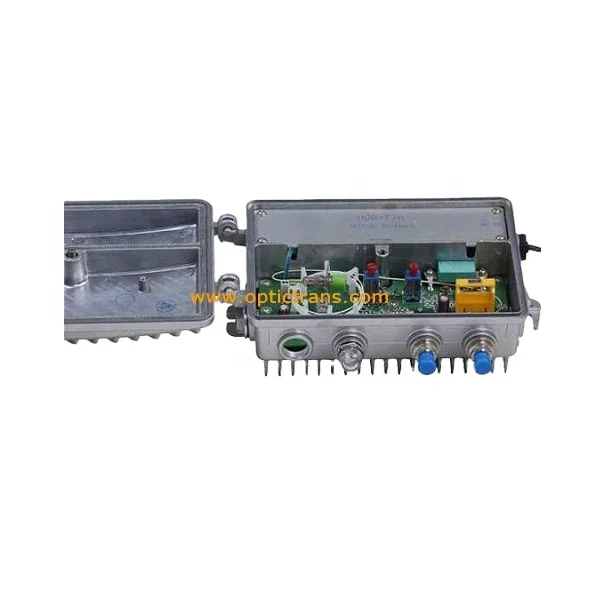

Outdoor FTTB Fiber Optical Node Receiver
- Category: >>>
- Supplier: Hangzhou OpticTrans Communication Tech. Co. Ltd.
Share on (597384448):
Product Overview
Description
Feature
(1) Mainly applied in FTTB out-door networks
(2) Compact and reasonable structure design
(3) Adopting high-quality, high-transformation rate chip as optical receiving component
(4) Low-noise amplifier
(5) End-stage adopts high-performance module as amplifier output.
Technical parameters
Optical parameter | |
Optical wavelength | 1100~1600nm |
0ptical input power range | -7~0dBm |
Return loss | ≥45dB |
Optical connector type | SC/APC or FC/APC (specified by user) |
Optical fiber type | Single Mode |
RF parameters | |
Frequency range | 45/87~750/862MHz |
Flatness in band | ±0.75dB |
RF impedance | 75Ω |
In-stage attenuation | 0~15 dB adjustable |
In-stage Equalization | 0~15 dB adjustable |
Output level | ≥102dBuV (at -1dBm receiving) |
No. of outputs | 2 |
Return loss | ≥16dB |
Circuit Performance | |
CNR | ≥51dB at -1dBm receiving |
CTB | ≤-65dB |
CSO 59channels | ≤-60dB |
General | |
Power consumption | AC 130~265 or AC 35~65 |
Operating temperature | -40~60 °C |
Power consumption | 10W |
