mems Micro mechanical 2X2 optic switch
- Category: >>>
- Supplier: Hangzhou OpticTrans Communication Tech. Co. Ltd.
Share on (597467694):
Product Overview
Description
Description

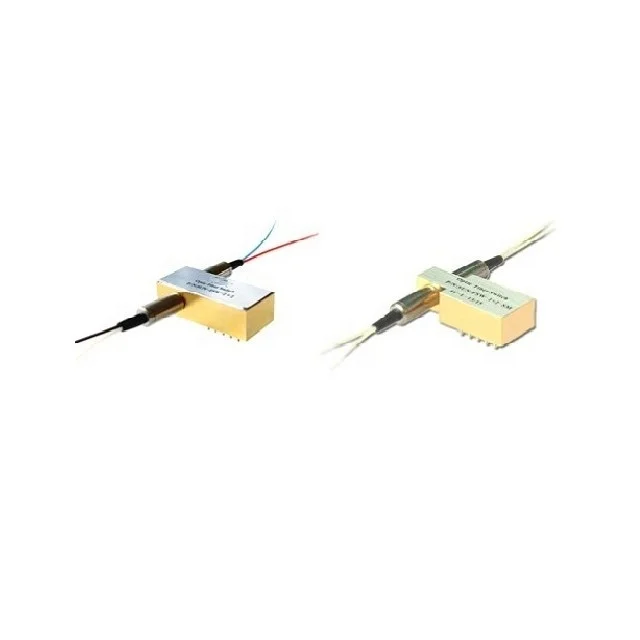

OPSW-6000-2×2 Optical Switch, which is famous for its high performance, low insertion loss and compact dimension : (L)28.5×(W)12.6×(H)8.7(SM); (L)27.0×(W)12.6×(H)8.2(MM).It is an ideal Component for OADM,OXC,system monitor and protection. With compact package, it could be easy to integrate into a high density optical communication system.
Features
1) Low Insertion Loss
2) Wide Wavelength Range
3) Low Crosstalk
4) High Stability, High Reliability
5) Epoxy-free on Optical Path
6) Latching and Non-latching
Application
1) R&D in Laboratory
2) System Monitoring
3) OADM
4) MAN
Technical specification
| Parameters | OPSW-6000-2×2-S (Single Mode) | |
| Wavelength Range | nm | 1260~1650 |
| Operating length | nm | 1310/1490/1550/1625/1650 |
| Insertion Loss | dB | Typ:0.8 Max:1.0 |
| Return Loss | dB | ≥50 |
| Crosstalk | dB | ≥55 |
| PDL | dB | ≤0.05 |
| WDL | dB | ≤0.25 |
| TDL | dB | ≤0.25 |
| Repeatability | dB | ≤±0.02 |
| Power Supply | v | 3.0 or 5.0 |
| Lifetime | times | ≥107 |
| Switch Time | ms | ≤8 |
| Transmission | mW | ≤500 |
| Operating perature | °C | -5~+70 |
| Storage Temperature | °C | -40~+85 |
| Weight | g | 16 |
| Dimension | mm | (L)28.5×(W)12.6×(H)8.7(±0.2) |
| Parameters | OPSW-6000-2×2-M (Multi-mode) | ||
| Wavelength Range | nm | 670~980 | 1260~1650 |
| Operating Wavelength | nm | 670/785/850/980 | 1310/1490/1550/1625/1650 |
| Insertion Loss | dB | Typ:0.8 Max:1.2 | Typ:0.8 Max:1.0 |
| Return Loss | dB | ≥30 | |
| Crosstalk | dB | ≥35 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Power Supply | v | 3.0 or 5.0 | |
| Lifetime | times | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mW | ≤500 | |
| Operating Temperature | °C | -5~+70 | |
| Storage Temperature | °C | -40~+85 | |
| Weight | g | 16 | |
| Dimension | mm | (L)27.0×(W)12.6×(H)8.2(±0.2) | |
| Ordering information | |||||||
| OPSW-6000-2×2-A-B-C-D-E-F-G-H | |||||||
| A | B | C | D | E | F | G | H |
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| S:SM | 85: 850nm | 3: 3V | L: Latching | 5:50/125 | 25:250um | 05:0.5m | OO:None |
| M:MM | 13: 1310nm | 5: 5V | N:Non- Latching | 6:62.5/125 | 90:900um | 10:1.0m | FP: FC/PC |
| 14: 1490nm | 9: 9/125 | 20:2.0mm | 15:1.5m | FA: FC/APC | |||
| 15: 1550nm | X: Others | X: Others | X:Others | SP: SC/PC | |||
| 162: 1625nm | SA: SC/APC | ||||||
| 165: 1650nm | STP: ST/PC | ||||||
| 13/15:1310/1550nm | STA: ST/APC | ||||||
| X:Others | LP: LC/PC | ||||||
| LA: LC/APC | |||||||
| X: Others | |||||||
