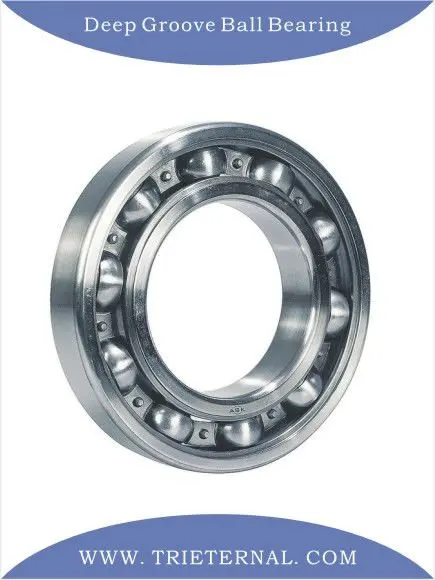

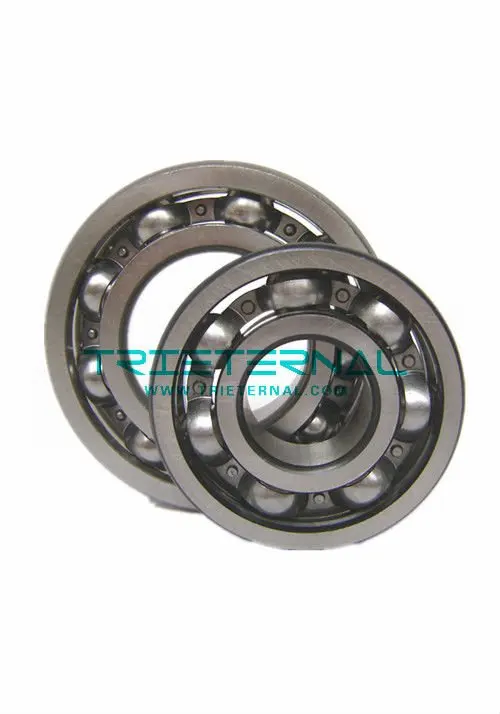

Quality chrome steel deep groove ball bearing 6013ZZ

Product Overview

Description

Quality chrome steel deep groove ball bearing 6013ZZ



Name	Deep groove ball bearing
Model	6000 Series - Extra Light Ball Bearings – Ideal for limited space applications
	6200 Series - Light Series Ball Bearings – Balanced between space and load capacity
	6300 Series - Medium Series Ball Bearings – Ideal for heavier load capacity
Material	GCr15 chrome steel
Precision	P0, P6, P5
Bore Size	10mm-100mm
Outside diameter	25mm-220mm
Clearance	C0,C1,C2,C3,C4,C5 etc.
Cage Type	Brass cage or Stainless cage
Seals Type	ZZ,RS, 2RS, R2, Z, 2Z, 2RZ etc
Certificate	ISO9001:2001
Features	Deep groove ball bearing are simple in design, non-separable, suitable for high and even very high speeds and are robust in operation, requiring little maintenance. Deep-groove bearings have higher load ratings for their size than shallow-groove , but are also less tolerant of misalignment of the inner and outer races
Application	Deep groove ball bearing suitable for precision instrument, low noise electromotor, automobile and motorcycle, etc. It is the the most widely used bearing type.
Package	pallet, wooden case, industrial package or as customers' requirement
Price	FOB, CFR, CIF
Delivery Time	20-30 days after the order confirmed
Payment Terms	T/T, 30% in advance, the balance should be paid against the B/L.
Website	//te-bearing.en.alibaba.com



Deep Groove Ball Bearing is the most representative rolling bearing, it can suffer from both axial and bidirectional radial load. It can be used in these occasions with the demand of high rotation, low noise, and low oscillation. Bearing with seal together with steel cover of rubber seal usually filled with lubricant in advance ,the outside ring with stopping circle or flange ,these will not only be easier for axial orientation ,but also good for the installing of outside shell. The size of maximum loading bearing is just the same as standard bearing ,while with backfill trough in the inside and outside ,which can add the balls, and improve the maximum load at the same time.



Deep groove ball bearing types:
1,.A single deep groove ball bearing

2. With dust cover single deep groove ball bearing

3. With dust cover, sealing ring single deep groove ball bearing outer ring, have

4. Stop moving slot and stop ring single deep groove ball bearing

5. Have put the ball of the gap of deep groove ball bearings

6. Double row deep groove ball bearing

r

Our Advantages:

1. More than ten years bearing products exporting experiences.

2. OEM order and non-standard bearing order can be accepted.

3. Many sizes of bearing are available. Large quantity bearing can be provided.

4. To respect customers, you can choose the loading port.

5. A certain number of free sample can be provide to support our customer's after-sale services and warranty.



Our Bearing Product Range:

1.Deep groove ball bearing

2.Thrust ball bearing

3.Angular contact ball bearing

4.Self-aligning ball bearing

5.Taper roller bearing

6.Cylindrical roller bearing

7.Spherical roller bearing

8.Bearing cage

9.Forgings etc...
