Plc Control Rubber Calender,Rubber Sheet Calendering Machine,Automatic Rubber Calendar With High Precision

Product Overview

Description

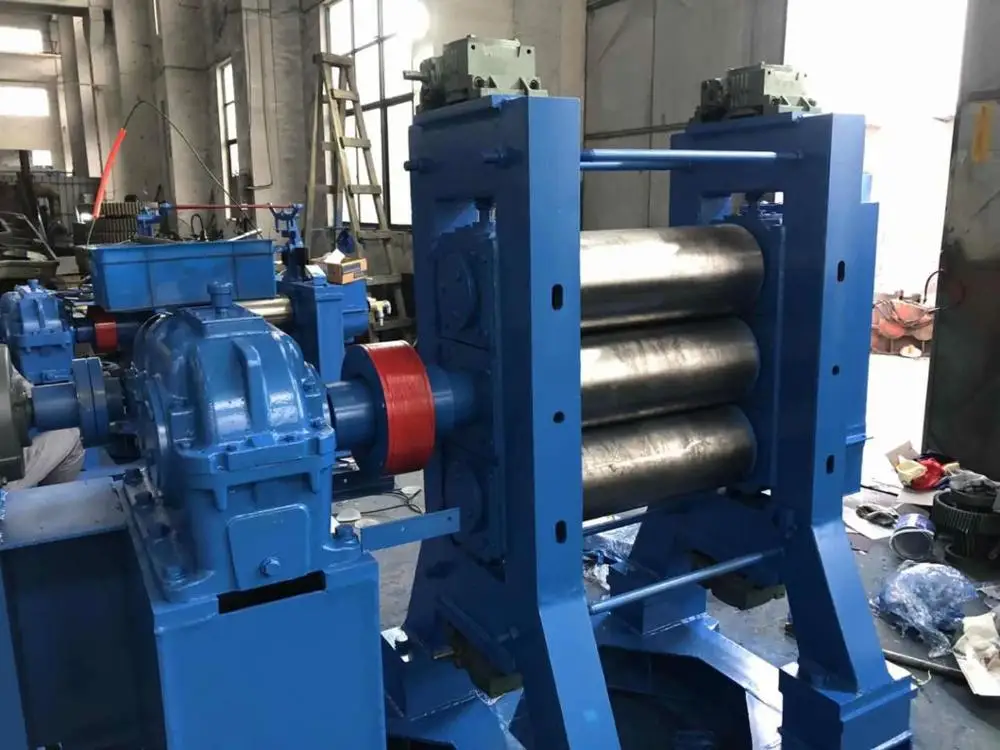

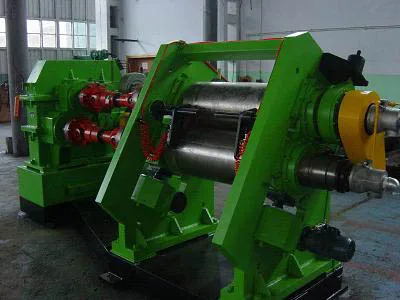

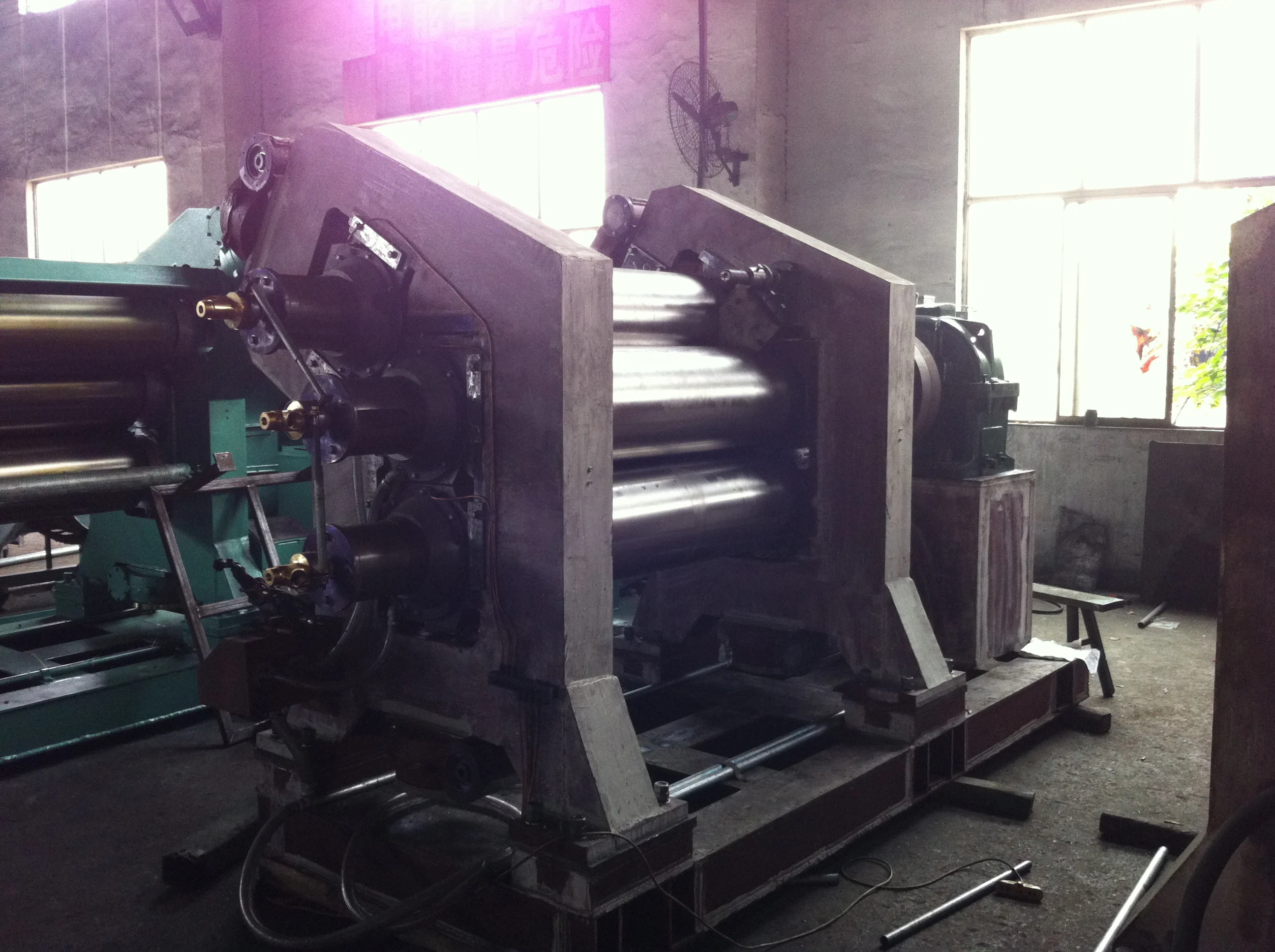

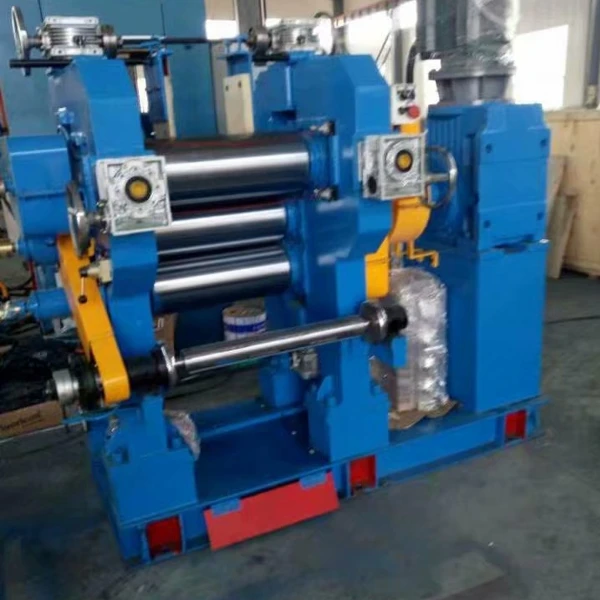

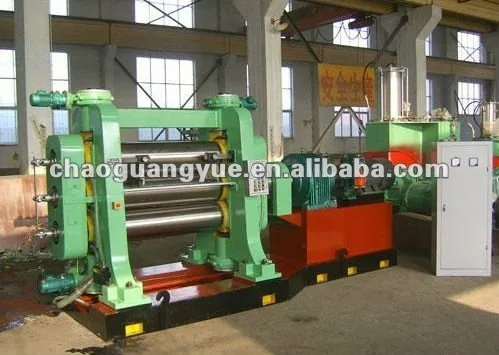

three roll rubber calender

Plc Control Rubber Calender,Rubber Sheet Calendering Machine,Automatic Rubber Calendar With High Precision



1. Application:

Rubberizing and fractioning of textile material, rubberizing of wirecord fabric, sheet, and counter plate(embossed) of rubber material, separation of fabric and film, as well as joint of multi-layer laminate film.



2. General design:

It mainly contains roller, rack, backplane, adjustment, device, transmission system, roller temperature control device, security device, lubricating device, etc.



3. Features:

       A -    The rolls are made of chilled cast iron with vanadium and titanium alloys. The roll face is hard and anti-wear. To heat up or cool down, the rolls are either circumferentially drilled or centrally bored so as to make temperature well proportioned on the roll surface.



     B-   The rolls are arranged in I forms. The upper rolls have roll cambers that can eliminate bending impact on rolls during working process. Thus, it is possible to make products with same thickness along axial direction



      C- The transmission system adopts a hard facing gear reducer, which has a compacted structure with higher transmission efficiency, lower noise and longer service life.



      D- The machine is equipped with emergency device. When an emergent accident occurs, the calendar will be immediately stopped to open the roll space so as to protect the operator and equipment



parameters of four-roll rubber calender





Model & Parameter		XY3I 630	XY-3I 1120	XY3I 1400	XY3I 1500	XY3I 1730	XY3I2130
		XY3L 631
			XY-3L1120
Roll dia	mm	230	400
Roll working length	mm	630	1400
Roll ratio		1:1:1	1:1:1	1:1:1	1:1:1	1:1:1	1:1:1
			1:1.38:1.38	0.73:1:1	1:1.38:1.38
		1:1.42:1	1:1.38:1		1:1.38:1	1:1.5:1
Middle -roll liner speed	r/min	0.8-8	3-21.06	3-26.39	2.62-26.2	5.5-54	8-50
Adjusting nip range	mm	0-7	0-10	0-10	0-6	0-20	0-20
Min.Calendering product	mm	0.2	0.2	0.2	0.2	0.15	0.15
thickness
Motor Power	kw	100-500	500-	1200	1400	1400	1900
Overall Dimensions	mm	3168	5550	6500	7420	7010	7650
	mm	890	1640	1500	2200	3950	4560
	mm	1830	2120	2440	2900	3730	4080
About weight	t	2.6	11	22	26	52	67
