Hall Anchor Type ABC stockless bower anchor

Product Overview

Description

CCS .LR CERT HALL ANCHOR

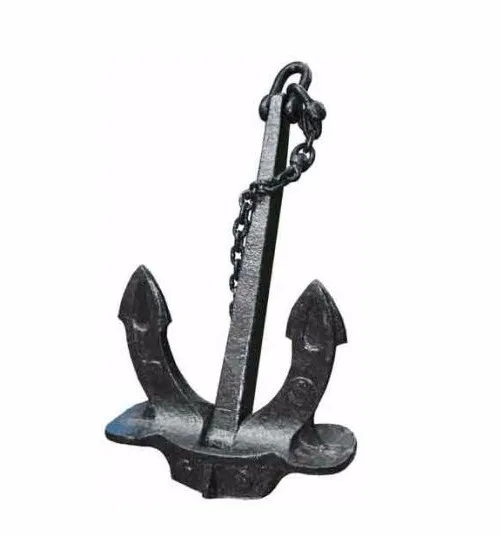

Item name: Hall anchor

Standard: GB

Material: cast steel, forged steel

Process: Casting

Surface treatment: black paint, hot dip galvanizing

Specification: 10kg-16100kg

Origin: Qingdao, China

Packing: tons of bags, naked, etc.

Delivery date: 5~45 days

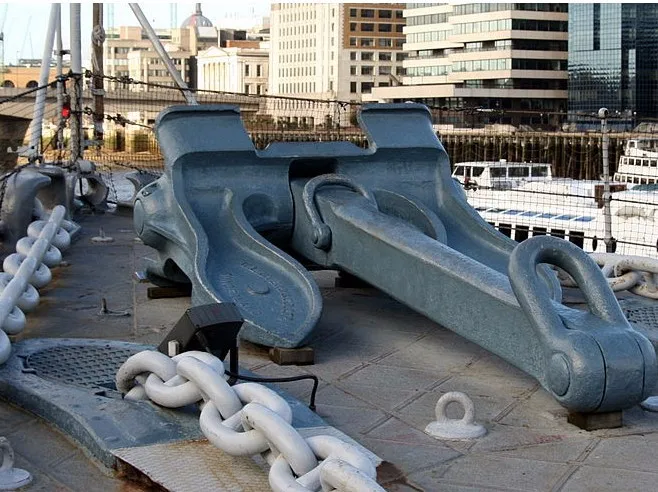

Use scope: Hall anchor also known as mountain word anchor.

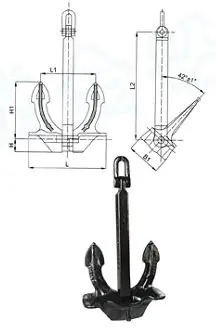

Is a fluke anchor rod can rotate freely and anchor into certain angle. The anchor head and anchor as a whole casting. Anchor through the anchor head, with a stem anchor pin and two anchor head cross pin lock, the fluke anchor head, with anchor pin as a shaft before and after rotation by 45 degrees. When the anchor fluke to either side of the supine to touch the bottom, the anchor pull, anchor flange friction resistance force generated by the subsoil into the subsoil have grip anchor pear. The grip force is about 2.5~4.0 times the weight of the anchor. The anchor is characterized by complex structure. However, it is convenient to be thrown, and the anchor can be directly inserted into the anchor tube. Widely used in modern ships. There are three types of Hall anchors, A, B, and C. China CCS, ZC, RINA, BV, Italy, LR, GL, DNV, NK, KR, USA, Norway, USA.

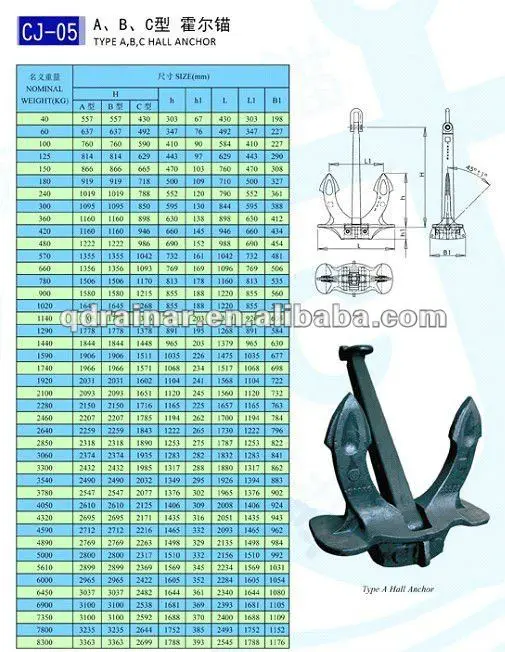

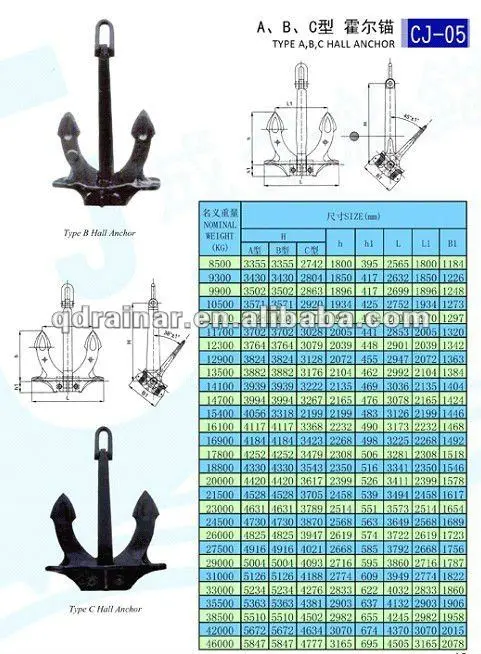

WEIGHT: 100KG, 200KG,300KG, 570KG, 660KG, 780KG,900KG,1290KG,2100KG,2280KG
