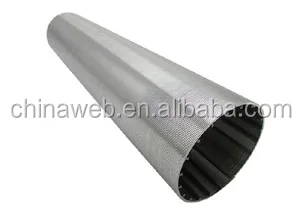

stainless steel micro V shape wedge wire wrapped screen

Product Overview

Description

stainless steel micro V shape wedge wire wrapped screen

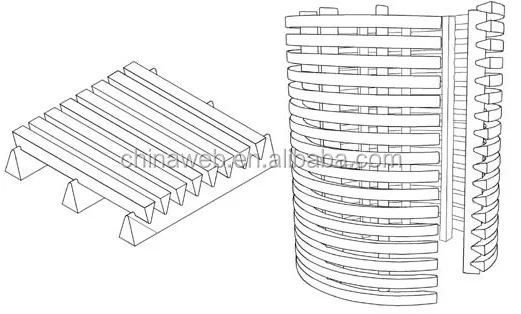

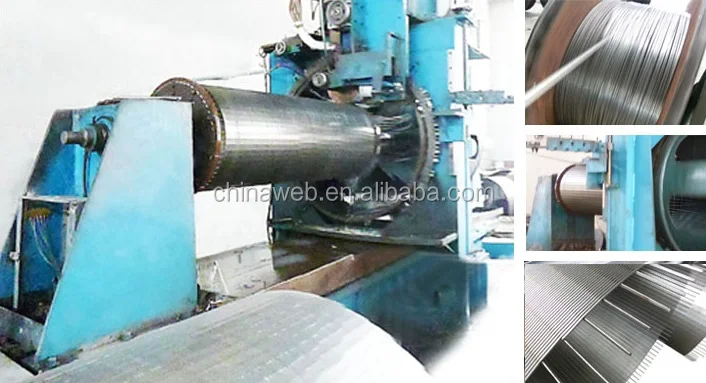

v shape wedge wire wrapped screen is made by wrapping and  welding stainless steel V-shaped  profile wire cylindrically around support  rods under automatic wire screen machine.  Each profile wire and support rod is welded by resistance welding.

V wire screen materials

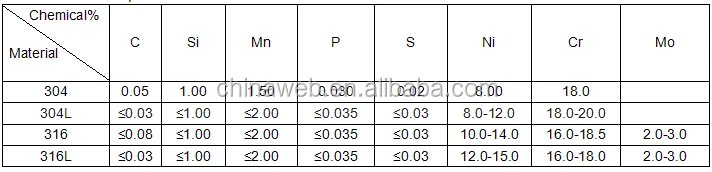

Our v shape wedge wire wrapped screen is generally of stainless steel 304, 304L,316, 316L, 321 etc.

Characteristics

• continuous slot screens, stronger and more durable


• more open area, very precise openings


• virtually non-clogging and reduce media abrasion


• easier installation and long-term operating and cost benefits

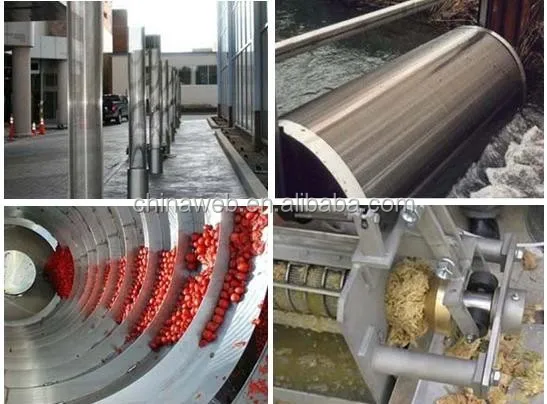

Wedge Wire Screen Application

widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well as many other applications involving liquid & solids separation.



Technical parameter



size		inner diameter		outer diameter
in	mm	In	mm	in	mm
2	51	2	51	25/8	67
3	76	3	76	35/8	92
4	102	4	102	45/8	117
5	127	5	127	55/8	143
6	152	6	152	65/8	168
8	203	8	203	85/8	219
10	254	10	254	103/4	273
12	305	12	305	123/4	324

v shape wedge wire wrapped screen diameter is from 25mm to 1500mm.

v shape wedge wire wrapped screen length is from 0.3m to 12m.

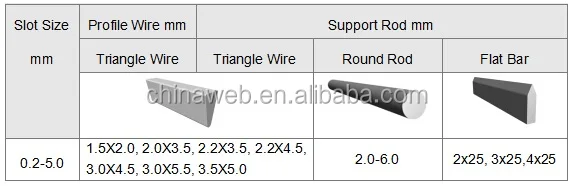

For v shape wedge wire wrapped screen, profile wire is generally triangle wire;

support rod includes triangle wire,round rod,flat wire etc

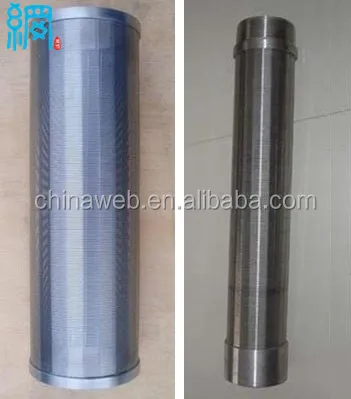

 Wedge Wire Screen ending types

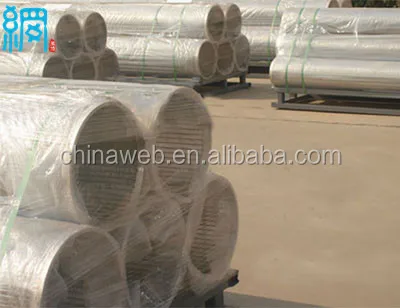

Wedge Wire Screen Packing

They are wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.



Wedge Wire Products Professional Manufacturerl Web Wire Mesh Co.,Ltd

WEB WIRE MESH CO.,LTD was founded in 1982, the company is one of Chinese professional wedge wire screen supplier.

WEB - made in China

WEB WIRE MESH CO.,LTD was founded in 1982, the company is one of Chinese professional wedge wire screen supplier. WEB WIRE MESH CO.,LTD is in Chinese hometown of wire and screen mesh, business throughout Germany, Britain, France, America, Spain, Australia, and more than 60 countries and regions. After 35 years, the company has innovative technology weaver has been a wedge wire screen technological leader, and company will continue developing new products.

WEB - manufacture in China

We invest considerable strength for wedge screen, including flat wedge screen, wedge wire tube, wedge wire basket, sieve bend screen etc, widely used in coal screening, oil sand control, sewage treatment, chemical filtration, pulp filter paper, screening and supporting the use of deep well and submersible pumps filters, with a wealth of experience to provide customized production. In addition, our unique wedge screen equipment can produce 12m long tube.
