ICEA S 93 639 38mm2 500mm2 Powerlene Single and Multiconductor Shielded Concentric Neutral Copper Tape Cable

Product Overview

Description

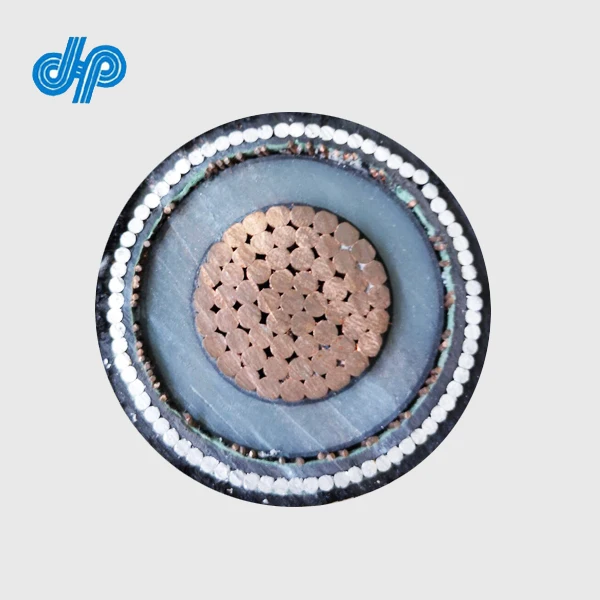

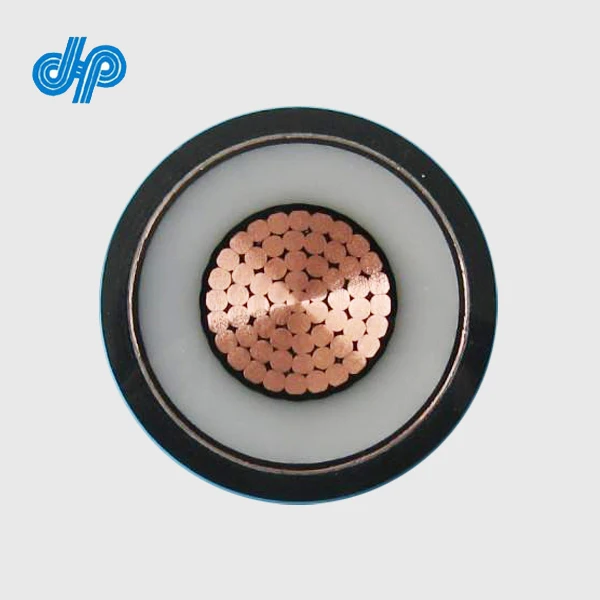

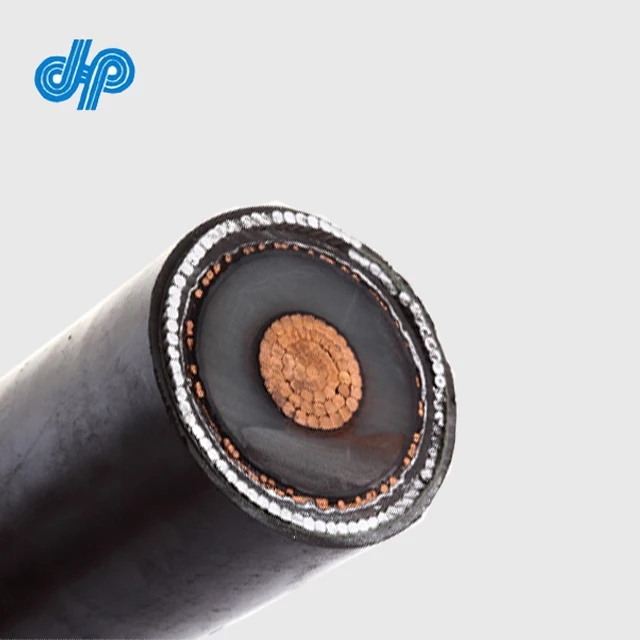

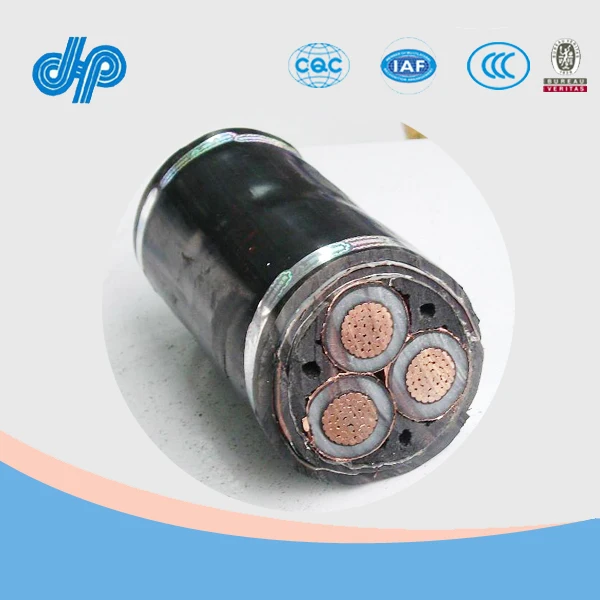

ICEA S-93-639 38mm2-500mm2 Powerlene Single and Multiconductor Shielded Concentric Neutral Copper Tape Cable





Application:

It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.



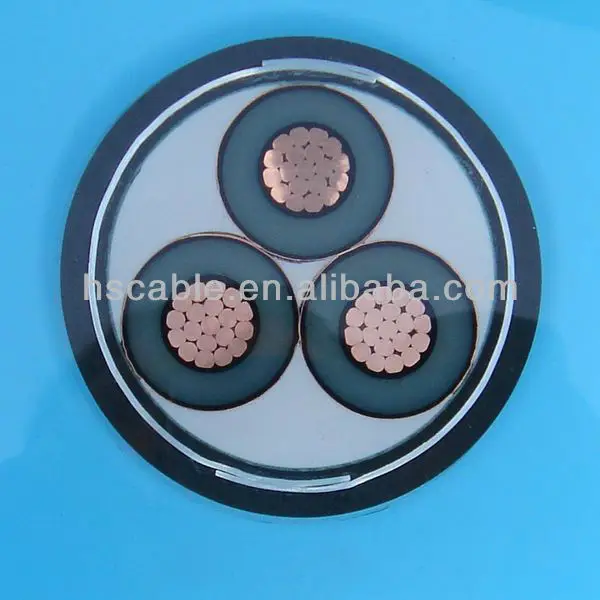

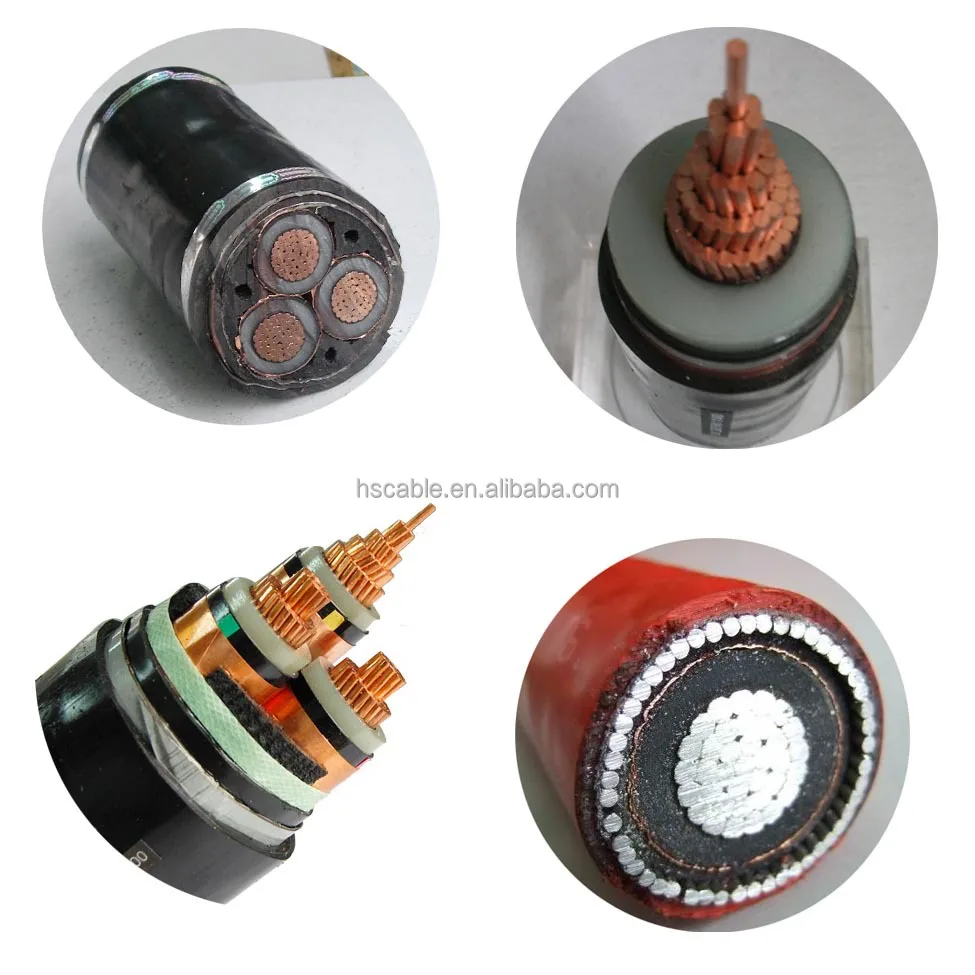

Construction:

-Conductor:

Solid or stranded copper

-Insulation screen:

Semi-conductive

-Insulation:

Cross-linked polyethylene( XLPE or PVC)

-Metalic screen

Semi-conductive

-Concentric copper Conductor

-Outer Sheath:

PE(polythene) (Black)



Using features:

1. Rated voltage: Uo/U: 26/35kV, 21/35kV, 12/20 kV (24 kV), 8.7/10kV, 8.7/15kV, 6/6kV, 6/10kV.

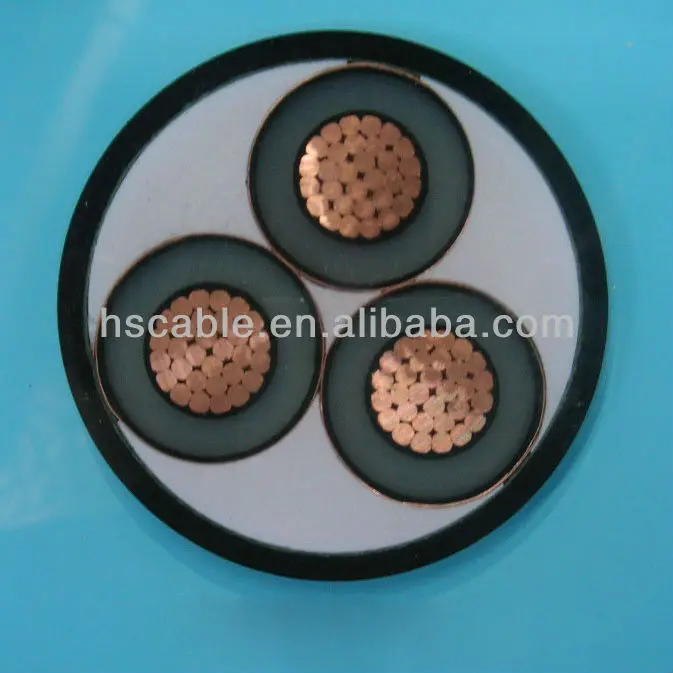

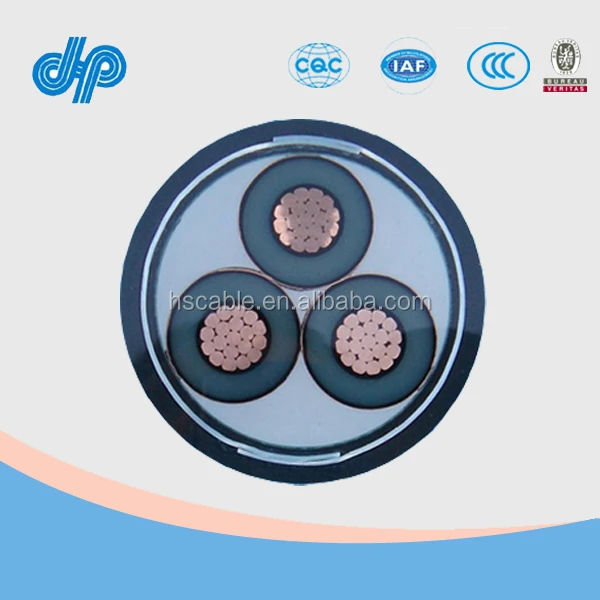

2. No. of core: Single-core, Three-core.

3. The highest allowed operating temperature of conductor for long-term working is 90oC. In short-circuit (Max. Long-term is no more than 5 seconds). The highest temperature for conductor is no more than 250.

4. D.C Resistance of the conductor complies with the stipulations of GB/T3956-1997.

5. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.

6. The cable is laid without horizontal drop limit. The Min. Bending radius of three-core cable should be no smaller than 12 times of cable outer diameter.

7. Working Frequency Voltage Test:.

For cable with Uo of 3.6kV or lower: 2.5Uo+2kV/5min without puncture.

For cable with Uo of 3.6kv~18kV: 3.5Uo/5min without puncture.

For cable with Uo of 21kV and 26 kV: 2.5Uo/30min without puncture.

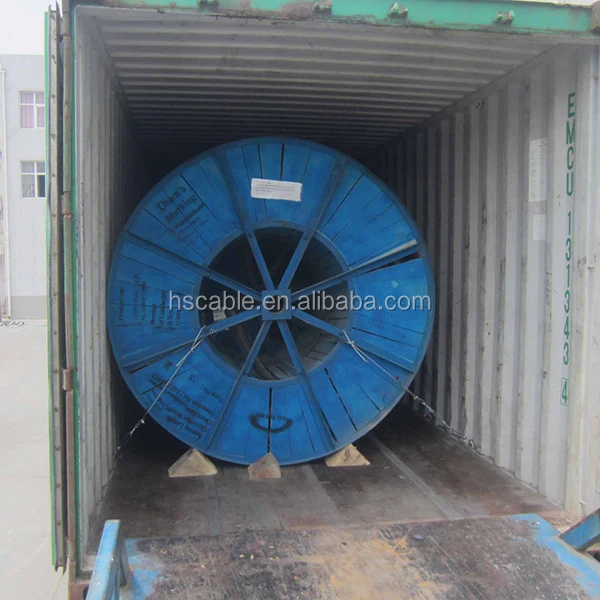

Cable Packing: Wooden drum, steel wooden drum.



 IEC/BS/DIN standard

Rated voltage(KV)

3.6/6

6/6

6/10

8.7/10

8.7/15

12/15

12/20

18/20

18/30

21/35

26/35

Core Number

1 core, 3 core

Cross-section mm2

1C

25~800

35~800

3C

25~400

35~400



 ASTM standard

Rated voltage(KV)		5001-8000	8001-15000	15001-25000	25001-28000	28001-35000	35001-46000
		1 core, 3 core
Cross-section mm2	1C	6AWG~1600kcmil	2AWG~1600kcmil	1AWG~1600kcmil		2AWG~1600kcmil	1/0AWG~1600kcmil
	3C	6AWG~1600kcmil	2AWG~1600kcmil	1AWG~1600kcmil		2AWG~1600kcmil	4/0AWG~1600kcmil
