conveyor belt vulcanizer machine for sale
- Category: >>>
- Supplier: Qingdao Hitop Rubber Co. Ltd.
Share on (598905449):
Product Overview
Description

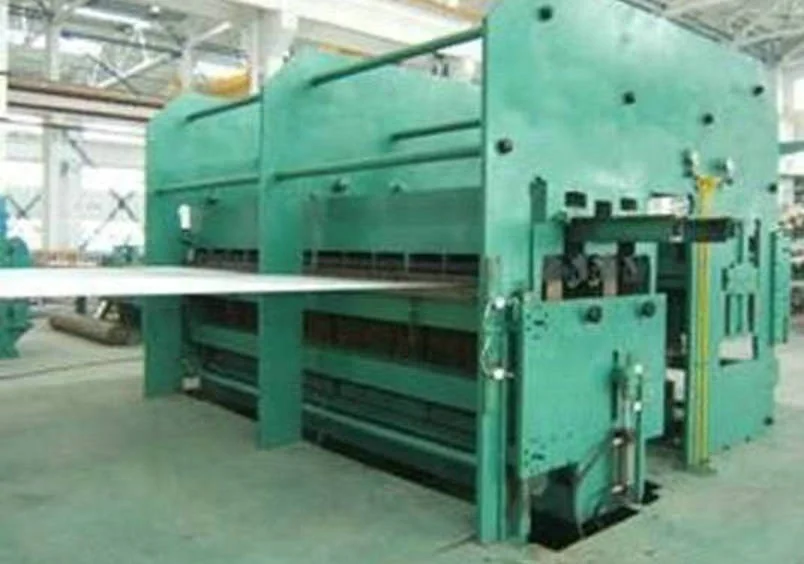

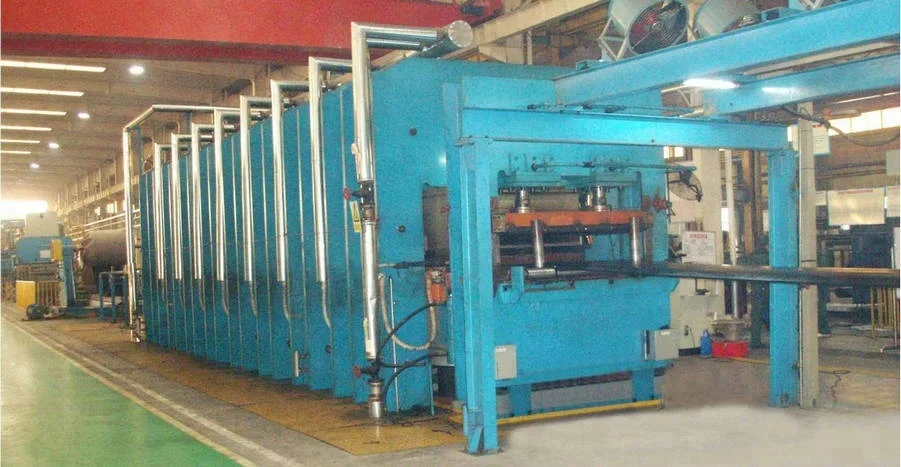

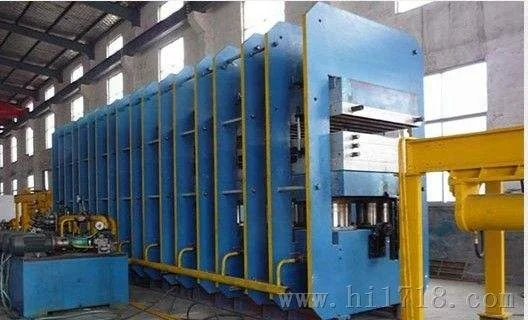

conveyor belt vulcanizer machine
Equipment flow:
under-cloth take-up → green strip unwinding → front entrap stretching→ main vulcanizer → middle entrap → pull –off pan unit→ carrier roller group → multifunction unit machine group → repairing vulcanizer → Winding packing machine
TECHNICAL DATA
Control form | PLC controlled |
Structure form | single layer oil pressure upper travel |
Hot board specification | 1380×10000×90mm |
Vulcanized rubber belt width | 600~1200mm |
Vulcanized rubber belt thickness | δ8~δ32mm |
Total pressure | 38400KN |
Unit pressure | 320N/cm2 |
Travel of shaft | 300mm |
Shaft Dia. | Φ450mm |
Shaft Number | 12pcs |
Working pressure Using High pressure oil | 8~22Mpa |
Working Pressure using low pressure oil | 1.4~2.5Mpa |
Bottom mounting plate lifting speed | 360mm/min |
Bottom mounting plate Descending speed | by self weight |
Working temperature of Hot board | 170℃ |
Max. Steam pressure | 0.8Mpa |
We produce full set conveyor belt production line.
Conveyor belt building machine
Project in building
Finished project
