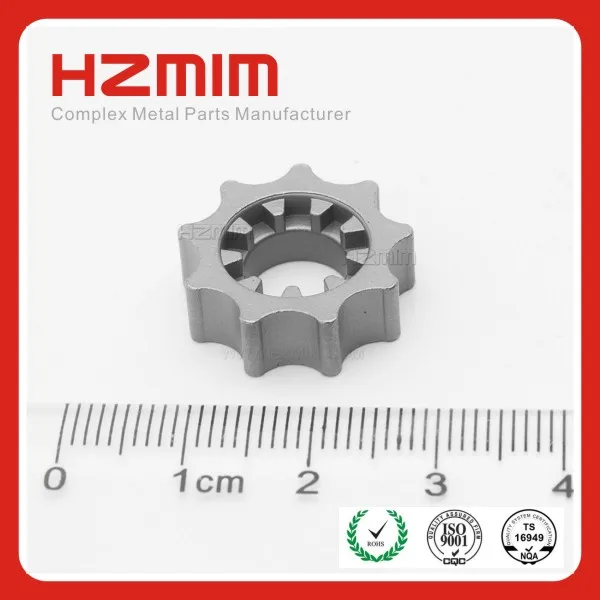

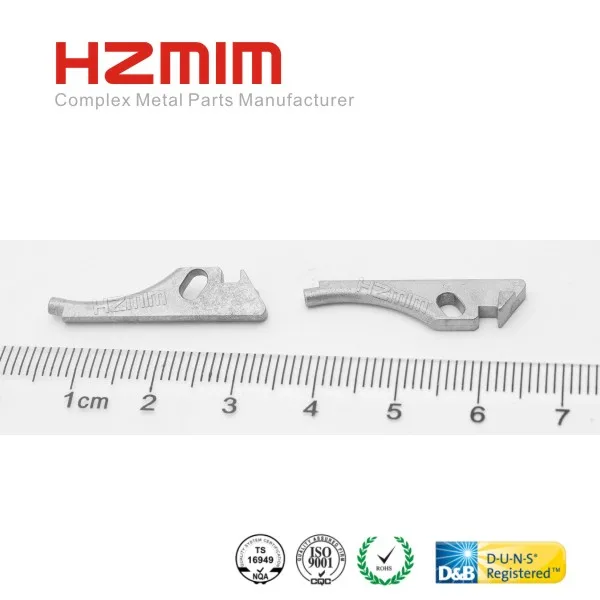

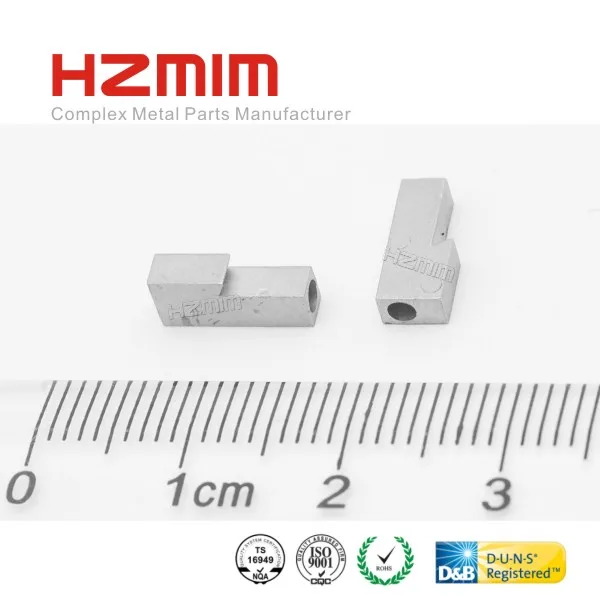

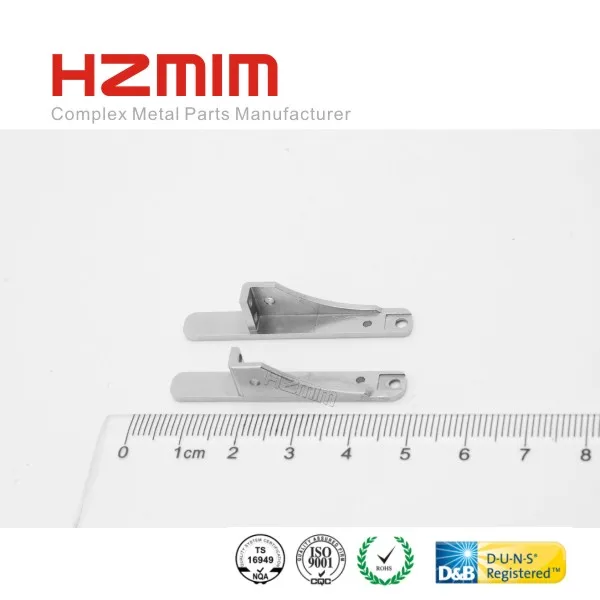

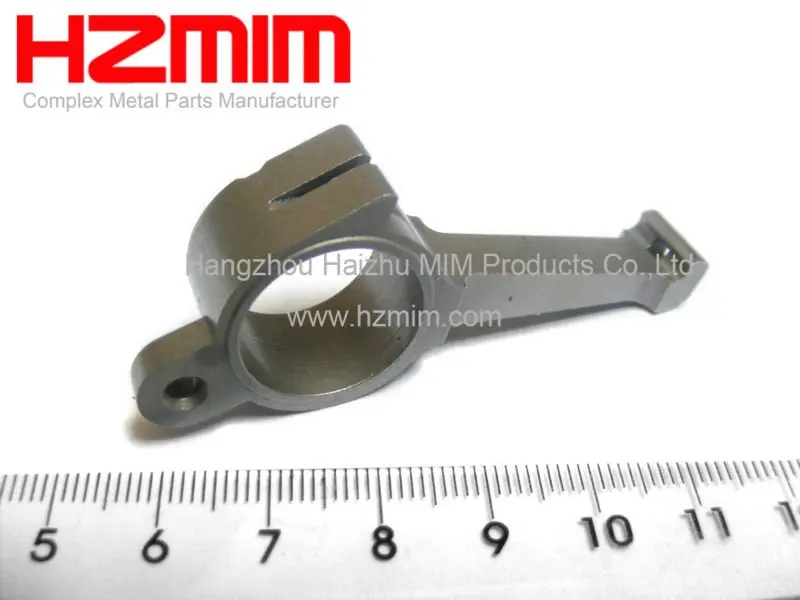

MIM textile machine/machinery parts, textile machinery spare parts

MIM (Metal Injection Molding) combines the technologies of thermoplastic injection molding and powder metallurgy to produce complex-shaped, high density, high performance metal parts.

1. Best applied to small parts (typically less than 100 grams)


2. Offers lower cost solution


3. Improved mechanical properties

Mainly MIM Materials:

How MIM Works

The MIM process combines the design flexibility of plastic injection molding with the strength and integrity of wronght metals to offer cost effective solutions for highly complex part geometries.

The MIM process is typically explained as four unique processing steps (compounding, molding, debinding and sintering) to produce a final part that may or may not need final finishing operations

Comparison between MIM and Traditional Machining

Comparison between MIM and Other Processes

Applications

Tools, Medical treatment, Hardware, Electronic appliance, Automotive,

Consumer products, Spinning parts and so on.

Provide OEM packaging

Track the logistics

Give feedback timely,

1. Packing method optimization


2. Transportation cost optimization


3. Damage reduction


4. Delivery: 30-40 days

• Provide flexible order process


• Shipping method would be chosen on your demand.


• We not only a MIM product manufacturer but also prefer to be your partner.


• Our MIM technology will realize your products ideas.


•  We provide one-stop customized services from concept to market.    Including design; Material; Molding; Assembly; Packing and Shipping

1. What is MIM technology?

MIM (Metal Injection Molding) is a manufacturing technology that combines the shape making complexity of Plastic Injection Molding with the material flexibility of Powder Metallurgy.

2. Is the metal melted during the molding process?
No, only the binders are melted allowing the powders to flow like a plastic material. Upon cooling the binders solidify giving the part strength for handling. The part must be subsequently sintered to high density to achieve the required mechanical properties.

3. How does MIM differ from the Traditional PM process?
Traditional PM uses high, uniaxially applied pressure to coarse metal powders in a die set to produce moderately complex components. Typically, no further densification is gained during the sintering process. Densities achieved by this method are typically in the range of 80-90% of theoretical which limit the physical properties that can be achieved for the given alloy. MIM products are not limited in shape complexity due to the flexibility of the injection molding process. The fine metal powders used - combine with higher sintering temperatures to allow MIM to achieve near full density in the final article. This allows MIM products to have similar properties as wrought materials.

4. Does the part shrink during removal of binders?
No, the part will not change size in the debinding phase of the process. However, since sintering achieves near full density of the powders, the part will undergo a size change of up to 20%.
