Product Overview
Description
Product Description
Features
Compact, automatic, fully submersible electric pump
Equipped with built in electronic controlled reed sensor system for easy fully automatic operation
No power use until pump is activated by sensor (when water level rises)
Compact, efficient, long life motor
Rustproof and corrosion resistant
Stainless steel shaft
High-impact durable plastic housing
Quick release strainer for easy maintenance
Extremely efficient, very low current
draw and offer high capacity output
Water cooled long-life motors
Ignition protection to protect the pump against high current
Water/moisture tight seals
Silent and vibrationless operation
Can be used with switch panel for manual override
Includes comprehensive user manual with installation instructions and wiring diagram
Detailed Images

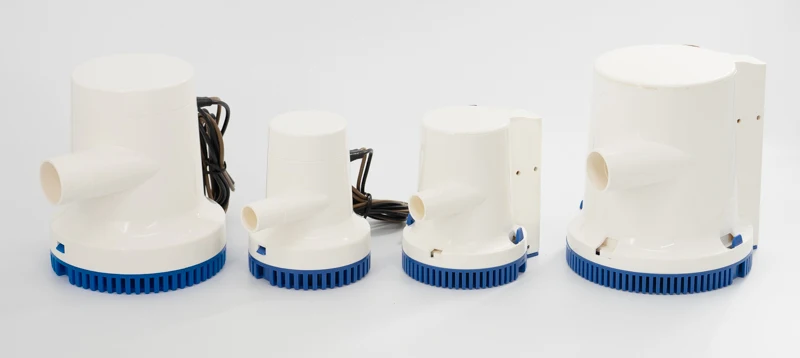

Models
Models | Voltage | Current | Fuse | Capacity | Head | Hose ID |
169432 | 12 V | 2.9 A | 5 A | 500 GPH (1890 L/H) | 4.2 m | 19mm (3/4) |
169442 | 12 V | 4.2 A | 6 A | 700 GPH (2646 L/H) | 4.5 m | 19mm (3/4) |
169462 | 12 V | 6 A | 10 A | 1500 GPH (5670 L/H) | 2.9 m | 28.575mm (1 1/8) |
169472 | 12 V | 7.8 A | 12 A | 1800 GPH (6800 L/H) | 3.5 m | 28.575mm (1 1/8) |
169482 | 12 V | 9.5 A | 15 A | 2000 GPH (7560 L/H) | 4 m | 28.575mm (1 1/8) |
169434 | 24 V | 1.5 A | 3 A | 500 GPH (1890 L/H) | 4.2 m | 19mm (3/4) |
169444 | 24 V | 2.2 A | 5 A | 700 GPH (2646 L/H) | 4.5 m | 19mm (3/4") |
169464 | 24 V | 3.1 A | 5 A | 1500 GPH (5670 L/H) | 2.9 m | 28.575mm (1 1/8") |
169474 | 24 V | 4 A | 8 A | 1800 GPH (6800 L/H) | 3.5 m | 28.575mm (1 1/8") |
169484 | 24 V | 4.8 A | 9 A | 2000 GPH (7560 L/H) | 4 m | 28.575mm (1 1/8") |
Packing & Delivery
500 GPH & 700 GPH Pumps
36 PCS/ Carton
N.W. : 16.8 KGS
G.W. : 17.2 KGS
MEASURE : 38cm X 36cm X 38cm
1500 GPH, 1800 GPH & 2000 GPH
12PCS/Carton
N.W. : 13.0 KGS
G.W. : 13.6 KGS
MEASURE : 42cm X 30cm X 32cm
