Cable TV Mini Home amplifier (OPCA 8630L)
- Category: >>>
- Supplier: Hangzhou OpticTrans Communication Tech. Co. Ltd.
Share on (599438260):

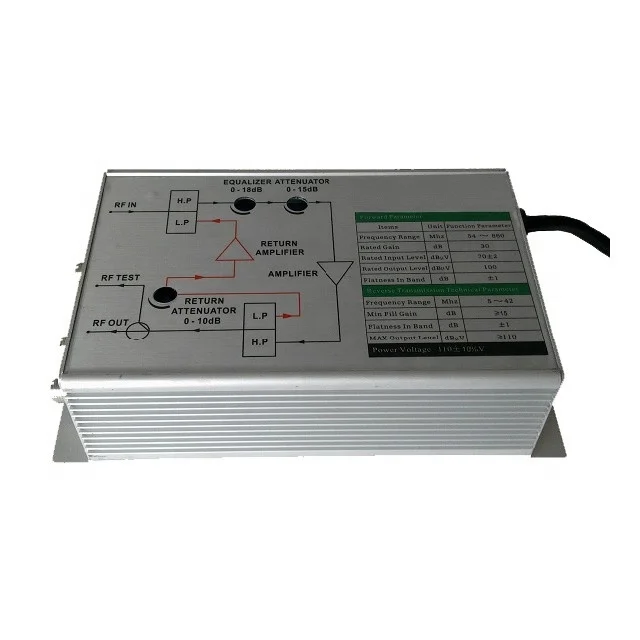

Product Overview
Description
Description
Adopt SOT-115 encapsulate CATV dedication RF module in forward path and low-noise micro push-pull circuit in return path.
Have good index, small consumption, high reliability and performance to price ratio, suitable for medium and small CATV bi-directional network.
Features
(1) Adopt low-noise micro tube circuit or SOT-115 encapsulate CATV dedication RF module in forward path, steady output level, good Non-linear; adopt low-noise micro tube push-pull circuit in reverse path, small distortion and high signal to noise ratio.
(2) Plug-in dual-filter and fixed (or VAR ) equalizer and attenuator, plug-in output tap, science detector is rational, testing conveniently.
(3) Waterproof cast-aluminum shell, high-reliable power switching, tight anti-thunder system, have guaranteed that the equipment can work steadily in succession for a long time in the abominable environment of field.
Technical Specification
| Item | Unit | OPCA-8630L |
| Forward Transmission | ||
| Frequency Range | MHz | (47)87~860 |
| Rated Gain | dB | 30 |
| Min Fill Gain | dB | ≥30 |
| Rated Input Level | dBuV | 72 |
| Rated Output Level | dBuV | 102 |
| Flatness in Band | dB | ±1 |
| Noise Figure | dB | ≤10 |
| Return Loss | dB | ≥12 |
| C/CTB (84 PAL-D) | dB | ≥57 |
| C/CSO (84PAL-D) | dB | ≥56 |
| Signal to Alternative Noise Ratio | dB | ≥66 |
| Gain Stability | dB | ≤ ±1.0 |
| Voltage Stroke | KV | 5 |
| Reverse channel | ||
| Frequency Range | MHz | 5~(30)65 |
| Rated Gain | dB | 15 |
| Flatness In Band | dB | ±1 |
| Noise Figure | dB | ≤12 |
| Return Loss | dB | ≥12 |
| MAX Output Level | dBuV | ≥110 |
| CSO inter-modulation ratio | dB | ≥52 |
| Carrier to Alternative noise ratio | dB | ≥66 |
| General Response | ||
| Power Voltage(50Hz) | V | 16~60V |
| Power consumption | VA | 10 |
| Dimension | mm | 178(L)Χ100 (W)Χ55(H) |
Special Notice
The performance parameters of this manual according to GY/T185-2002: Network Entry Technical Requirements and Measurements Method of CATV Amplifier.
At the range of 750MHz (112.25~743.25MHz) when testing the C/CTB and C/CSO, set 79 PAL-D imitate TV channels signal; set 93PAL-D imitate TV channels signal at the range of 862MHz (112.25~855.25MHz). Choose f1=65MHz, f2=63MHz and f3=57MHz to test when measuring index of max output level in upgo transmission. The index of "Carrier to Second Order Inter-modulation Ratio" is tested under the condition of 110dBuV output level, and choose f1=10MHz, f2=60MHz and f3=50MHz three point to test.

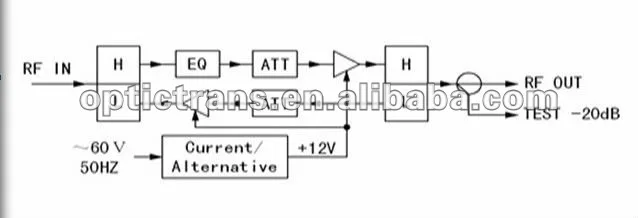

Block Drawing
