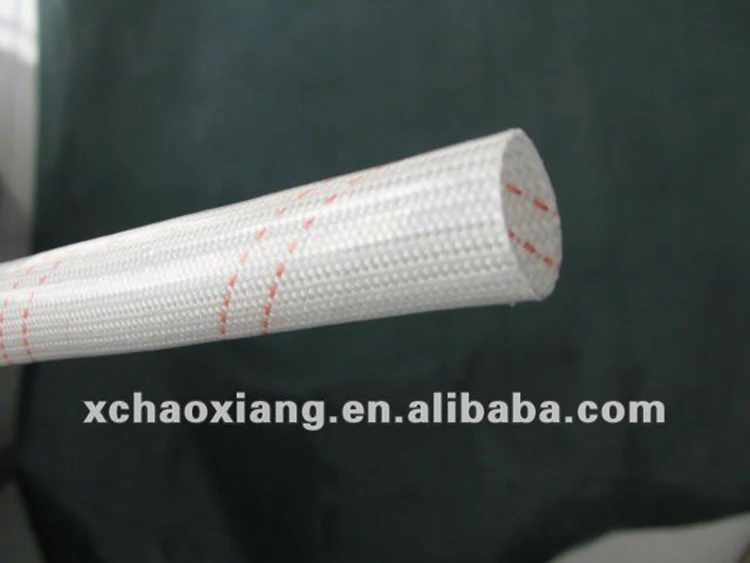

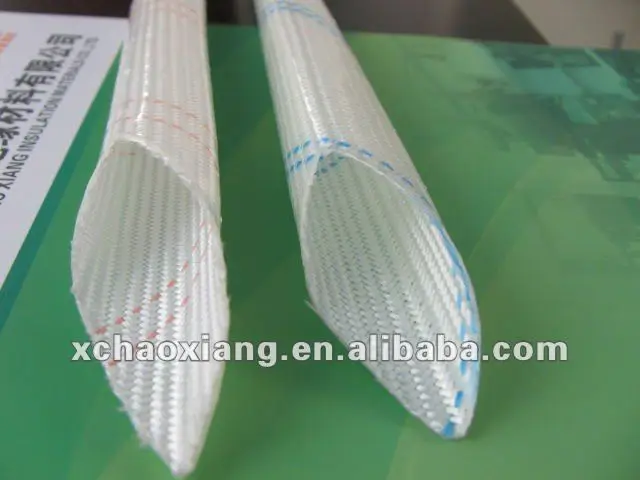

2715 Electrical Insulation Tube Fiberglass PVC Insulating Sleeves
pvc insulating sleeves
Product Description
2715 PVC Fiberglass Sleeving:
1. Temp. -25-130°C
2. Dia: 0.5-40mm

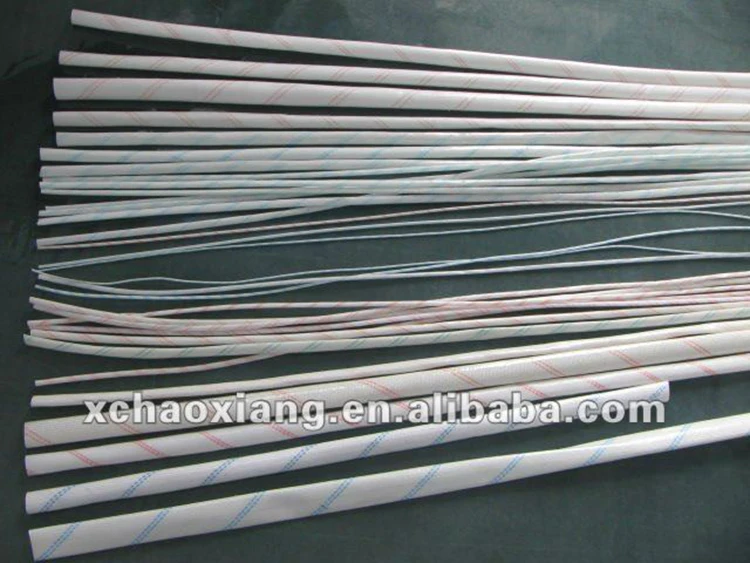

3. Color: Blue, green, red and straw yellow spiral lines or as per customers' requests.
4. Features: Smooth appreance, felxible body, good dielectric, chemical resistance, super elasticity, antiaging performance.

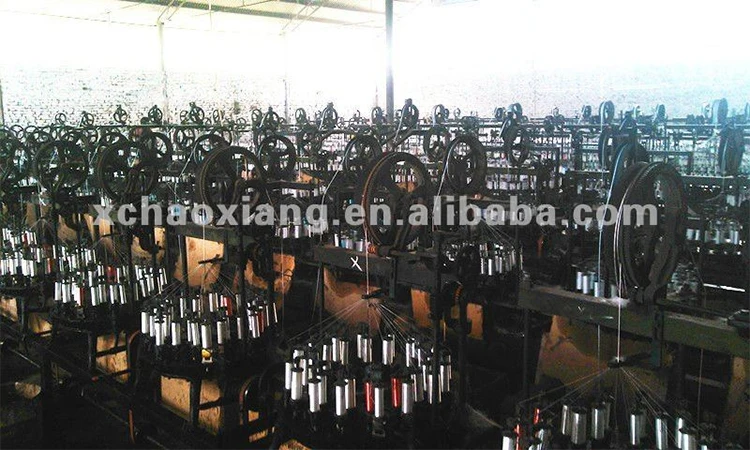

5. Technical Process: Made of non-alkly fiberglass braided sleeving coated with PVC (polyvinyl chloride) resin under high temp.
6. Applications: For wiring , radio, motors, appliances, electric instruments or apparatus and other electric equipment.
7. Breakdown voltage: 1.5kv, 2.5kv, 4kv, 7kv.
8. Packing: 1000mm/piece, 100m/roll.
Tech. Data
Resistance to soldering heat
| Pass,(only for nominal bore diameter below or under 5mm)
|
Bending after heating
| No cracking or detachment of coating shall be visible after bending around mandrels after 96hours at 130
|
Bending at low temperature
| No cracking or detachment of coating shall be visible after bending around mandrels at 25
|
Insulation resistance
| Room temperature 10MΩ Damp heat temperature 10MΩ
|
Flam propagation
| 60seconds max, in addition the indicator flag on any of the three test specimens shall not be burned or have flaming or glowing particles or flaming drops ignite the cotton.
|
Temperature index
| 105 |
