Portable X Ray Film Viewer ( NDT )

Product Overview

Description

portable x ray film viewer

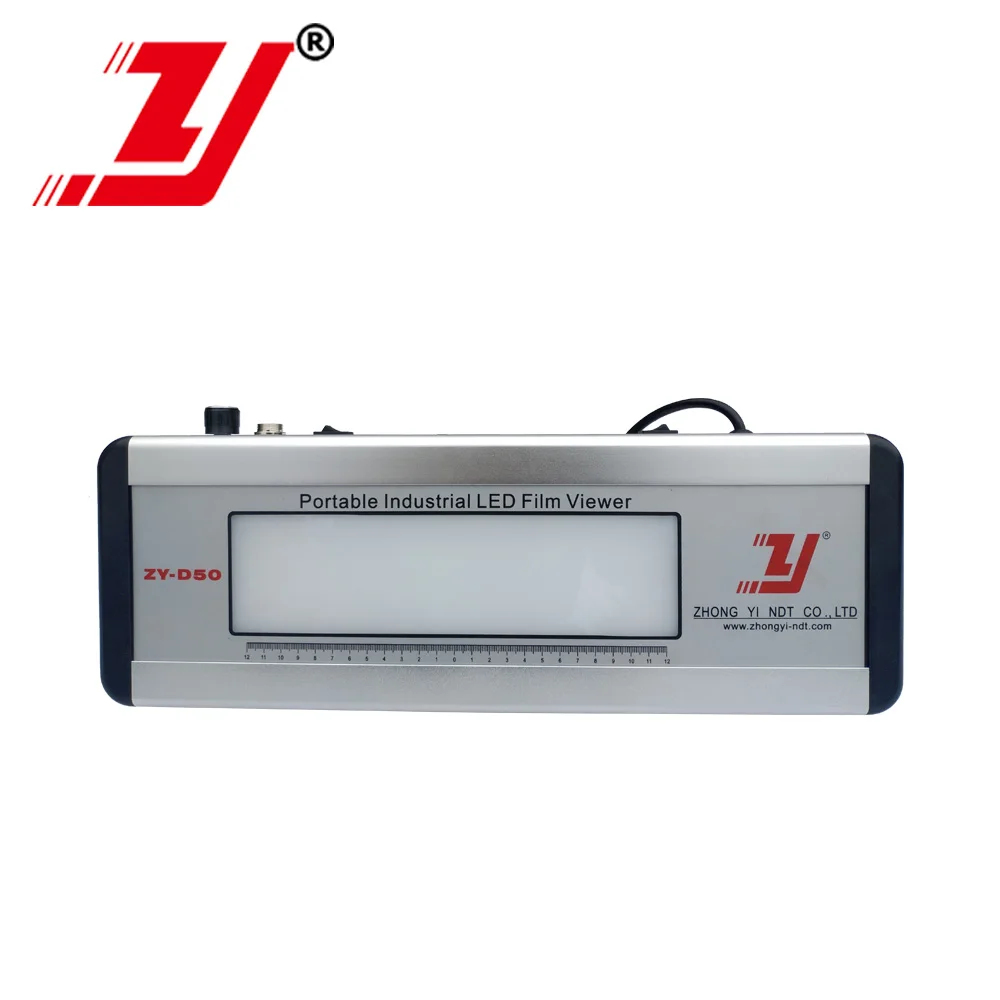

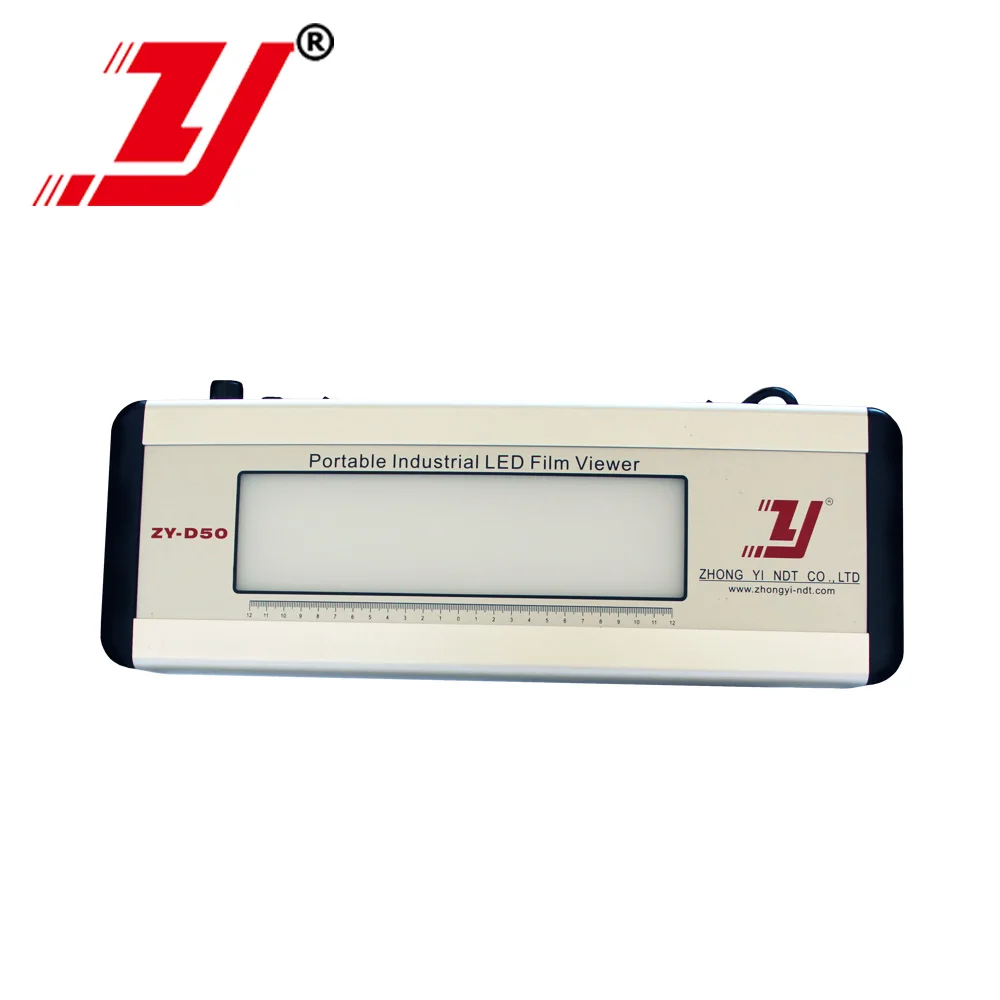

Portable x ray film viewer ZY-D50 is the new model of our LED film viewer. Theoretical work life is more than 50,000 hours. Arbitrary regulate brightness, widely used in unit radiography evaluation of mechanical, chemical, shipbuilding, boiler and power area. Portable design makes its extremely suitable for the occasion of liquidity in the field work.



Observe screen material from Japan Mitsubishi acrylic,has surmounted glass previous to light quality, good performance, and slow scattering long durability and deformation discoloration, can be observed clearly in 5.0D density for the film on the small defects.



The product also limit the LED color temperature in 8000K or so, not dazzling. In view of the LED lights and design of the constant current driving way, more degree ensure the normal work of LED, so as to achieve the purpose of life extension. Low voltage electronic pulse width modulation method adjustment the light to ensure the security of the user.





Parameters



portable x ray film viewer



Model	ZY-D50
View Port	253mm x 68mm
View Density	> 5.0 D
Input Voltage	170~250VAC, 47~63Hz
Uniformity Coefficient	g≥0.90
Dissipation Coefficient	≥0.90
Rated Output	200W
Continuous Highest Brightness	12 hours
Surface Temperature Rise	≤40°C
Max. Brightness	200,620 LUX
Contour Dimension(L×W×H)	464mm x 177mm x 76mm
Operating Weight	3.4Kg



Standard Configuration



portable x ray film viewer



No.	Description	QTY.
1	Foot Switch	1
2	Specification	1
3	Certification	1













FAQ:



Q 1:Is your Company the Manufacturer or a Trading Company?

A 1 : We are a manufacturer of NDT x ray equipment in China with experience engineer working over 20 years.



Q 2 : What are the payment options?

A 2 : We accept the following payment methods: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance.





Q 3 : Do you have any products that approved by ISO or CE?

A 3 : Yes, all of our products were strictly approved by ISO and CE, and our Zhongyi products can be imported to the overseas market.
