Hot sale automatic milking system cow milking parlour

Product Overview

Description

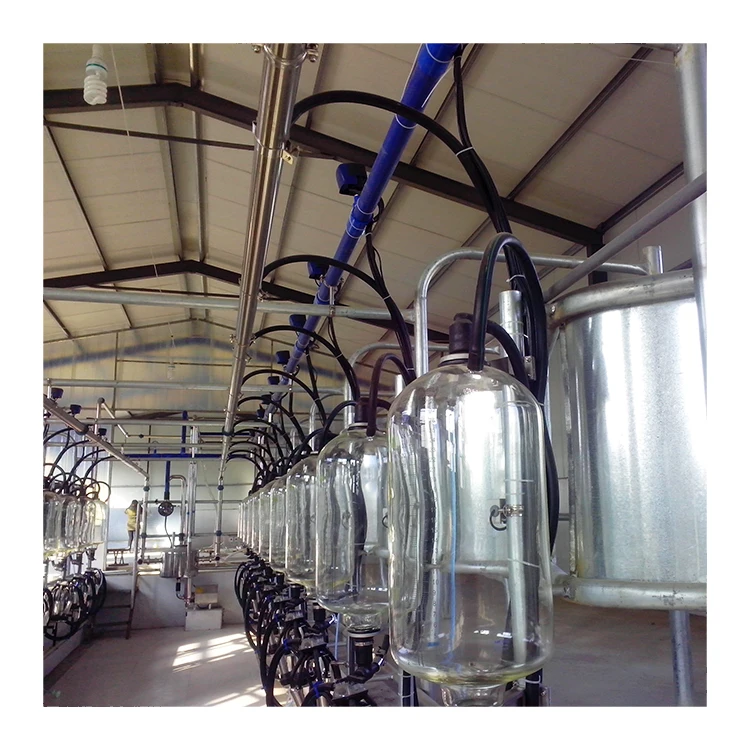

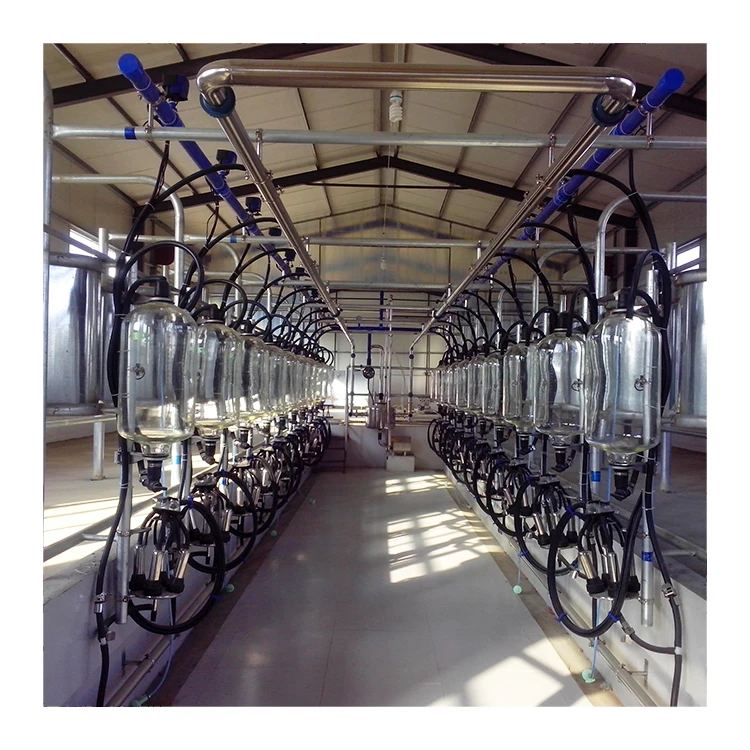

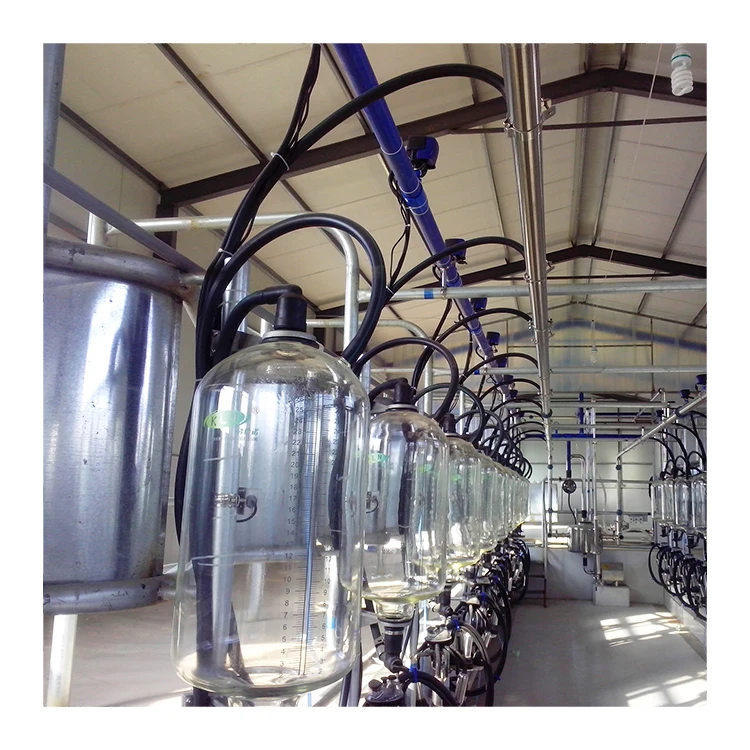

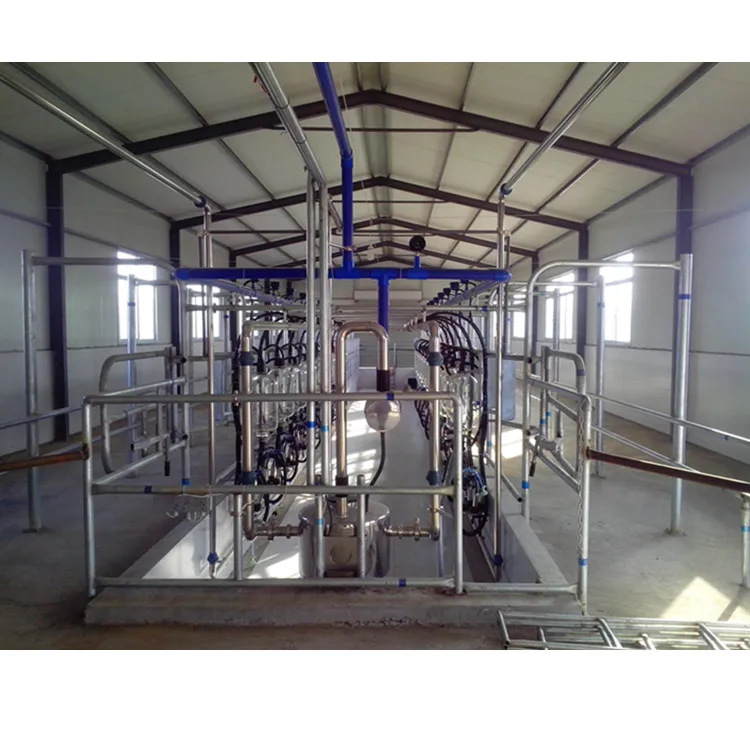

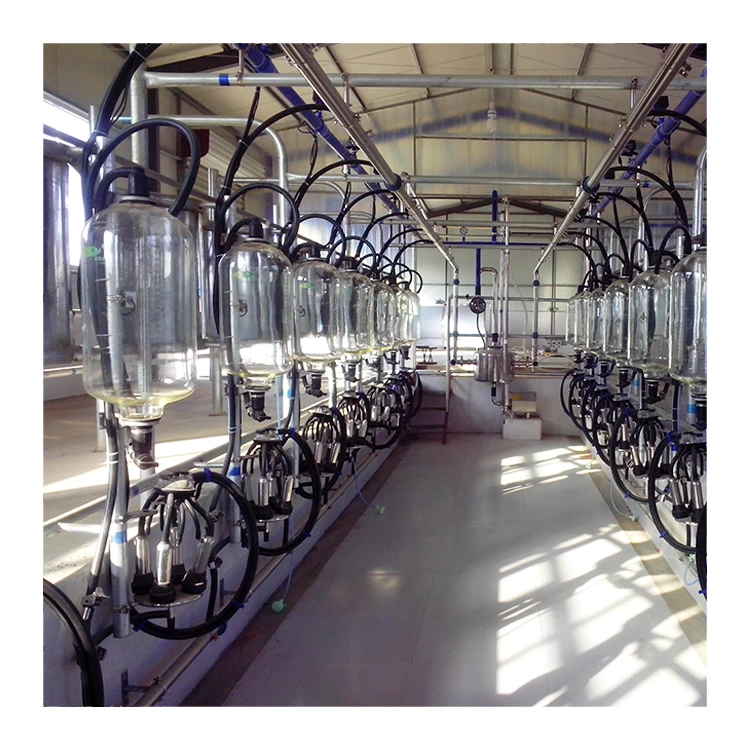

    Hot sale automatic milking system cow milking parlour



1. Milking parlor:

Hot sale automatic milking system cow milking parlour is used for large farm and milk a large number of cattle/goat, according to customer requirements, the layout can be designed to 2*4 - 2 *40, it means milk 8-80 cows at the same time. Hot sale automatic milking system cow milking parlour is the first choice for large farm and be widely used in the world.





2. Milking parlor parameters:



Model	9JZ-I*12	9JZ-I*14	9JZ-I*16	9JZ-I*18	9JY-2*8	9JY-2*12	9JY-2*16	9JY-2*20
Working Vacuum	50KPa	50KPa	50KPa	50KPa	50KPa	50KPa	50KPa	50KPa
Pulsation rate	60/40	60/40	60/40	60/40	60/40	60/40	60/40	60/40
Pulse frequency	60±3rpm	60±3rpm	60±3rpm	60±3rpm	60±3rpm	60±3rpm	60±3rpm	60±3rpm
Pump power	4KW	4KW	5.5KW	5.5KW	5.5KW	5.5KW	2*4KW	2*5.5KW
Vacuum pumping  speed	1400L/min	1400L/min	2300L/min	2300L/min	2300L/min	2300L/min	2*1400L/min	2*2300L/min
Milking pump power	1.5kw	1.5kw	1.5kw	2.2KW	2.2KW	2.2KW	4KW	4KW
Milking pump flow	5T/h	5T/h	5T/h	8T/h	8T/h	8T/h	20T/h	20T/h







3. Milking parlor quality:



1), Which the inner milk dirt attached to the main pipeline is thoroughly cleaned,especially in hot summer, can reduce bacterial content and milk is not easily to go bad.



2),to a great extent,it reduce the loaded and unloaded trouble of cleaning the main pipeline’s inner wall.



3),Achieve the purpose of recycling the residual milk attached to the main pipeline.



4),Save water and electricity.





4. Milking parlor installation:



1). After the buyer received the milking parlour, the seller will send two engineers to the buyer’s site to guide installation and train labors within 7~10 days.
2). The buyer should bear the cost include actual expenses for the visa, roundtrip tickets, insurance, accommodation and labor of engineers.
3). Tools for installation should be provided by the buyer, the seller will provide detailed tool list.





5. Milking parlor delivery:

1) Before package and delivery, we will test the machine seriously and guarantee the machine runs stably with high accuracy.

2) After inspection, our machines are wrapped by plastic and then carefully packed in wooden cases.

3) Then the whole set milking parlor will be put in one 20feet or 40 feet container, because it have too many parts.



6. Milking parlor after service:

1) The warranty time is one year from the date you get the machine, easy-wear parts for 3 months.

2) If any parts are found defective in quality in the first year, we will replace it for you freely.

3). We are responsible for the smooth operation of the machines. If you have any problem, just feel free to contact us, we assure you our soonest response.



7. Related machines:

Milk cooling tank from 500L-10000L, it is the necessary machine to equip with milking parlor.







8. Company profile:

Zibo Yuejiang Machinery Co., Ltd is manufacturer of pasture equipment, who provides pasture management system and reliable after-sales service.

We main produce: small vacuum pump/ piston type movable milking machine; medium fish-bone/ mid-set type milking parlor; large rotary type/ parallel type/ herringbone type milking parlor; feed mixer; livestock solid-liquid manure separator; cow head lock; cow free stall; fresh milk cooling tank and related parts.
