Дезинфицирующая, очищающая и отбеливающая машина

Product Overview

Description

KD-220 Desizing,scouring and bleaching machine



1.Application:



This machine is used for desizing, scouring and bleaching the fabric of cotton, hemp and their blends.





2.Technical parameter

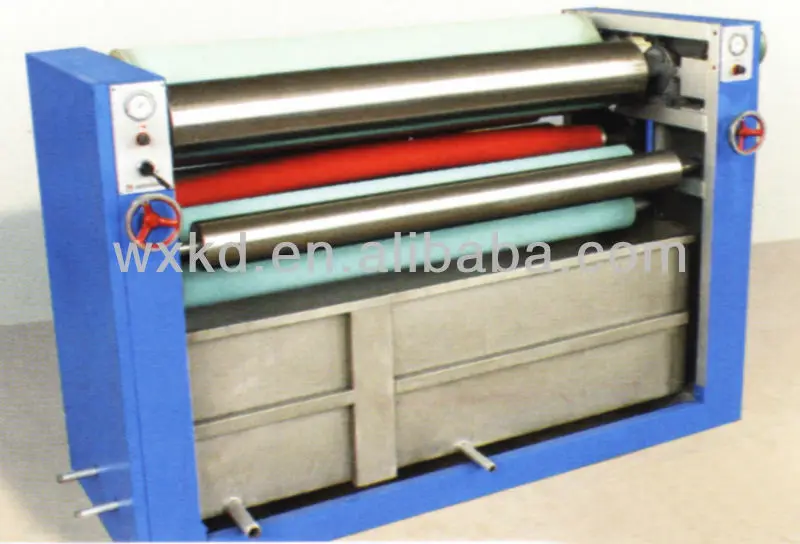

Feeding & drawing out device(infrared centring) → MH502 steeping tank + HFM512 two-roller padder →  MH983 double-layer composite steam box →  middle feeding frame(infrared centring ) → (MH915 steamer and washer + HFM512 two-roller padder ) *4 groups → MH915 steamer and washer + HFM513 three-roller padder →MH616 drying cylinder drying machine (3 rows * 10 pcs) → swinging drawing out.











Flow:



 Open width feeding(Infrared centring) →MH502 impregnation tank + HFM512 two-roller mangle → MH915 steaming washing box _HFM512 two-roller mangle →→ MH915 steaming washing box HMF513 three-roller mangle → MH502 open impregnation tank + HFM512 two-roller mangle →





















Technical parameters:





Guide roller width	2200mm
Machine direction	face to the feeding side, drive is on left/right
Machine speed	10-70m/min
Drive	variable frequency drive
Control device	PLC
Installed power	About 65kw
Steam pressure	≥0.2 Mpa
Compressed air	≥0.4Mpa
Water pressure	≥0.2Mpa
Shape size: L*W*H	69500×3000×4800(mm)
