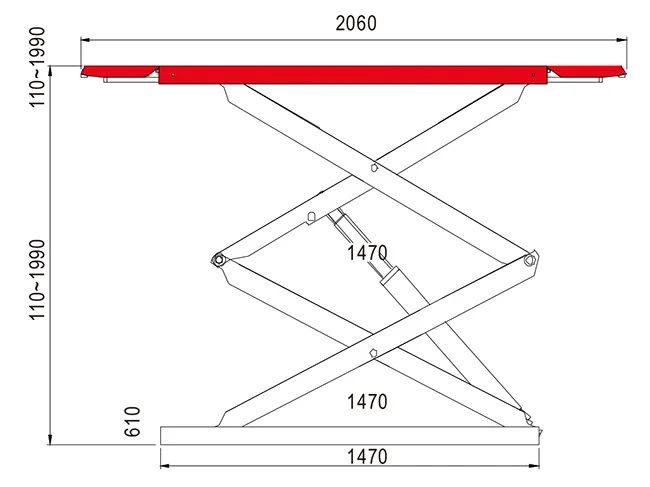

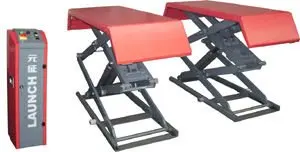

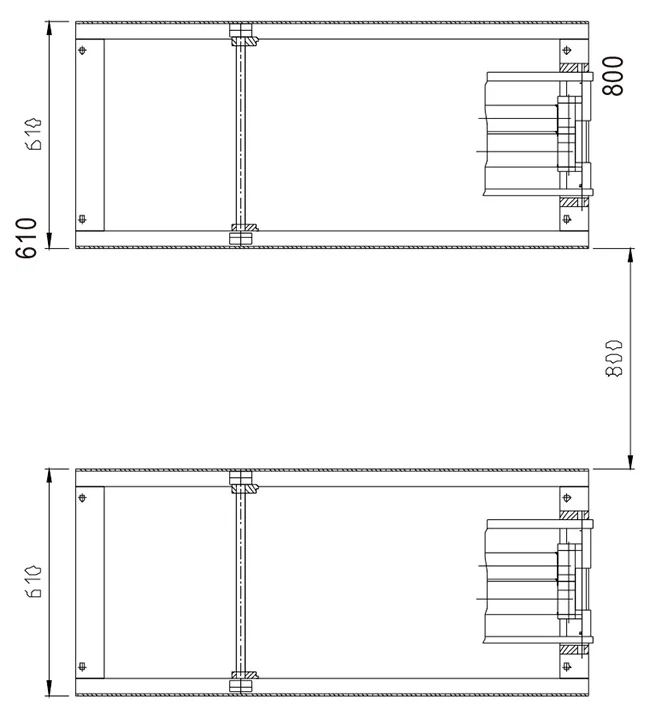

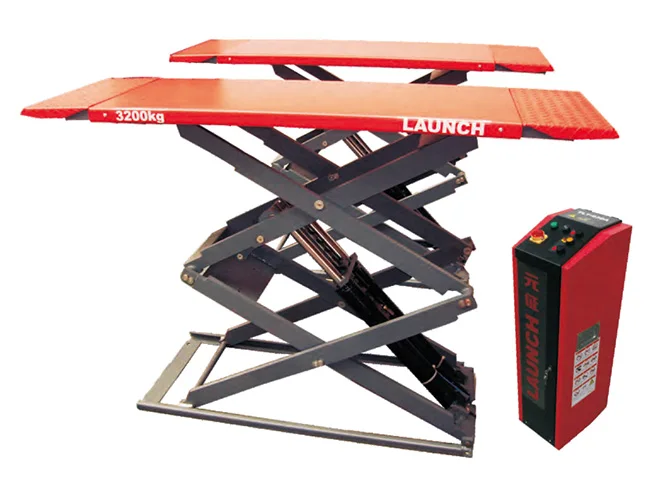

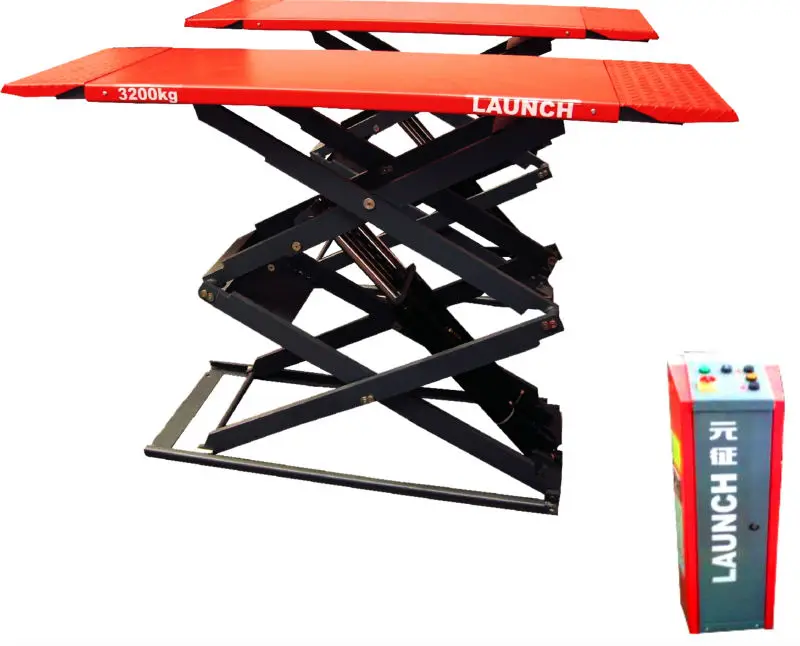

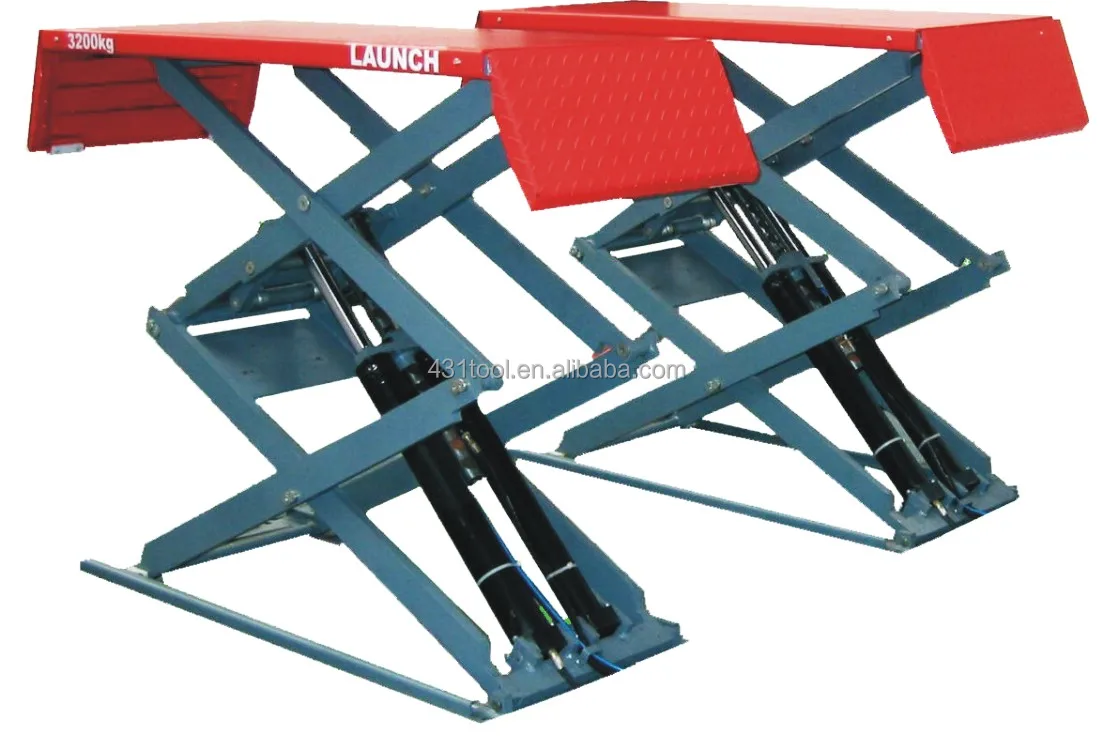

LAUNCH TLT632AF small scissor lift car lift basement car lift

Product Overview

Description

LAUNCH TLT632AF small scissor lift car lift basement car lift



Features





Used for lifting light vehicles under 3.0 tons for vehicle test, service and cleaning.It can also be used as a lifting device in production lines, for material transportation and work piece assembly.



Specification



*Rated capacity(kg) 3000
*Lifting height(mm) 1750
*Platform size(mm) 1580X520
*Motor power(kw) 2.2
*Max. hydro pressure(Mpa) 28
*Pneumatic pressure(kg/cm2) 5
*Noise(db) ≤70
*Overall weight(kg) 630

*lifting time:          50Sec

*Lowering time:       40Sec

*Drive through width:   2486 mm

*Overall width:          3370mm

*overall height:        2860mm

*bottom clearance:     110mm

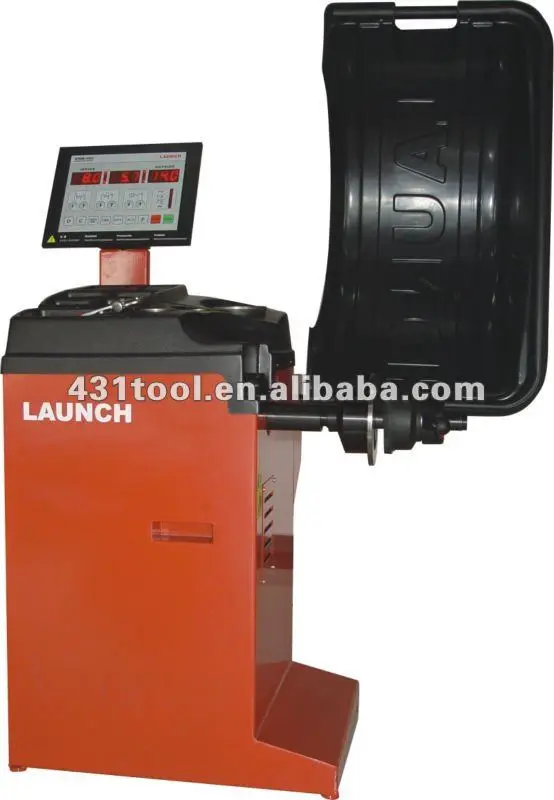

Other products photos:
