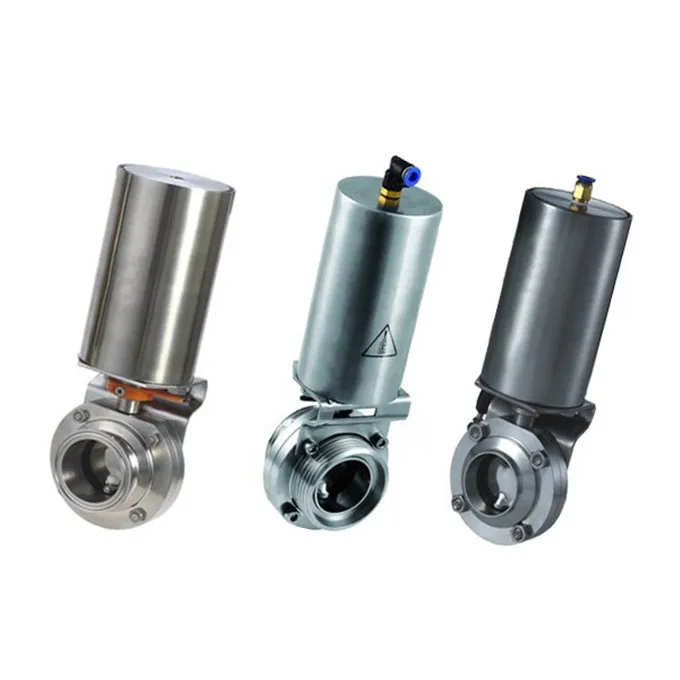

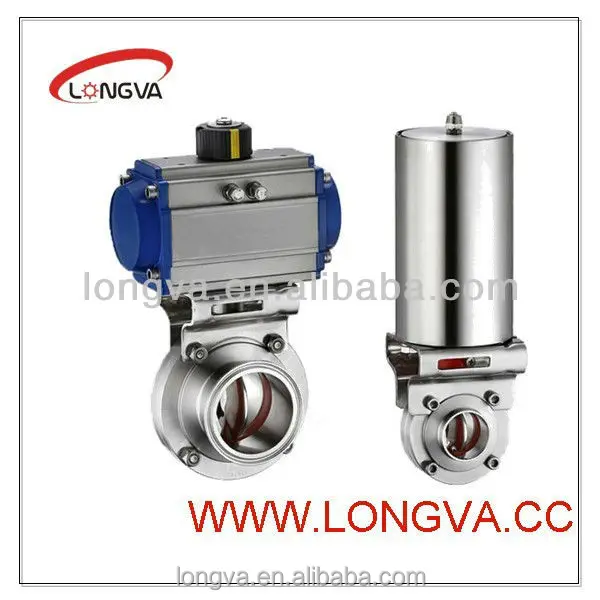

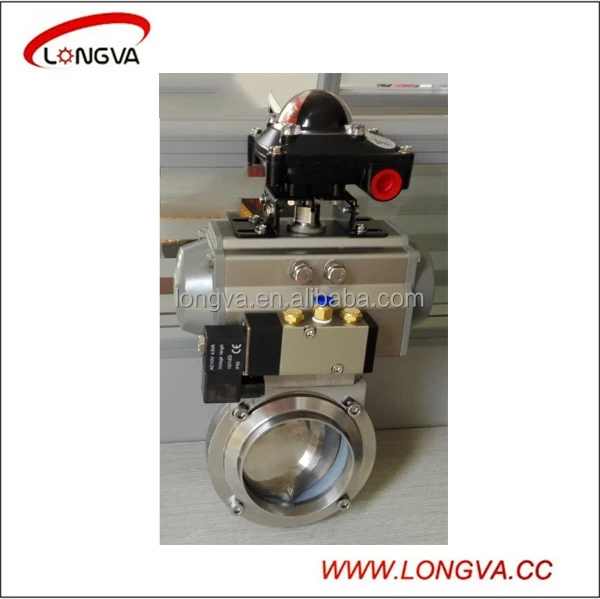

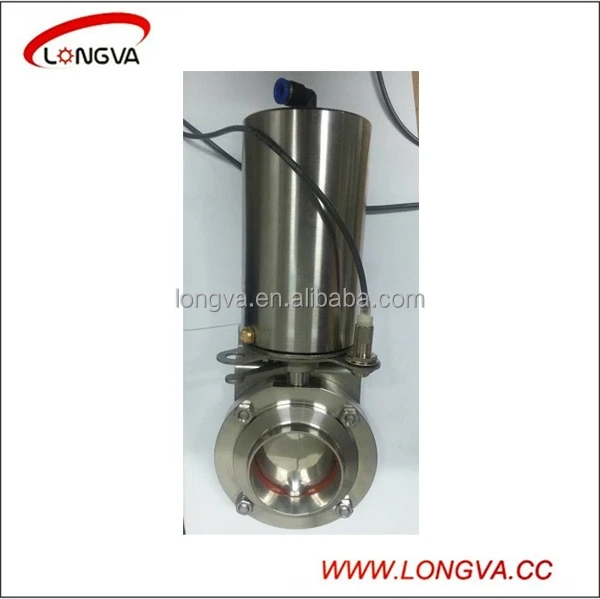

Sanitary Tri Clamped Butterfly Valve Stainless Steel Single Action Pneumatic Actuator Butterfly Valve
- Category: Butterfly Valves >>>
- Supplier: Wenzhou Longva Light Industrial Machinery Co. Ltd.
Share on (60002950019):
Product Overview
Description
Name: Sanitary Tri Clamped Butterfly Valve Stainless Steel Single Action Pneumatic Actuator Butterfly Valve
Sanitary butterfly valve adopts standard electronic polishing, smooth surface to ensure clean, no medium accumulation area, and no potential pollution will occur. The sanitary butterfly valve quickly disassembles and assembles the valve, making valve opening and maintenance quick and easy, and shortening process downtime. Sanitary butterfly valves are mainly used in food, pharmaceuticals, cosmetics, clean steaming, alcohol, beverages, and biochemical industrial machinery. They have many excellent features such as compact structure and convenient assembly and disassembly.
| Material | SS304,SS316 |
| Gasket | SILICONE, FPM, EPDM, etc. |
| Woking Temperature | VMQ:(-50~+180°C)EPDM:(-20~+135°C)FPM:(-30~+230°C) |
| Air Pressure | 0.5 - 0.8Mpa, Max is 1.0Mpa |

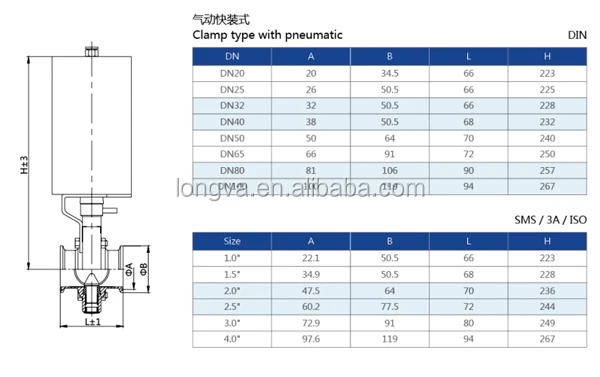

| Size | Φ 85, Φ 108, Φ 133, match with DN20 - DN150, 3/4" - 6" butterfly valve, ball valve. |
| Connection shaft size | 8*8, 10*10, 11*11, 14*14 |
| Mode of action | the double-acting/single-acting type(spring reposition) |
| Selection of Accessories | solenoid valve,locator,limit switch,F.R.L.combination unit |
| Surface treatment | inside surface treatment Ra≥ 0.4-0.8um surface treatment Ra≥ 0.8-1.6um |

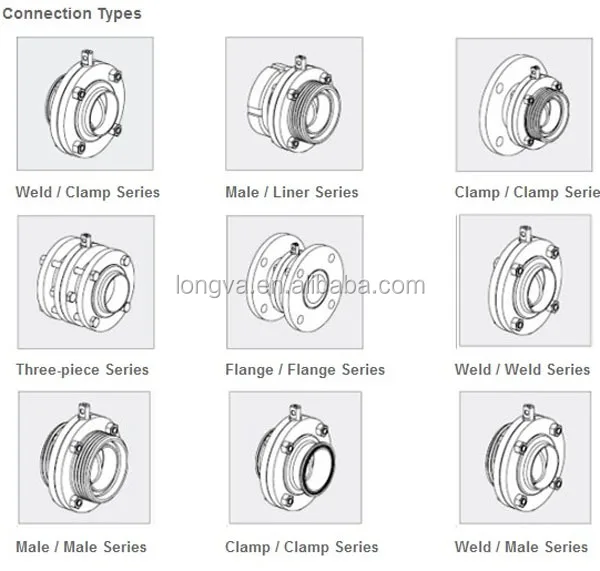

| Connection mode | welding,tri clamp,threaded,flange,etc |
| Three drive forms | normally closed, normally opened, air/air |
| Application | apply to diferent kinds of valves on stainless steel pipeline system to control or regulate flow. |
| Advantage | 1. The sealing material is resistant to aging, corrosion and long service life; 2. Can be installed in any position, easy maintenance; 3. Novel design, reasonableness, unique structure, light weight, rapid opening and closing;4. Small operating torque, convenient operation, labor-saving and dexterous. |

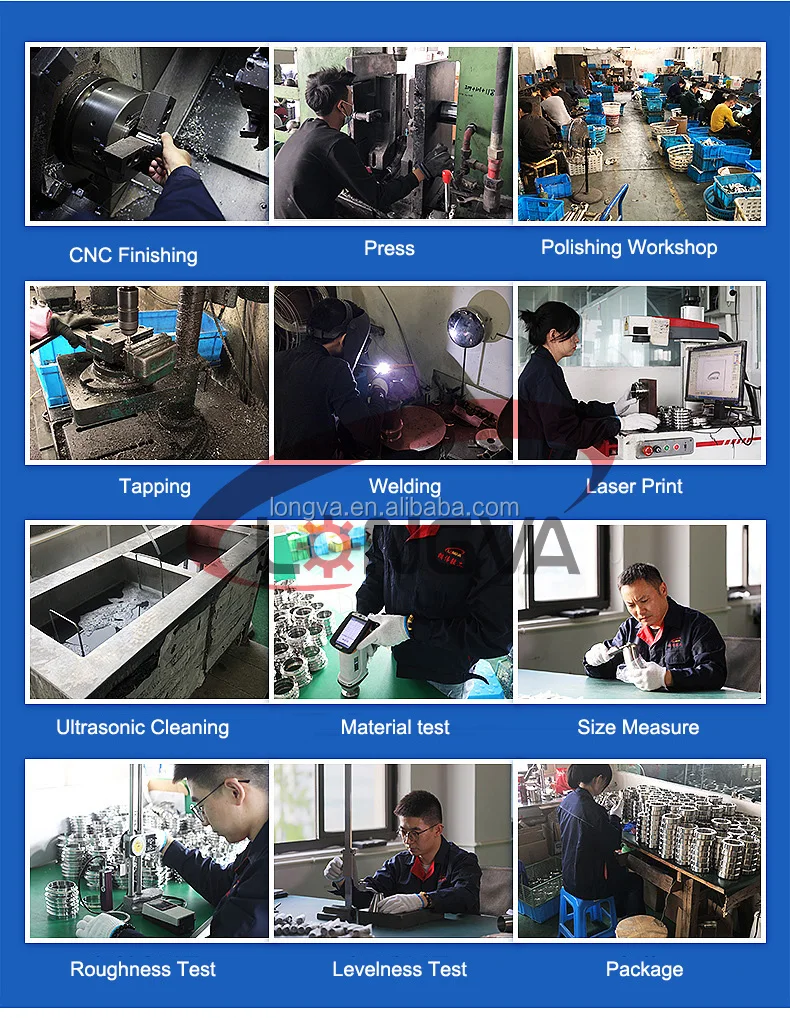

Material Testing
FAQ
Q: Is the price of your products lower than others?
A: We can not promise you the lowest price,because the best quality is what we pursue firstly.
Q: Can you provide us with some samples for testing?
A: Of course, we can offer you samples.
You only need to bear the freight and samples' charge can be negotiated.
Q: How about your service?
A: We have pre-sale service, in-sale service and after-sale service and you can know about them in our service.
Q:What's your package?
A:1pc/styrofoam box then put into carton box;
Q:What's the shipping way?
A:small package,you can choose courier or China post(if it is not urgent)
Large or weight package,you can choose by air,see or train.
Q:What's the information we need tell you before we place order?
size,material,connection,single or double acting,whether need accessories such as solenoid valve,locator,limit switch,F.R.L.Combination unit.
Q:What's the delivery time?
A:if the qty is less than 1000pcs normal 15days,if 1000~5000pcs about 25days.
