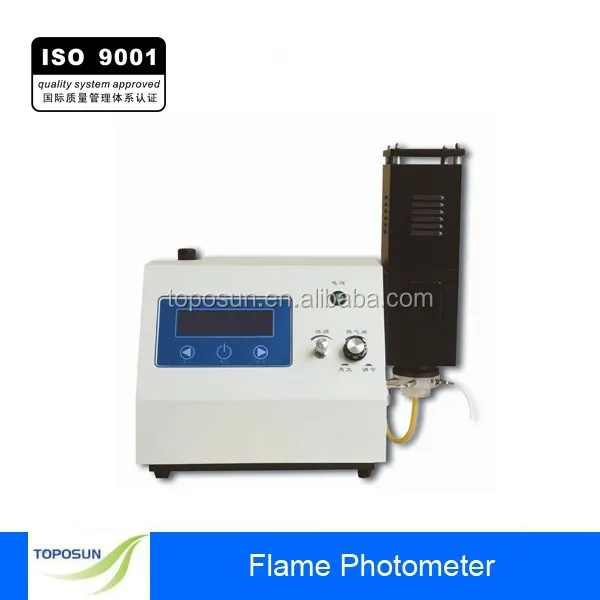

TPS FP series High Performance Flame Photometer for element K, Na, Li, Ca, Ba

Product Overview

Description













FP6450 flame photometer is a newly designed instrument. It has the advantages of small size, convenient operation, stability and reliability.

The host uses a 7-inch color capacitive touch LCD screen,It can store up to 200 sets of test data of the standard curve with a set of 10 points.The FP series flame photometer uses liquefied gas as fuel gas.







Main Features





7- inch color touch- screen

Direct concentration display

Automatic calculation of correlation coefficient

Pre-selection of flame sizes

Flameout protection device

Measuring range changing

Concentration units selectable

Multilingual user interface

Air compressor provide



Technical Specifications

Operation mode: 7- inch color touch- screen
Display value: Concentration value
Data range: 0.000~999.9
Testable: K, Na, Li, Ca, Ba
Channel Qty: 5
Range ppm:K 0-100,NA 0-160,LI 0-100,CA 0-1000, BA 0-3000
LOD ppm: K 0.01,Na 0.01, Li 0.1,Ca 2, Ba 6
Linear error: K 0.195, Na 0.69,Li 0.15, Ca 3, Ba 9
Response time: <8s
Sample uptake: <6ml/min
Stability: < 3% drift over15s when continuously aspirating.
Reproducibility: < 3% coefficient of variation for 7 consecutive samples
Curve Graph: Display
Printer: Optional build-in thermal printer
COM: USB
Fuel: LPG
Power: AC220V±22V 50Hz±1Hz,250W

Packing size: 570mmX530mmX400mm 0.12M 18kg
