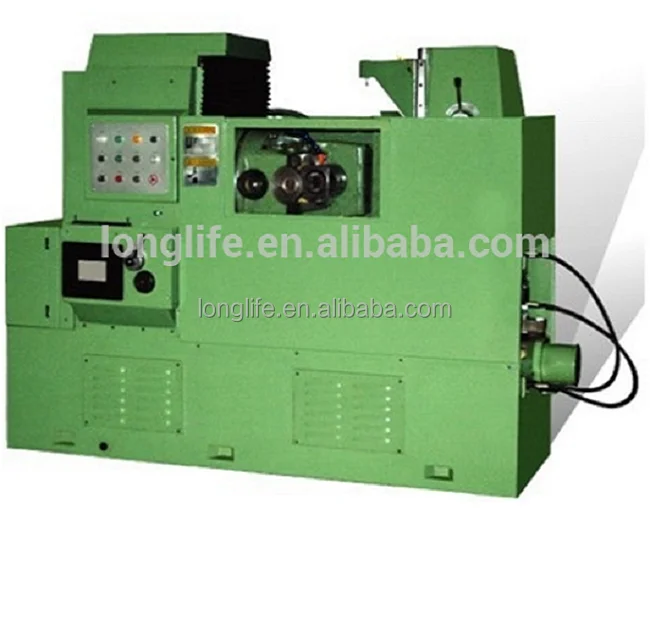

YNH3120 gear hobbing machine/gear creator



Declarations


 The YNH3120 PLC gear hobbing machine is not manufactured any more, according to Production Schedule.


But its after-sale service and spare parts providing are still availiable, without stop.


You can check and choose its upgrades YN3120(Ø200mm) Economic 3-axis CNC Gear Hobbing Machine.






Main Featurers:


Such y3120 gear hobbing machine/gear creator has following features:


The model YNH3120 is a gear hobbing machine designed for cutting spur gears, helical gears and worm wheels. When a chain wheel hob is used, the machine is capable of cutting chain wheels.
The perfectly designed machine is high in rigidity, consistent in working accuracy and easy to set up & maintain. The gears can be cut either by the conventional hobbing method or by the climb hobbing method. The machine is therefore well-suited for job-lot or batch production of gears in the machine-building enterprises.


CE Standard anc CE Certificate;





Main Technical Data:












































































































Specifications of Y(NH)3120 gear hobbing machine/gear creator



Unit



Y(NH)3120 gear hobbing machine/gear creator



Maximum diameter to be hobbed



mm



200



Maximum modulus



mm



4



Maximum angel of helix







±45°



Worktable diameter



mm



210



Diameter of worktable bore



mm



40



Diameter from the hob center worktable centers



mm



10~185



Diameter form the hob center worktable surface



mm



125~295



Maximum diameter of hob



mm



110



Maximum length of hob



mm



110



Maximum axial movement of the hob



mm



50



Cone of the spindle bore



r/mm



MT 3



Hob spindle speeds in 8(9) steps






mm/r



63~320(8)



Axial federates



mm



0.2~3



Hydraulic withdrawal of the worktable



mm



30



Power of the main drive motor



kW



2.2



Total power consumption



kVA



3.42



Net weight/Gross weight



kg



2100



Machine overall dimension (length × width ×height)



mm



1840×1400×1450



The measure of area (length × width )



mm


2000×1800




Our Services


1, Your inquiry will be replied in 24 hours;


2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;


3, To offer free spare parts and service within one year of warranty;


4, Technical Support Provide operation video for training;


5, Professional after-sales service team;


6, Call us at any time: +86-1313 046 5353/156 411 21240|Wechat: 1313 046 5353


7, Fax us:+86-411-84410129





Factory Overview:


gear hobbing machine.jpg

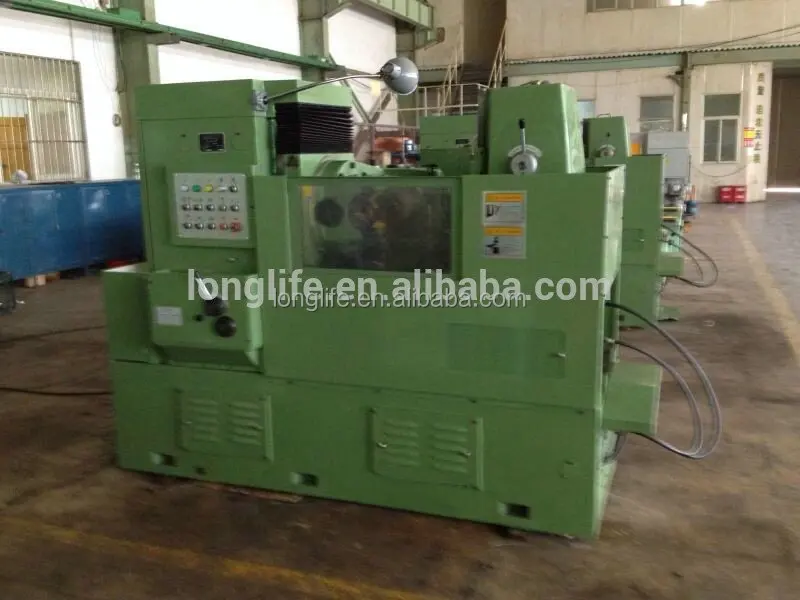

Y(NH)3120 semi auto high precision gear hobbing machine/gear creator
