Chinese Made Cheap Cars 110cc Moto Mini Pocket Forza Max Cubs
- Category: >>>
- Supplier: Chongqing Pantera Group
Share on (60003816948):
Product Overview
Description

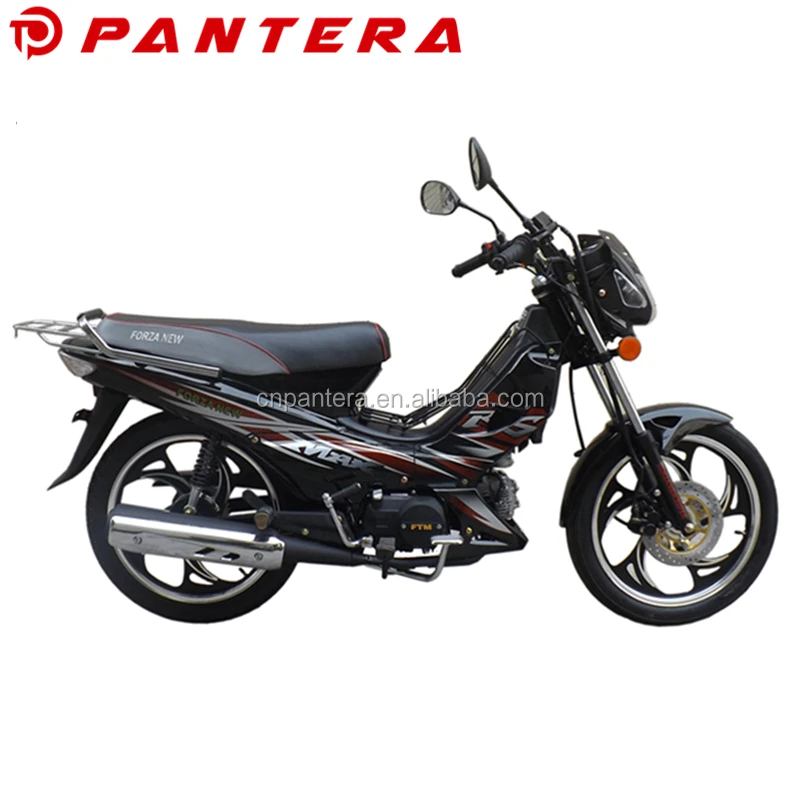

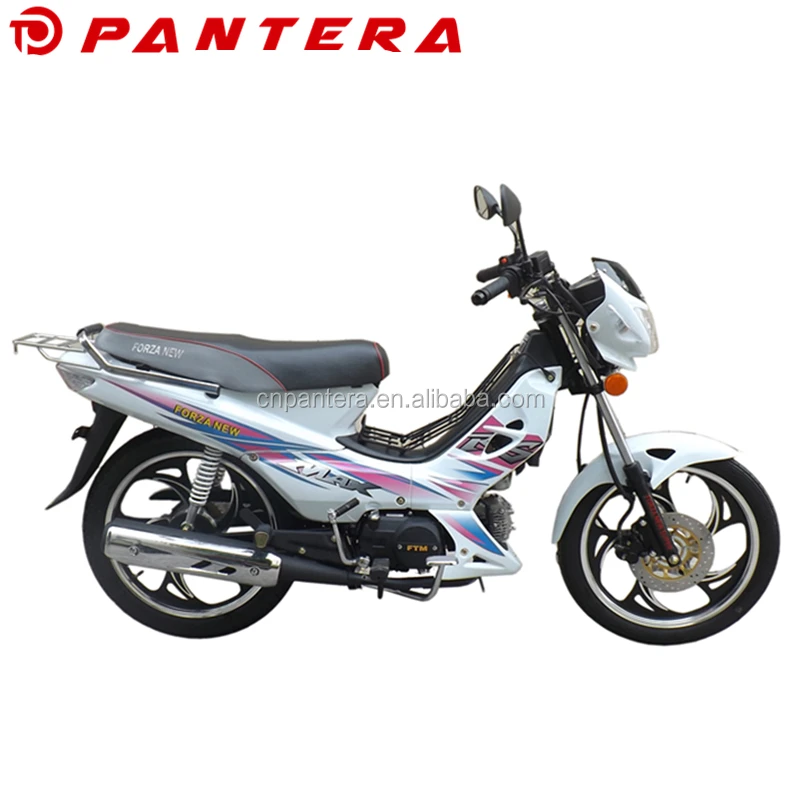

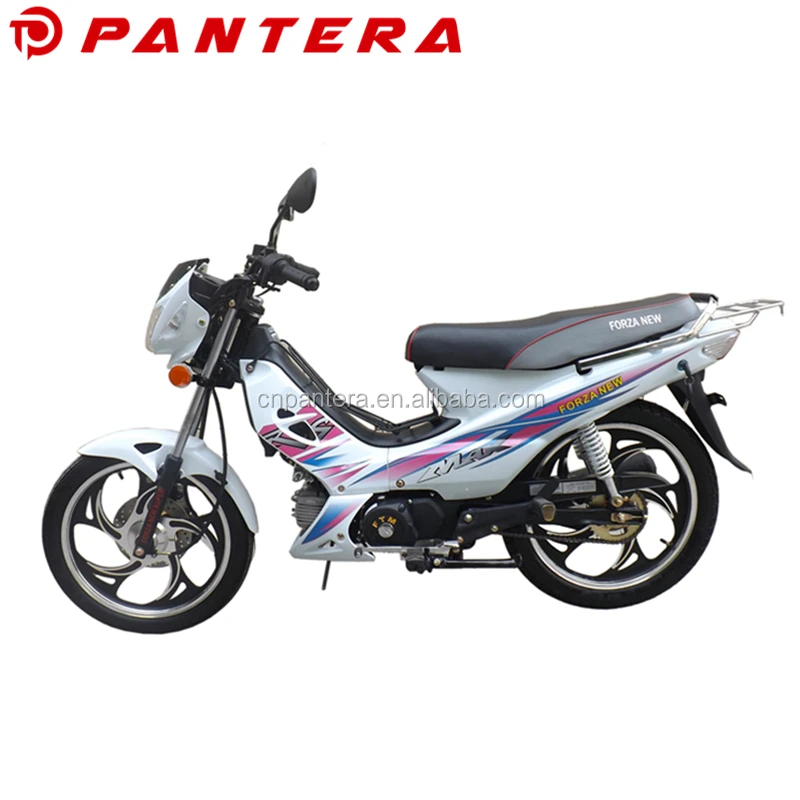

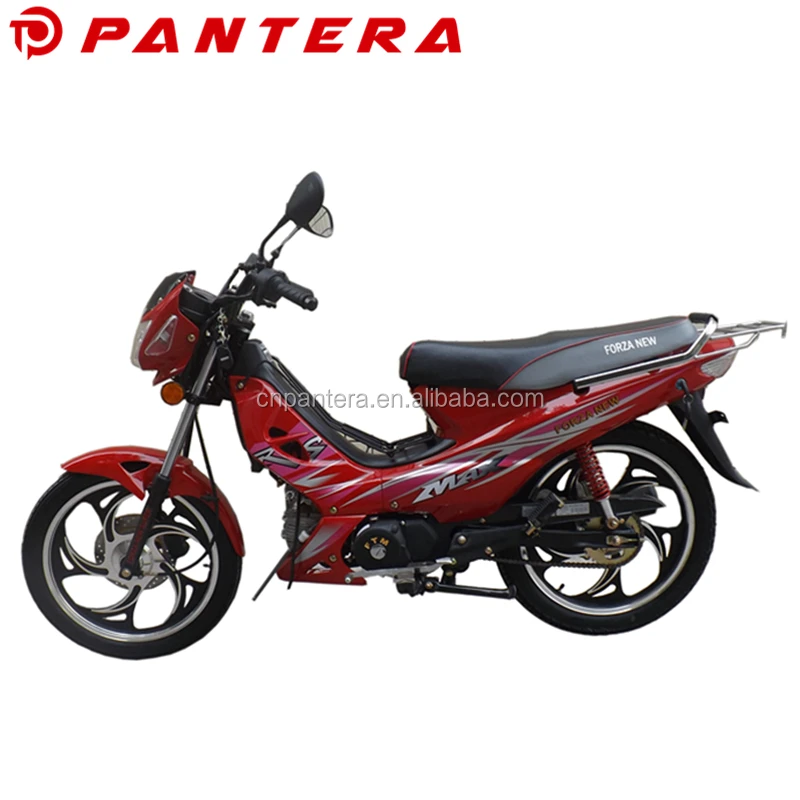

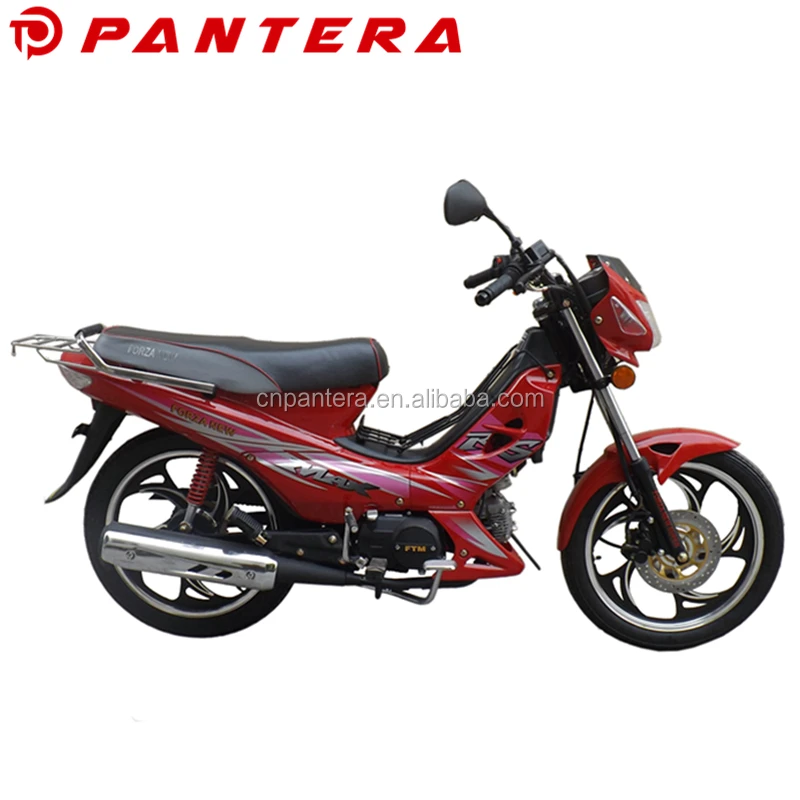

Chinese Made Cheap Cars 110cc Moto Mini Pocket Forza Max Cubs
Detailed Images
Overview
Details
Optional colors
left handbar speedmeter right handbar
front disc brake engine drum brake
Specification
| ENGINE | |
| Engine Type: | Single cylinder,wind-cooled, four stroke, |
| Displacement (ml): | 107 |
| Bore X Stroke (mm): | 52.4x49.5 |
| Compression Ratio: | 9.1:1 |
| Max. Power (kw/r/min) | 5.2/8000 |
| Max. Torque (N.m/r/min): | 7.2/5000 |
| Max. Speed (Km/h): | ≥85 |
| Lubrication: | Pressure ,splash |
| Clutch Type: | Multiplate wet clutch, Manual |
| Ignition: | CDI |
| Starting System: | E-start |
| Transmission System: | Chain drive |
| CHASSIS | |
| Front Brake: | Disk brake |
| Rear Brake: | Drum brake |
| Front Tire: | 110/90-13 |
| Rear Tire: | 110/90-13 |
| Battery: | 12V/5Ah |
| DIMENSIONS | |
| L X W X H (mm): | 1800*720*1200 |
| Seat Height (mm): | 750 |
| Wheelbase (mm): | 1280 |
| Min. Ground Clearance (mm): | 100 |
| Max. Permissionable Weight (kg): | 150 |
| Rider Capacity: | 1 Person |
| Dry. Weigth (kg): | 95 |
| Engine Oil (L): | SAE15W/40 |
| Fuel Tank Capacity (L): | 3.5 |
| Others | |
| Packing Size (mm): | 1700×460×870 |
| Packing Weight (kg): | 125 |
| Container Loading(40HQ): | Single package:105units |
Our Services
Personal Customization:
1.Front brake:drum brake/disc brake
2.Wheel:spoke wheel/alloy wheel
3.Speedmeter:normal speedmeter/digital speedmeter
4.Displacement can be changed from 50cc to 125cc
5.Color is optional too
Warranty:
We can offer one year warranty or engine 6000kms. And 1% easy-damaging spare parts are provided for free
| easy broken spare parts list: | |
| No. | spare parts name |
| 1 | carburetor |
| 2 | electric parts |
| 3 | headlight assy |
| 4 | meter assy |
| 5 | L. front turning light |
| 6 | R. front truning litht |
| 7 | L. rear turning light |
| 8 | R. raer turning light |
| 9 | tail light assy |
| 10 | front and rear inner tube |
| 11 | rearview mirror |
| 12 | pasoes |
| 13 | chain |
| 14 | handle switch |
| 15 | handle bar |
| 16 | cable |
| 17 | battery |
| 18 | seat |
| 19 | rear shock |
| 20 | footrest |
| 21 | starting arm |
| 22 | gear pedal |
| 23 | muffler |
| Note: the above spare parts packaged separately, carton packaging, standard marks. | |
Packaging & Shipping
SKD steel frame + cartoon or wooden frame
CKD wooden case or cartoon
Company Information
Company Profile
Pantera located in Chongqing the city of mountain. Pantera is the pioneer in motorcycle manufacture field in Chongqing, even in the whole China. We sell diversified gas motorcycles, electric motorcycles and tricycles. Advanced technique and equipments are imported since the company’s establishment in 2006. And we hired a number of technicians to enhance our quality. The factory has specialized product quality inspection department and test for our products.
Company’s main areas are: cub motorcycle, off road motorcycle, street motorcycle, electric motorcycle, tricycle, mini dumper, marine parts and spare parts of motorcycle. We insist on the principle of the supremacy of the interests of consumers, make innovations in our products to make the best motorcycles for you.
Honest and modest is company’s motto, win-win to each other is our aim. Our company sincerely welcome customers from all over the world to cooperate with us on the business to make a better motorcycle industry in the future.
Market
Bussiness Terms
Certification
WMI and EEC
CQC and SGS
FAQ
Q:What's the packing method do you have?
A:We have two ways to pack the product.One is SKD and the other is CKD.
Q:Is the color of motorcycle optional?
A:Yes,the color is optional,we can print the motorcycle and make it unique just for you.
Q: What’s your payment term of transaction?
A:We accept T/T, and if it is necessary, L/C is considerable.
Q:What's the min order of this model?
A:The min order of this product is 70 unit.
