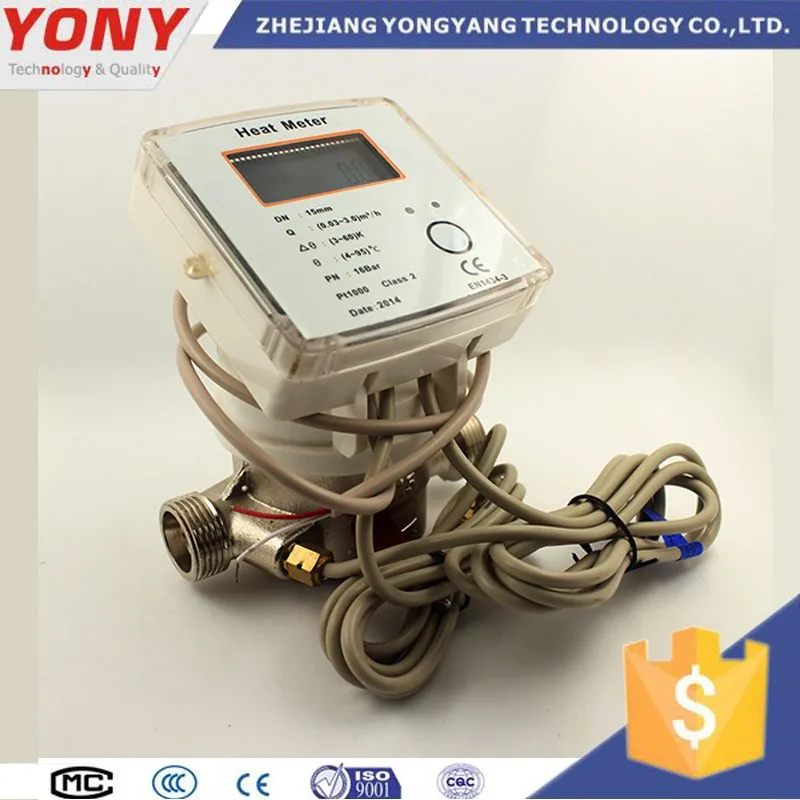

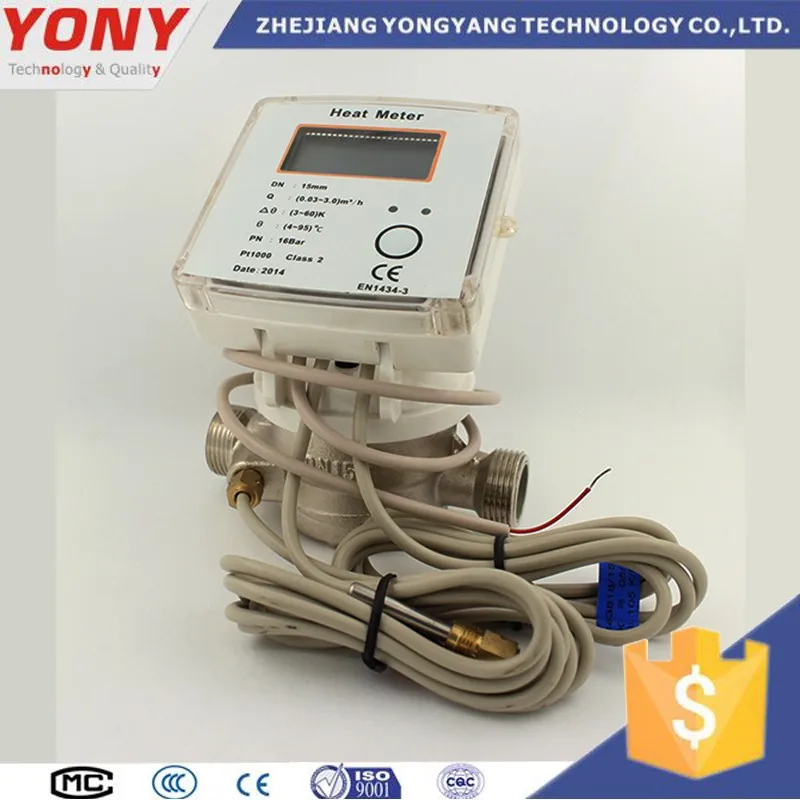

DN 15 25 high accurate Mechanical Heat Meter with M BUS

Product Overview

Description

Product Introduction

This series of heat meters adopt most advanced non-magnetic technology and it features elegant appearance, accurate measurement, convenient management , steady operation, strong anti-erosion, and long using life, which is secure and economic. It is widely used in the heat system with concentrated heat supplying management, separate household data collecting management. Varies of communication modes are optional according to the users’ need.



Application and Warnings

The installation requirements of the heat meter

Before installation, check the pipelines in the cleansing system thoroughly and remove silk, hemp ,sand ,gravel and any other masses to avoid any flow hindrance.



n   The flow meter should be installed in horizontal level, with the display window

     facing upward.

n   The diameter of the front and the back pipes should fit the flow meter

n   10DN straight pipeline and 5DN straight line should be saved (DN is what we call the diameter of the heat meter)

n   Must use the gasket and connecting pipeline specially designed and manufactured by our company.

n   The sewage filter and the valve should be fixed at both ends of the flow meter for the convenience of filth removing, maintaining and replacing.

n   After the installation ,seal between the connecting bolt of the capsule and the heat meter, between the temperature measuring ball valve and the platinum resistor.

n   Best water inflow and outflow pipeline options for easy fixing.   Heat Meter



The installation of temperature sensor

One temperature sensor with red tag is to be installed inside the heat measuring meter, the other sensor with blue tag is to be built inside the temperature measuring ball valve.

The lead wire of the temperature sensor is not allowed to be lengthen, shorten or changed casually.



Performance

Household mechanical heat meter bears the features of high accuracy, steady operation, long using life, no subjecting to inferior water and low mantaining cost .It can be widely used in concentrated or regional heat supply system or separate household measuring in central air condition system    Heat Meter



Nominal Diameter		15	20	25
Dimension	L	110	130	130
	W	87	87	87
	H	1011	101	101
Max flow (m3/h)		3	5	7
Norm flow(m3/h)		1.5	2.5	3.5
Min flow(m3/h)		0.03	0.05	0.07
Max flow reading		999999.99(m3)
Max heat reading		99999999(KW·h)
Power supply		3.6VDC
Battery life		>6 years ( Lithium battery)
Accuracy class		Class 2
Communication mode		Infrared interface , M-BUS/RS485
Press loss		≤ 0.025 Mpa ( under normal flow)
IP class		IP 68
Temperature range		(0--95) °C
Temperature difference range		(3--60) k
Starting temperature difference		0.01k
Temperature sensor		Pt 1000
Ambient temperature		+5°C -- +55°C
Ambient level		Level A
Installation		Horizontal/ vertical installation
Monitor		8 digits
Length of temperature sensor		1.5m
Working current		45uA
Data storage		Store historical data up to last 24 months
