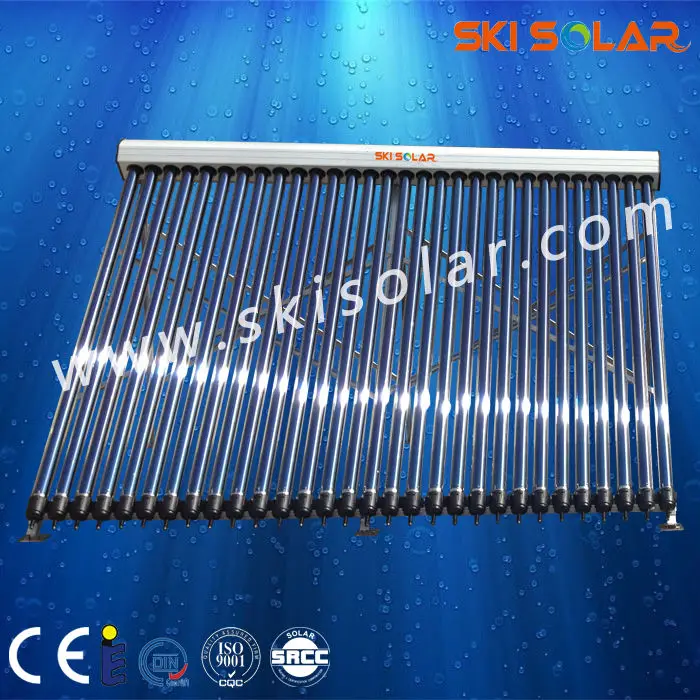

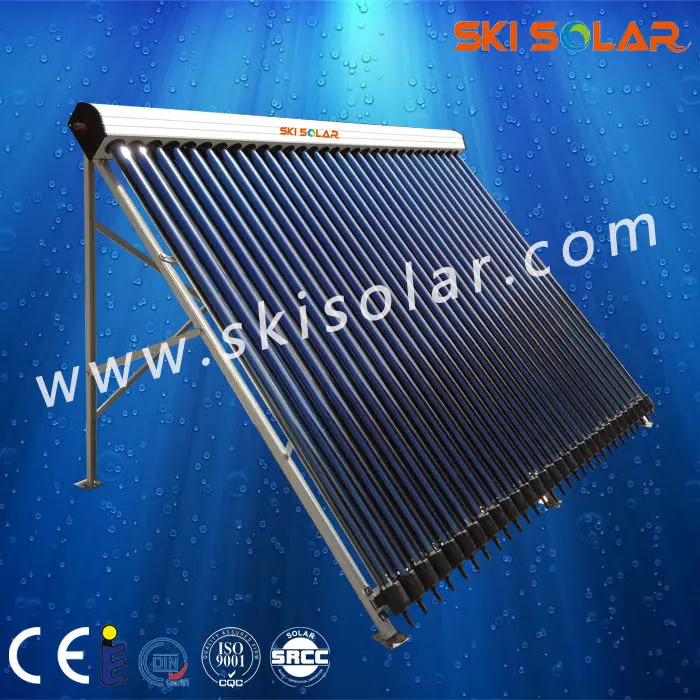

2015 factory direct new high capacity heat pipe solar heating collector with vacuum tube and manifold

Share on (60004202557):


Price:RUB 7,581.80 - RUB 28,659.21

Quantity:


Product Overview

Description



Company Information






Specifications
MODEL Heat pipe solar collector
  Manifold casing material   aiuminum alloy,thickness:2mm
  Manifold pipe   copper.Diameter:35mm,thickness:1mm
  Heat pipe   ø47mm*1500mm;ø58mm*1800mm
  Header pipe material   copper
  Frame and Frame angle   aluminum alloy,thickness:2.5mm, 0-45°
  Lowest working temperature   -40degree
  Working pressure   7bar/0.7MPa
  Permissible wind    30m/s
  Needed accessories   copper connector,copper connector(male&female),tee fitting,air vent valve
  Hail resistance   20mm
Model Absorbing area(m2) Heat pipe Total Capacity Loading Quantity.(Sets)
Diameter Length Number 20'GP 40'GP 40'HQ
SKI-CA 58/1800-12 1.99 ø58mm 1800mm 12 96L 135 315 330
SKI-CA 58/1800-15 2.48 ø58mm 1800mm15120L 115268  288
SKI-CA 58/1800-18 2.66 ø58mm 1800mm18144L96223235
SKI-CA 58/1800-20 2.98  ø58mm 1800mm20160L86198215
SKI-CA 58/1800-24 3.56  ø58mm 1800mm24192L73170185
SKI-CA 58/1800-30 4.43 ø58mm 1800mm30240L56135146






Hot Sale Area






Company History




Changzhou SKI Solar Energy Co.,Ltd.located in Changzhou,jiangsu province,which is only 180KMs far away from the biggest city-Shanghai.Our company is an OEM/ODM manufacturer in the R&D,production and marketing of solar products. We are one of the largest solar manufacturers and exporters of solar water heaters in China. It is with rich technical force,well equipments and a number of high-precision mechanized production lines.It has a production capacity of 10000 sets solar water heaters annually,ranking the size of the domestry industry forefront.The products have been exported to over one hundred countries such as USA,Europe and so on.Our products won great acclain from our clients.



The main business scope of the company incudes heat pipes,glass vacuum tubes,integrated preesurized solar water heaters,separated pressurized solar water heaters and solar collectors and so on.In solar light and heat areas,the company successfully developed and launched the inner tank with porcelain enamel coating technology,which cooperates with the most advanced polyurethane foam technology,leading solar light and heat industry into a "new insulation age"and becoming the pioneer in the industry.


"Creat a better life "is our eternal pursue.The company will persevere in creating a beautiful future for the customers.

Hold the SKI Solar,hold the beautiful future.Enjoy the sunshine,enjoy the life.







Certificates








Production Process





FAQ



1- What is your Delivery Time?

     LCL order:7-10days. Full container order:15-20days.

2- What is your Guarantee Time?

    3years; Provide you with some accessories,

3- Can you accept OEM and ODM ?

    YES, printing your LOGO on the package.

4- What is your payment term?

     We accept T/T or L/C.

5-What is your MOQ?

   1 sets

6-How do you pack?

   LCL order in plywood case Full container order in high quality export carton

7-What is your FOB port?

   Shanghai port.

8-What is your monthly production capacity?

   1000 sets

9-What is your shipping term?

   By sea/Air/Rail/Truck

10-Do you any additional services?

   YES!

We offer free spares according to your order quantity. Such as Vacuum Tube,    tube holders, dusting rings, silicon rings, screws etc. And we can offer logo design, Products Advertising Design etc services free.
