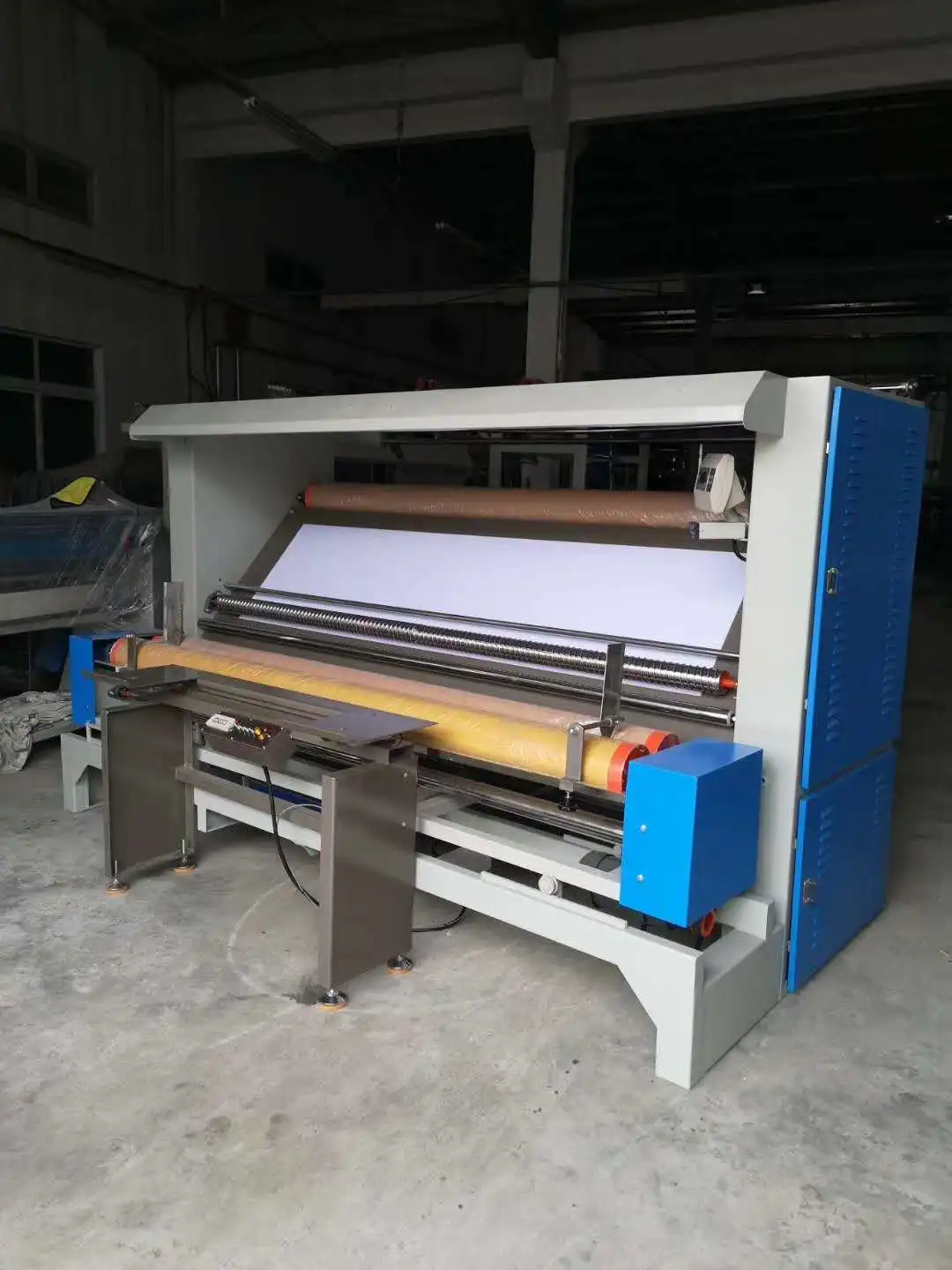

textile machinery fabric winding machine used fabric inspection machines

Product Overview

Description

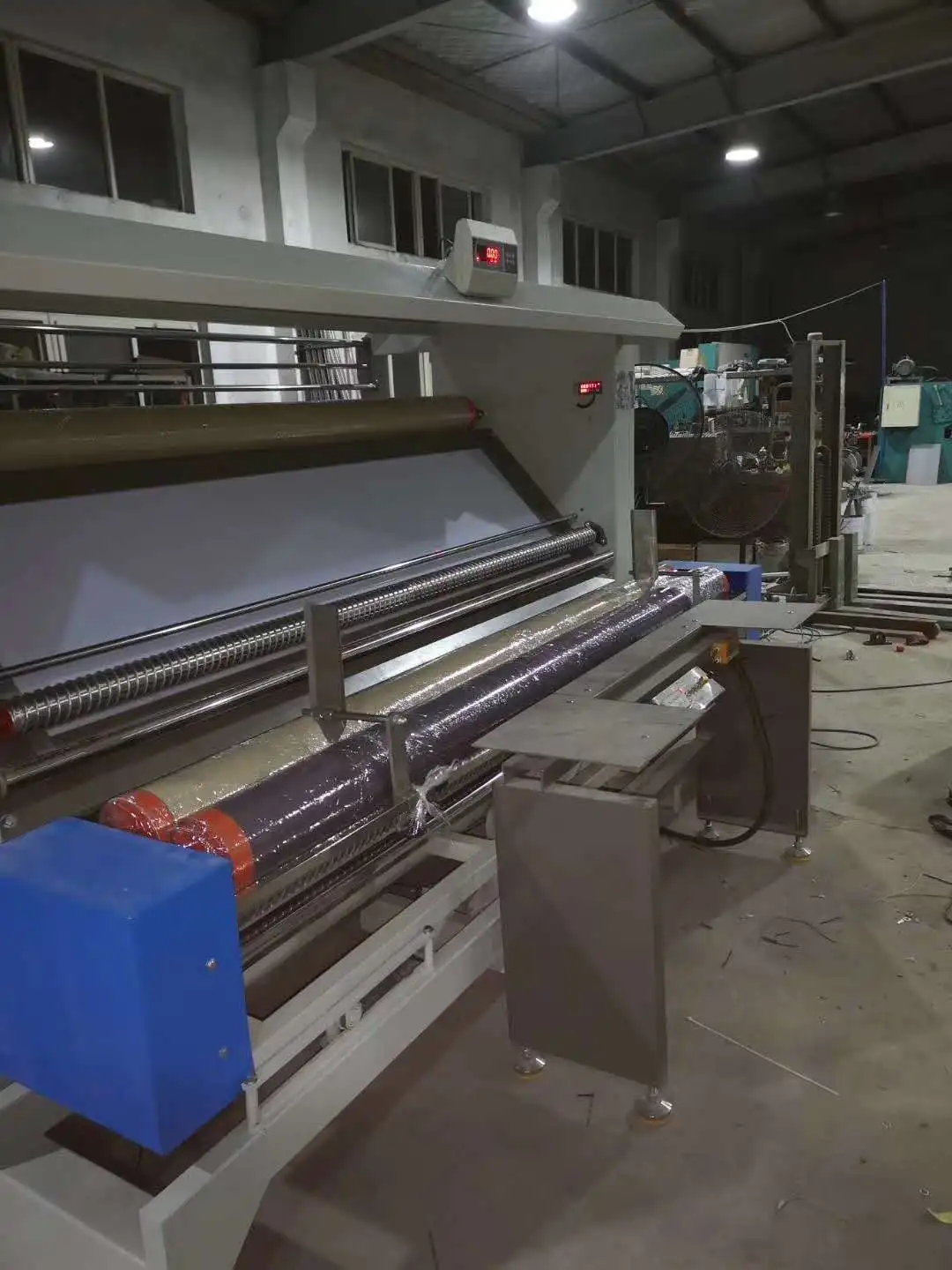

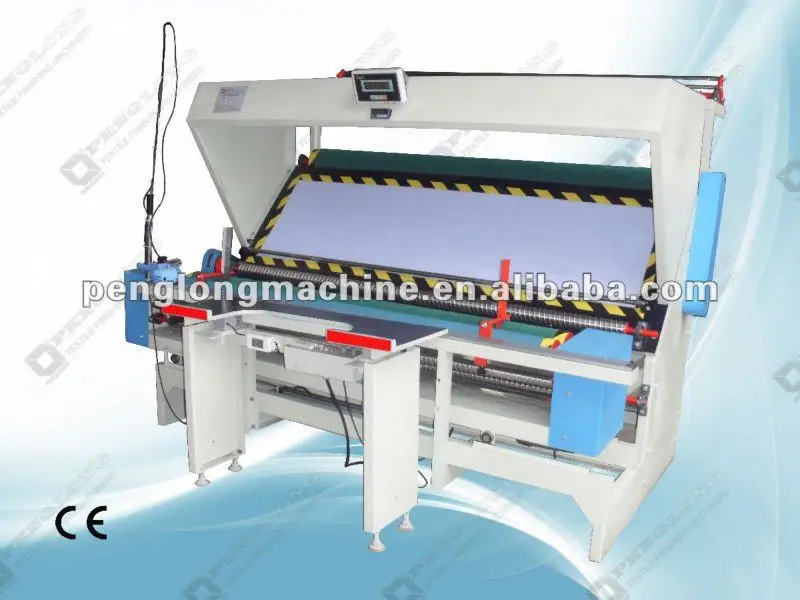

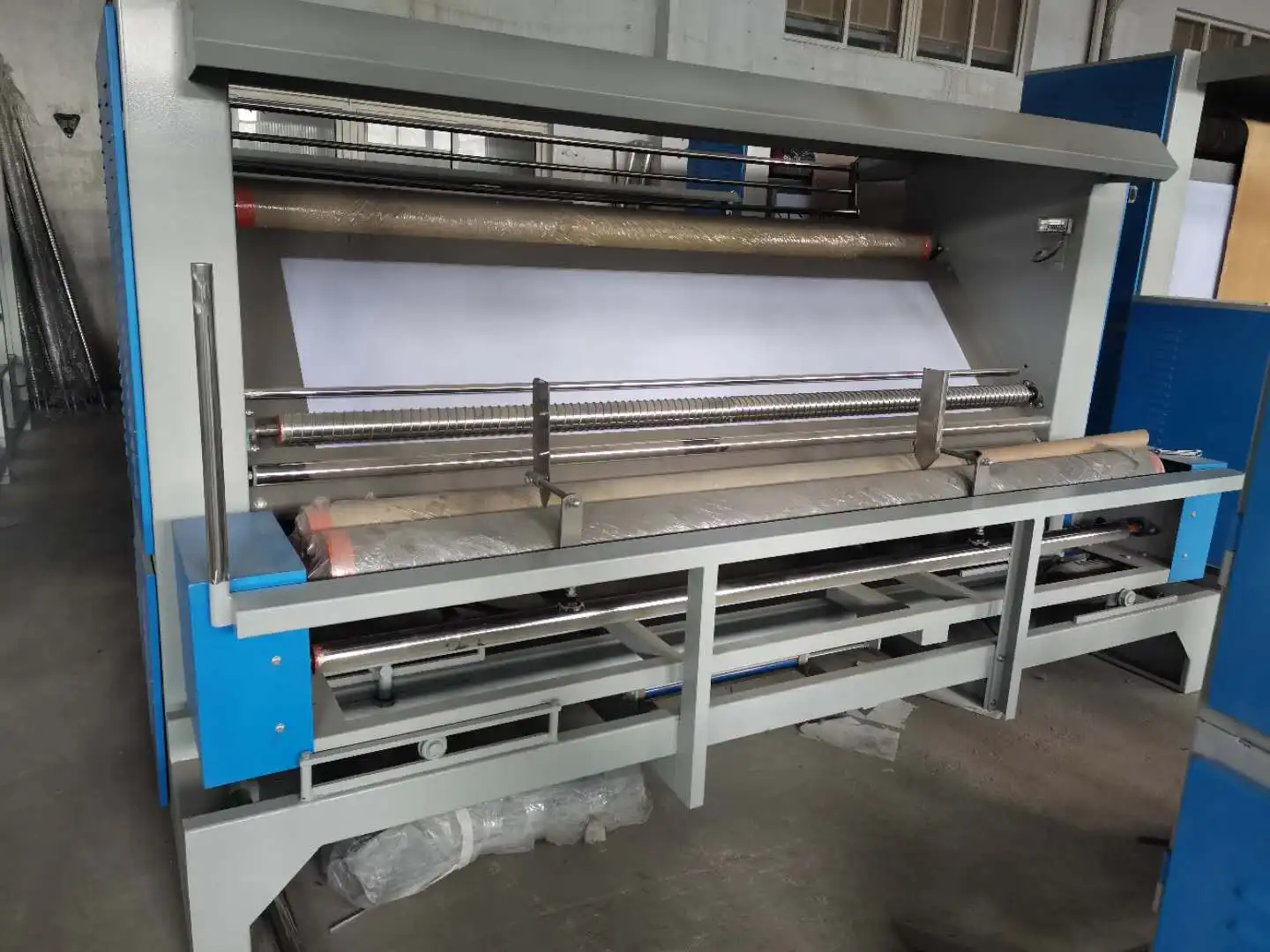

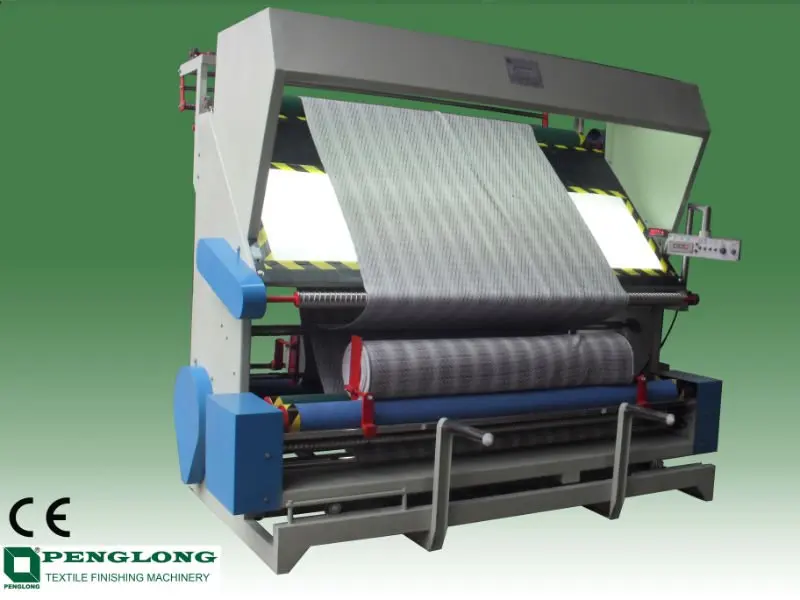

  Fabric Inspection Machine measuring machine



Name: ivy



Skype number : xie.ivy2



tel :18205902183



	PengLong Machinery Co.,Ltd
	Product Specification



name	Fabric Inspection Machine measuring machine
Max.Fabric Width	1800mm-2800mm
Diameter of fabric rolls	<600mm
Highest Speed	80m/min
Dimensions	2200mm(l)x2300mm(w)x1900mm(h)
Power of main motor	1HPX2
Accuracy of alignment	+3mm
Usage	This unit is suitable for inspecting and rolling up and counting length for all kinds of cotton, knitted, woven, printed ,plush fabric and tricot fabric etc.



characterstics

1	Photoelectric hydraulic edge-alignment system  is adopted. power 1/2HP
2	Fabric tension is adjustable via inverters, no shrink of fabric width.
3	Equipped with an spiral expanding roller to elimin ate curled edge. expanding power  1/2HP
4	Speed of main motor is managed by two inverters. Power 1/2HP
5	Digital counter could make accurate measurement of length in yard or meters which can be interchanged.
6	Winding roller and feeding roller are driven by gear motor . Power 1/2HP
7	Imported special foamed winding roller could roll up warp and weft knitted plush and short floss without sliding movement and untidy edge. Fabric rolls are neither too tight nor too loose.



product  detail

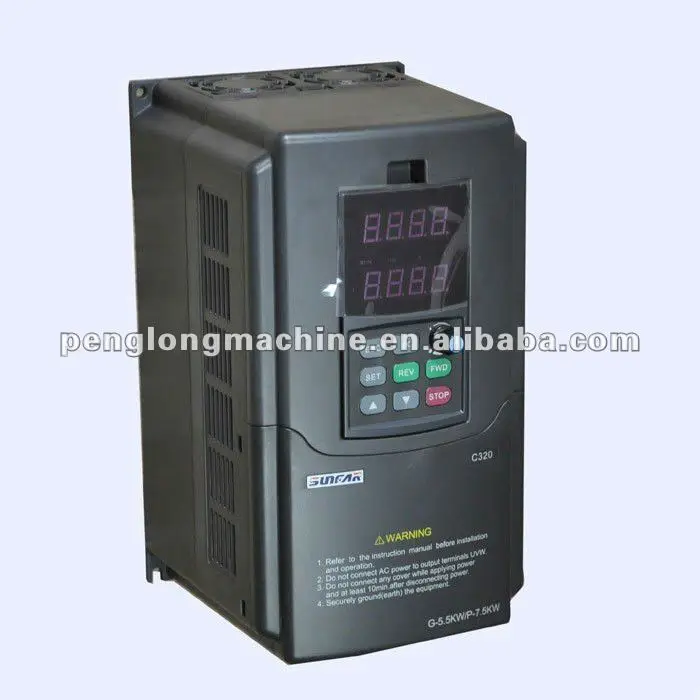

Fabric inverters is  adjust  tension

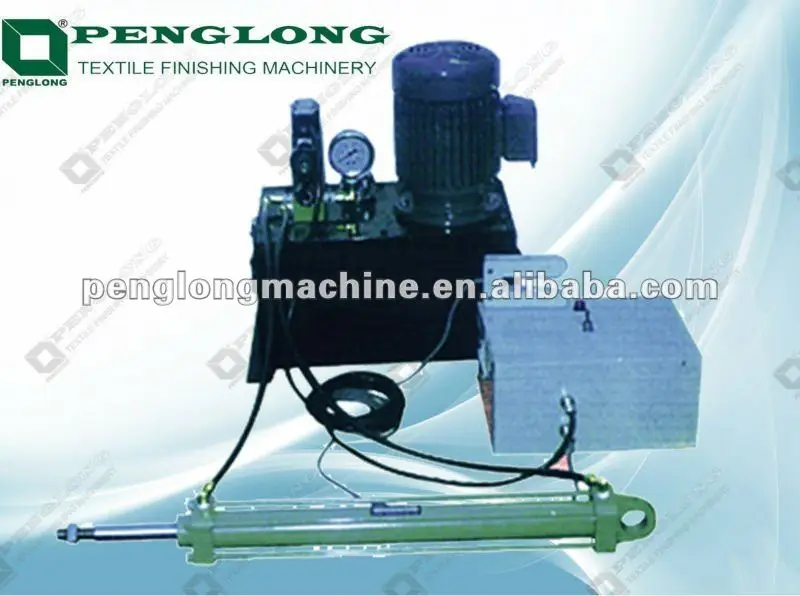

Photoelectric hydraulic edge-alignment system



Equipped with expanding rollers to eliminate curled edge and avoid crease on fabrics.

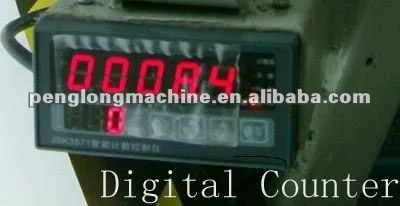

Length counter could make accurate measurement of length in yards or in meters which can be interchanged.



Company Information



Changshu Penglong Machinery CO., Ltd has been founded in 2000.We are specially making and designing any kinds of fabric finishing machine according to customers' different requirements.

Our machines have been exported to Australia,Agrentina,South Africa,Ukrain,Uruguay,Portland,Brazil,El Salvador,Vietnam,Thanland,France,Bangladesh,Ethiopia,Iran,Iraq,Saudi Arabia,Sri Lanka and so on.

We are never stopping developing and improving our products and service before or after these years.Hope our rich experience in fabric finishing machine and our sincerity would offer your company help and satisfied you.

PS:
Main Conventional Products:
1.Fabric inpection machine series :
We have many different types.Some will aim to all kinds of woven fabric,knitted fabric or both.Some will aim to big fabric rolls,small rolls or both.Some aim to different fabric feeding,output or both.Also you can add some other special requirements.As you like.Model:PL-B,PL-B1,PL-B2,PL-A1,PL-A2,PL-N,PL-D,PL-D2,PL-F130,PL-G150,PL-G606,PL-C.

2.Fabric Plaiting Machine Series:
We have several types of this machine which are specially designed.Model :PL-E1,PL-E2,PL-E3,PL-E4.PL-800

3.Fabric Opening Machine Series:
These machines are used to slit/open tubualr fabrics.Such as roper opener ,PL-C Fabric slitting and inspection machine,Vertical High Speed Tubular Slitting Machine

4.Other Finishing Machine Series:
Fabric Edge Sewing Machine,Fabric folding Machine,Packing Machine,Shearing Machine,Raising Machine,Softening Machine,pl-2000 Automatic Centering Machine.

5.Other Machine Series:
Industrial Drying Tumbler Series,Auto-inverter Centrifugal Hydro Extractor,Swatch Cutter,Motors,Inverters,Hydraulic Parts and spare parts.











Welcome to enquiry about our   PL-B cloth inspection and rolling machine
