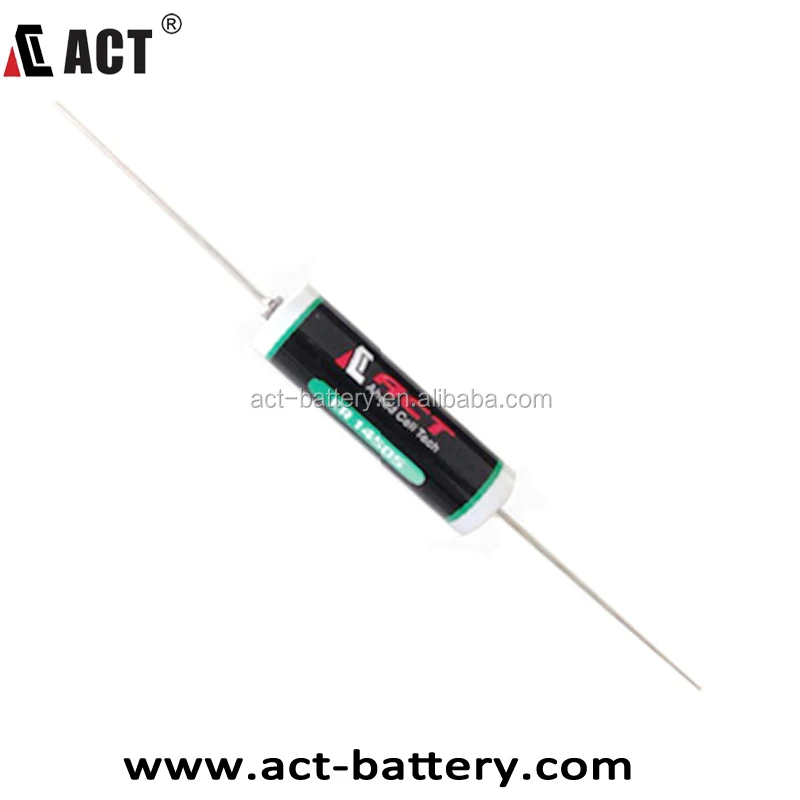

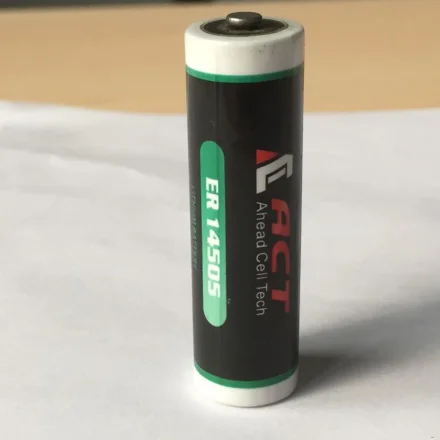

ER14505 3.6V 2.7Ah AA Lithium Battery with Axial Pins
- Category: >>>
- Supplier: Xiangyang Ahead Cell Technology Co. Ltd.
Share on (60004311235):
Product Overview
Description

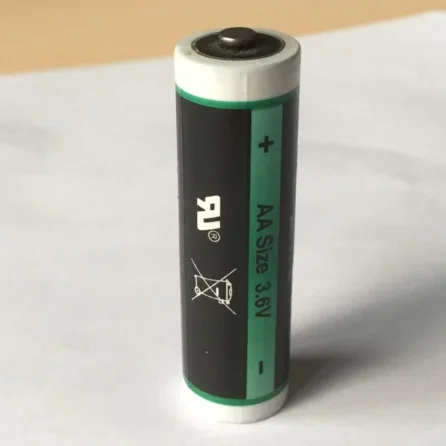

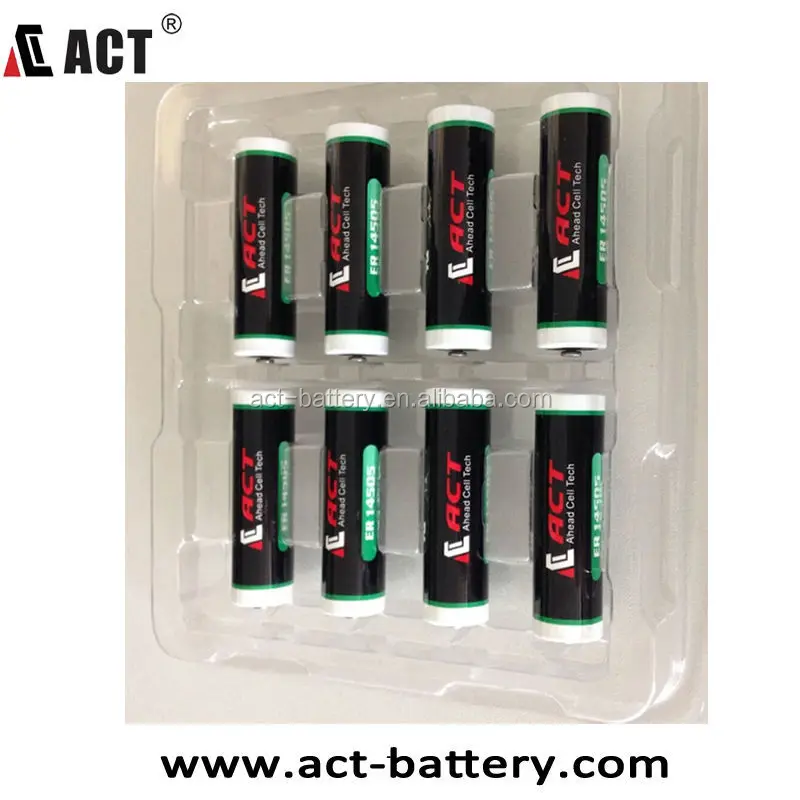

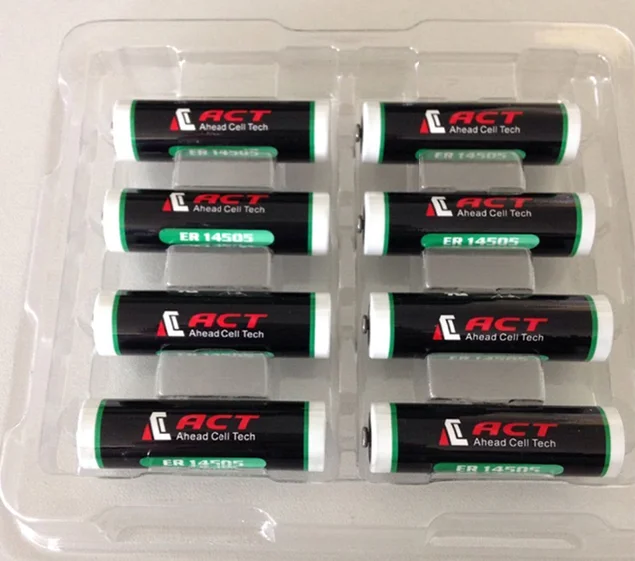

ER14505 3.6V 2.7Ah AA Lithium Battery with Axial Pins
Product Description
Specifications:
| Model | ER14505 |
| Alternative models | LS14500/LST14500/LS14500C/TL4903/TL5903/ TL-2100/ TL-4903/ TL-5104/SB-AA01/ XL-060F/ ER6S-TC/ |
| Size | AA |
| Cell Type | Bobbin Type |
| Brand | ACT or OEM |
| Nominal capacity | 2700mAh @ 1mA to 2.0V @ 23°C |
| Chemistry | Lithium thionyl chloride |
| Nominal Voltage | 3.6V |
| Open circuit voltage | 3.66V |

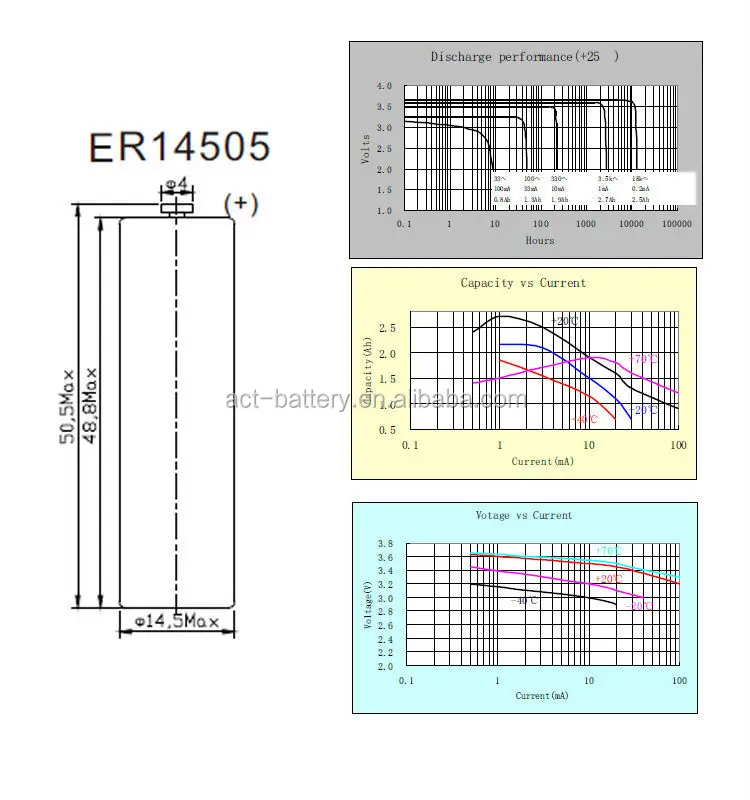

| Dimension | 14.5(D)*50.5(H)mm |
| Weight | Approx. 17g |
| Shelf life | 10 years |
| Max. continuous discharge current | 100mA |
| Max. pulse discharge current | 200mA |
| Yearly self- discharge | ≤1% |
| Certification | CE/RoHS/UL/UN38.3/MSDS |
| Operating Temperature Range | -55C~+85C |
| Storage ( Recommended ) | 20C ~ +25C |

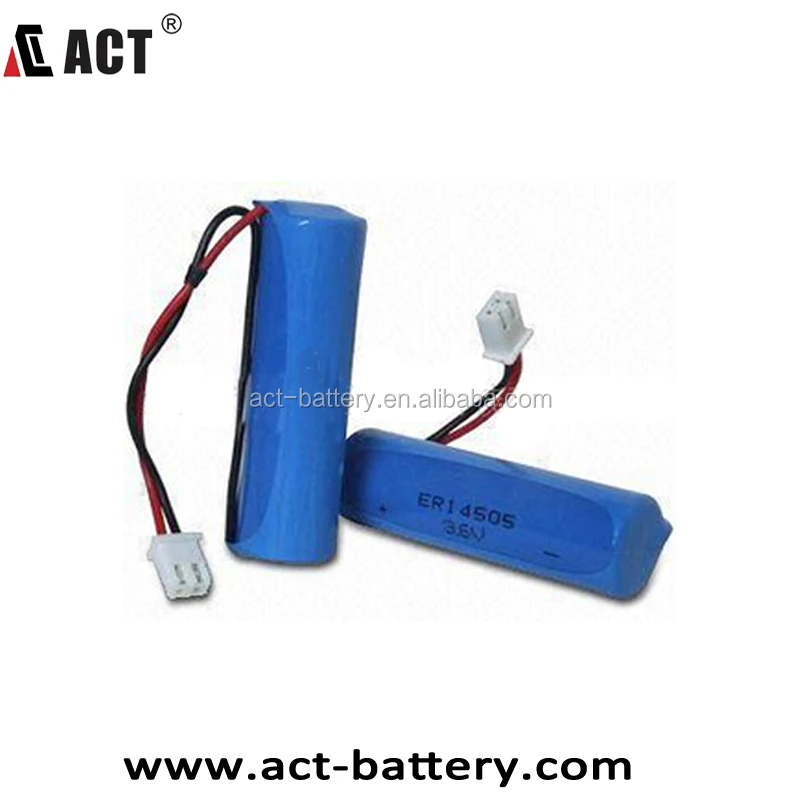

| Terminals/Connector | Radial tabs / radial pins / axial leads / flying leads |
| Exterior/Housing | Stainless steel container |
| Welding technology | Laser |
| Factory area | 33,325 square meters |
Key Features
> High and stable operating voltage
> High minimum voltage during
pulsing
> Low self-discharge rate(less than 1% after 1 year of storage at 25 °C )
> More than 10 years shelf life
> Stainless steel container
> Hermetic glass-to-metal sealing
> Laser welding
> Non-flammable electrolyte
> Cetificate: ISO9001, UN, UL, UN38.3, ROHS, CE, MSDS.
> Compliant with IEC 86-4 safety standard and EN 50020 intrinsic safety
Main Applicaions:
> Radiocommunication and other
military applications
> Alarms and security system
> Beacons and emergency location
transmitters
> GPS equipment
> Metering systems
> Led lighting applications
> Others

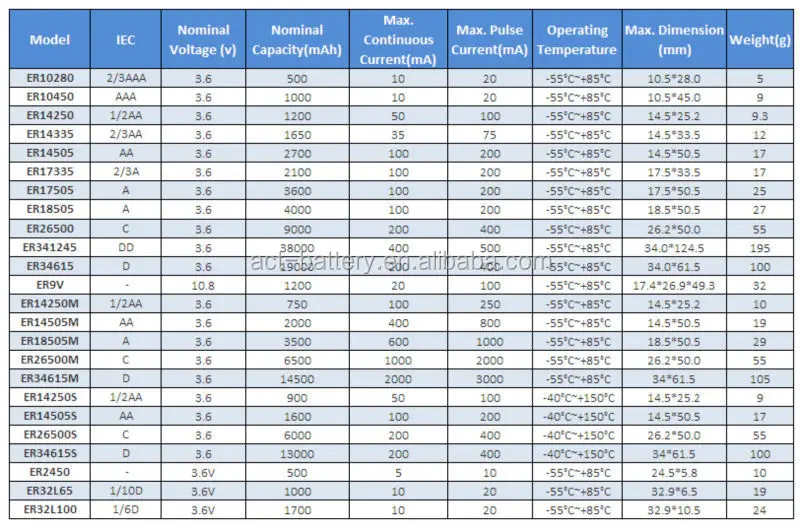

Related Models:

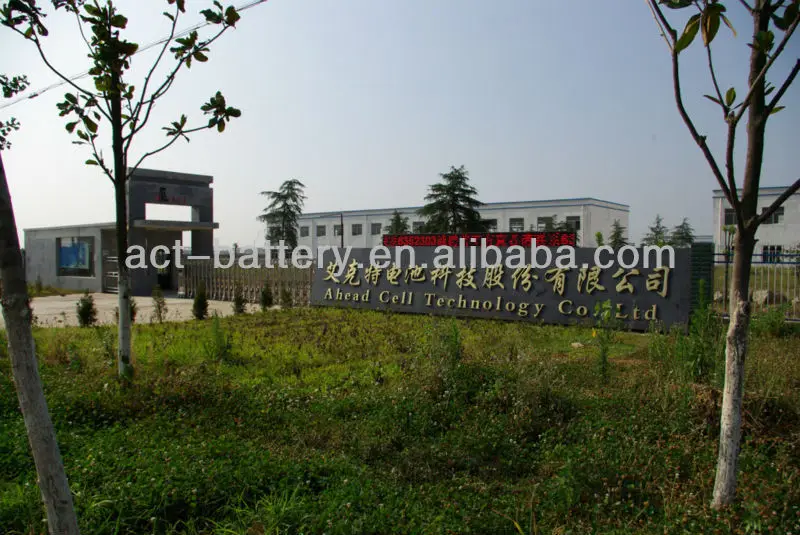

Company Information
1. 20+ Years of experience in battery industry with extensive knowledge.
2. An own property industrail zone of 33,325 square meters.
3. More than 200 workers of production, make sure large order process.
4. Quick analyze, design and prototypes.
5. Professional battery manufacturer
6. Established quality control systems under ISO9001 & ISO14001
7. OEM/ODM battery packs are available
8. We treat clients as friends with quick action & respond
9. Most batteries are RoHS, CE, UL, UN38.3, MSDS approved.
10. Battery Quality: A level & 100% new

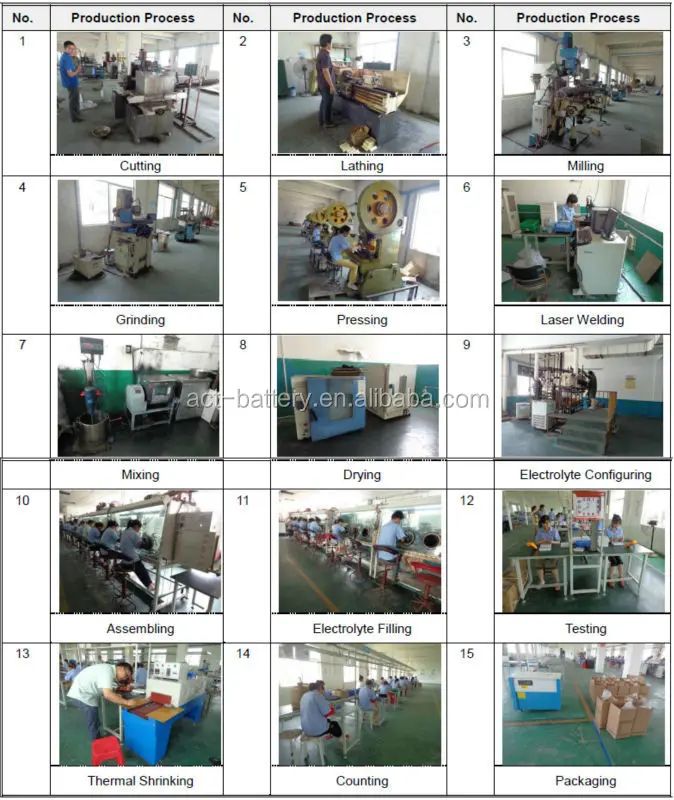

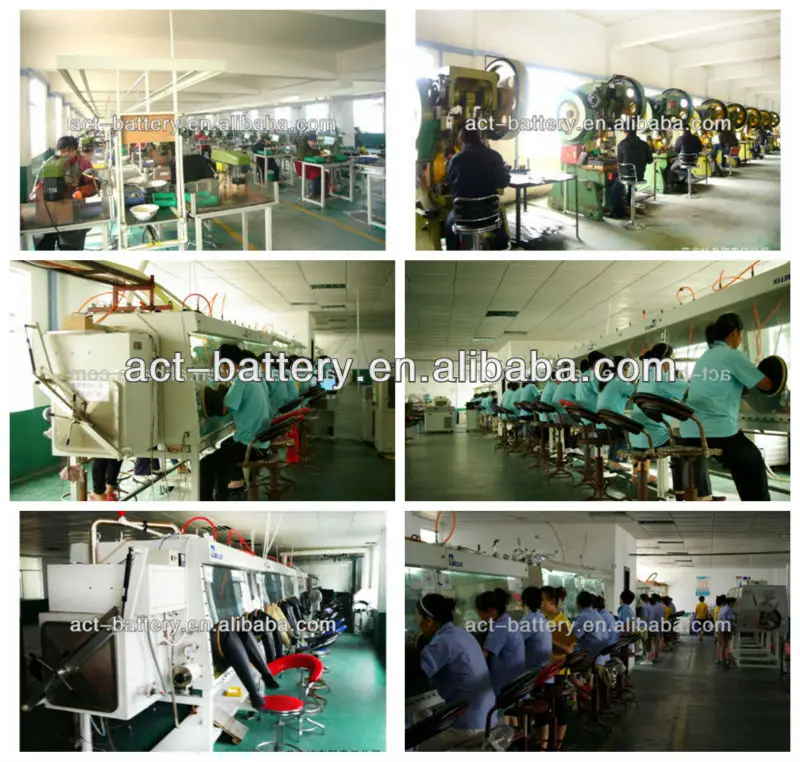

Production Flow:

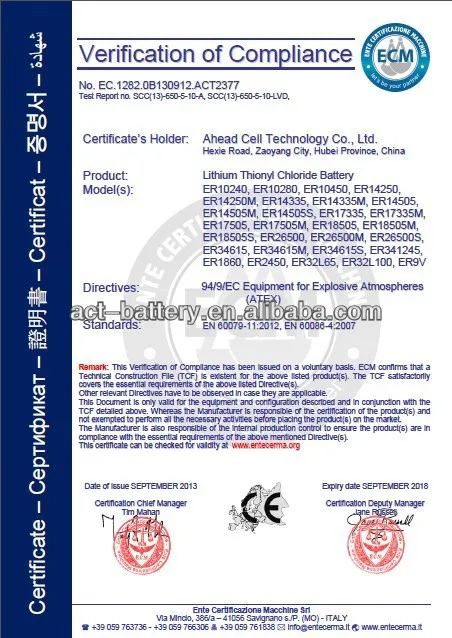

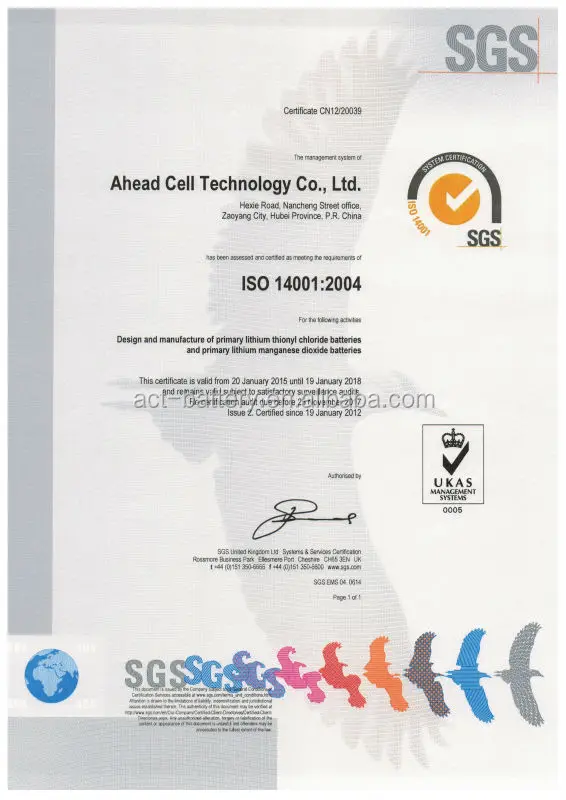

Certifications
