Industrial computerized lock stitch shuttle multi needle quilter for pajamas night gowns
- Category: >>>
- Supplier: Dongguan Yuxing Machinery Equipment Technology Co. Ltd.
Share on (60004377354):
Product Overview
Description

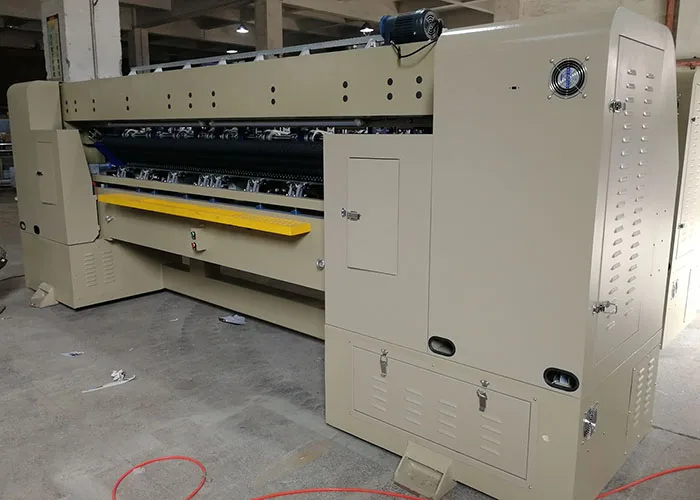

Computerized shuttle(lock stitch)multi-needle quilting machine
YXS-82-3CS
Product Description
It is widely used for quilting garments,handbags,quilts,bedspread and blankets,cushions etc.
Parameter:
Specification:
| Product Name | Computerized Lock Stitch Multi-needle Quilting Machine |
| Model | YXS-82-2CS |
| Size(L*W*H) | 4300*1500*1700mm |
| Weight | 4500kg |
| Quilting width | 2100mm |
| Needle bar space | 2CS 3''(76.2mm) |
| Quilting thickness | ≤50mm |
| Rolling speed | 500-1000 rpm |
| Output | 10-210m/hour |
| Needle type | #14, #16, #19 |
| X-axis movement | 254mm |
| Needle space | 25.4mm |
| Stitch | 2-8mm |
| Rated voltage(AC) | 380V/50HZ,/220V/60HZ |
| Power | 5KW |
Function:
1. The pattern editing system is easy to operate.
2. Have the ringing notice when the machine start to work.
3. The machine have infrared system, could make your operation more safe.
4. The principal axis uses the frequency conversion device.
5. The raddling rack and rollers are driven by servo equipment.
6. Machine have adopt the advanced computer and mechanistic technology.
7. Machine can do 360° random quilting and limitless multi-span and independent quilting.
8. Compensation function, an effective solution for looping pattern with thick material.
9. Needle bar frame structure is more firm and durable so that the cost of maintenance is cheaper.
10. Adjust speed by the computer system, speed can reach 1000r/min, stitch can be set between 2mm-8mm.
11. Needle bars running with needle bar frames, do not need to add extra lube, avoid the materials be soiled by lube.
12. Advanced and practical testing upper thread broken techniques, the machine will auto-stop when the thread broken.
Packaging & Shipping
All our machines are packed in elastic film or wooden case as required before shipping.The goods can be shipped 20 days after receiving advance payment.
Our Services
Guarantee: 1 year.
After-sale service: Engineer can send to customer factory for installation, and customer staff can come our factory for training for free.
CE approved.
Certificates:
FAQ
- Voltage:Our country's voltage is 380v/50HZ,220v/60HZ. Please be sure to tell us your country's rated voltage before shipping.
- Payment terms: TT:30% in advance, 70% was paid off before delivery.
Company Information
Our company is specialized in manufacturing computerized multi-needle quilting machine,
computerized non-shuttle multi-needle quilting machine,cutting machine and bobbin winding
machine,more than 10 kinds of products.
It passed the ISO9001 Quality Management System,and was honored as "Private Scientific and Technological Enterprises" by Dongguan city Science & Technology Bureau and Dongguan City Intellectual Property Bureau.Yuxing machines get a high credit standing at the correlative industry.
We always insist the tenet of "Honest Business,Credit First".In the condition of fierce competitive market,we make progress and get innovation constantly.We firmly believe high quality and good service are the best support for users' trust.
We're always warmly welcome you to visit our factory any time!^_^
